Description

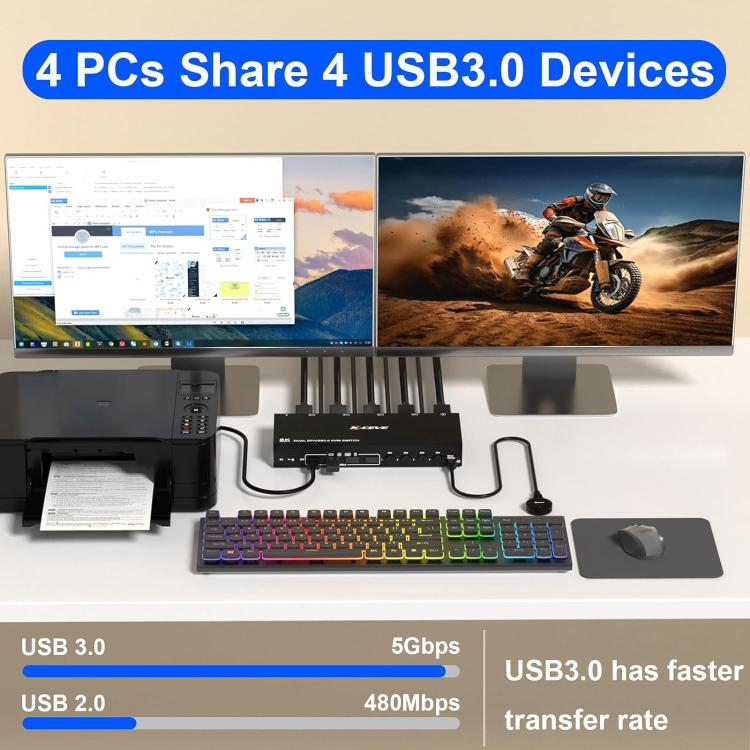

This USB and 4 display port KVM switch can control 4 desktop computers or laptops using 1 set of keyboard and mouse to share 2 monitors and 4 USB3.0 hubs. Supports multiple display modes (extended, mirrored and spliced ??wall). It is the best KVM switch to improve your work efficiency and make your workspace neater, and it is also a good choice for work or home use.
Features
1. Dual monitor output supports extension, mirroring and splicing wall display

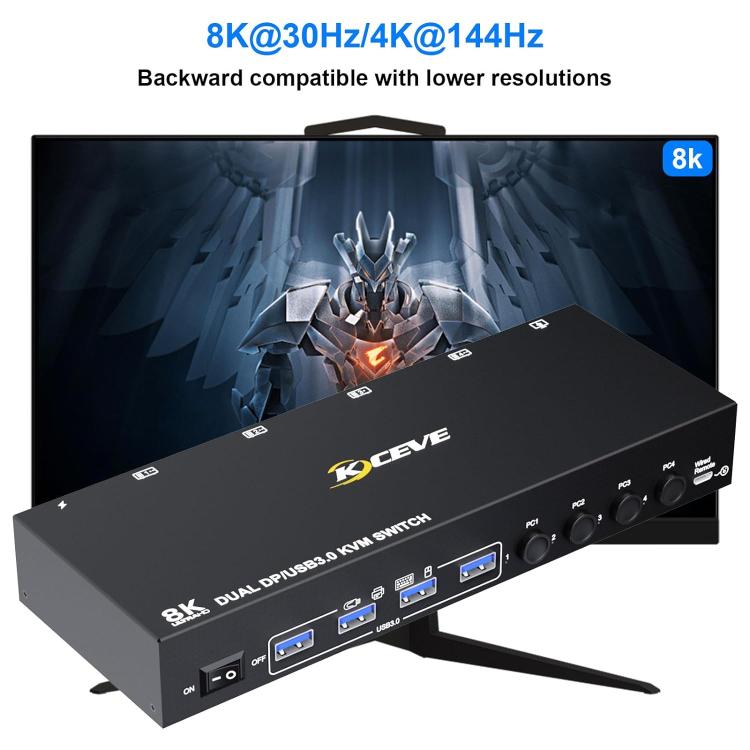

2. Supports DisplayPort video resolutions up to 4K 144Hz, 8K 30Hz
3. Supports Deep Color Technology

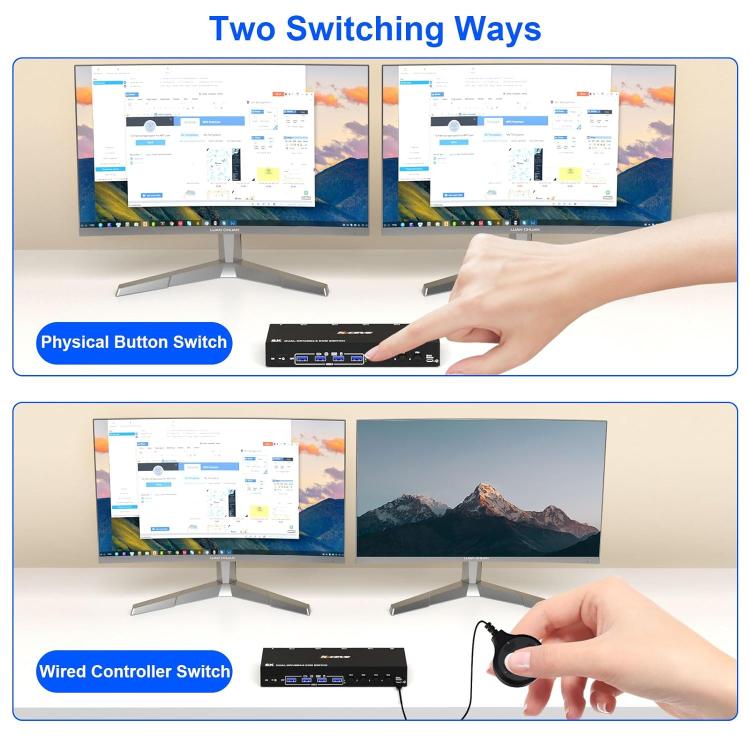

4. Switching modes: physical button and wired remote control
5. High compatibility, automatically matching source and display devices
6. Built-in automatic adjustment system to make the image smooth, clear and stable
7. Built-in ESD protection system
8. Easy installation, plug and play
Parameters
1. Video standard: Displayport 1.4
2. DP resolution range:
Up to 8K 30Hz, 4K 144Hz /120Hz / 60Hz;
1440P 144Hz / 120Hz / 60Hz;
1080P 240Hz / 165Hz / 144Hz / 120Hz / 60Hz
(depending on the system and connected hardware)
3. DP line range: less than 2M (resolution: 3840x2160, 144Hz)
4. USB interface protocol: USB3.0
5. Power supply: DC/5V-12V adapter charger
6. Power consumption: MAX 5W
7. Operating temperature: -5 degrees Celsius to +70 degrees Celsius
8. Operating humidity: 5%-90%

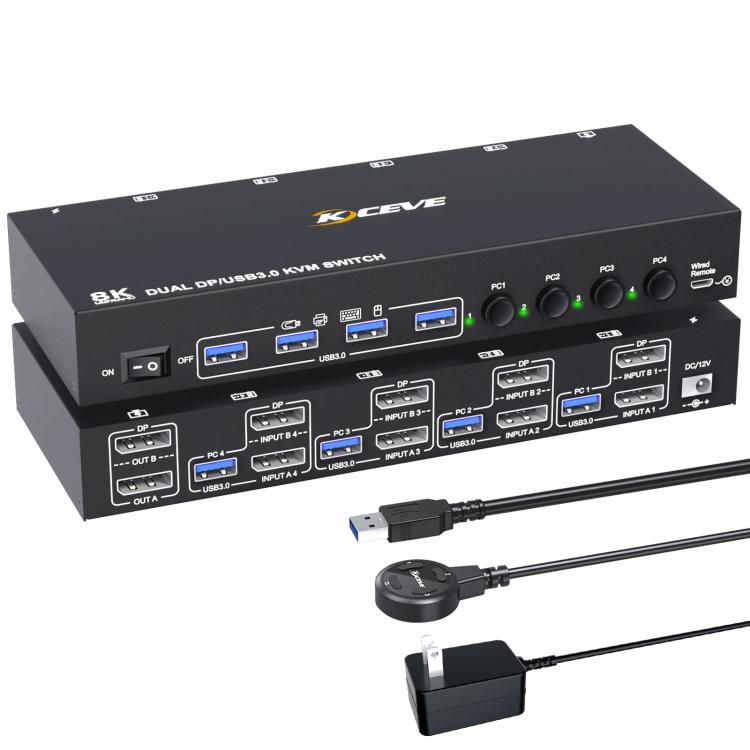

Packing List
DP KVM switch x 1
USB cable x 4
Wired remote control x 1
User manual x 1
