1. Input voltage: DC 12-24V
2. Output: 5V/3A 9V/2A 12V/1.5A
3. Waterproof level: IP67
4. Material: 6061 aluminum alloy, stainless steel, fireproof ABS, silica gel
5. Application: motorcycles, electric vehicles below 24V, scooters, scooters, etc.

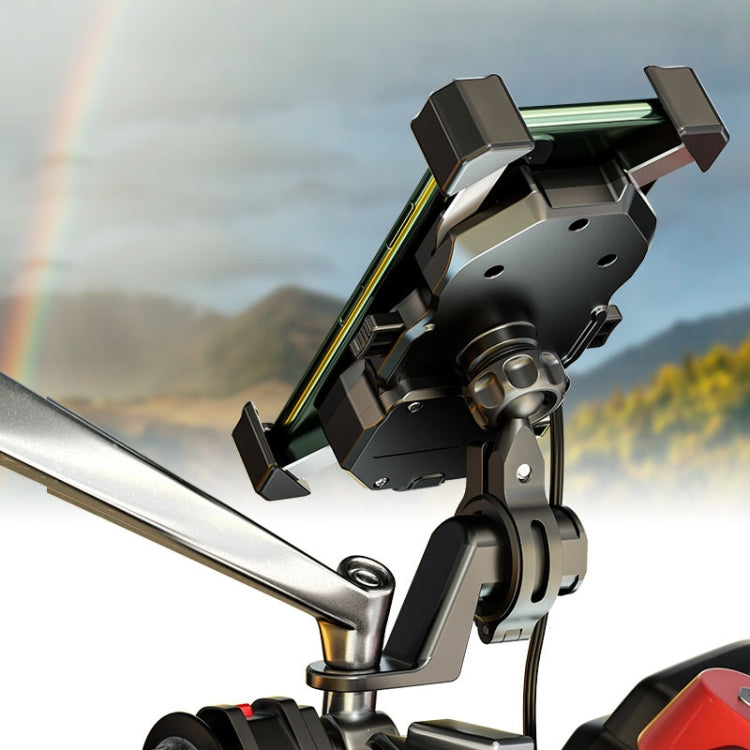

6. Installation range: motorcycle leading handlebar, rearview mirror installation, base diameter 22/25.4/32mm
7. Applicable model size: width of about 65-90mm, length of about 130-175mm, thickness of about 12mm or less

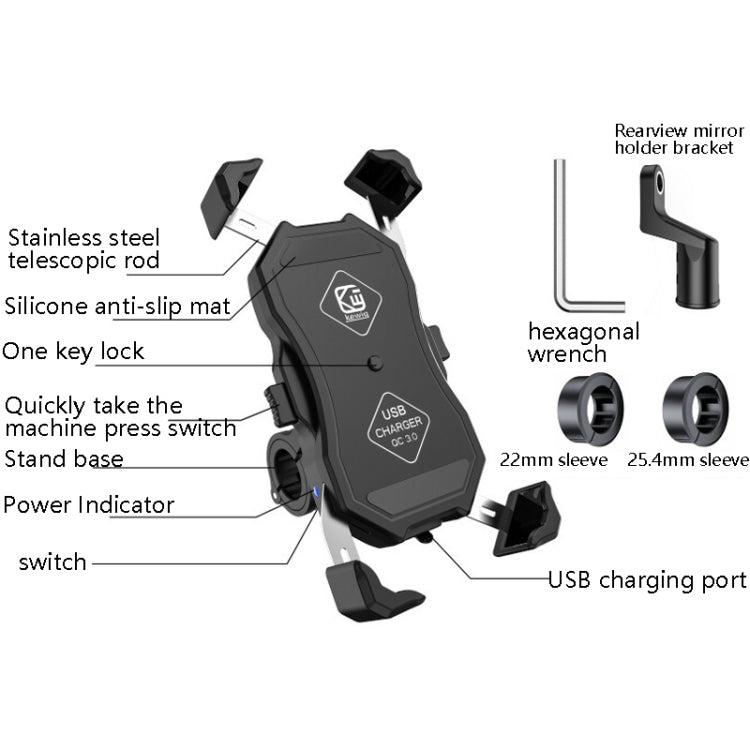

8. Features: support 360-degree universal adjustment angle, quick access to the machine, automatic telescopic, one-key locking, easy access, four-jaw fixed, with silicone anti-skid pad to protect the phone, shock absorption and anti-skid
9. Packing list: bracket, hexagon wrench, rearview mirror holder bracket, 22mm sleeve, 25.4mm sleeve
10. Single package size: about 19.3x11.2x6 cm
11. Weight: about 290g
Connection method:
1. Connect the red terminal of the positive wire to the electric door lock (ignition switch). It is not recommended to connect the battery directly. Connect the black terminal of the negative electrode to the negative electrode of the battery or to any metal part of the frame.
2. Note: the use of batteries higher than 24V is prohibited
