Functions:
1. Read codes: show the detailed description of the Diagnostic Trouble Code (DTCs)
2. Erase codes: turns off Check Engine Light (MIL), clears codes and resets monitor.

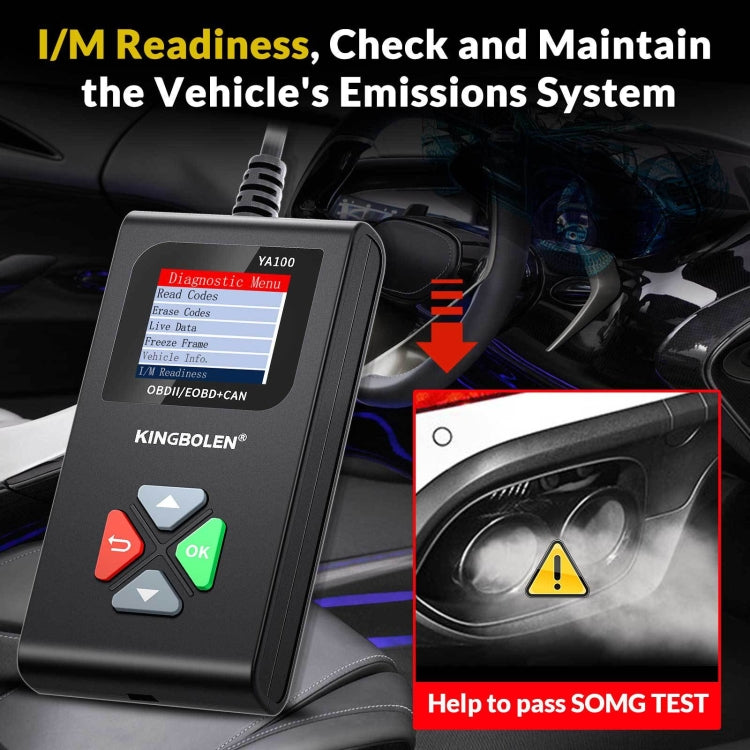

3. Read data stream: reads and displays live ECU/PCM data stream.
4. I/M readiness status: shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5. View freeze frame data: check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
6. O2 sensor test: allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicles on-board computer.
7. EVAP test: performs EVAP system test to detect any leak in the EVAP system of vehicle.
8. On-board monitor test: retrieves and displays test results for emission-relatedPowertrain components and systems.
9. Read vehicle information: display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10. Component test: certain vehicle components can be actuated by commands sent from the scanner to test their operability.
Protocols:
1. SAE J1850 PWM (41.6 Kbaud)
2. SAE J1850 VPW (10.4 Kbaud)
3. ISO 9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
Specification:
1. Screen Size: 1.8 inches TFT Color Display
2. Resolution: 128 x 64 pixel
3. Unit: Metric/Imperial
4. Working Voltage Range: 8~18V
5. Dimension: 125mm x 65mm x 22mm
6. Operating Temperature: 0~60 degree Celsius
7. StorageTemperature: -20~70 degree Celsius
8.Supports 11 languages: English, French, Russian, German, Italian, Spanish, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Polish. All languages are free to use.
