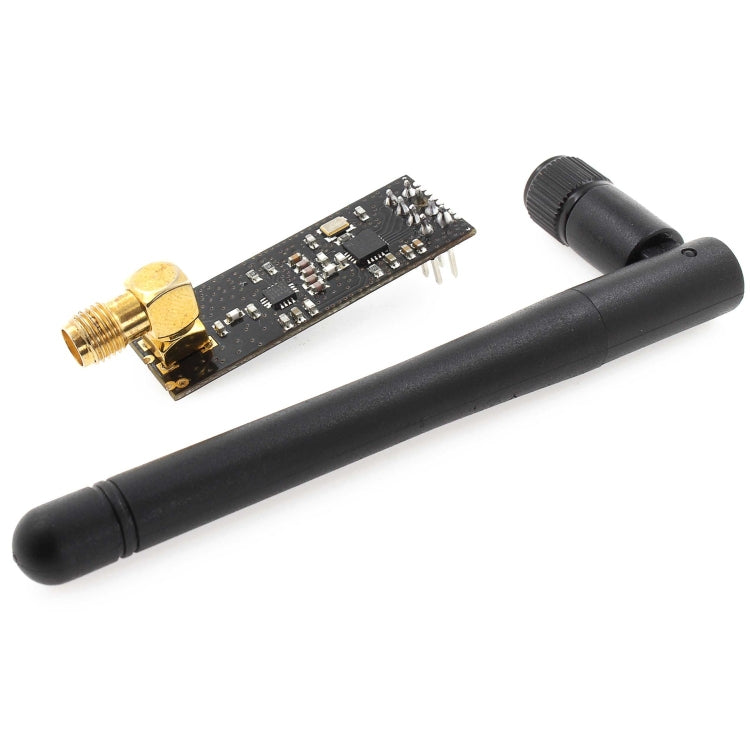

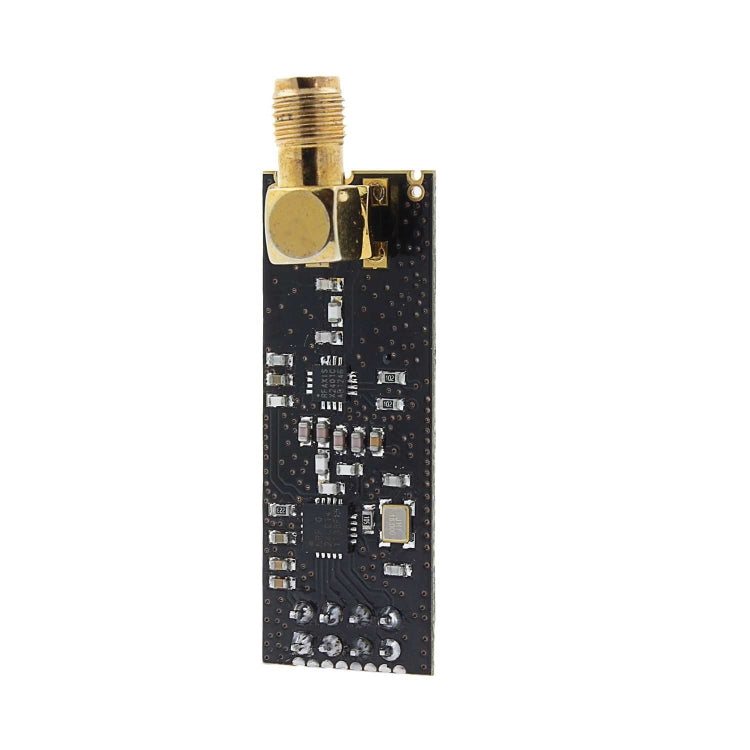

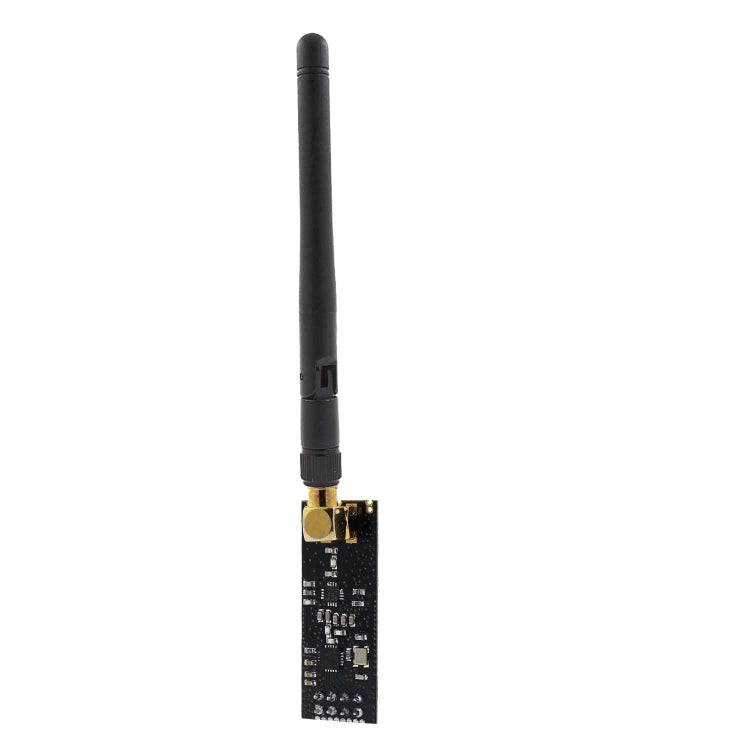

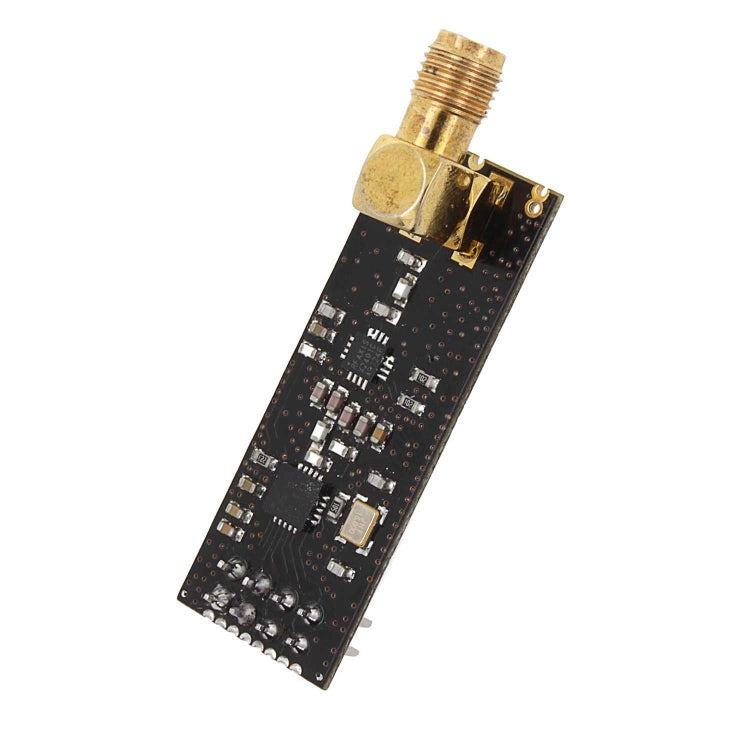

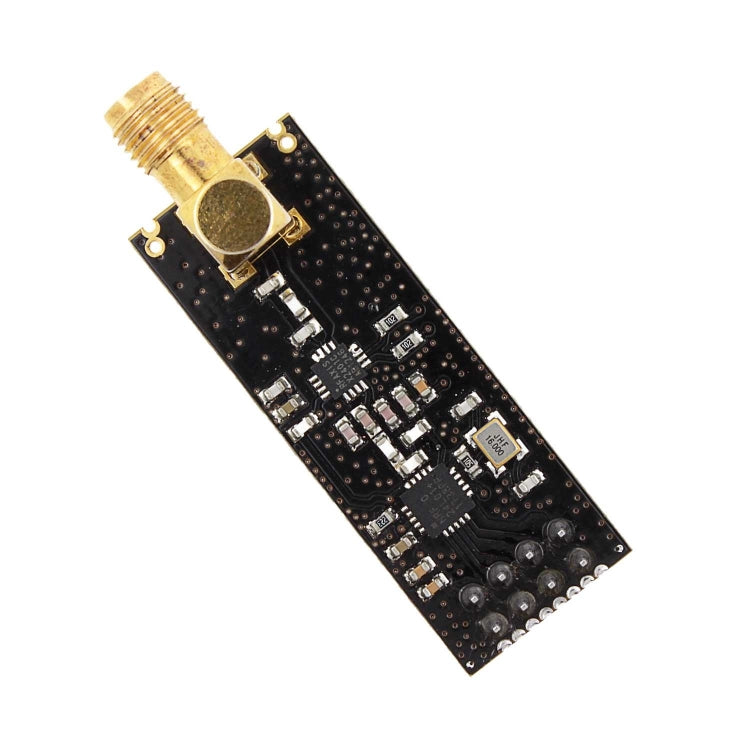

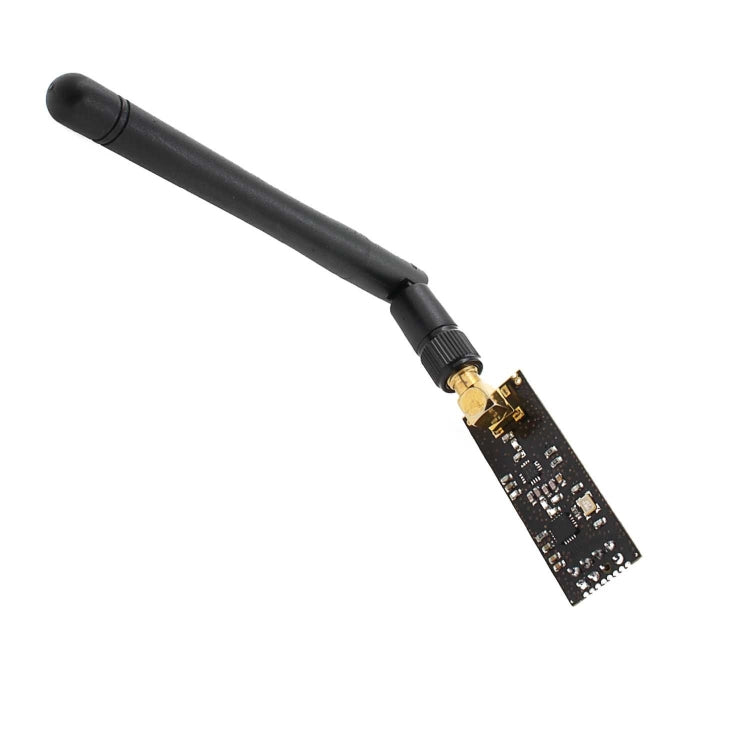

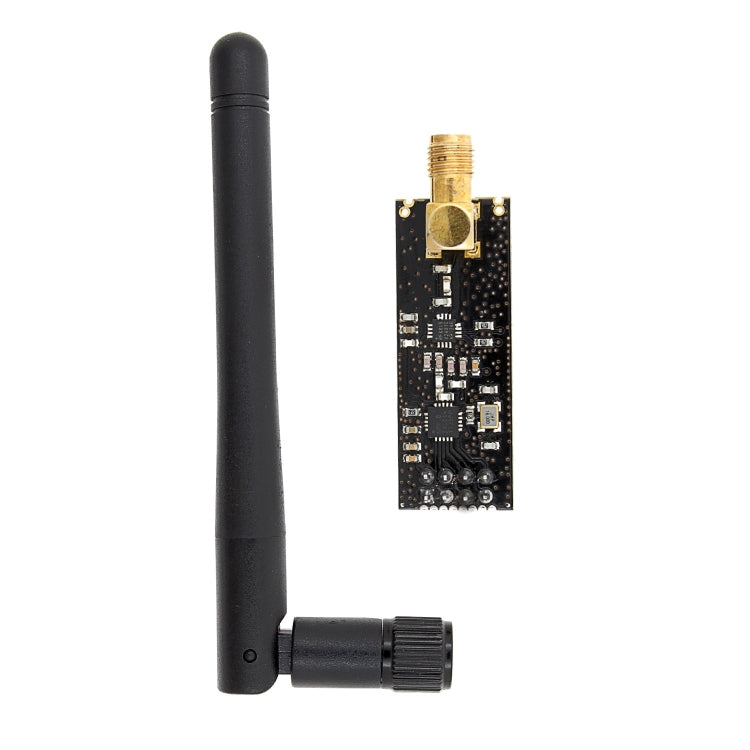

LDTR-WG0234 1100 Meter Long Distance NRF24L01+PA+LNA Wireless Module with Antenna (Black)

1. NRF24L01P + PA + LNA Division for the ultra-long-distance data transmission, specially developed high-power and high sensitivity wireless module 2.4G ISM band NRF24L01P + PA + LNA wireless module to work in the license-free that can be point-to-point applications or be composed of a star network.
2. Digital transmission chip NRF24L01+ with the Division of Professional Design professional full two-way RF power amplifier high power PA and LNA chip, RF switches and band pass filters, makes effective communication distance greatly expand.
3. RF part, it has been done a lot of optimization matching debugging. The emission efficiency to achieve the highest harmonic minimum and make NRF24L01P + PA + LNA wireless module of RF interference to the external equipment reaches minimum, while not susceptible to interference from other devices.

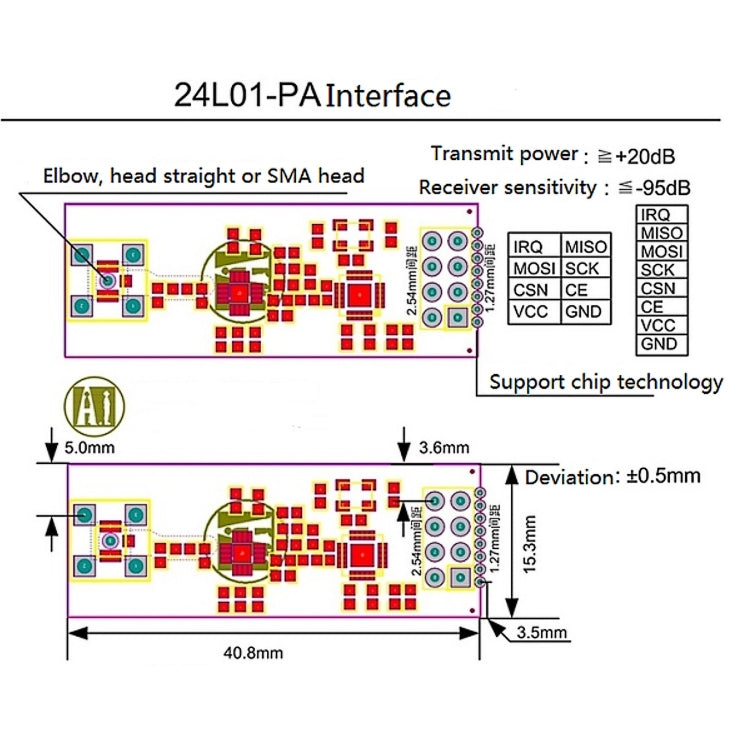

4. NRF24L01P + PA + LNA wireless module integration is extremely high, the size is 41mm x 15.5mm to make conveniently embedded.
5. Working Voltage: 3.0~3.6V, (recommended 3.3V);
6. Maximum power: 20dBm;
7. Transmit mode operating current (peak): 115mA;
8. Operating current receive mode (peak): 45mA;
9. Power-down mode current: 4.2uA
10. Package List
- 1 x Wireless module
- 1 x Antenna
