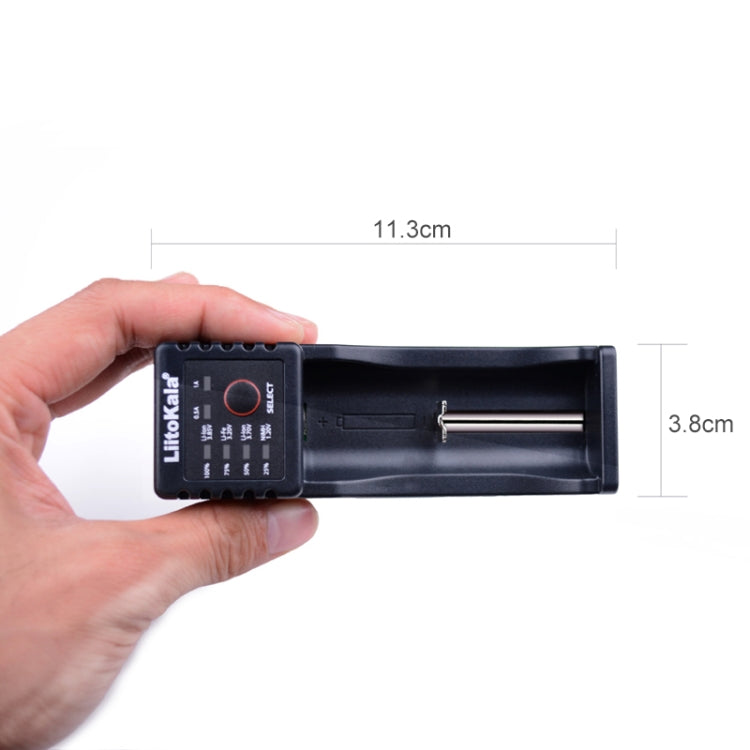

1. Size: 11.3*3.8*3.2cm
2. Weight: 60g

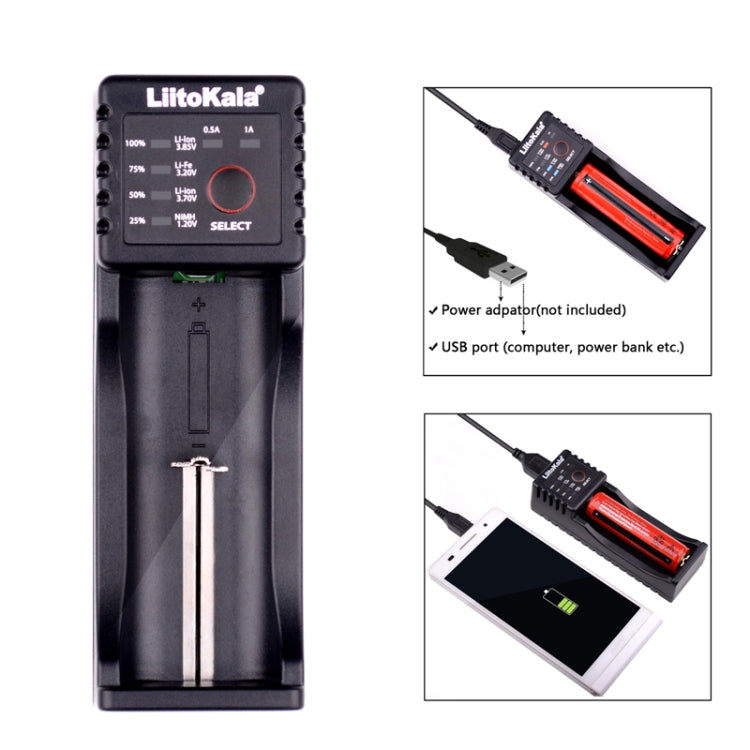

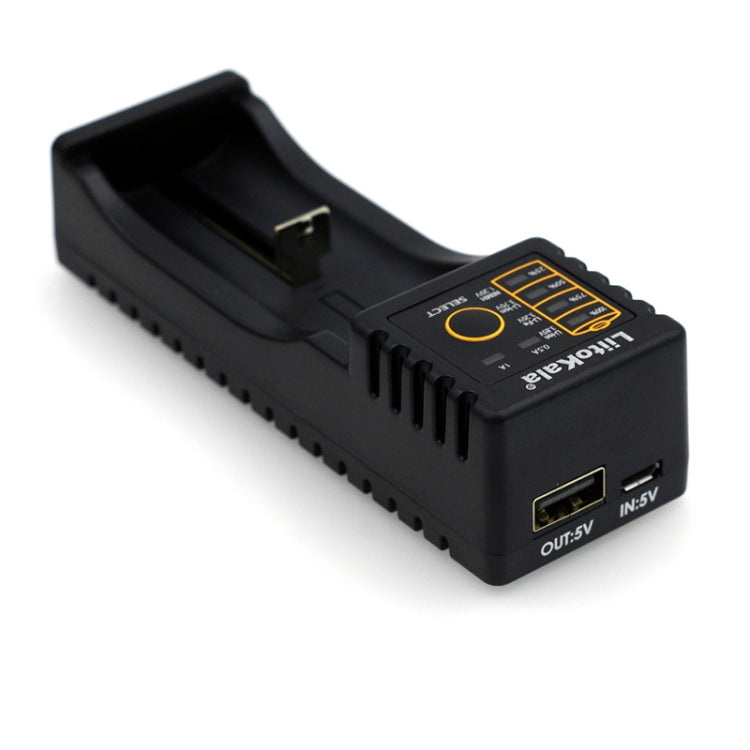

3. Input power supply: Micro USB DC 5V/1A
4. Output current: 500mA/1000mA
5. USB port output no-load voltage: 4.90-5.30V
6. The charger has a button to select charging current, which is easy to use. In any case, hold down the selection key and hold for 2 seconds 500 mA to convert 1000 mA charging current, press the selection key lightly to change the charging battery, and enter the charging state for 5 seconds when the charging battery is selected (example 3V 3.85V).
7. The charger is connected with 5V power supply. All the LED lights of the charger are on at once. If the battery is not put into the charging operation, the 500 mA (LED) display shows that the bad battery LED lamp flickers.
8. When the charger connects to the battery, it automatically identifies lithium 3.7V (Li-ion) and nickel-hydrogen 1.2V (Ni-MH).Ferric phosphate 3.0V (Liepo4) and lithium 3.85V (Li-ion) need to be selected manually. When the charging is selected, it will enter the charging state 5 seconds later. When the system is charged by default, the battery type can be inquired by pressing the select key and other functions can not be changed.
9. Compatible Batteries: Li-ion/IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR 123), 14500, 10440
