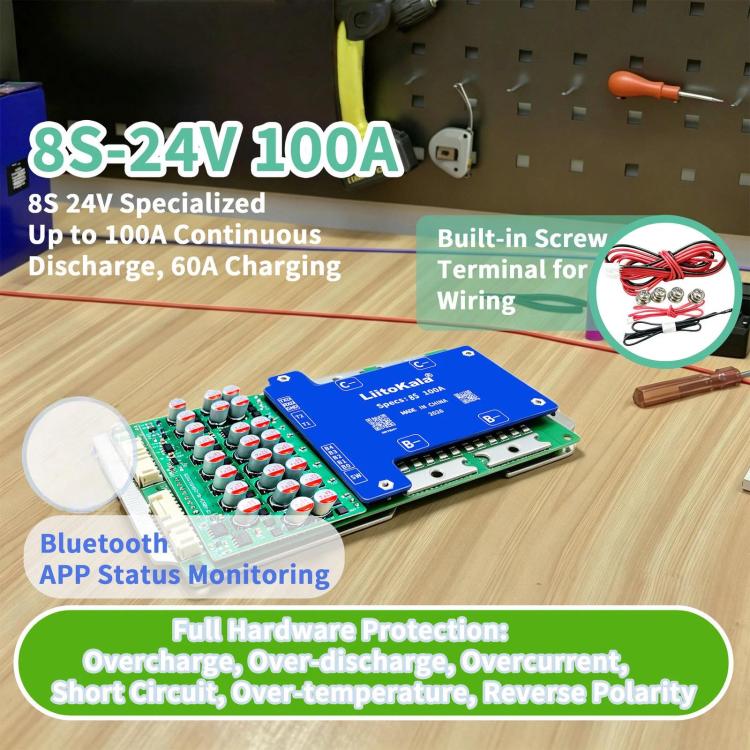

1. Deeply optimized for 24V energy storage and power systems, supporting 100A continuous discharge and 60A charging current. A thickened metal heat dissipation substrate combined with a dense capacitor array ensures the chassis remains cool and stable under heavy loads.
2. Built-in Bluetooth module allows for quick pairing by scanning the onboard QR code. Supports real-time reading of core cell data via a mini-program, providing comprehensive battery health monitoring.
3. Equipped with a top-tier hardware and software dual-defense system, providing 24/7 protection for vehicle and equipment safety.
4. Provides overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, over-temperature protection, and reverse connection protection.

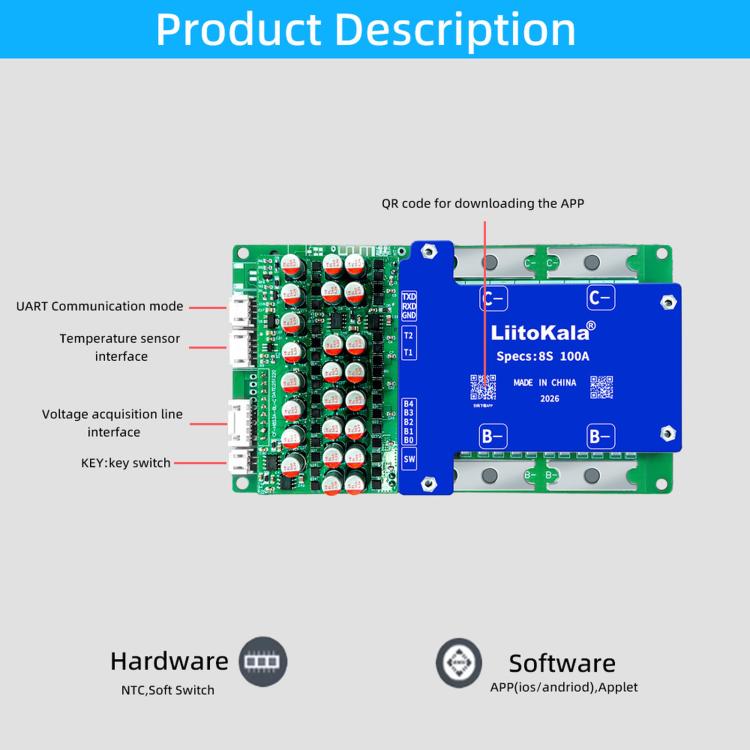

5. Abundant onboard expansion slots, including: a UART serial communication interface (for easy connection to a PC or large-screen display), an NTC temperature sensor interface (accurately captures subtle temperature changes within the cell), an 8-column voltage precision acquisition cable interface, and a KEY low-voltage soft switch interface (disconnecting the soft switch cuts off the high-voltage output, ensuring safe operation without sparking).

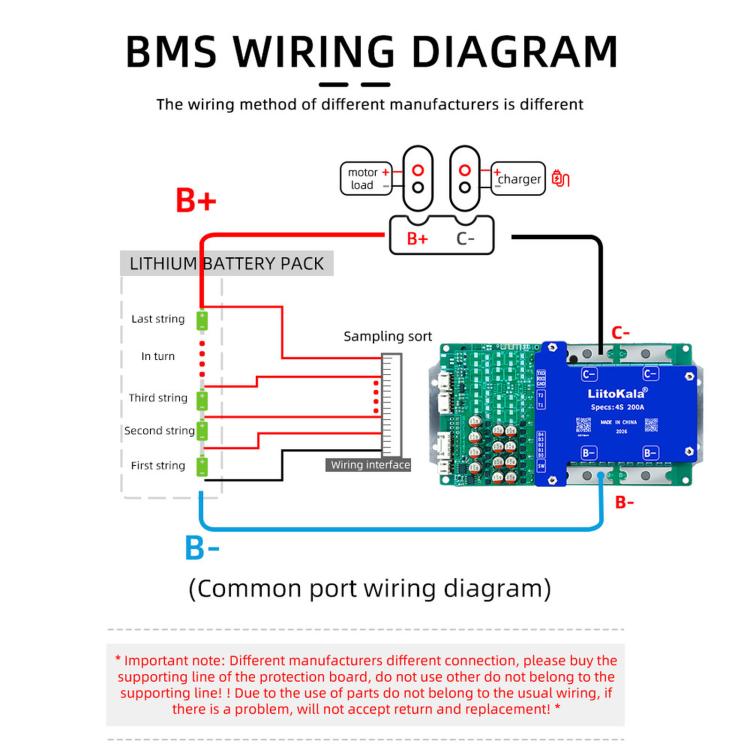

6. Employing a more streamlined, shared-port design, charging and discharging share the same path.
7. Comes with built-in screws for securing terminals, a dedicated high-specification 8S data acquisition cable, and a temperature probe, significantly reducing the technical barrier to assembly.
