Product Details

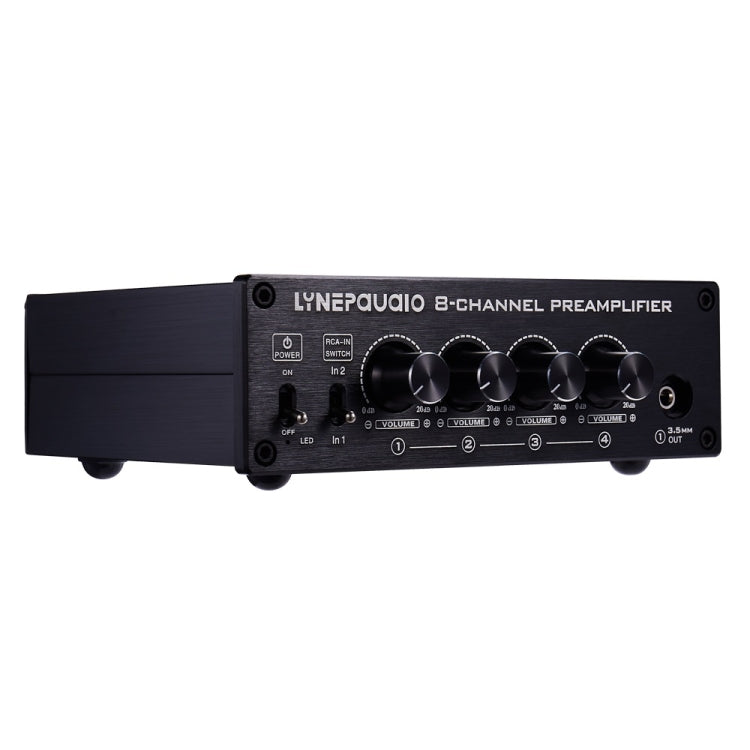

The B981 is a powerful 8-channel high-power preamplifier which has dual-sound input with a selector switch. The product provides an independent 3.5mm stereo earphone jack which can drive a variety of high-impedance professional monitor earphones. Each channel can drive 16Ohm-600Ohm and provide 8 stereo channels for output. There are four independent volume knob adjustments to control the 8-channel for simultaneous level signal output, presenting the rich sound quality, well-balanced bass, clear high frequency, and no other signal popping phenomenon, and ensuring lossless and undistorted sound. It can provide +20dB high gain through any line level signal source, allowing running through longer cable lines or "buffering" to solve low volume problems. You can use the product to connect line level signal source and power amplifier as a volume controller. The RCA socket can match almost all other product interfaces. The product is powered by an AC AC9V transformer.
Specification
1. Input impedance: 100K Ohm
2. Input level: +14 dBV
3. Output impedance: 47 Ohm per output channel
4. Frequency response: 20 Hz - 20K Hz
5. Signal to noise ratio: Above 107dB
6. Total harmonic distortion: Less than 0.08%
7. Intermodulation distortion: Less than 0.01%

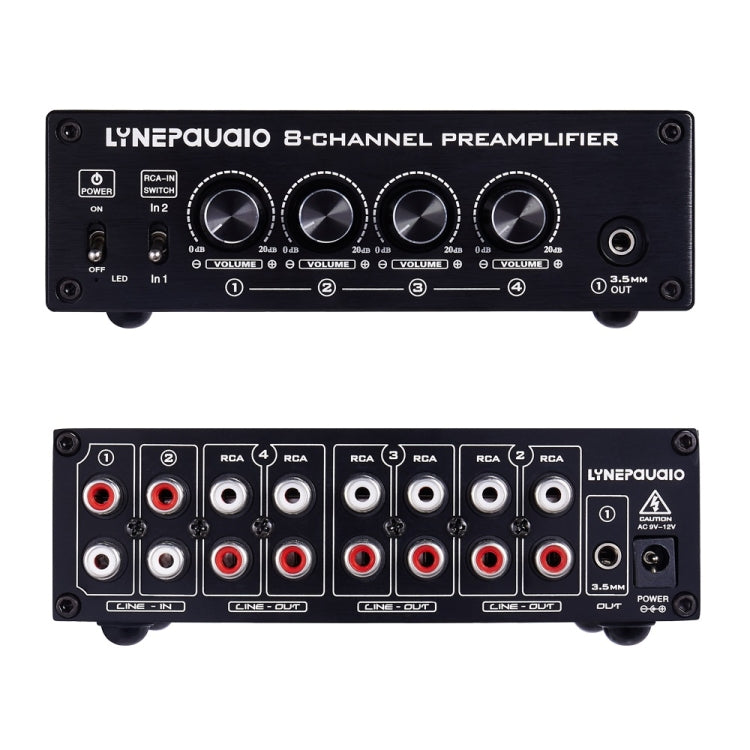

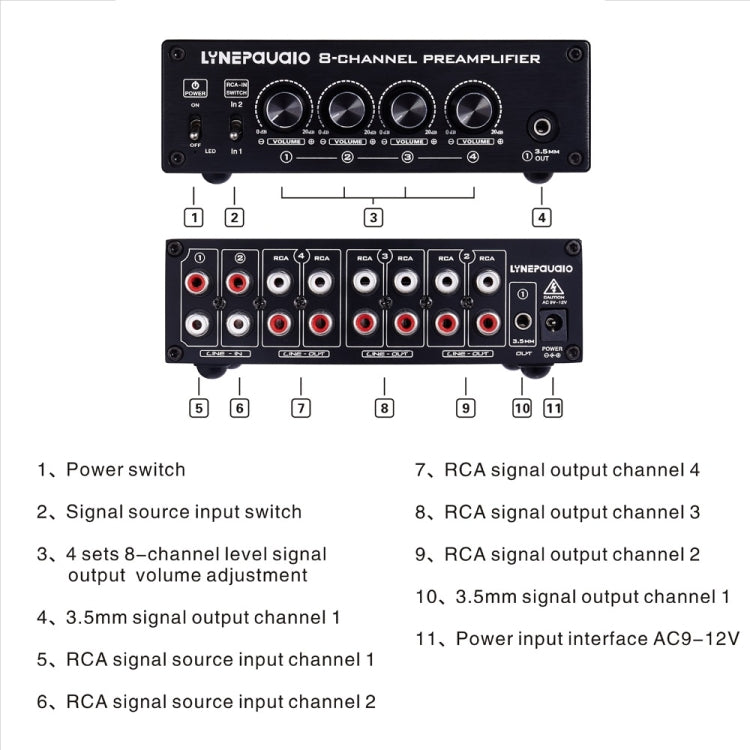

8. Signal input: two sets of stereo RCA socket
9. Signal output: six sets of stereo RCA connectors and two sets of 3.5mm stereo earphone jack
10. Product power supply: AC9V-12V
11. 4 independent channel stereo level volume output controlling knobs
12. Product net weight: 0.68kg

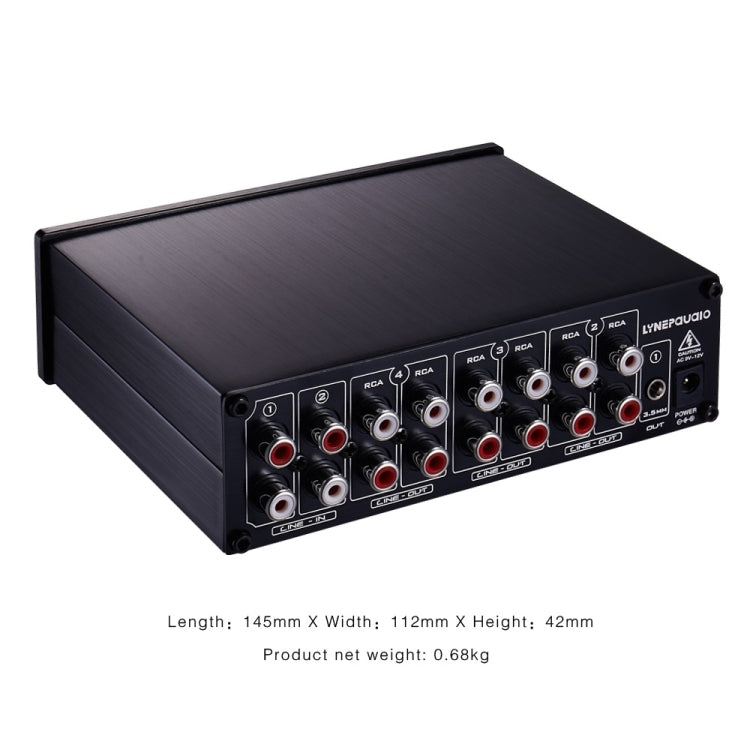

13. Product dimensions: length 145mm x width 112mm x height 42mm
Package List
1. B981 Professional 8-channel preamp signal-amplifier speaker distributor x 1
2. AC 9V Power adapter (US standard) cable length 100CM x 1
