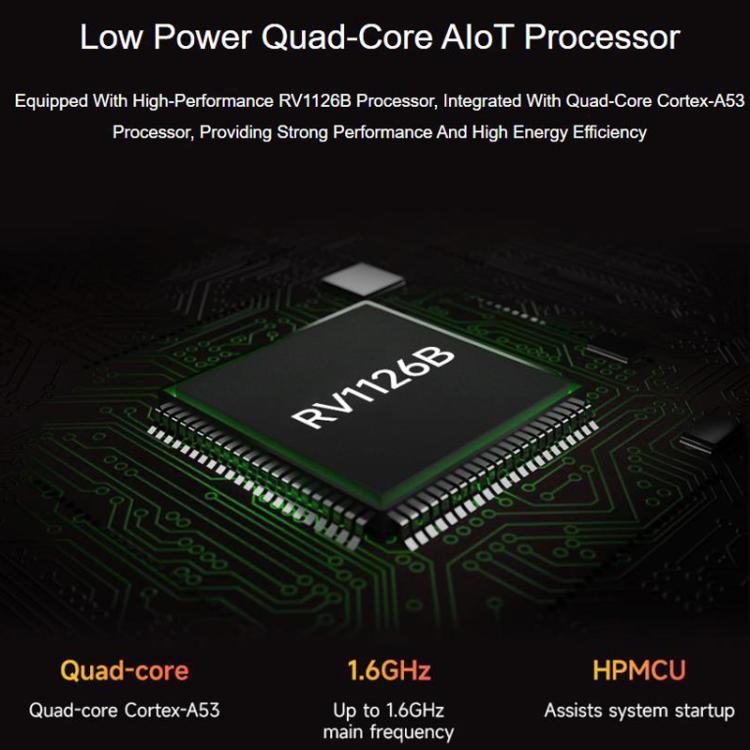

1. Processor: quad-core Arm Cortex-A53 1.6GHz

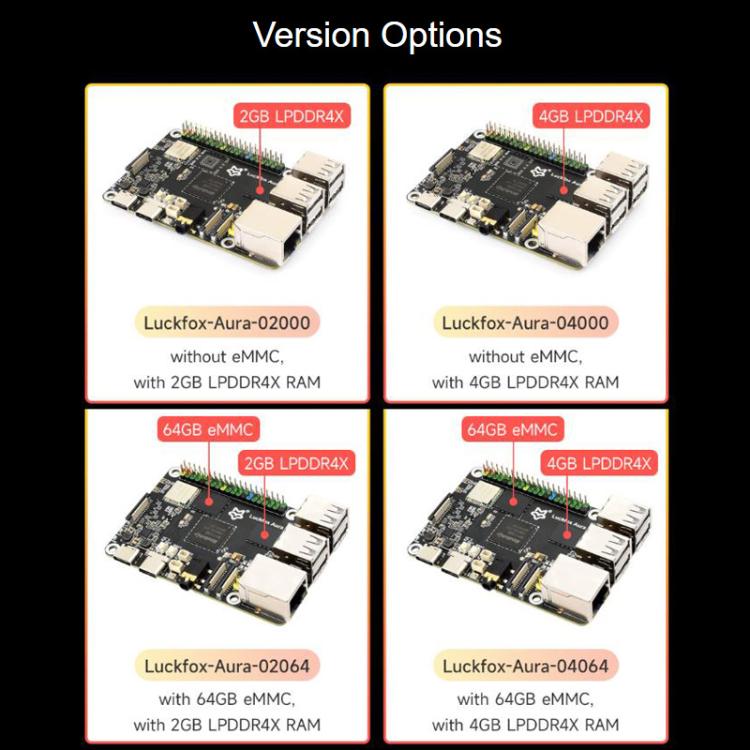

2. Memory: optional 2GB / 4GB LPDDR4X memory
3. Flash memory: optional 0GB / 64GB eMMC flash memory
4. NPU: 3 TOPS INT8, supporting INT4, INT8, INT16 and FP16 operators
5. ISP: supports 12MP, supports various algorithm accelerators such as HDR, 3A, LSC, 3DNR, 2DNR, sharpening, haze removal, fisheye correction and Gamma correction, integrates 8MP AI-ISP, which can enhance spatial noise reduction performance and image enhancement effect
6. Storage: Micro SD card interface

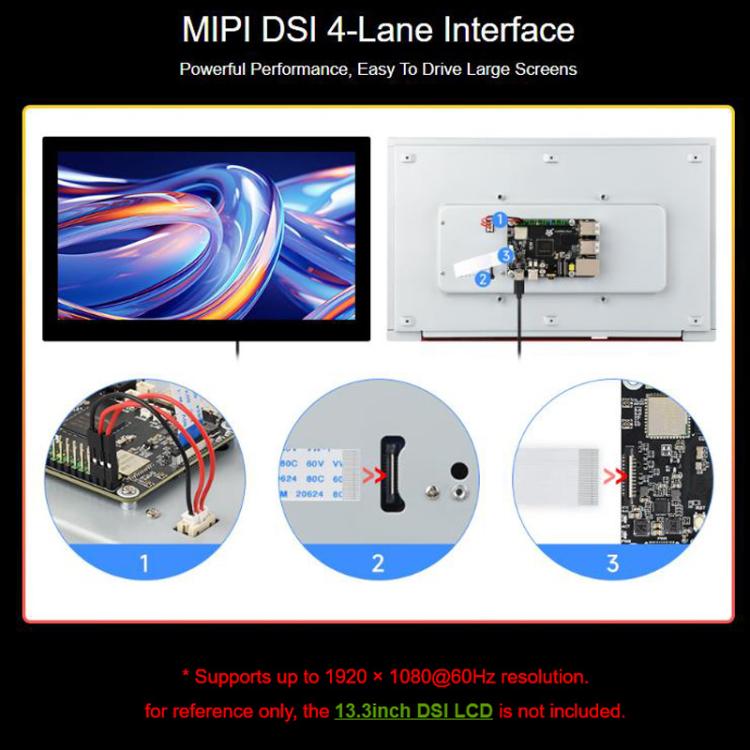

7. Video output: 4-lane MIPI DSI (1920x1080 60fps) interface x 1

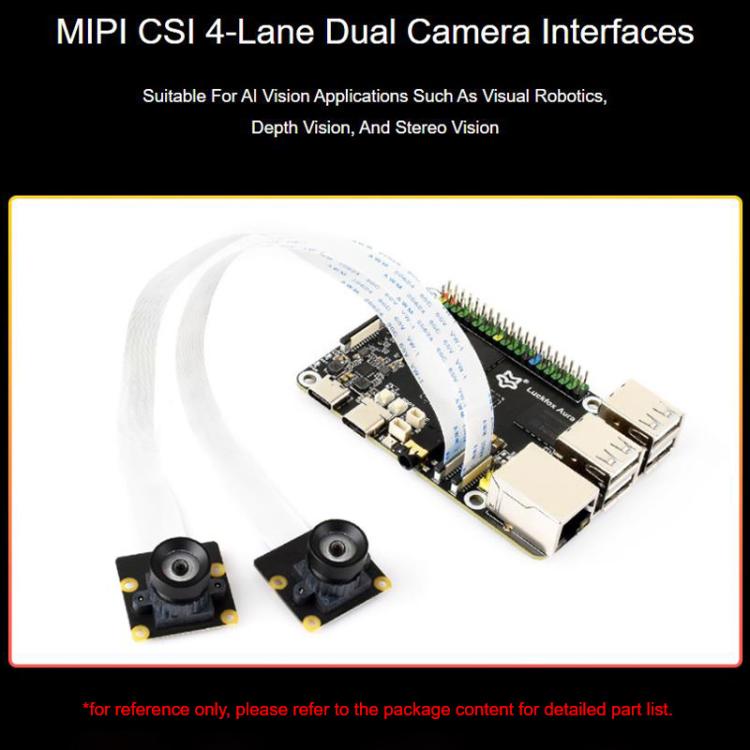

8. Video input: 4-lane MIPI CSI camera interface x 2
9. USB: USB3.0 OTG Type-C interface x 1; USB2.0 HOST Type-A interface x 4

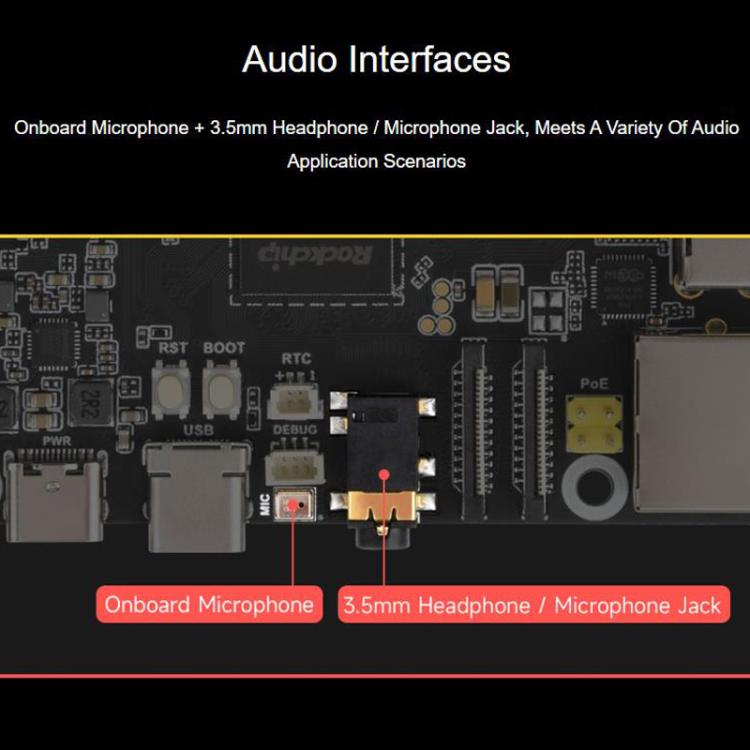

10. Audio: surface microphone; 3.5mm headphone/microphone interface

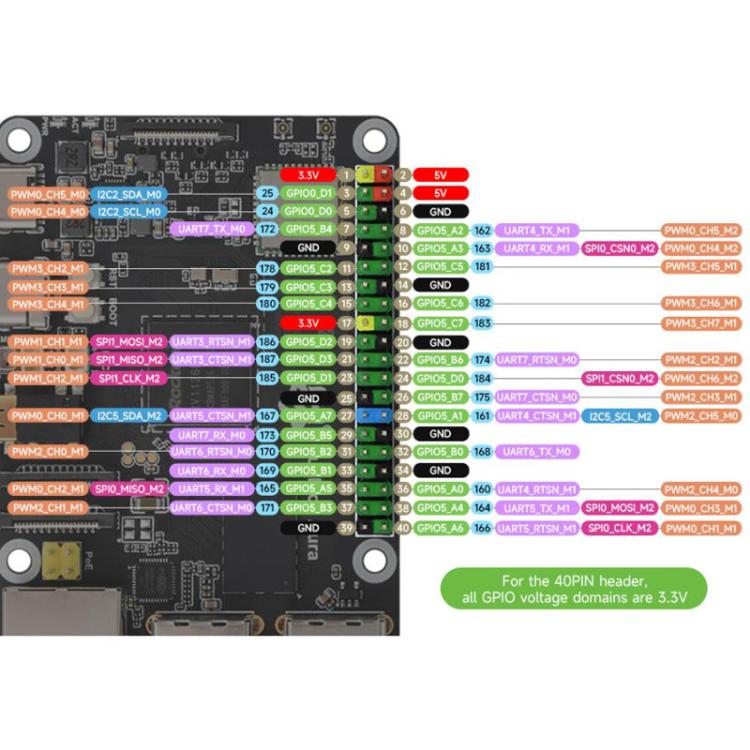

11. GPIO: 40PIN interface (compatible with some Raspberry Pi HAT expansion boards)
12. System support: Buildroot, Debian
13. Power input: 5V DC
14. Encoding/decoding: decoding: 4K 30fps (H.265/HEVC, H.264/AVC); encoding: 4K 30fps (H.265/HEVC, H.264/AVC)
Packaging list:

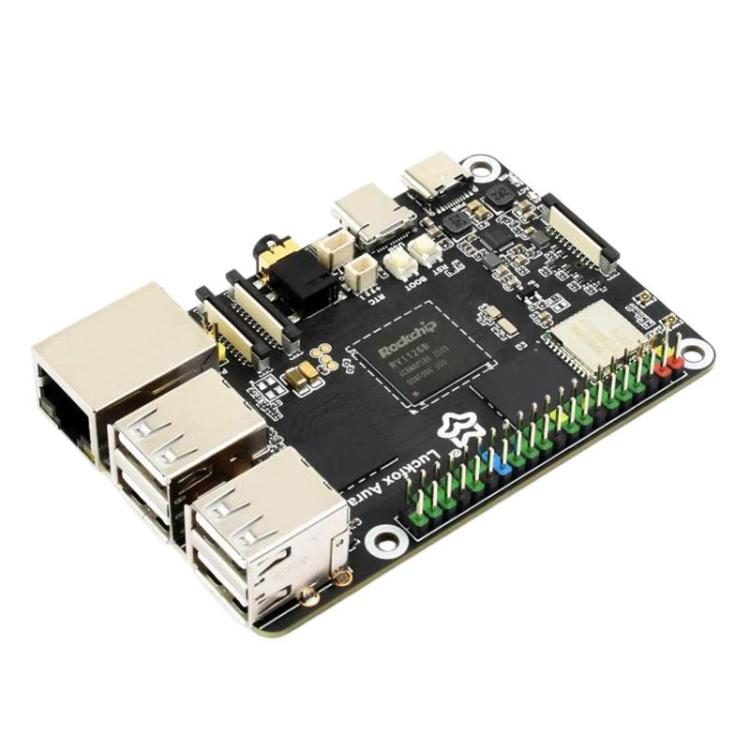

- Development board x 1
- SH1.0 3PIN connection cable about 100mm x 2
- IPEX 4-to-SMA external threaded internal hole x 2
- Rubber antenna 6DB about 17cm x 2
- USB Type-A to Type-C cable about 1 meter x 1
