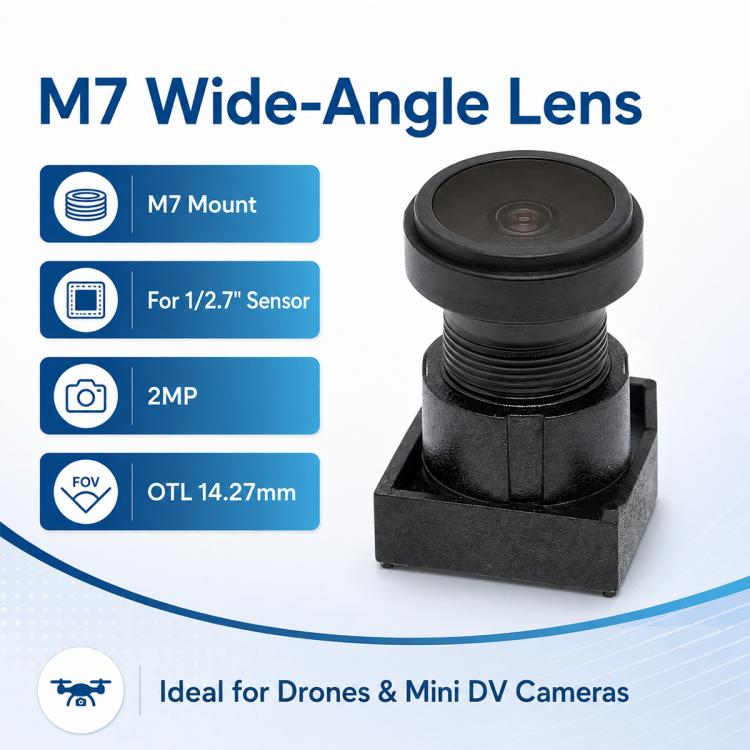

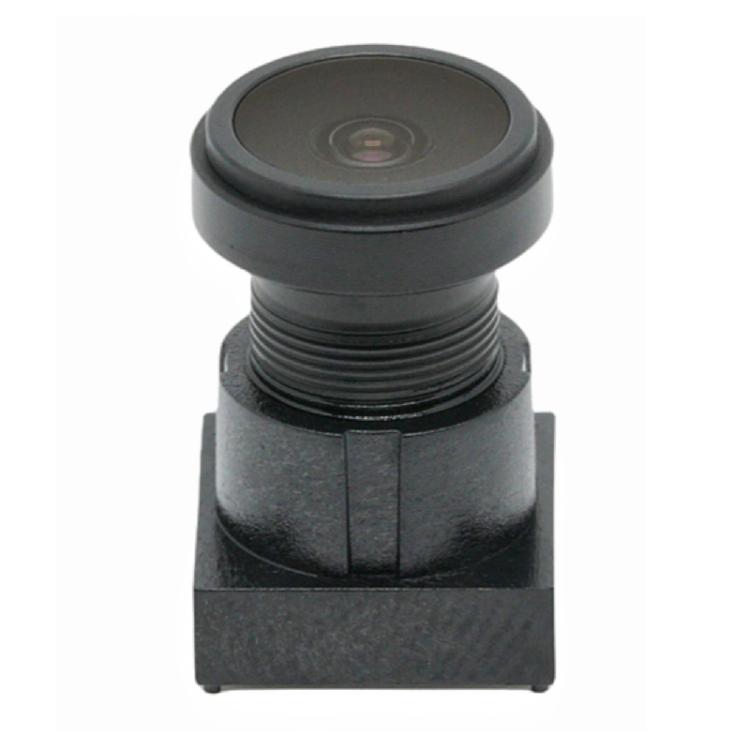

Features:

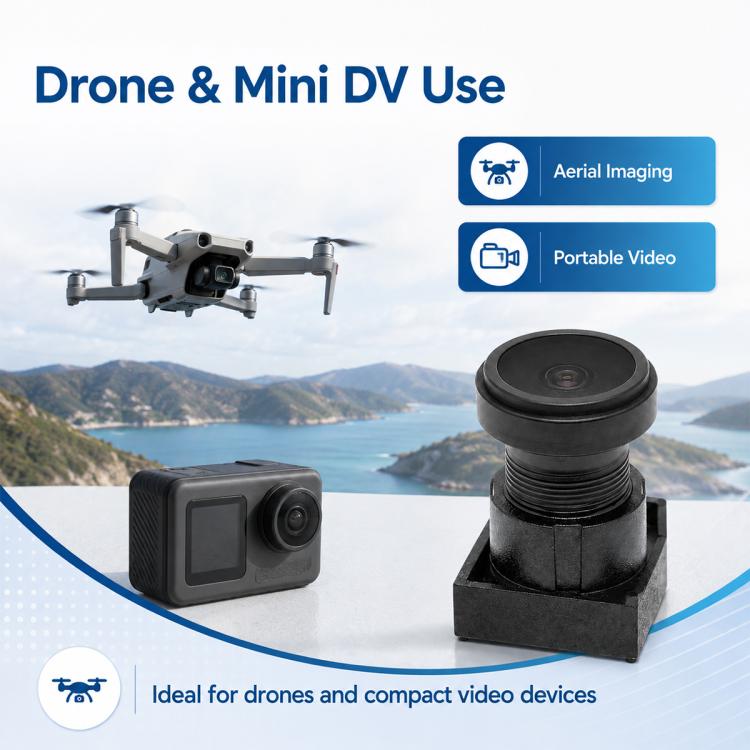

1. OV4689 Sensor Compatible: Designed for cameras using the OV4689 image sensor, providing a suitable optical solution for mini DV cameras, action cameras, and compact imaging devices.

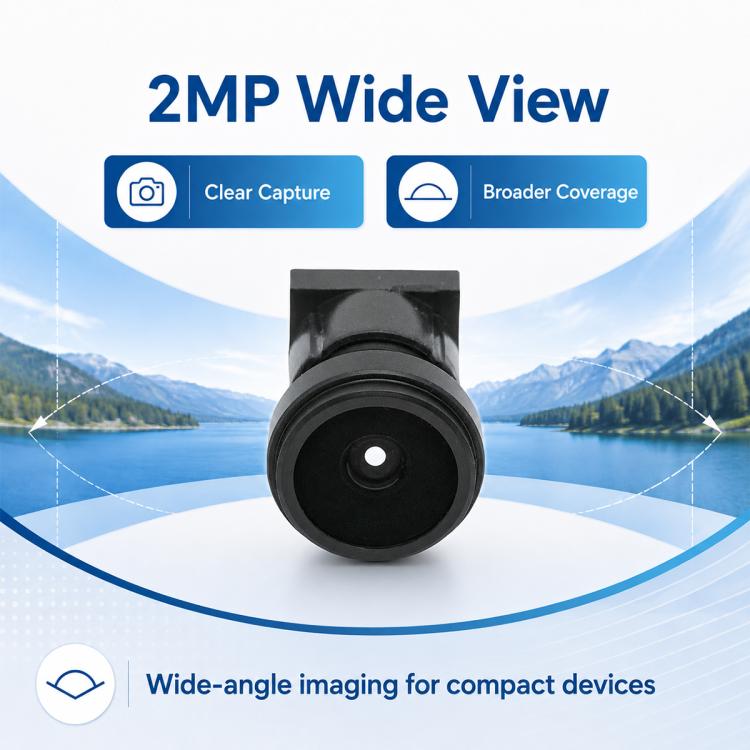

2. 140 Degree Wide Angle: The 140 degree diagonal field of view captures a broad scene, making it suitable for action recording, compact cameras, and wide angle imaging applications.
3. F2.4 Aperture: The F2.4 aperture provides good light transmission for clear image capture in various lighting conditions.

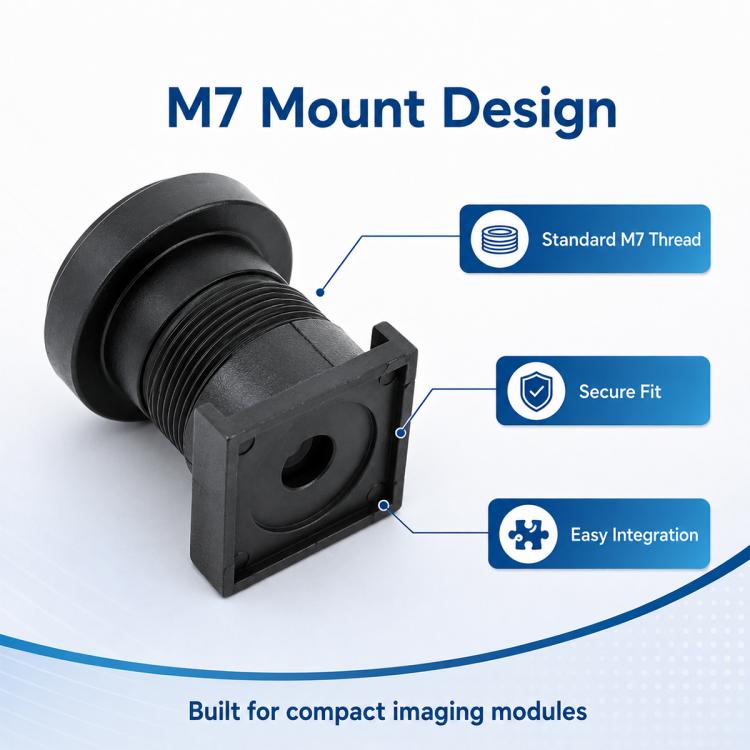

4. Compact M7 Interface: Features an M7 x 0.35 thread for convenient installation with compatible camera modules and imaging devices.
5. High Definition Optical Structure: The 4G+IR650 optical construction is designed to provide clear imaging while supporting infrared filter requirements for compatible camera systems.
Specification:

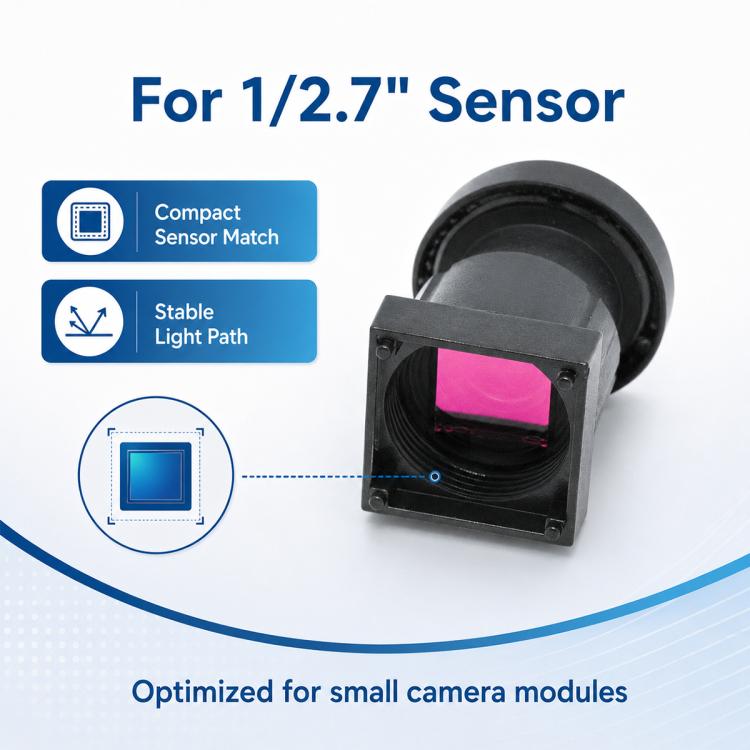

1. Compatible Sensor: OV4689
2. Maximum Image Circle: 6.6mm
3. Effective Focal Length: 3.05mm
4. Back Focal Length: 5.4mm
5. Mechanical Back Focal Length: 4.7mm
6. Aperture: F2.4
7. Field of View: Diagonal 140 degrees / Horizontal 116 degrees / Vertical 60 degrees
8. TV Distortion: -23%
9. Chief Ray Angle: Less than 22.6 degrees
10. Relative Illumination: 50%
11. Lens Construction: 4G + IR650
12. Thread: M7 x 0.35
1. OV4689 Sensor Compatible: Designed for cameras using the OV4689 image sensor, providing a suitable optical solution for mini DV cameras, action cameras, and compact imaging devices.
2. 140 Degree Wide Angle: The 140 degree diagonal field of view captures a broad scene, making it suitable for action recording, compact cameras, and wide angle imaging applications.
3. F2.4 Aperture: The F2.4 aperture provides good light transmission for clear image capture in various lighting conditions.
4. Compact M7 Interface: Features an M7 x 0.35 thread for convenient installation with compatible camera modules and imaging devices.
5. High Definition Optical Structure: The 4G+IR650 optical construction is designed to provide clear imaging while supporting infrared filter requirements for compatible camera systems.
Specification:
1. Compatible Sensor: OV4689
2. Maximum Image Circle: 6.6mm
3. Effective Focal Length: 3.05mm
4. Back Focal Length: 5.4mm
5. Mechanical Back Focal Length: 4.7mm
6. Aperture: F2.4
7. Field of View: Diagonal 140 degrees / Horizontal 116 degrees / Vertical 60 degrees
8. TV Distortion: -23%
9. Chief Ray Angle: Less than 22.6 degrees
10. Relative Illumination: 50%
11. Lens Construction: 4G + IR650
12. Thread: M7 x 0.35
