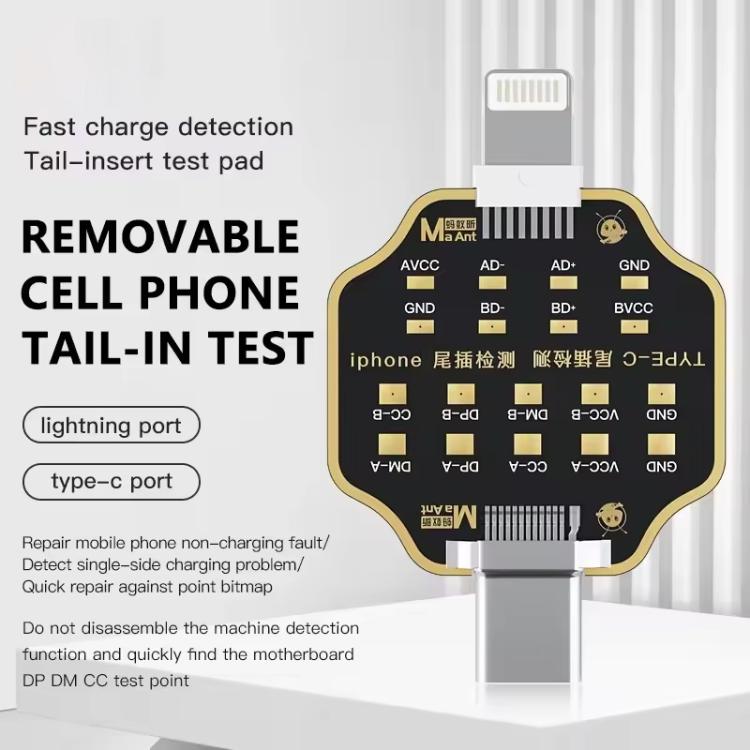

1. Do not remove the phone tail plug test board, Lightning port, Type-C port, Fast charge detection

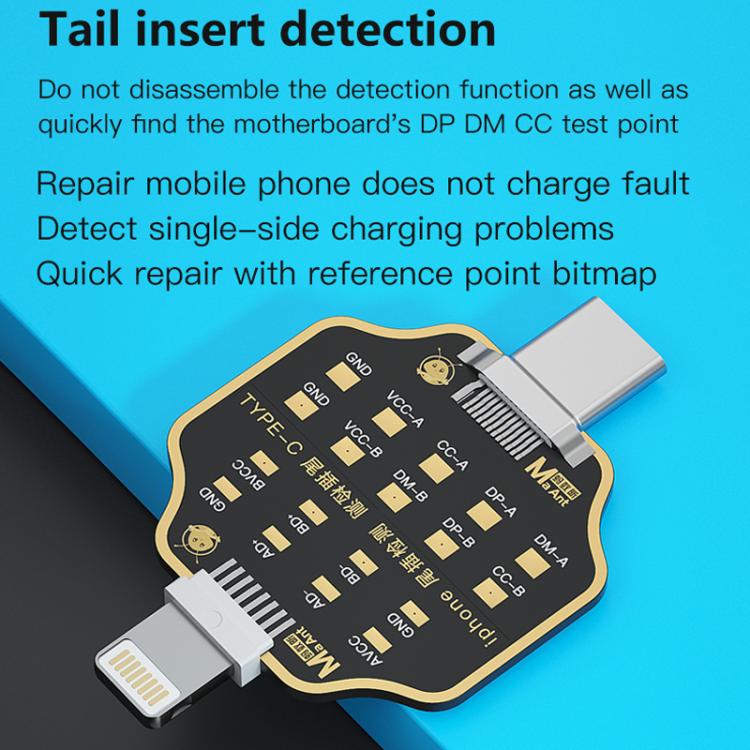

2. Do not disassemble the detection function as well as quickly find the motherboards DP DM CC test point
3. Repair mobile phone does not charge fault, detect single-side charging problems, quick repair with reference point bitmap

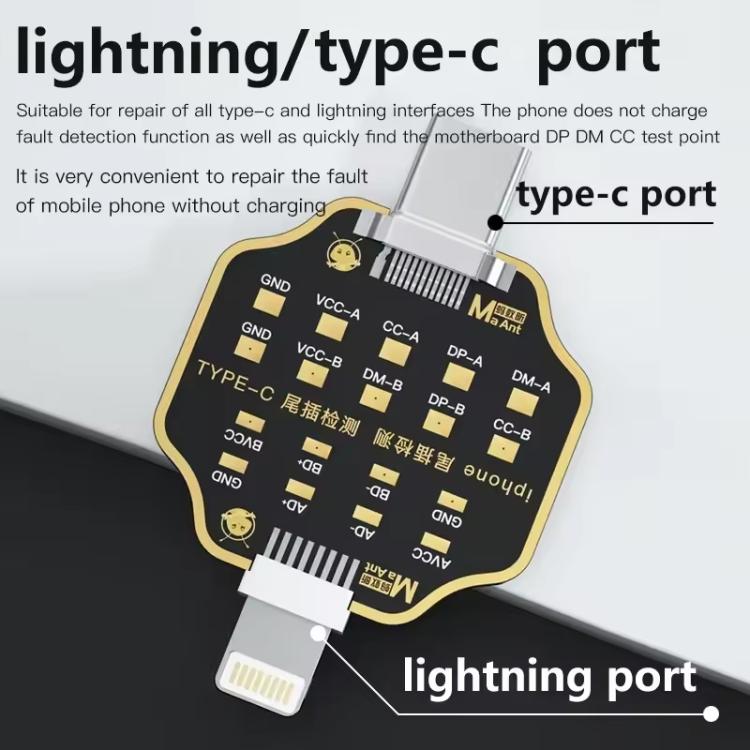

4. Suitable for repair of all type-c and lightning interfaces, the phone does not charge fault detection function as well as quickly finds the motherboard DP DM CC test point, very convenient for repairing the fault

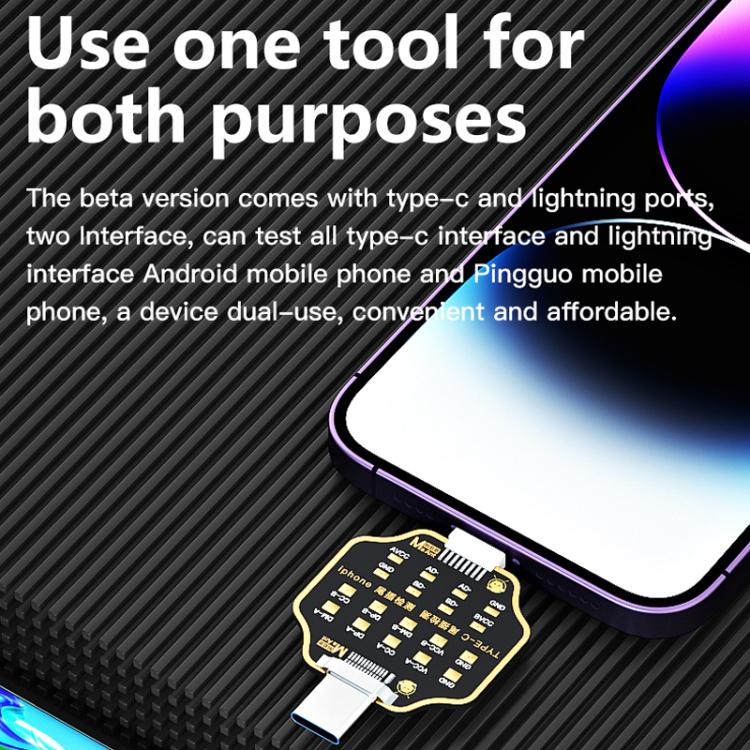

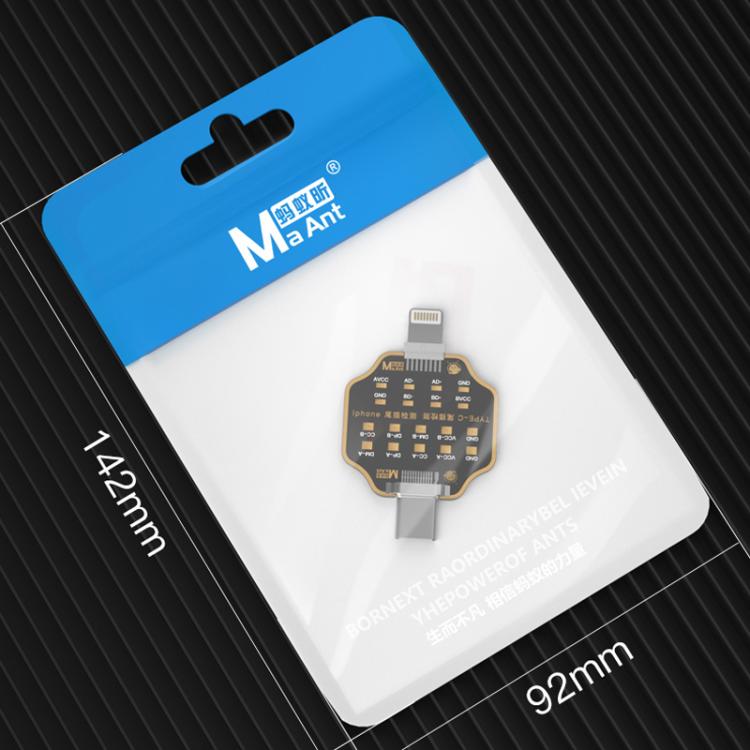

5. The beta version comes with type-c and lightning ports, two Interface, and can test all type-c interfaces and lightning interfaces on mobile phones, a device dual-use, convenient and affordable

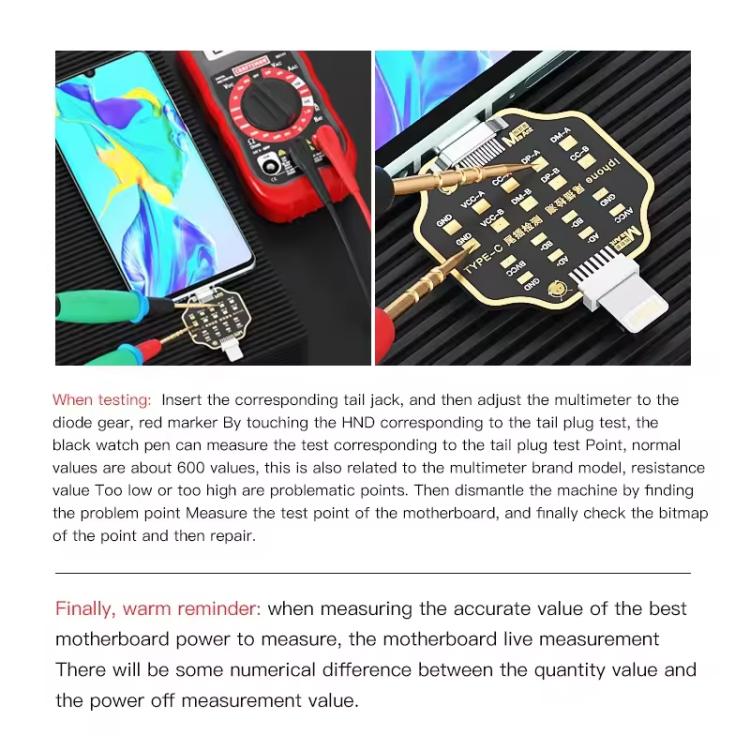

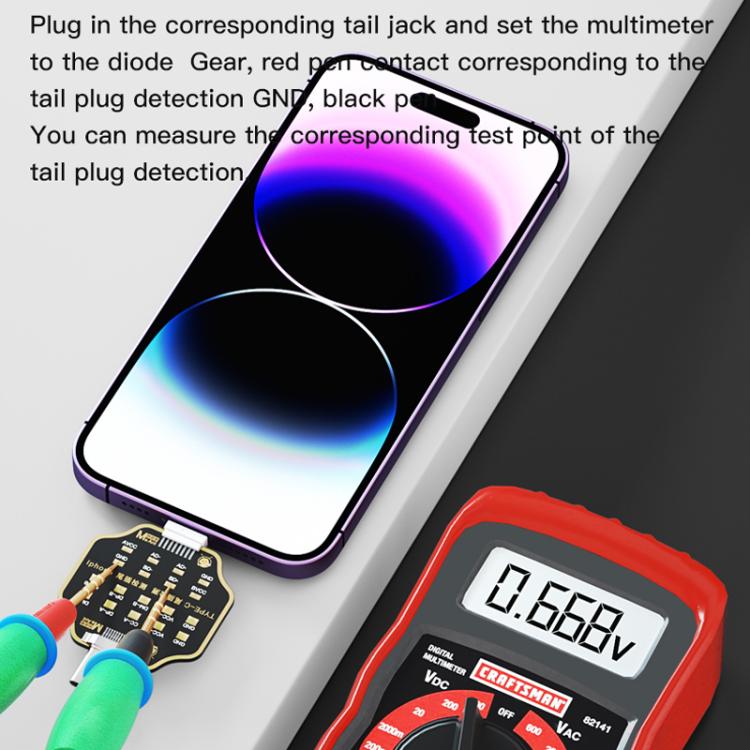

6. Plug in the corresponding tail jack and set the multimeter to the diode Gear, red pen contact corresponding to the tail plug detection GND and black pen, you can measure the corresponding test point of the tail plug detection
7. The operation method is the same as the lightning interface test, which is simple and convenient for testing convenient, double work efficiency
8. Use to repair all type-c interface and lightning interface mobile phones without charging fault detection function as well as quickly find the motherboards DP DM CC test point
