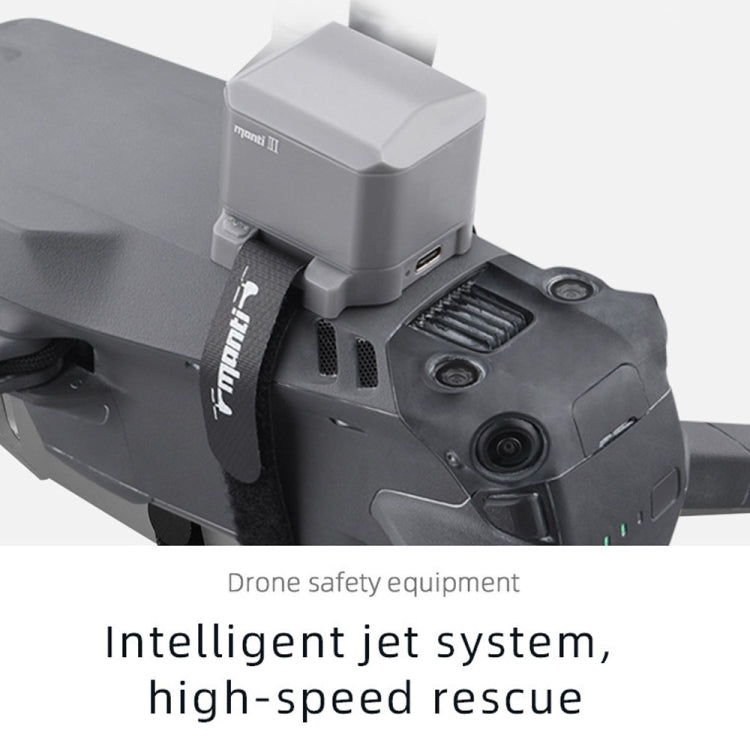

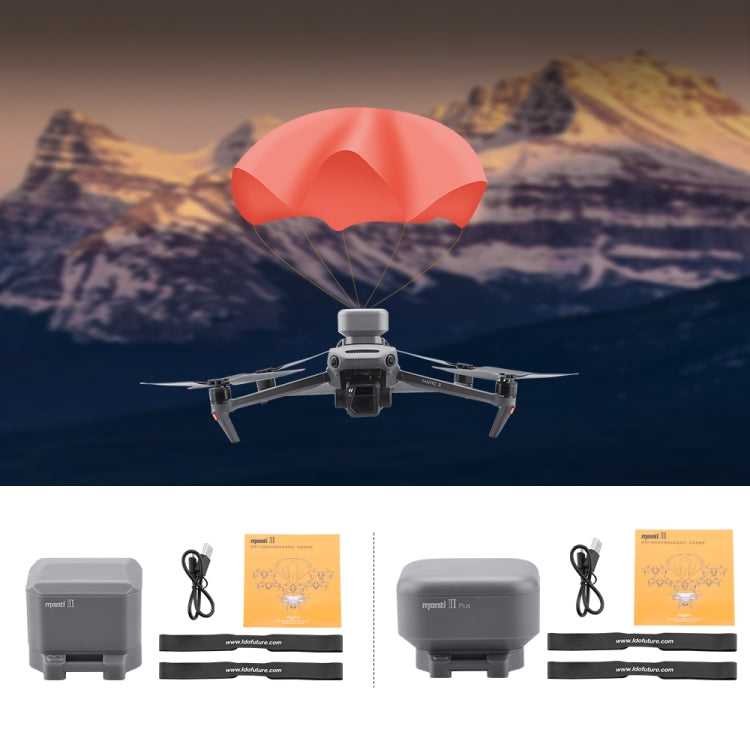

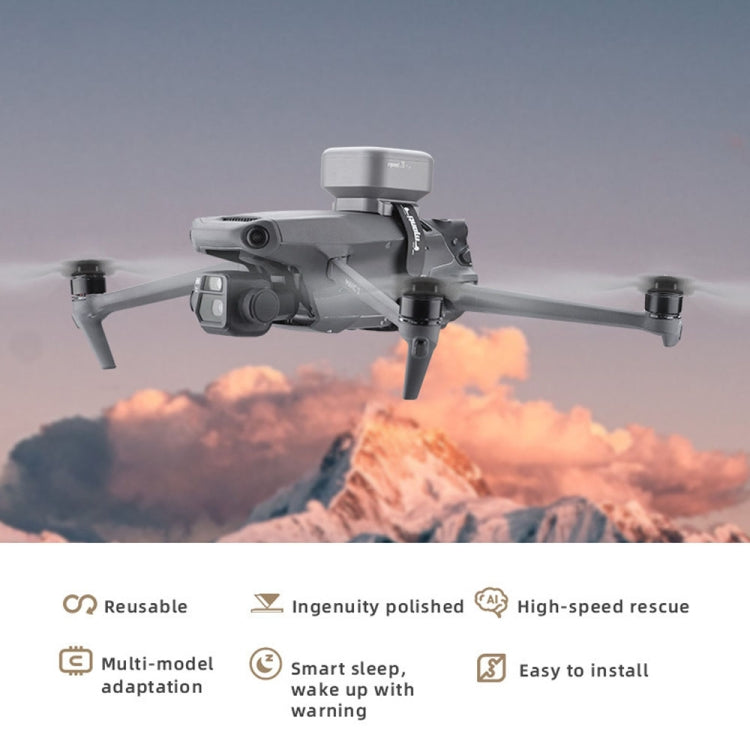

1. Intelligent safety parachute, high-speed rescue, buzzer warning and positioning
2. Manti 3/Manti 3 Plus has a built-in electronic flight recorder, which can record UAV flight and performance parameters. The information recorded by the recorder can be used for UAV flight accident analysis, reproduce the accident process, and analyze the cause of the accident concretely ( Built-in 150mAh battery, 4 hours working time, 1GB data storage)

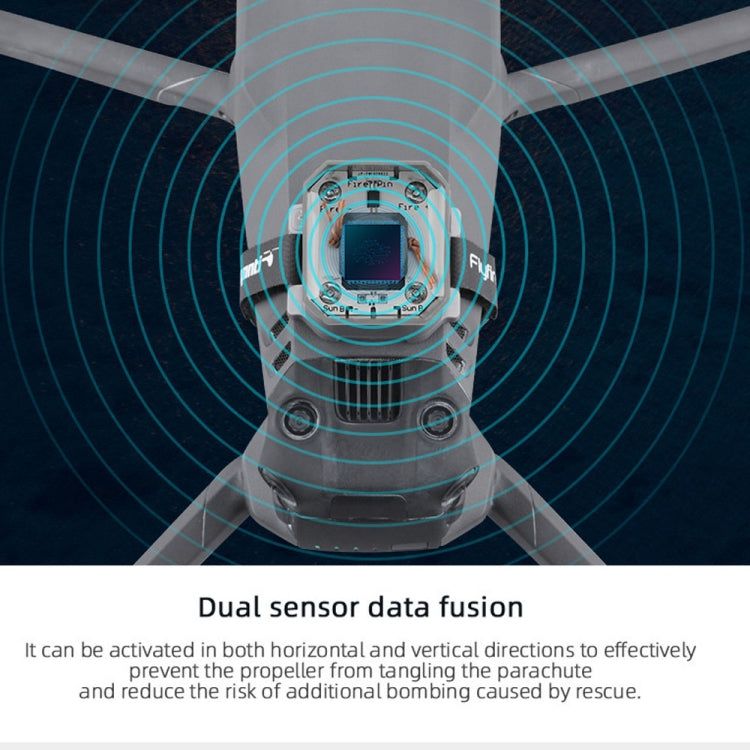

3. Dual sensor data fusion: horizontal and vertical activation, effectively avoiding propeller entanglement, and reducing the additional risk of bombing caused by rescue triggers
4. The flight attitude can accurately identify the danger and omnidirectional perception, and can respond to the dangerous situation in the fastest 0.5 seconds, so as to judge the opening of the parachute, it needs to cooperate with the inner eight to stop the propeller, so that the machine can make a safe landing
5. To upgrade the DFU firmware, you need to download the desktop version of the Firefly software, and you can manually select the model to match the firmware
6. There is a silicone pad design at the bottom of the parachute main unit, which can effectively prevent the drone from being scratched

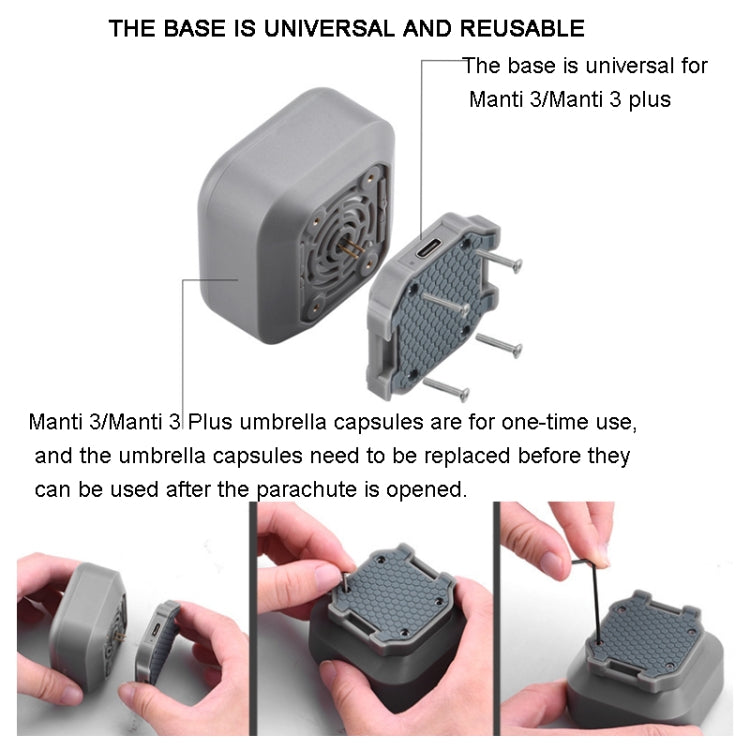

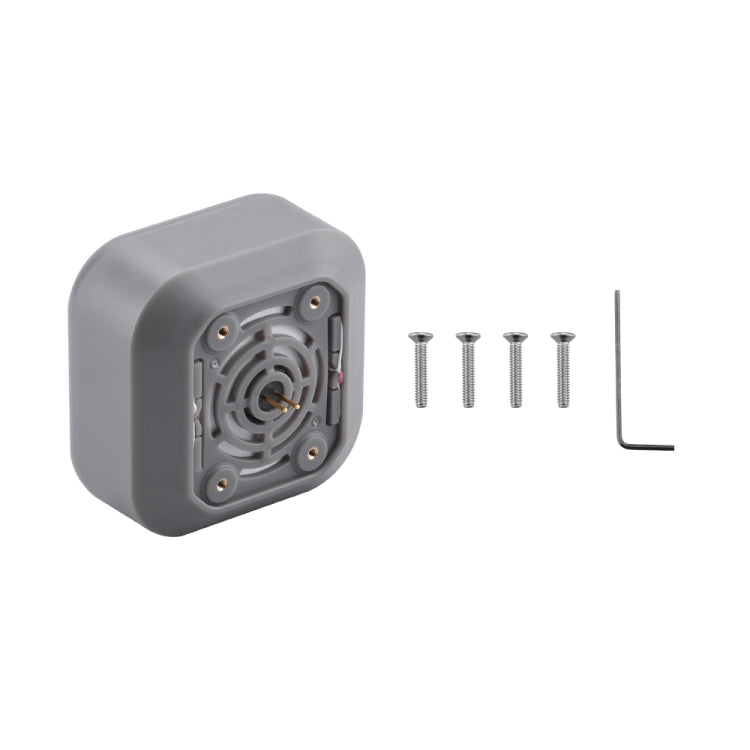

7. The umbrella cabin of Manti 3/Manti 3 Plus is for one-time use. After the parachute is opened, the umbrella cabin needs to be replaced before it can be used.

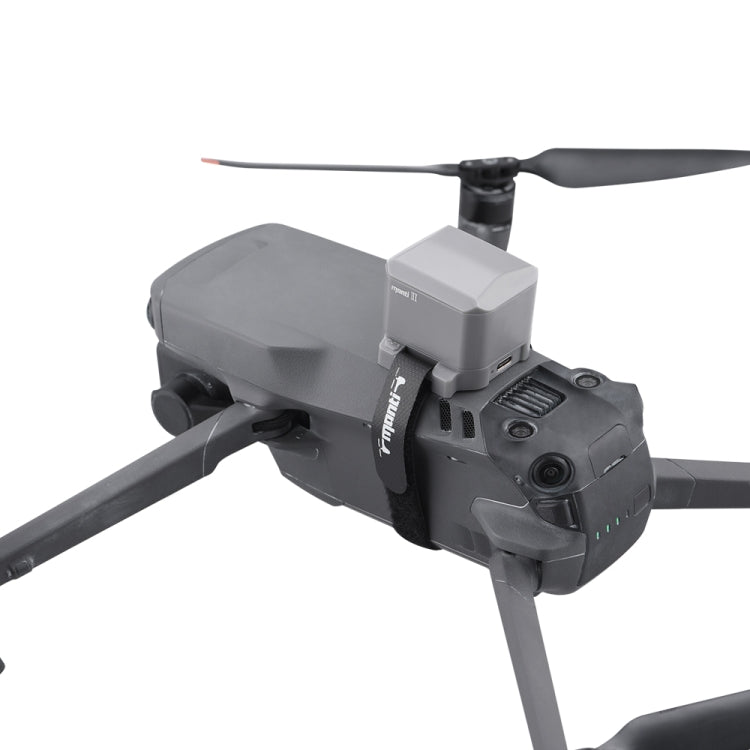

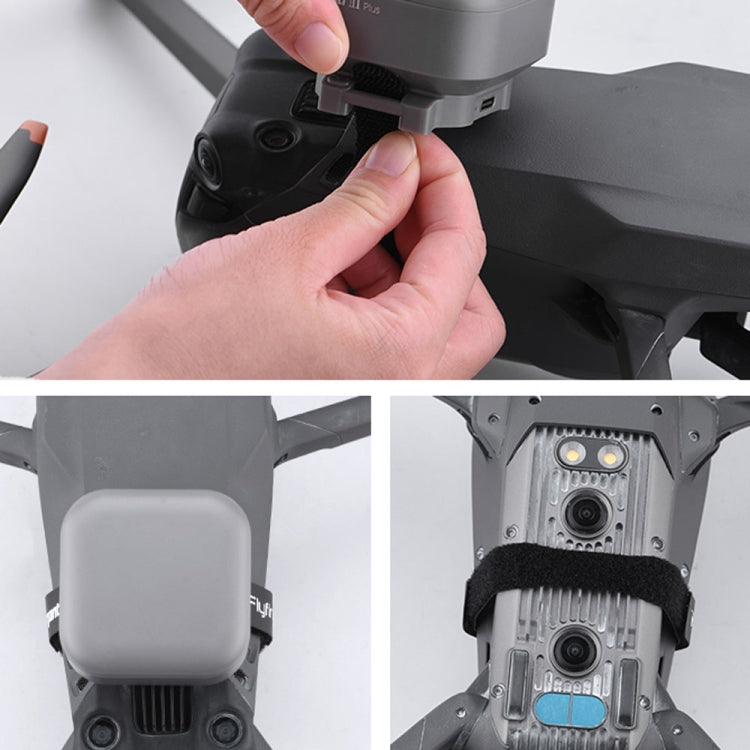

8. When installing, please be careful not to cover the battery switch and the sensor below

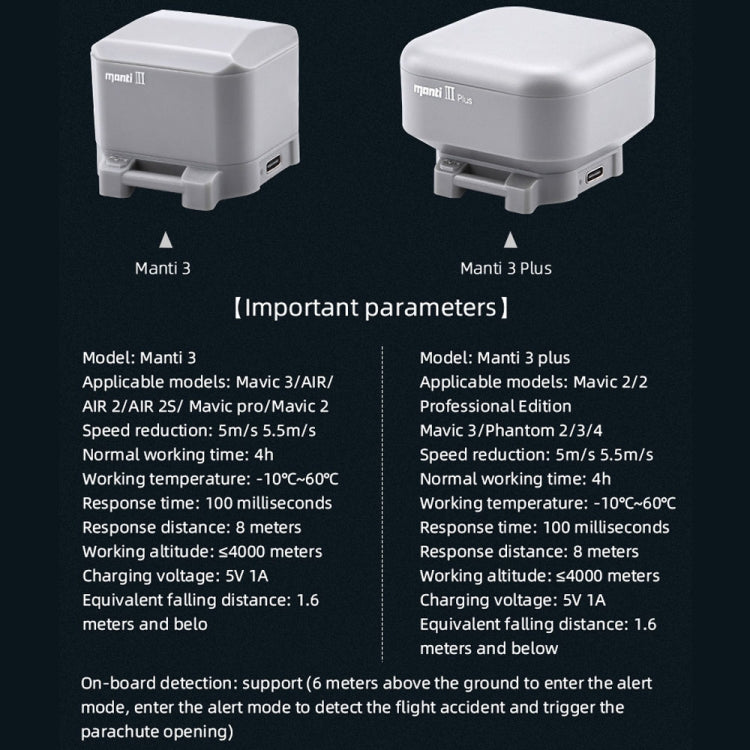

Parameter:
1. Speed reduction: 5m/s-5.5m/s (the difference depends on the size of the drone)
2. Normal working hours: 4 hours
3. Working temperature: -10-60 degrees Celsius
4. Response time: 100 milliseconds
5. Response distance: 8 meters
6. Working altitude: less than or equal to 4000 meters
7. Charging voltage: 5V 1A
8. Equivalent drop distance: 1.6 meters and below
9. Consumable parts: umbrella cabin
10. Buzzer: Yes
11. Firmware upgrade: support (DFU)
12. On-board detection: support (6 meters above the ground to enter the alert mode, only after entering the alert mode can the flight accident be detected and the parachute opened)
13. Main material: PC
14. Net weight: 63.3g (Manti 3), 89.2g (Manti 3 Plus)
15. Dimensions: 5 x 4.5 x 3.7cm (Manti 3), 6 x 6 x 4.2cm (Manti 3 Plus)
Applicable models:
-Manti 3: Mavic 3/AIR/AIR 2/AIR 2S/Mavic pro/Mavic 2
-Manti 3 Plus: Mavic 3 /Mavic 2/Mavic pro
