Product Introduction
This HDMI 4K 30Hz matrix 4x2 can connect 4 HD display signal sources with 2 HD signals at the same time, and can support optical fiber and stereo headphone output. It can freely switch or distribute 4 HD signals on 2 HD-compatible monitors or projectors. The HDMI Out1 output port can realize independent audio output through optical fiber or stereo headphones. HDMI 4K 30Hz matrix 4x2 reorganizes and amplifies the input signal and transmits it losslessly through HDMI cables. The solution provided by this HDMI matrix is ??applied to entertainment centers, retail and websites, HDTVs, set-top disks, DVDs, projectors, data center control, information distribution, conference rooms, schools and corporate training environments for digital HDTV programs.
Product Features
1. Compact structure, stable and reliable
2. Widely compatible, plug and play, no need to install the program driver, easy to use
3. Support audio extraction of HDMIOut1, 3.5mm headphone interface and optical fiber interface output at the same time
4. Support up to 4K 30Hz resolution, 3D stereo imaging technology
5. Support RS232 control, more convenient connection

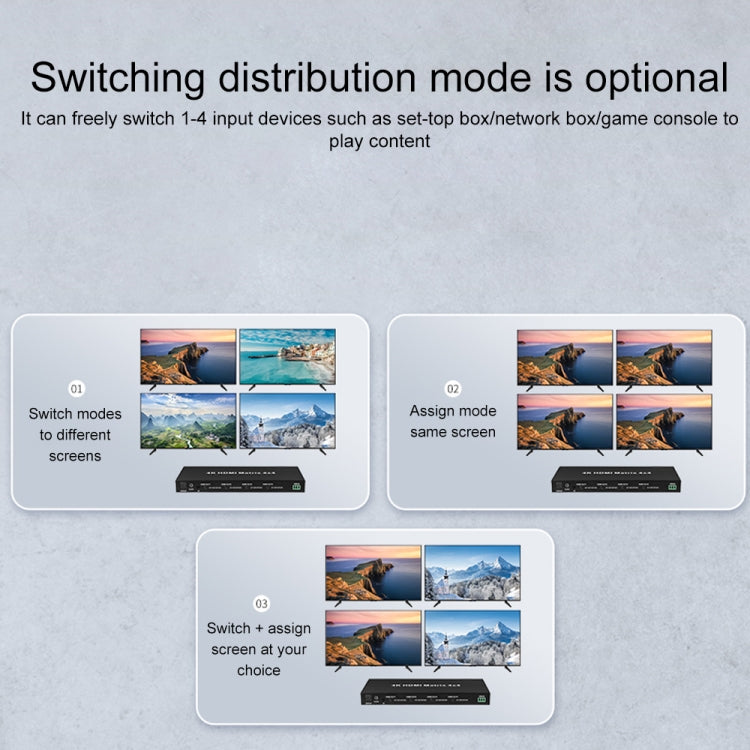

6. 2 output ports can display ultra-high-definition video from the same or different signal sources
Product Parameters
1. Resolution: up to 4K 30Hz

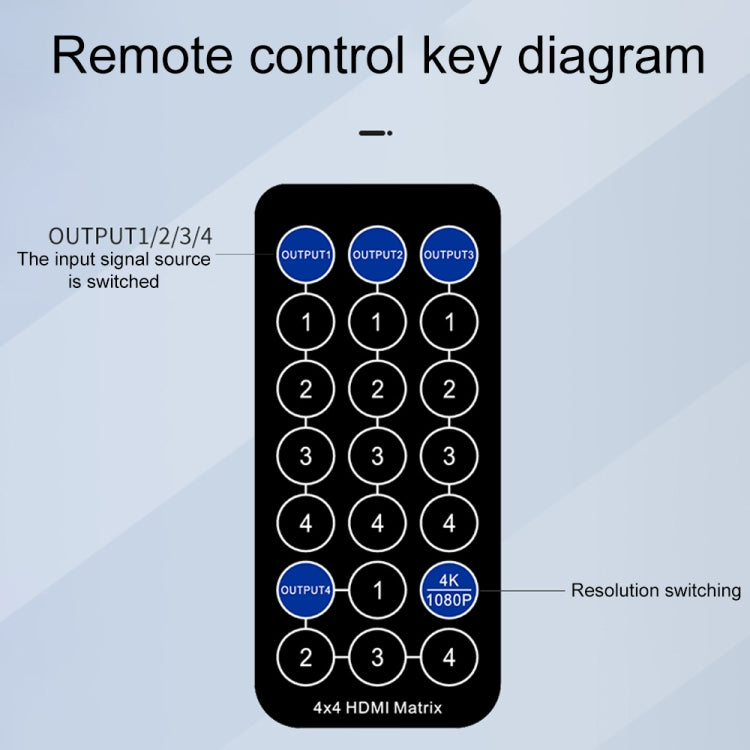

2. Switching mode: button/remote control/RS232 serial port

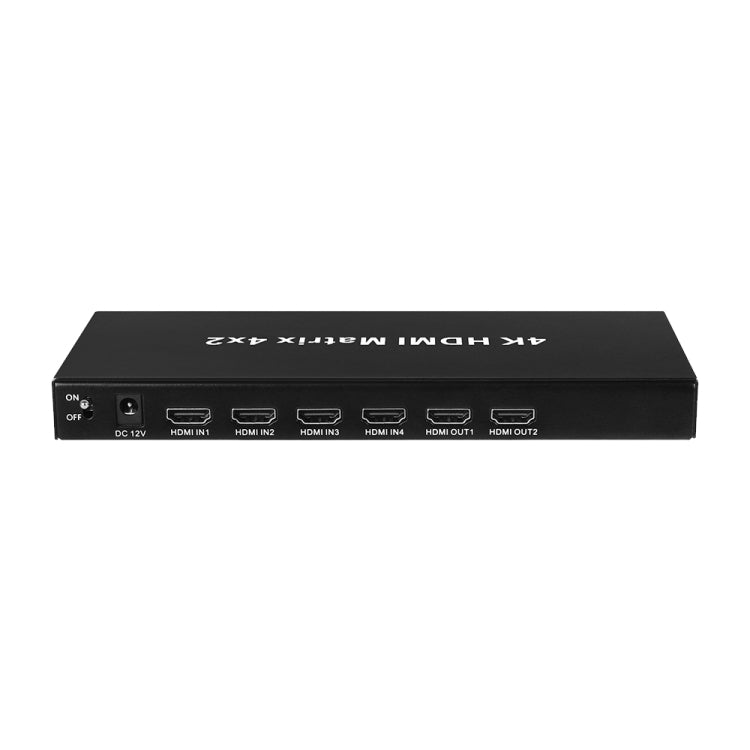

3. Input interface: HDMI x 4
4. Output interface: HDMI x 2
5. Support audio formats: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
6. Maximum transmission rate: 18Gbps
7. Maximum operating current: 0.8A
8. Power adapter: Input: AC100-240V/50-60Hz, Output: DC12V 1A
9. Operating temperature range: -15 degrees Celsius to 45 degrees Celsius
10. Operating humidity range: 5-90%RH (non-condensing)

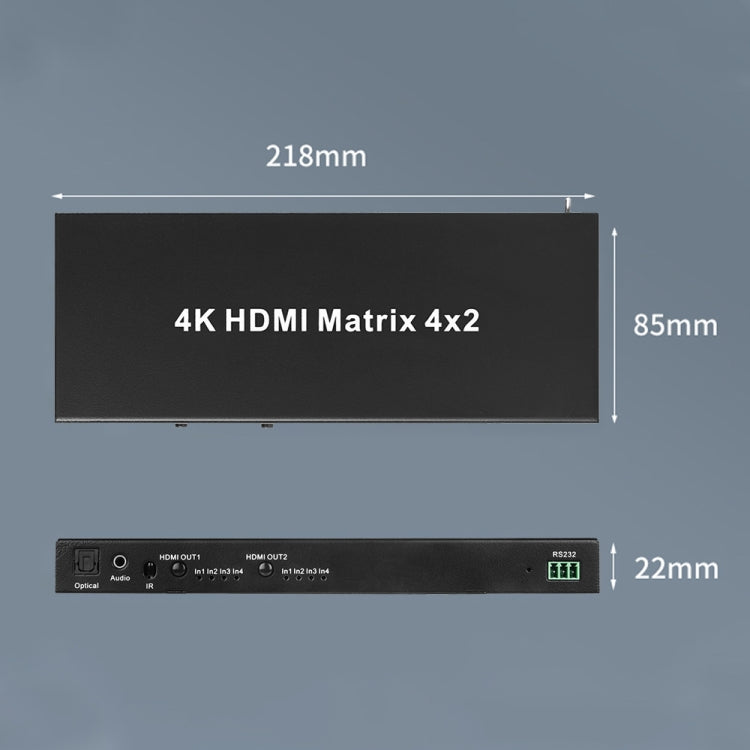

11. Product size: 218 x 89 x 22mm
12. Product weight: 495g
This HDMI 4K 30Hz matrix 4x2 can connect 4 HD display signal sources with 2 HD signals at the same time, and can support optical fiber and stereo headphone output. It can freely switch or distribute 4 HD signals on 2 HD-compatible monitors or projectors. The HDMI Out1 output port can realize independent audio output through optical fiber or stereo headphones. HDMI 4K 30Hz matrix 4x2 reorganizes and amplifies the input signal and transmits it losslessly through HDMI cables. The solution provided by this HDMI matrix is ??applied to entertainment centers, retail and websites, HDTVs, set-top disks, DVDs, projectors, data center control, information distribution, conference rooms, schools and corporate training environments for digital HDTV programs.
Product Features
1. Compact structure, stable and reliable
2. Widely compatible, plug and play, no need to install the program driver, easy to use
3. Support audio extraction of HDMIOut1, 3.5mm headphone interface and optical fiber interface output at the same time
4. Support up to 4K 30Hz resolution, 3D stereo imaging technology
5. Support RS232 control, more convenient connection
6. 2 output ports can display ultra-high-definition video from the same or different signal sources
Product Parameters
1. Resolution: up to 4K 30Hz
2. Switching mode: button/remote control/RS232 serial port
3. Input interface: HDMI x 4
4. Output interface: HDMI x 2
5. Support audio formats: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
6. Maximum transmission rate: 18Gbps
7. Maximum operating current: 0.8A
8. Power adapter: Input: AC100-240V/50-60Hz, Output: DC12V 1A
9. Operating temperature range: -15 degrees Celsius to 45 degrees Celsius
10. Operating humidity range: 5-90%RH (non-condensing)
11. Product size: 218 x 89 x 22mm
12. Product weight: 495g
