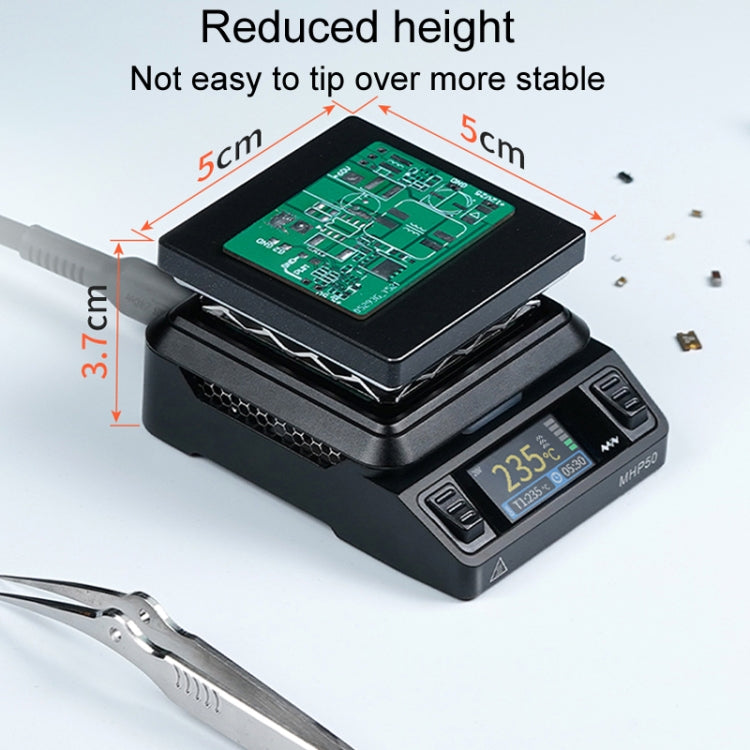

1. Reduced height, not easy to dump more stable, more flexible desoldering operations

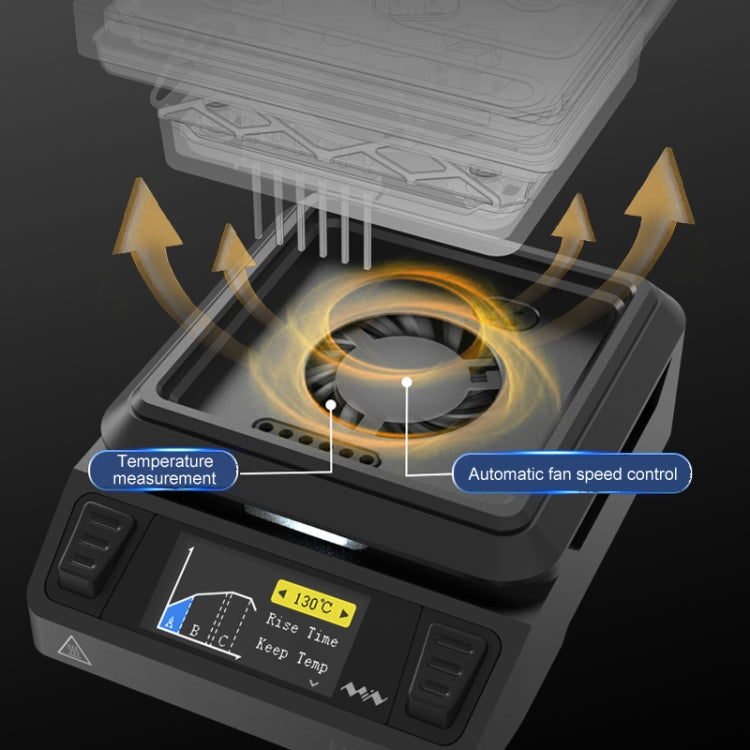

2. Adopt fan blowing + air conduction heat dissipation, better results

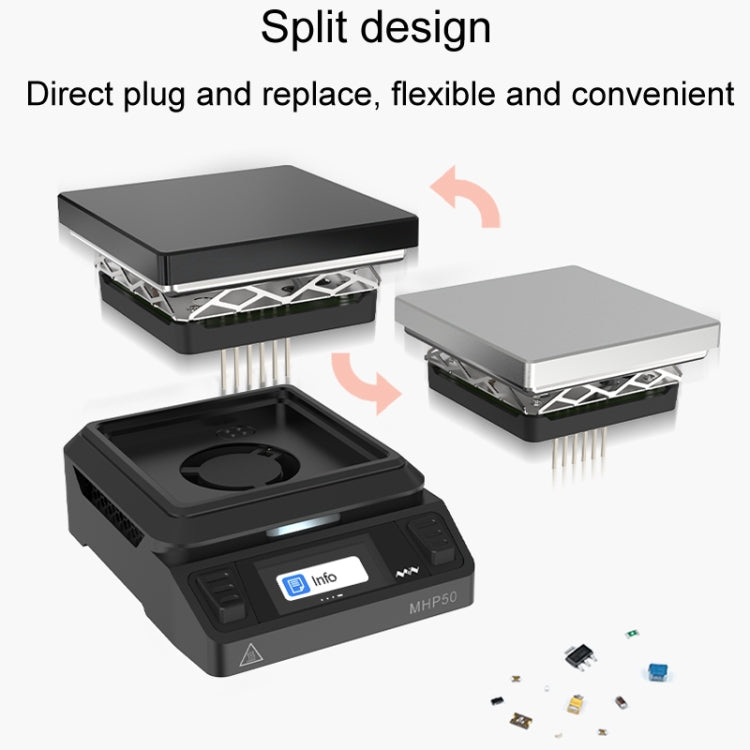

3. Control terminal and heating body can be separated, direct plug and replace, flexible and convenient

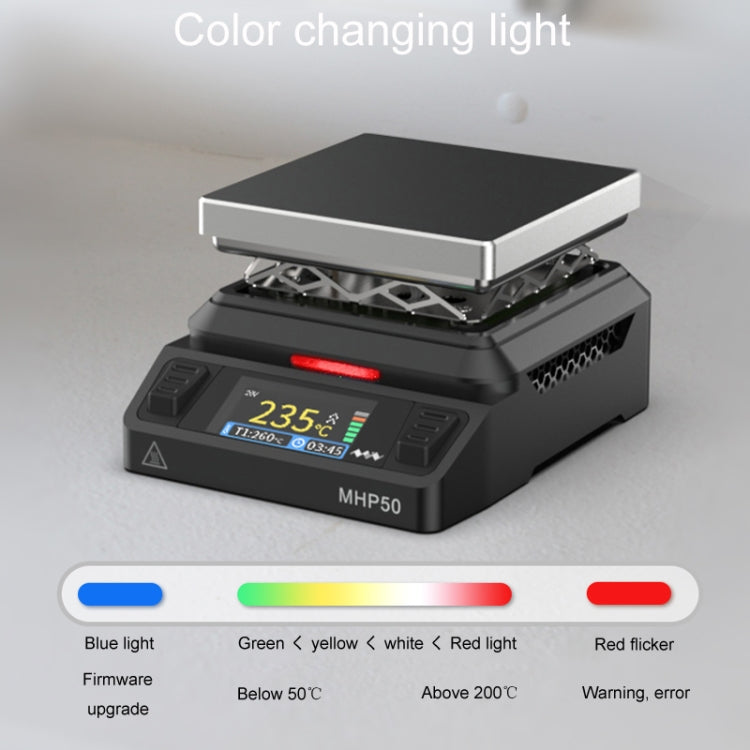

4. Color-changing light, the light color changes with the temperature of the heater, so you can see at a glance whether it is warm or cold

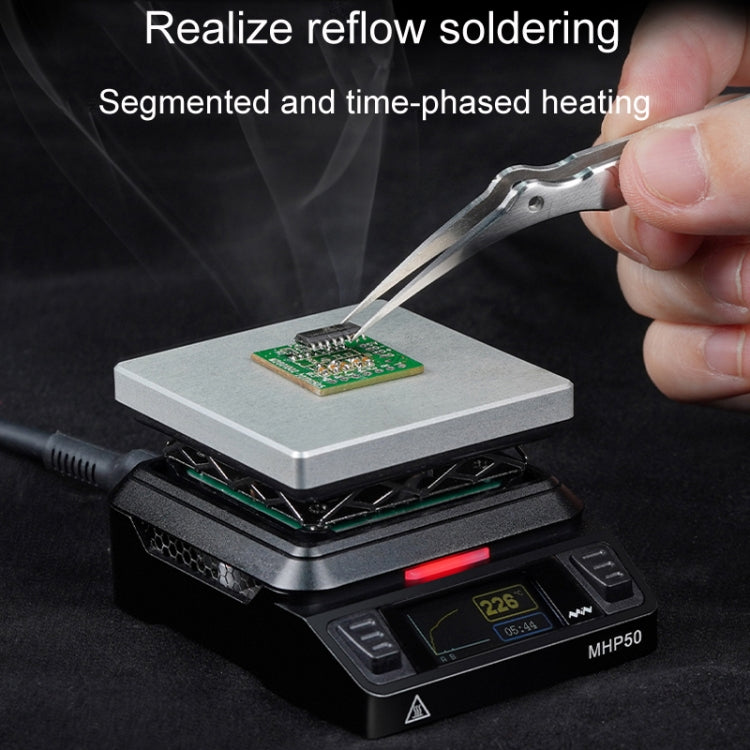

5. Can set the heating temperature and time in sections, simulating the function of reflow oven, intelligent temperature control, accurate heating
6. Clear interface, rich display, key front, convenient operation

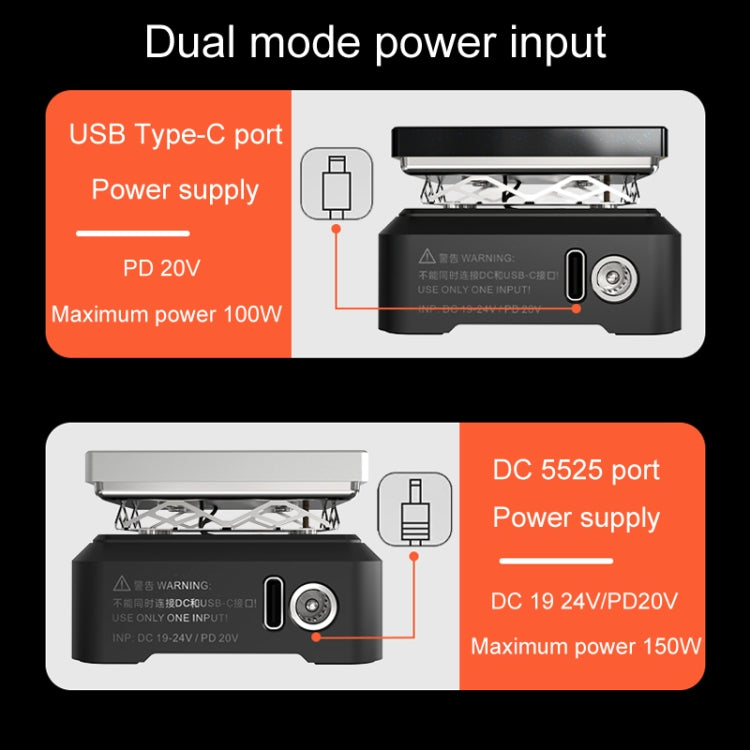

7. Dual-mode power supply input, DC, PD are good to use
8. When detecting the equipment tilt angle is too large, the controller will immediately stop heating, to ensure safety

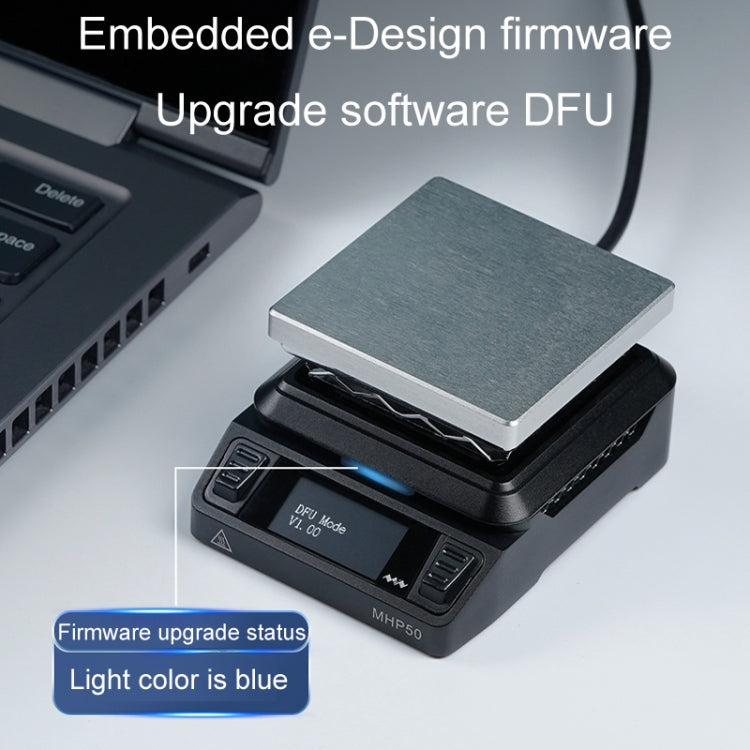

9. Embedded e-Design firmware, optimized software DFU, better experience
Parameters:

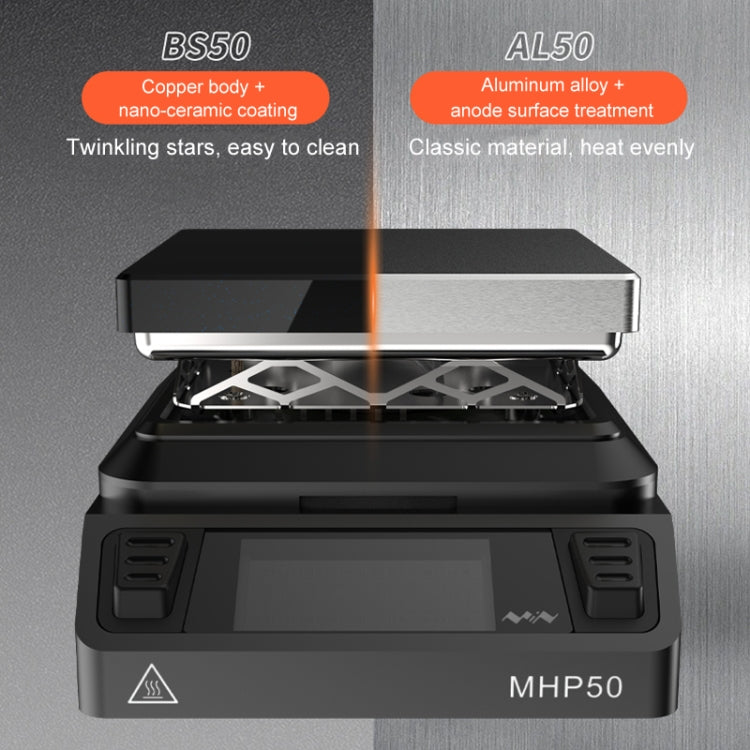

1. Material: A5: aluminum alloy; B5: copper body plated with nano-ceramic coating
2. Screen: color LCD (160 x 80 resolution)
3. Heating area: 50 x 50mm
4. Temperature range: 100-350 degrees celsius
5. Temperature stability: +/- 3 percent
6. Power supply interface: USB Type-C; DC5525
7. Input voltage: DC 19-24V; PD 20V (two power supply ports can not be used at the same time)
8. Power: DC5525 150W; PD 100W
9. Size: console: 71.5 x 55.5 x 22.5mm; heater: 50 x 50 x 29mm
10. Weight:
- A5: console: 78g; heater: 60g
- B5: console: 78g; heater: 87g
