1. Module size: 30x30x100mm
2. Weight: 227g
3. Speed of the fan: 15000RPM(double ball bearing)
4. Interface: PH2.0 4 Pin
5. Drive design: buit-in
6. Input: 12V3A
7. Optical power: 7.5W
8. Wave length: 450nm
9. Nmber of diodes: 1
10. Min focus spot size: 0.04x0.04mm
11. Temperature sensing: YES
12. Power adjustment method: PWM duty cvcle
13. PWM Input: 3.3-12V.0-20KHz
14. Max cutting carving deepth: 18mm

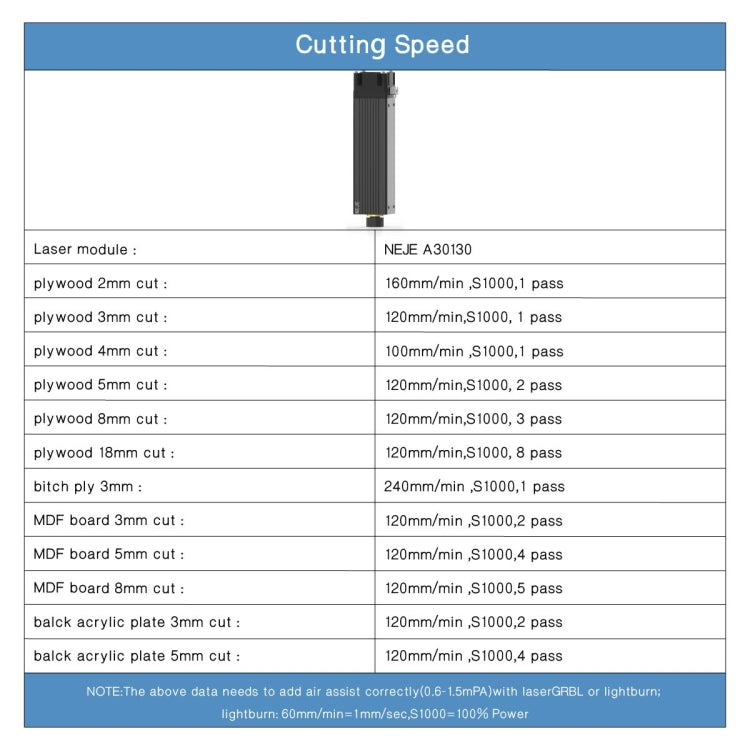

15. Cutting speed(plywood 3mm, with airasist, clear edge): 120mm/min 100% power from 1 pass
16. Packing list

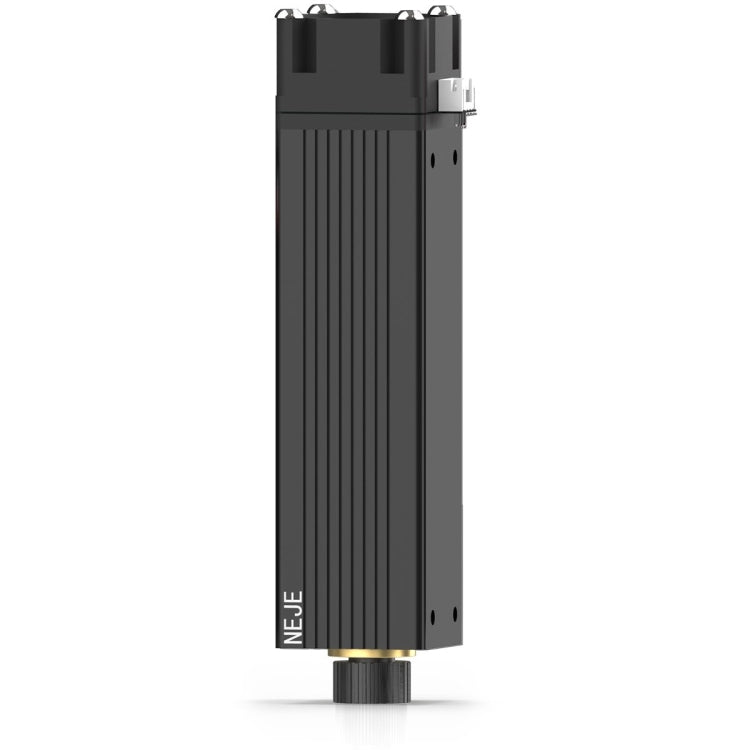

- 1 x laser module
- 1 x sliding card slot
- 1 x L wrench
- 1 x L-shaped small wrench
- 1 x Interface adapter board
- 1 x 4pin laser line
- 1 x 3pin 2.54 interface output cable
- 1 x 2pin TTL control line
2. Weight: 227g
3. Speed of the fan: 15000RPM(double ball bearing)
4. Interface: PH2.0 4 Pin
5. Drive design: buit-in
6. Input: 12V3A
7. Optical power: 7.5W
8. Wave length: 450nm
9. Nmber of diodes: 1
10. Min focus spot size: 0.04x0.04mm
11. Temperature sensing: YES
12. Power adjustment method: PWM duty cvcle
13. PWM Input: 3.3-12V.0-20KHz
14. Max cutting carving deepth: 18mm
15. Cutting speed(plywood 3mm, with airasist, clear edge): 120mm/min 100% power from 1 pass
16. Packing list
- 1 x laser module
- 1 x sliding card slot
- 1 x L wrench
- 1 x L-shaped small wrench
- 1 x Interface adapter board
- 1 x 4pin laser line
- 1 x 3pin 2.54 interface output cable
- 1 x 2pin TTL control line
