1. It is just suitable for 600mm wide desktop, the left side of the machine is not limited by the material size. Suitable for processing large area materials. Under the protection of MEMS vibration protection sensor, the engraving and cutting process can be completed at the same time. The X-axis motion module is only 120g, driven by a 40mm-thick high-performance stepper motor, bringing a faster engraving experience than the gantry structure.
2. 3400 x 5600 pixels, engraving accuracy: 0.075mm dot pitch, 339 dots/inch. The function test of the whole machine only needs 4 screws to complete the installation.
3. The laser beam is composed of two high-power laser diodes, using FAC technology. The minimum focus point reaches 0.04x0.04mm (A40640 module). Support NEJE advanced laser module, built-in fast intelligent drive, timely temperature feedback, intelligently adjust fan cooling. Safe and quiet to use.

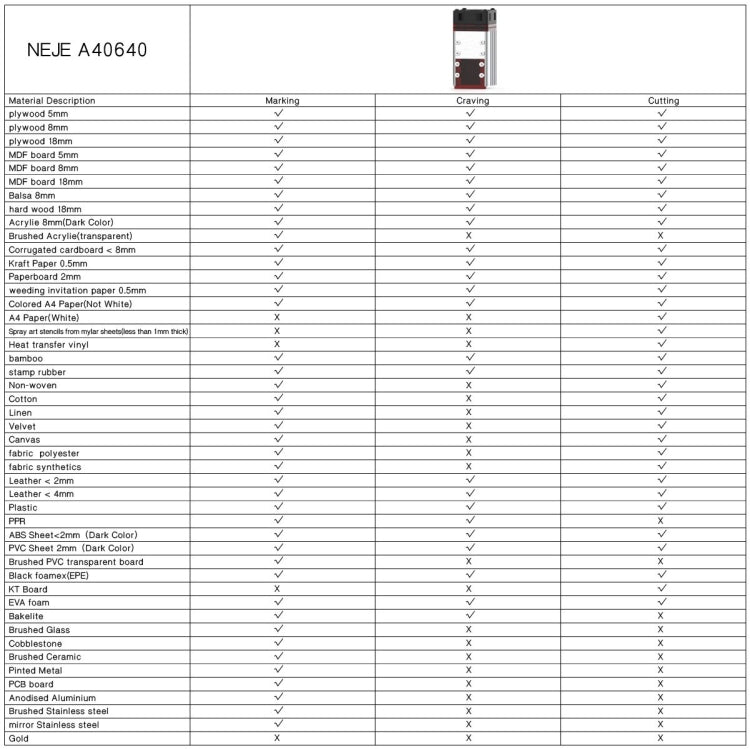

4. Wood, MDF, leather, paper, cotton, etc. are all supported. 8mm plywood only needs one air-assisted cut (A40640), and the cut is very clean. It can directly engrave stainless steel, glass, transparent acrylic, etc.
5. 32-bit control system, the fastest speed can reach 200??,000mm/min, support LaserGRBL, Lightburn, NEJE software, NEJE APP (Android, iOS, ipadOS, macOS)
6. You can take pictures with your mobile phone or choose pictures from the album.

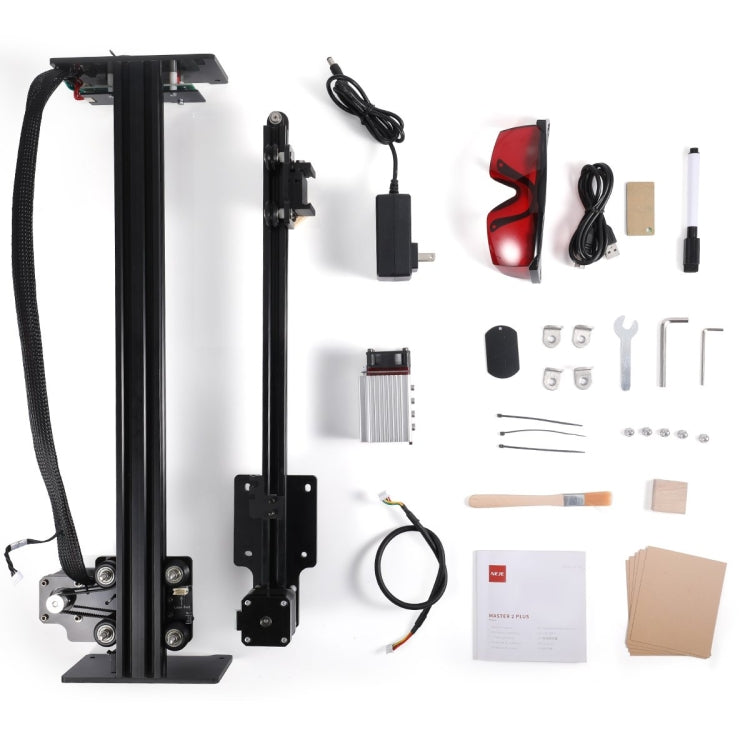

packing list
? Laser engraver x1
? A40640 Laser Module x1
? 12V4A power supply x1
? Manual x1
? Goggles x1
?Data cable x1, wooden board x1, paper x5, pen x1, brush x1, focusing film x1, angle iron x4, aluminum oxide film x1, cable tie x3, nut x5, big hexagon wrench x1, small hexagon wrench x1, open-end wrench x1
2. 3400 x 5600 pixels, engraving accuracy: 0.075mm dot pitch, 339 dots/inch. The function test of the whole machine only needs 4 screws to complete the installation.
3. The laser beam is composed of two high-power laser diodes, using FAC technology. The minimum focus point reaches 0.04x0.04mm (A40640 module). Support NEJE advanced laser module, built-in fast intelligent drive, timely temperature feedback, intelligently adjust fan cooling. Safe and quiet to use.
4. Wood, MDF, leather, paper, cotton, etc. are all supported. 8mm plywood only needs one air-assisted cut (A40640), and the cut is very clean. It can directly engrave stainless steel, glass, transparent acrylic, etc.
5. 32-bit control system, the fastest speed can reach 200??,000mm/min, support LaserGRBL, Lightburn, NEJE software, NEJE APP (Android, iOS, ipadOS, macOS)
6. You can take pictures with your mobile phone or choose pictures from the album.
packing list
? Laser engraver x1
? A40640 Laser Module x1
? 12V4A power supply x1
? Manual x1
? Goggles x1
?Data cable x1, wooden board x1, paper x5, pen x1, brush x1, focusing film x1, angle iron x4, aluminum oxide film x1, cable tie x3, nut x5, big hexagon wrench x1, small hexagon wrench x1, open-end wrench x1
