1. Function:
Protect data transit in Ethernet from surge.Make sure system and equipment safety when surge come from thunderbolt or static
2. Features:
Large elecric current support , multiple level protection, quickly response, minor wastage when join them.
Technical parameter:

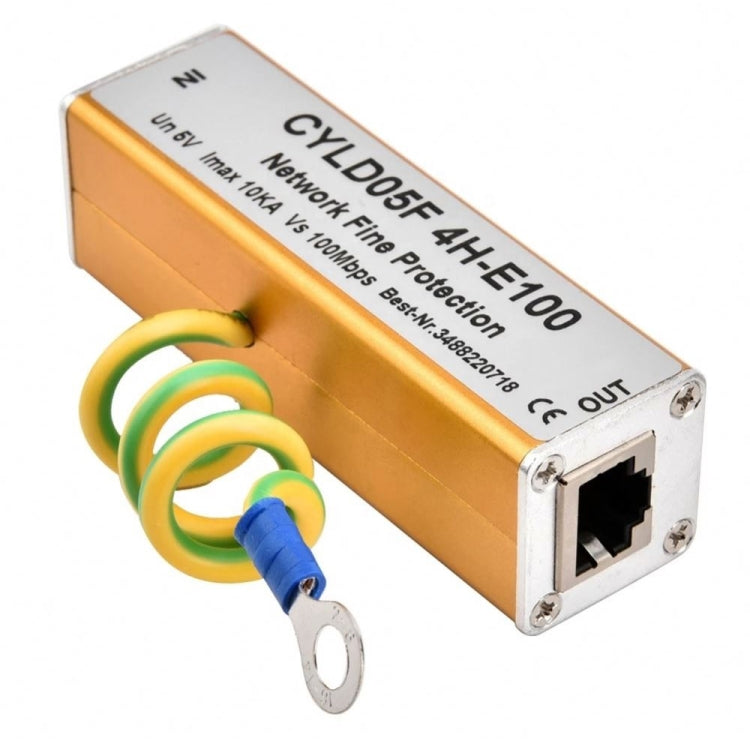

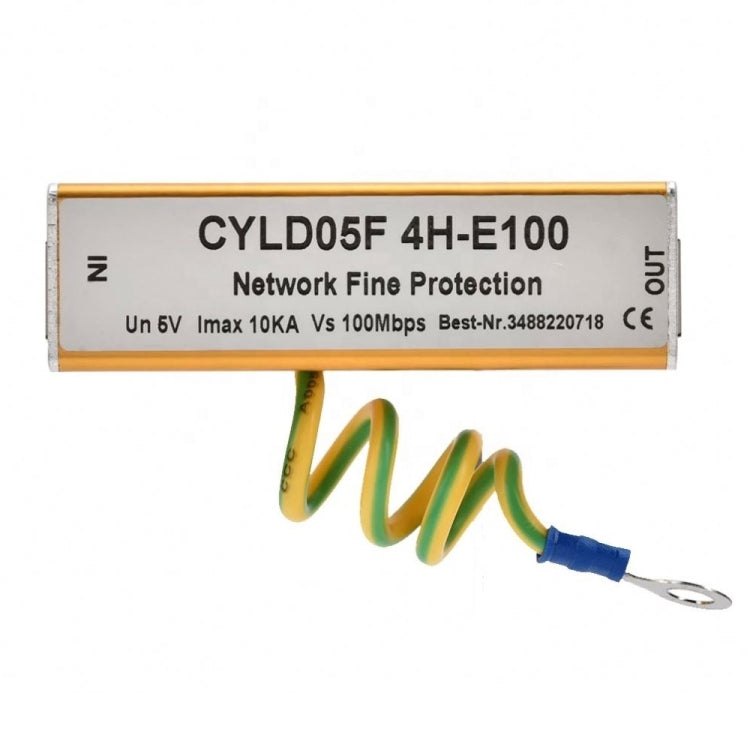

1. Model: CYL D05F4H-E100
2. Responsive time: Less than or equal 1ns
3. Operating Temperature: -40?°C to + 80?°C; Humidity a?¤95% (25-30?°C)
4. Discharge current: 10KA
5. Rated voltage: 5V
6. Protection voltage: 12-18V
8. Joint wastage: Less than or equal 0.5dB
9. Transmission speed: 100Mbps
10. Protect pin:1/2/3/6
11. Size: 80x26x26mm
12. Net weight: 100g
Protect data transit in Ethernet from surge.Make sure system and equipment safety when surge come from thunderbolt or static
2. Features:
Large elecric current support , multiple level protection, quickly response, minor wastage when join them.
Technical parameter:
1. Model: CYL D05F4H-E100
2. Responsive time: Less than or equal 1ns
3. Operating Temperature: -40?°C to + 80?°C; Humidity a?¤95% (25-30?°C)
4. Discharge current: 10KA
5. Rated voltage: 5V
6. Protection voltage: 12-18V
8. Joint wastage: Less than or equal 0.5dB
9. Transmission speed: 100Mbps
10. Protect pin:1/2/3/6
11. Size: 80x26x26mm
12. Net weight: 100g
