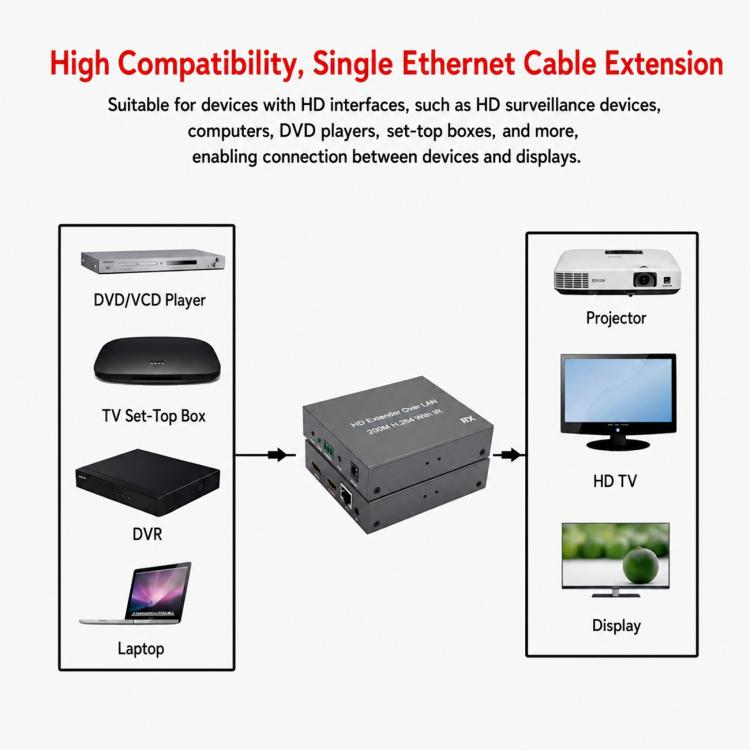

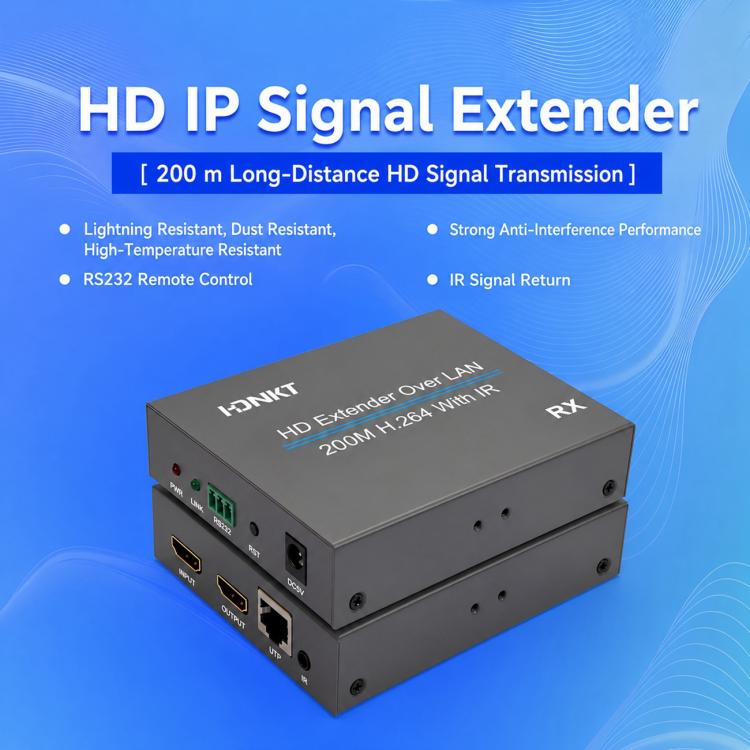

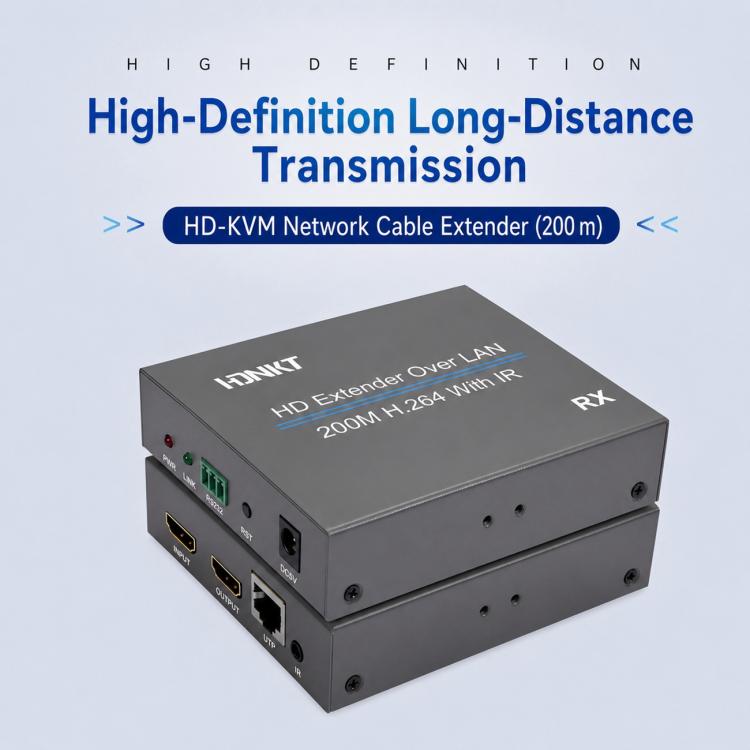

An HDMI extender on a CAT 5E/6 cable is a tool for extending HDMI signals over long distances to compatible displays. Instead of using expensive HDMI cables, your existing CAT 5E/6 cables/sockets can be used to perform advanced functions such as transmitting deep color (12-bit/color) video and digital audio with bandwidth up to 225MHz. An HDMI transmitter and receiver on a CAT 5E/6 extender is your HDMI extension tool. An HDMI extender on a CAT 5E/6 cable also supports IR retransmission, so you can use the HDMI extender to control sources up to 200 meters away.
Specifications:
1. Power Supply: DC 5V
2. Frequency Bandwidth: 2.25Gbps (Single Link)

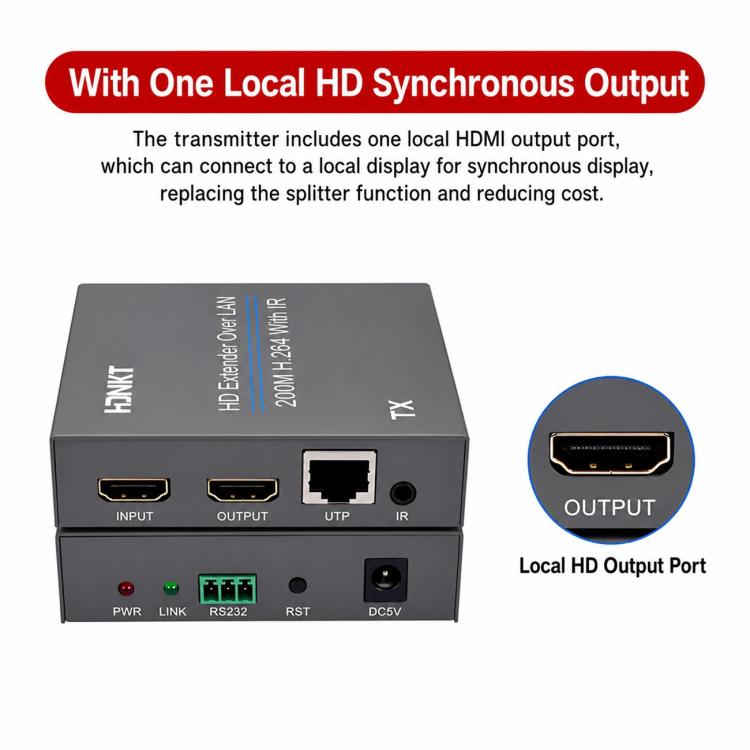

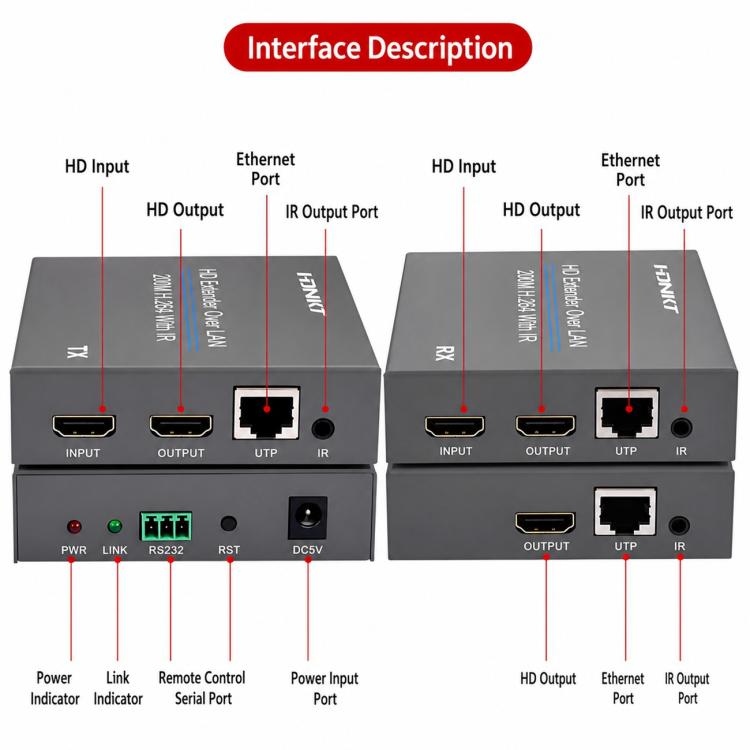

3. HDMI Transmitter Input/Output Ports: 1 x HDMI Female Port / 1 x CAT6
4. HDMI Receiver Input/Output Ports: 1 x HDMI Female Port / 1 x CAT6
5. ESD Protection Human Body Model: +/- 8kV (Air Gap Discharge) +/- 4kV (Contact Discharge)
Features:
1. Compatible with HDMI 1.3, HDCP 1.1, and DVI 1.1.
2. Supports: 480i, 480p, 576i, 576P, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz.
3. Supports deep colors up to 12-bit.
4. Supports IR return.

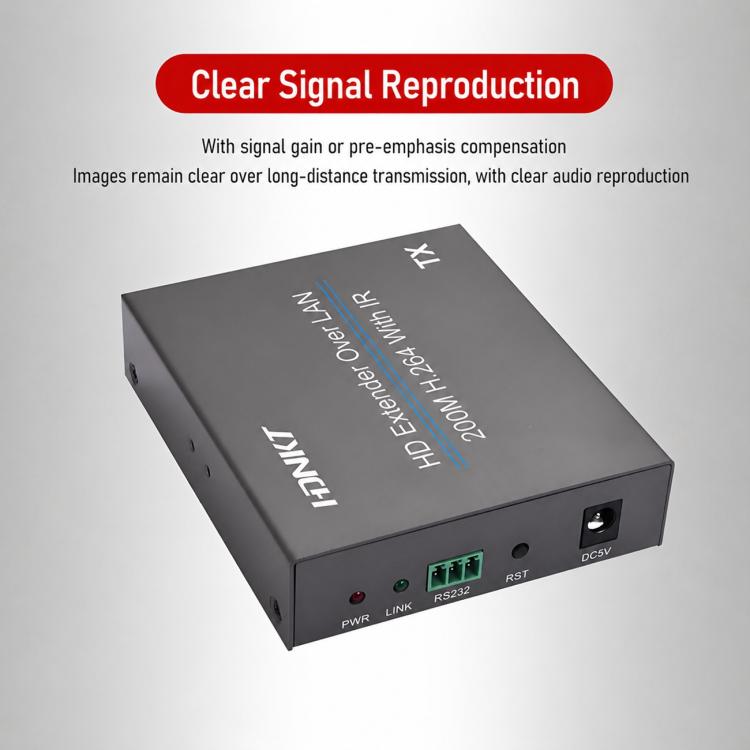

5. Uses a single CAT5E/6 cable for data/DC transmission. 6. Regardless of the input signal quality, incoming TMDS data can be equalized and restored before being retransmitted with the same quality.
7. Cable testing shows that an HDMI input source can operate at a distance of 20 meters using 1080p resolution.

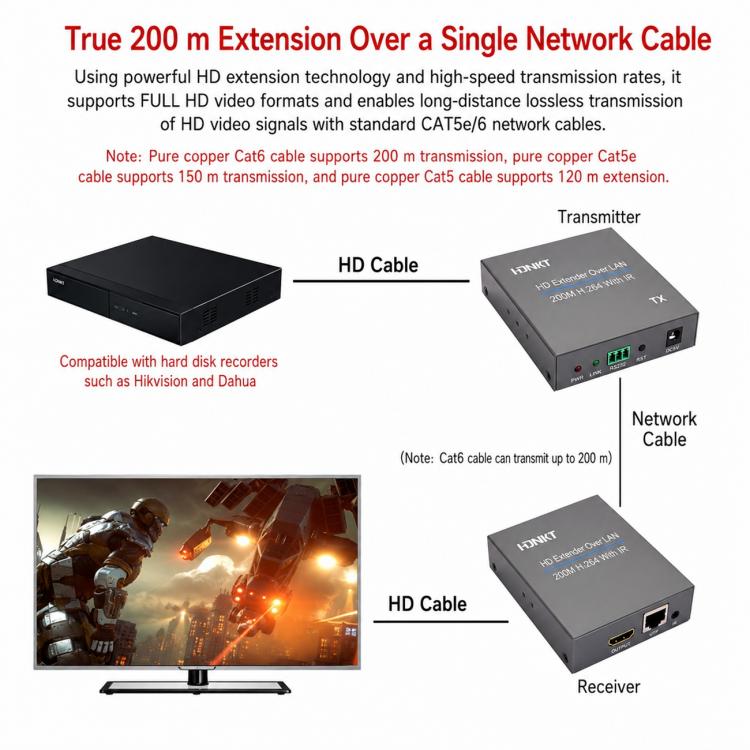

8. When transmitting signals at 1080p resolution, the CAT6 operating distance is 200 meters.
Accessories:

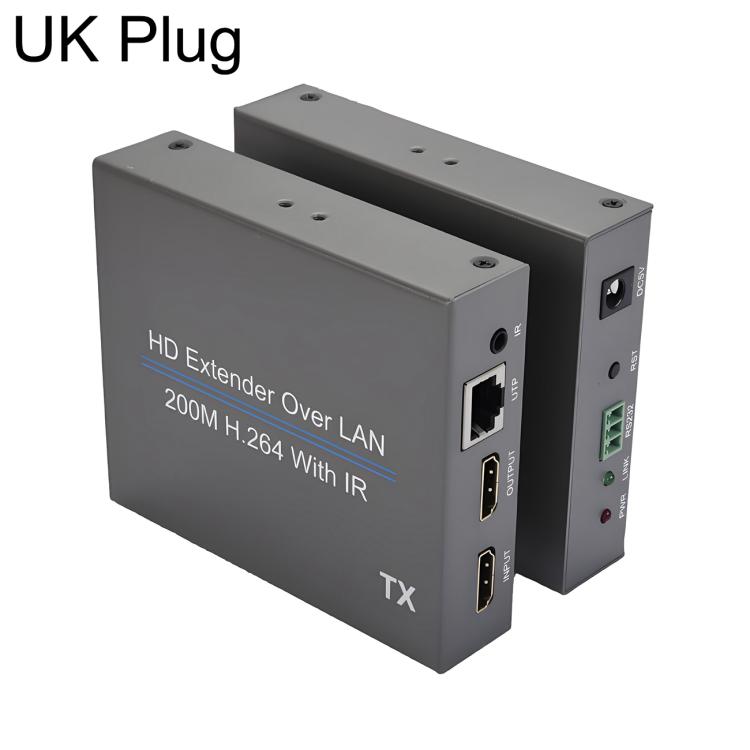

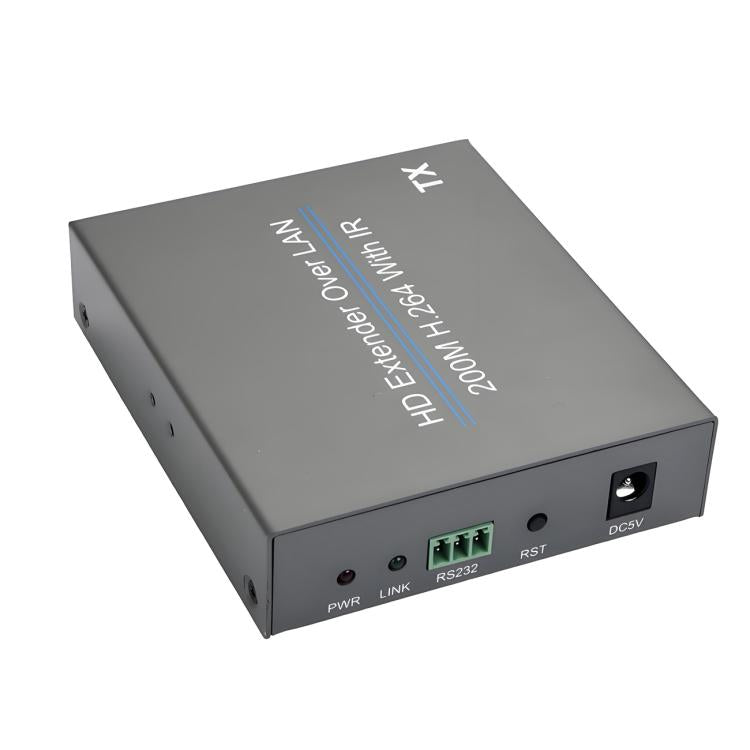

HDMI Transmitter x1

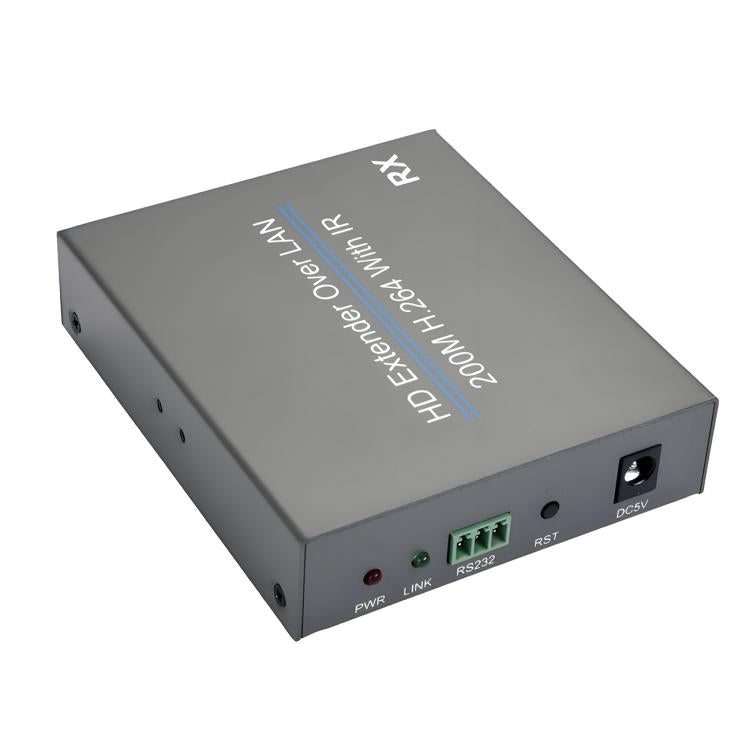

HDMI Receiver x1
Infrared Transmitter x1
Infrared Receiver x1
5V DC Power Adapter x2
User Manual x1
