FEATURES

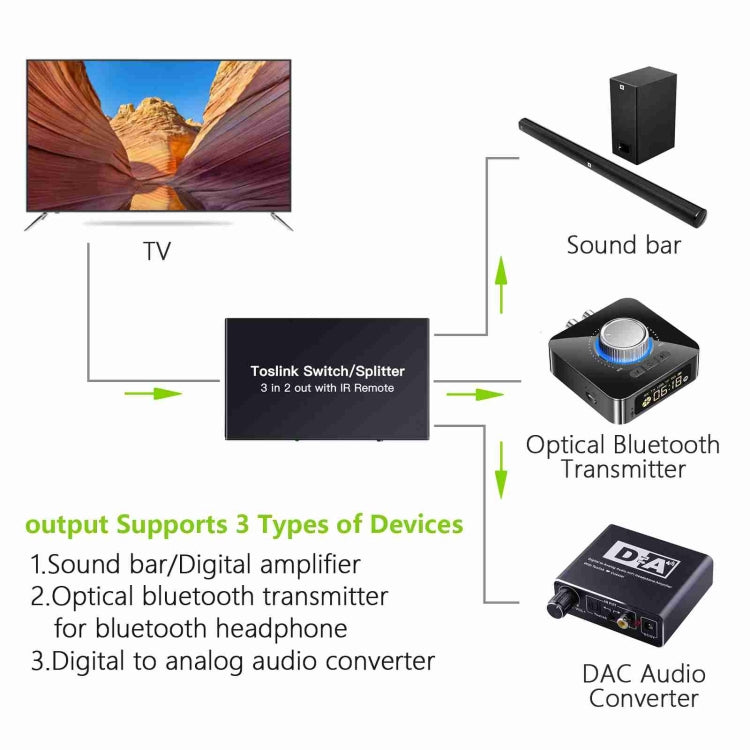

1. Three ways of optical fiber signals switch to two sets of SPDIF/TosLink signal receiving device.
2. Audio format support : LPCM2.0/DTS/Dolby-AC3
3. Support signal retiming
4. Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m.
5. The input control can through R/M and also can directly press the button
6. Support last time working state memory when power off
7. Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
8. LED status indication
9. Installs in minutes
10. Need DC5V/500mA power supply
Specitications
Support audio format: LPCM2.0/DTS/Dolby-AC3
Peak wavelength: 650nm
Max baud rate: 16Mbps
Output cable distance: 25m(Use the optical fiber cable loss less the 0.2Db/m )
Max working current: 100mA
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 108 x 65 x 23.5(mm)
Weight: 173g

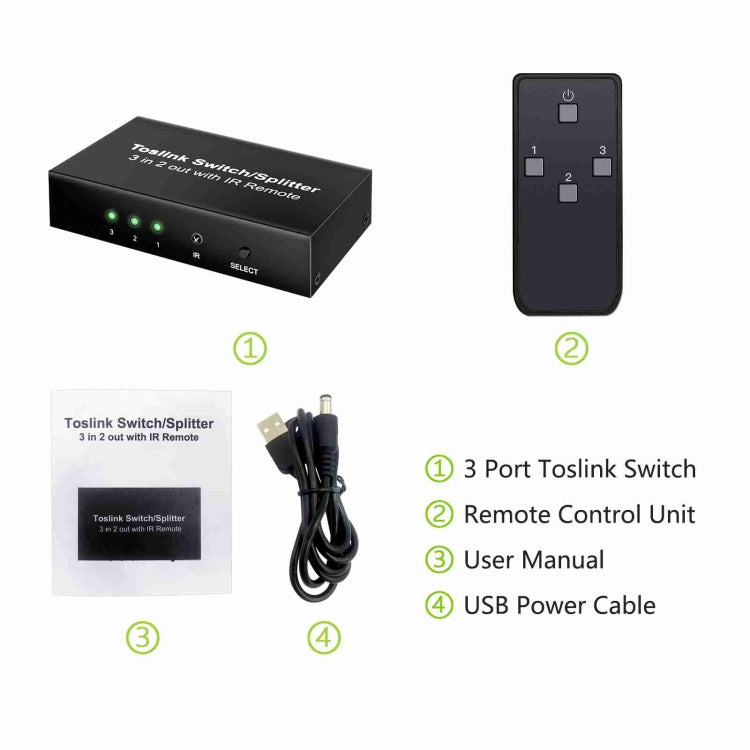

The accessories with the machines lists:
1. USB Cable
2. Operation Manual

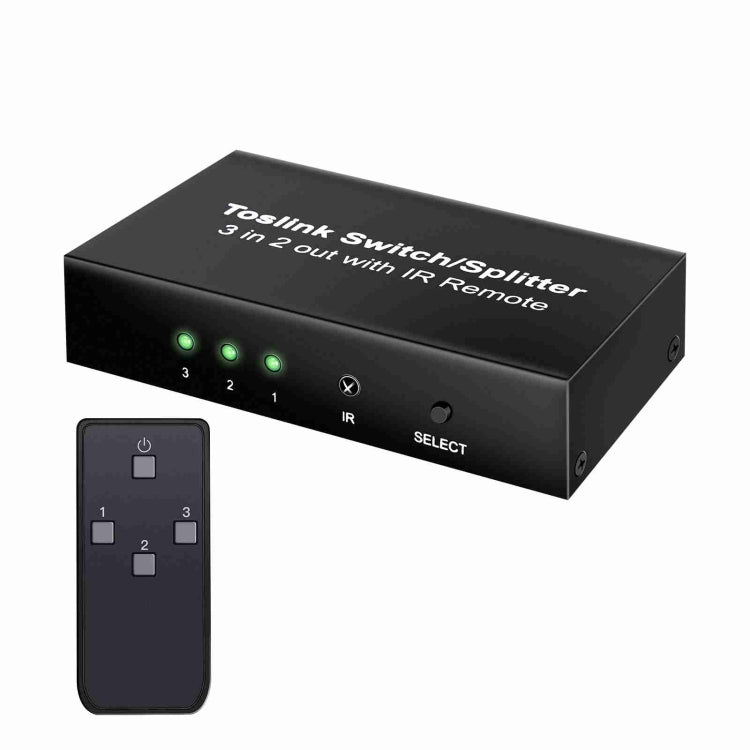

3. Remote-control unit
4. Toslink Cable
