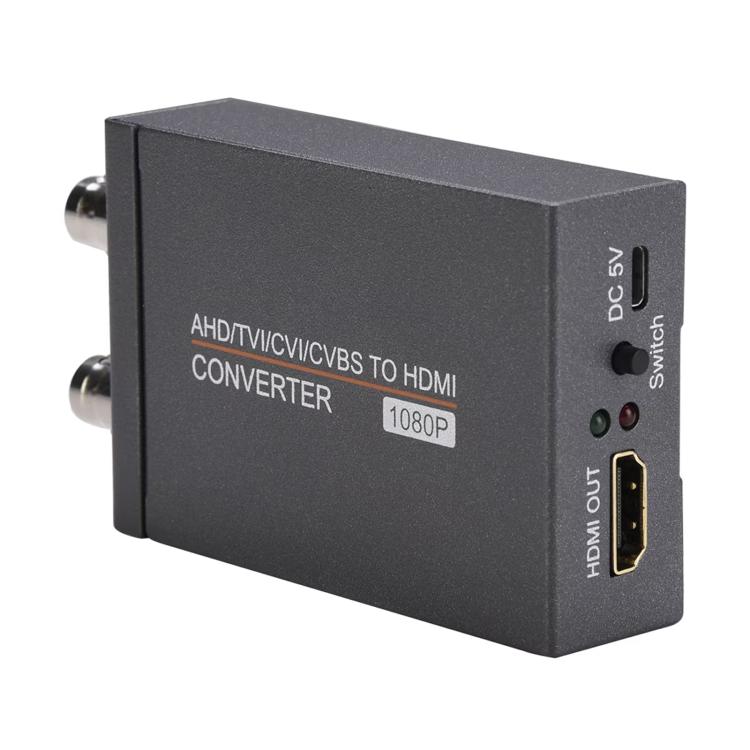

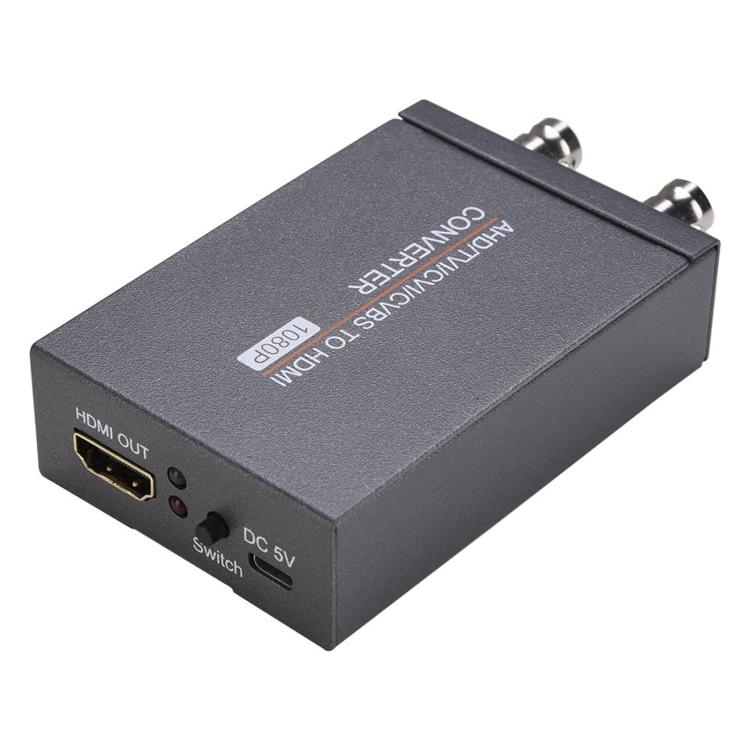

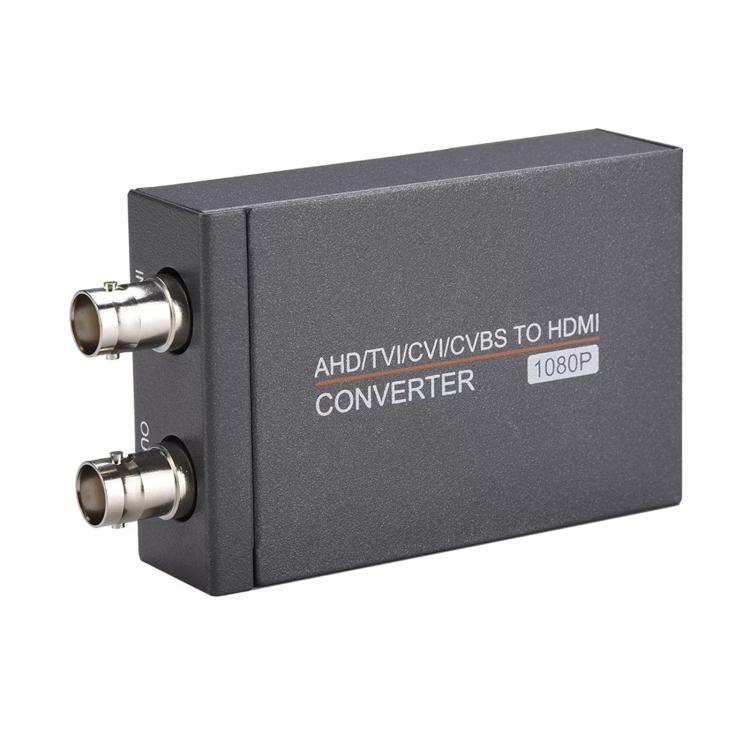

NK-T8 Dual AHD to HDMI 1080P HD BNC Camera Signal Converter, Support TVI, CVI, CVBS(Grey)

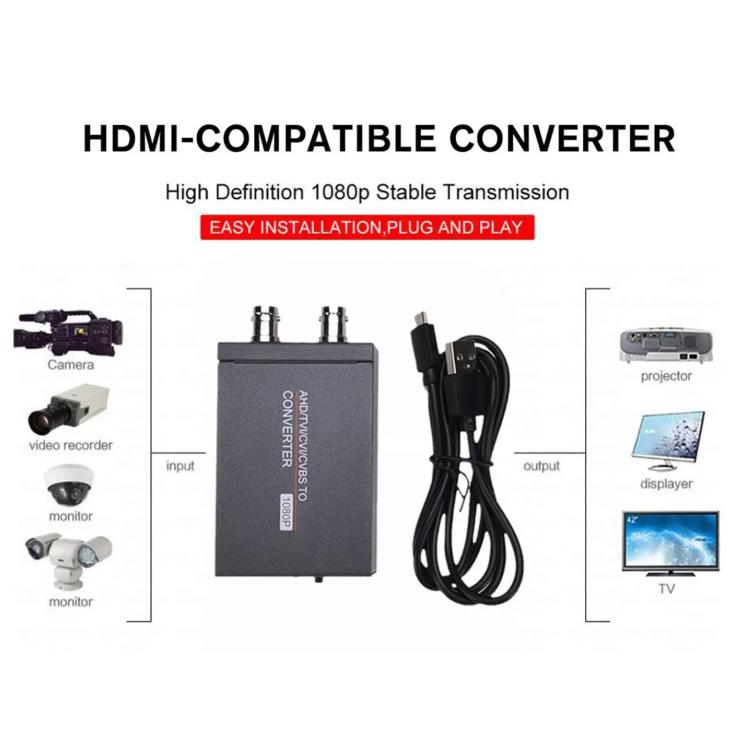

This TVI/CVI/AHD/CVBS to HDMI converter allows you to seamlessly convert TVI, CVI, AHD, and CVBS signals to 720P/1080P HDMI signals. It is widely used in shopping malls, home surveillance, high-definition surveillance, elevator monitoring, traffic monitoring, and other fields.

Specifications:
1. Resolution: 1920 x 1080P
2. Power Cord Length: 80cm
3. Casing Material: Metal
4. Product Dimensions: 8.4cm x 5.5cm x 2.3cm

Operation Controls and Functions:

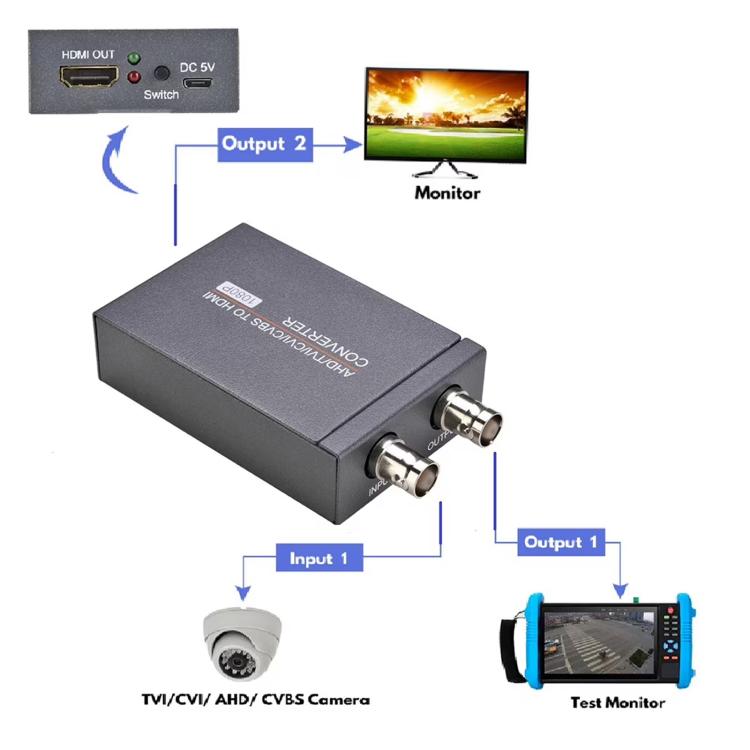

1. Select the output channel of the TVI, CVI, AHD, or CVBS source device as the output format.
2. Turn on the converter; the LED indicator will light up red.
3. If the resolution of the input source TVI, CVI, AHD, or CVBS matches the resolution supported by the HDMI monitor, an HDMI signal can be output through the HDMI port.
4. This converter can set the HDMI output to 720P or 1080P and remembers the current HDMI output format after power failure.
5. The OSD menu displays the currently input TVI/CVI/AHD format. When there is no signal input or the input format is incompatible with this converter, the screen will display a rainbow color.

Package Contents:
Converter x 1
Type-C Power Cable x 1
User Manual x 1
