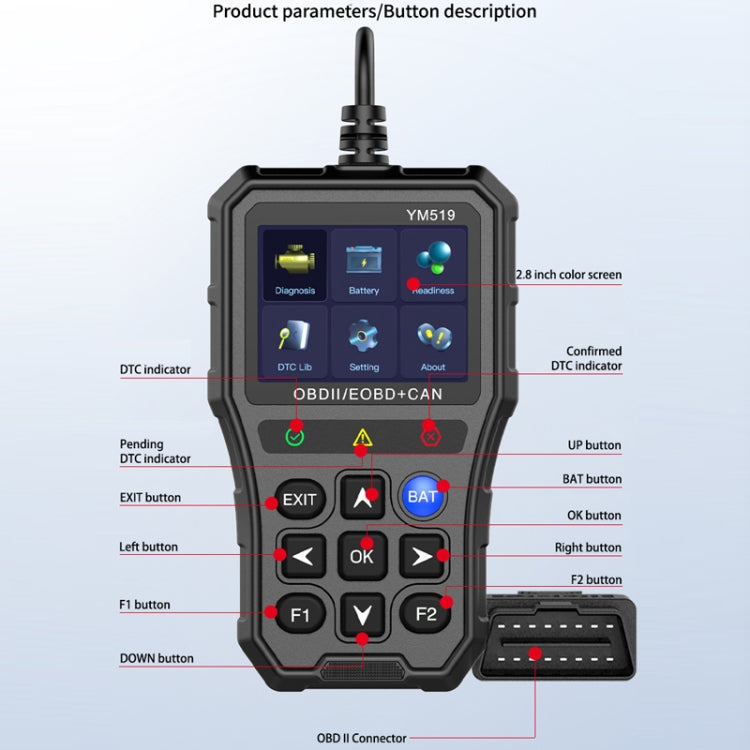

1. UI interaction (picture overlay + changeable themes + GPU Turbo for faster response and faster display)
2. With TPU protective cover, new silicone buttons, three high-brightness indicator lights
3. Screen size: 2.8 color screen
4. Working voltage: 5-18V
5. Working current: 50ma
6. Product size: 145x85x28mm
7. Product net weight: 221g

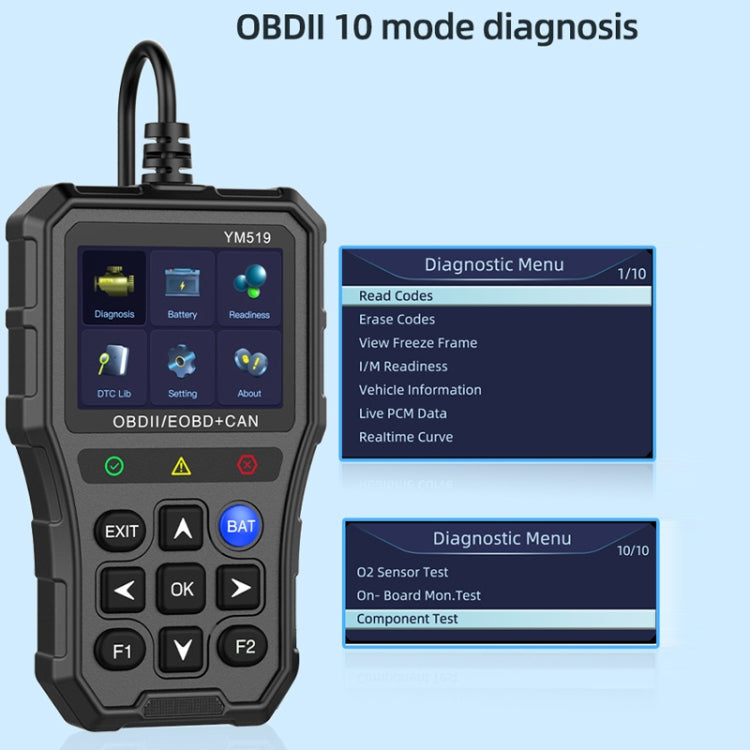

Detection function
1. Supports OBDII/EO nine standard protocols to read automobile engine fault codes

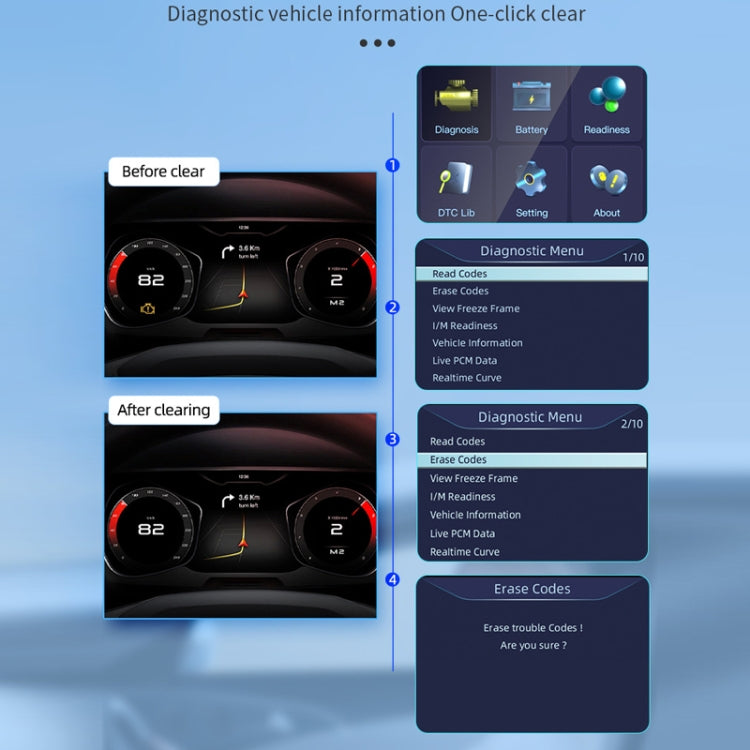

2. Clear engine fault codes
3. Car trouble freeze frame
4. I/M ready status
5. Vehicle information
6. Car real-time data flow
7. Real-time curve of automobile data
8. Mode 6 detection (component system test)
9. Mode 8 detection (fuel evaporation system)
10. Oxygen sensor test
11. Parts testing
12. Fault code query

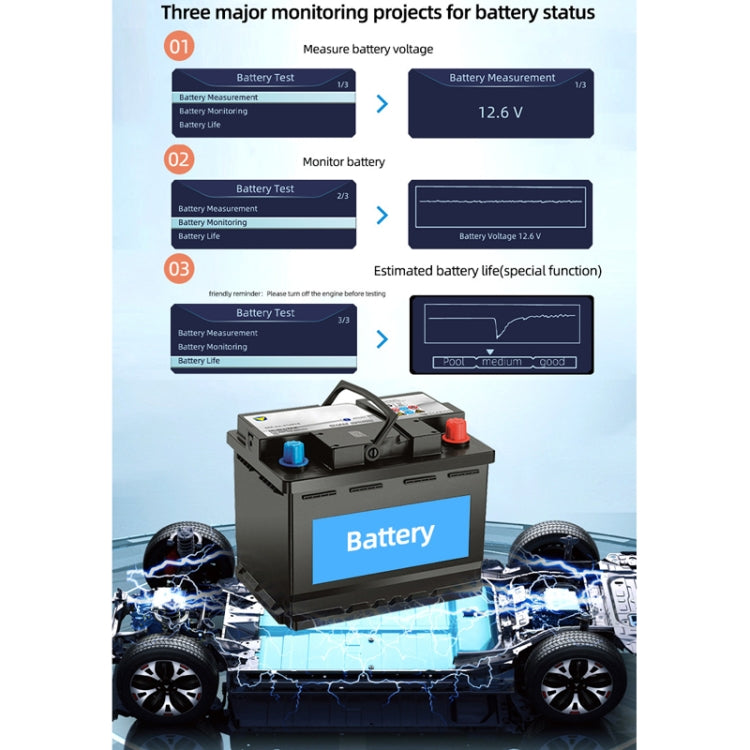

13. Vehicle battery voltage reading
14. Vehicle battery voltage monitoring
15. Vehicle battery life evaluation
16. The product has 13 built-in languages (Chinese, English, Korean, Japanese, Russian, Polish, Portuguese, Finnish, Italian, French, Spanish, Dutch, German)

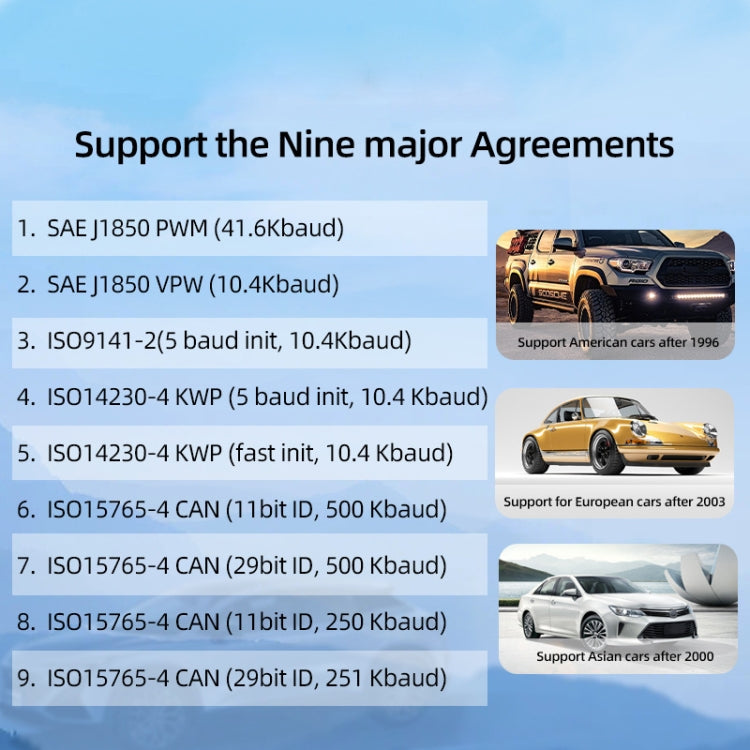

supporting agreement
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 251 Kbaud)
