1. Four cables for DJI LiDAR rangefinder (RS), DJI transmitter, DJI RS focus motor (2022), and power supply are integrated in one place.
2. DJI LiDAR Focus Rangefinder (RS) and DJI Motion Transmitter can be connected to this cable to form a focus monitoring system, which can be combined with any camera and manual lens to realize lens calibration and manual lens autofocus function.
3. The USB-C interface of this Mapping Cable supports the use of the DJI R Camera Control Cable (USB-C) to connect the DJI RS 3 Pro to interconnect the DJI RS 3 Pro with the DJI Transmission and the LiDAR Focus Rangefinder (RS) to form an ecosystem of stabilization, remote monitoring, remote control, and autofocusing functions
4. Operating voltage: 12-17V
5. Adaptable products: for DJI LiDAR LiDAR Range Finder (RS), RS Focus Motor (2022), Video Transmitter, RS 3 Pro, Ronin 4D Hand Grips Combo
6. Warm tips: please use an external power supply with a voltage of 12-17V
7. Interface type:

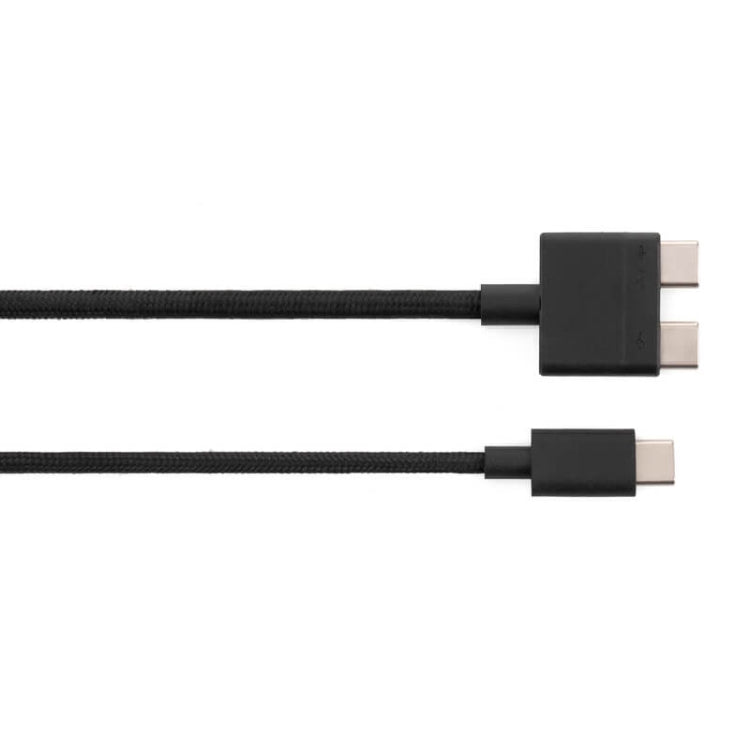

- Dual USB-C 40 cm LiDAR Connection Cable
- USB-C 40cm Follow Focus Motor Cable

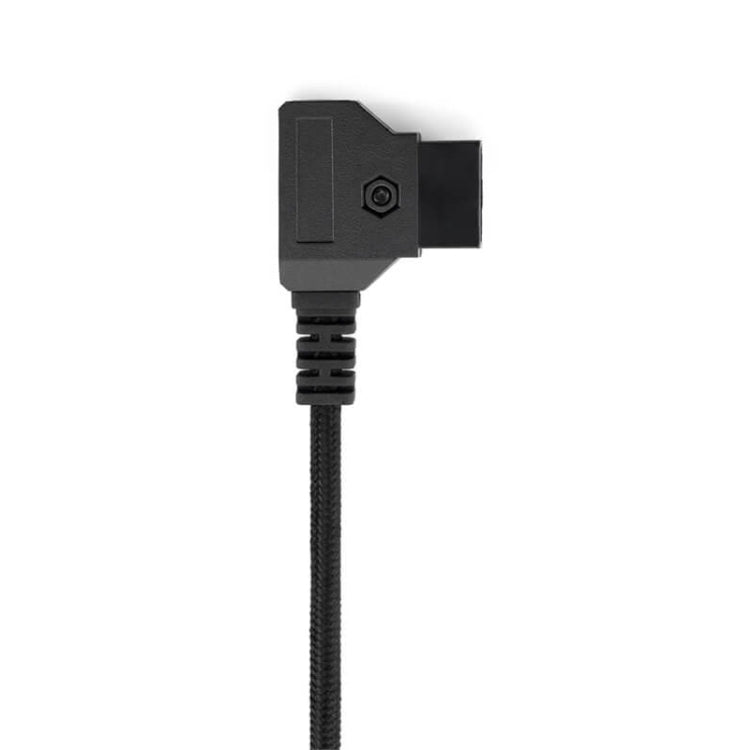

- P-Tap 40cm power cable

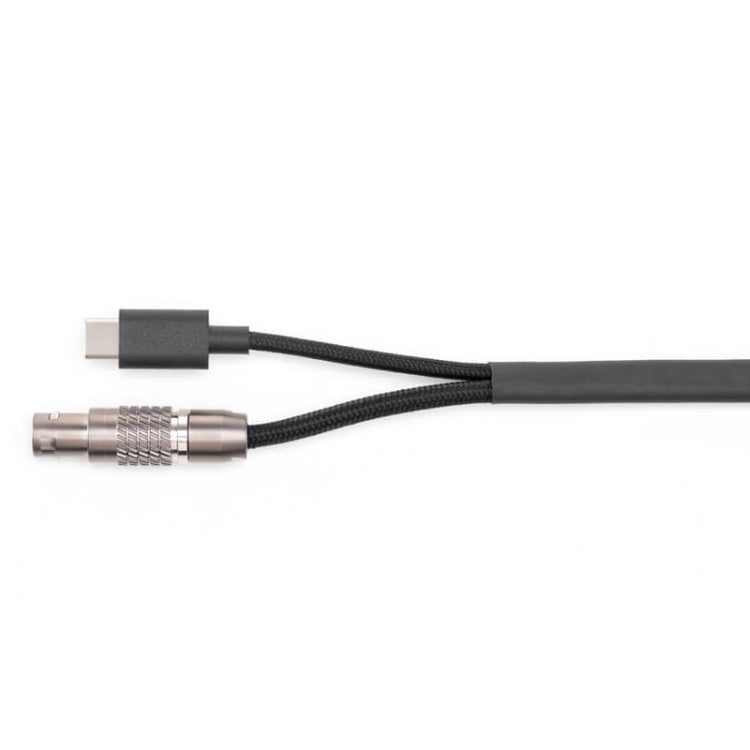

- DC-OUT and USB-C 40cm mapping cable
- USB-C communication control interface
8. Packing list:

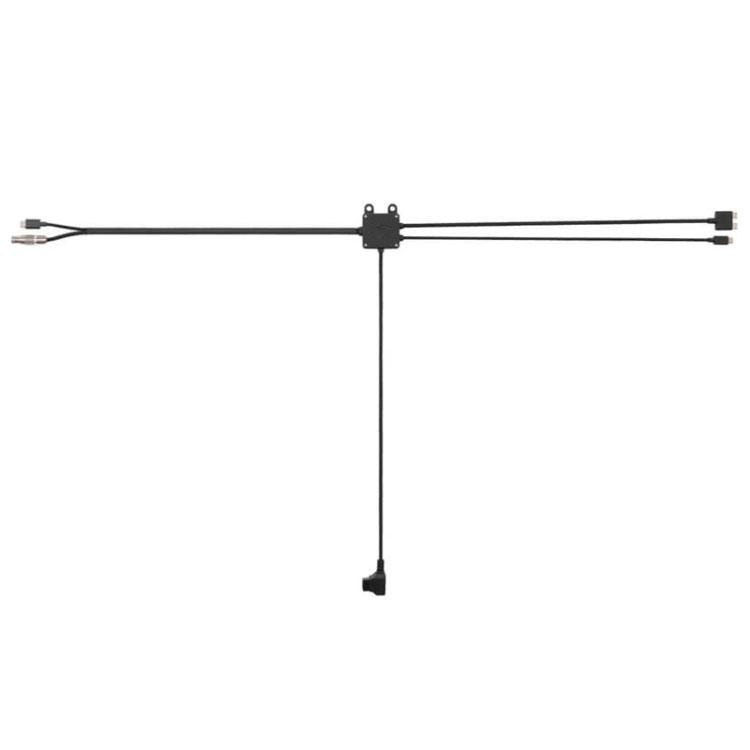

- DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub x 1
- Set screws (inch 1/4-20) x 2
- M4 screws (10mm) x 2
