Compact and portable, easy to operate, featuring DJI 7th generation stabilization technology and ActiveTrack 7.0. Pair it with the Multifunctional Tracking Module to facilitate efficient solo content creation.
Parameters:
1. Dimensions:
--Unfolded: 278 mm (Length) × 107 mm (Width) × 93 mm (Height)
--Folded: 179 mm (Length) × 95 mm (Width) × 39 mm (Height)
2. Weight: Gimbal + Built-in Tripod + Magnetic Phone Clamp: Approx. 300 g
3. Extension Rod: No built-in extension rod
4. Built-in Tripod: Length: 67 mm
5. Supported Phone Weight: 170 g to 300 g
6. Supported Phone Thickness: 6.9 mm to 10 mm
7. Supported Phone Width: 67 mm to 84 mm
8. Bottom Interface: 1/4-inch Screw Port
---
Battery:
1. Type: Li-Po 1S
2. Capacity: 3350 mAh
3. Energy: 12.06 Wh
4. Operating Time: Approx. 10 hours (Reference value measured under gimbal balanced and stationary conditions without additional accessories)
5. Charging Time: Approx. 2.5 hours (Measured with a 10W charger)
6. Gimbal Charging Port: USB-C
---
Gimbal:
1. Controllable Rotation Range:
Pan: -99° to 210°
Roll: -67° to 245°
Tilt: -20° to 40°
2. Structural Rotation Range:
Pan: -109° to 222°
Roll: -77° to 255°
Tilt: -224° to 100°
3. Maximum Controllable Rotation Speed: 120°/s
---
Multifunctional Module：
1. GFSK: 2 Mbps
2. GFSK Transmit Power (EIRP): ≤ 16 dBm
3. GFSK Operating Frequency: 2.4000 GHz to 2.4835 GHz
4. Bluetooth Protocol: Bluetooth 5.3
5. Bluetooth Transmit Power (EIRP): ≤ 16 dBm
6. Bluetooth Operating Frequency: 2.4000 GHz to 2.4835 GHz
7. Fill Light Illuminance: 40 lux (Maximum brightness measured 0.6 m away from the subject, for reference only)
8. Fill Light Color Temperature: 2500 K to 6000 K
---

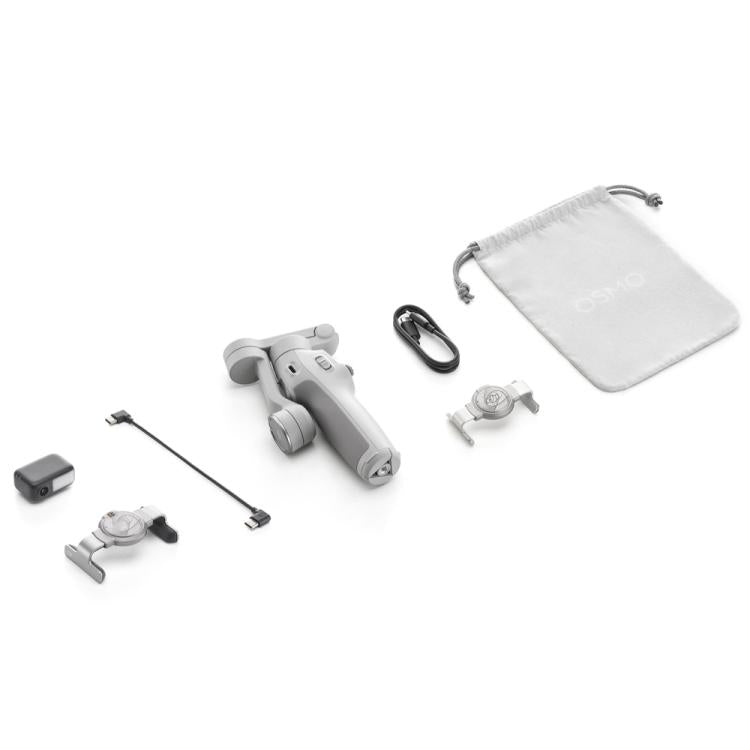

Package List：
Osmo Mobile 7 × 1
OM Multifunctional Tracking Module × 1
OM 7 Series Magnetic Phone Clamp × 1
OM Magnetic Phone Clamp 4 × 1
USB-C to USB-C Charging Cable (50 cm) × 1
USB-C to USB-C Phone Audio Cable (15 cm) ×1
Drawstring Pouch ×1
