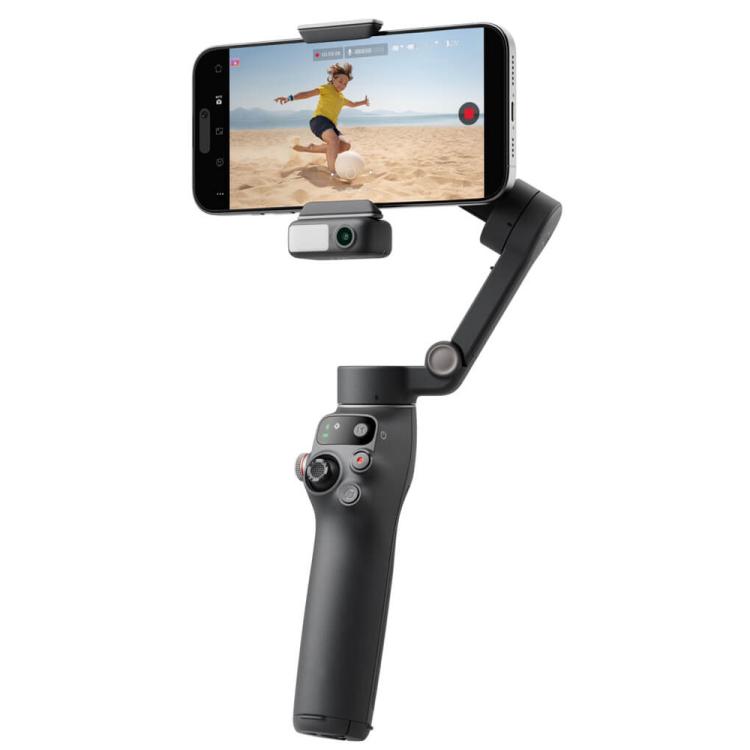

1. Native Tracking, Integrated Audio Reception & Fill Light: The brand-new Multi-function Tracking Module enables subject tracking without relying on the Mimo app. It also supports the DJI Mic Mini receiver and fill light function, providing comprehensive shooting assistance for your productions.
2. The Osmo Mobile 7 series features a magnetic design. Simply attach your phone, and it will snap into place instantly.
3. Powerful 3-axis Gimbal Stabilization, Lossless Anti-shake.
4. Shooting & Editing Tutorials, One-tap Creation: Pair it with the Mimo app for easy shooting and editing to produce videos quickly. The shooting guide function can intelligently recognize numerous scenarios and recommend corresponding camera movements and shooting instructions. The one-tap video creation function also helps you effortlessly produce stunning videos.

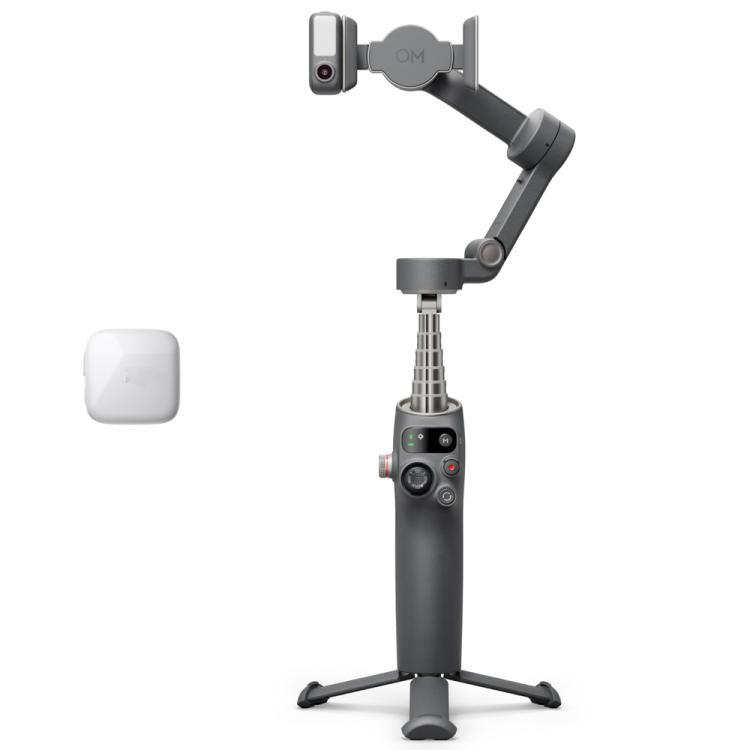

4. Integrated Extension Rod & Tripod: The Osmo Mobile 7P comes with a built-in extension rod and tripod, allowing you to unlock more shooting angles without additional accessories. You can easily unfold the tripod for stable placement, handle solo shooting with ease, and enjoy hassle-free storage when not in use.
Specifications
1. Dimensions:
- Unfolded: 288 mm (L) × 107 mm (W) × 96 mm (H)
- Folded: 190 mm (L) × 95 mm (W) × 46 mm (H)
2. Weight: Gimbal + Built-in Tripod + Magnetic Phone Clamp + Multi-function Tracking Module: approx. 368 g
3. Extension Rod: Built-in extension rod with a maximum extension length of 215 mm
4. Built-in Tripod: Length: 67 mm
5. Compatible Phone Weight: 170 g to 300 g
6. Compatible Phone Thickness: 6.9 mm to 10 mm
7. Compatible Phone Width: 67 mm to 84 mm
8. Bottom Interface: 1/4-inch threaded port
Battery
1. Type: Li-Po 1S
2. Capacity: 3350 mAh
3. Energy: 12.06 Wh
4. Operating Time: approx. 10 hours (Reference value measured with the gimbal balanced and stationary without additional accessories)
5. Charging Time: approx. 2.5 hours (Measured with a 10 W charger)
6. Gimbal Charging Port: USB-C
Gimbal
1. Controllable Rotation Range:
- Pan: -99° to 210°
- Roll: -67° to 245°
- Tilt: -20° to 40°
2. Structural Rotation Range:
- Pan: -109° to 222°
- Roll: -77° to 255°
- Tilt: -224° to 100°
3. Maximum Control Speed: 120°/s
---
Multi-function Tracking Module
1. GFSK: 2 Mbps
2. GFSK Transmit Power (EIRP): <16 dBm
3. GFSK Operating Frequency: 2.4000 GHz to 2.4835 GHz
4. Bluetooth Protocol: Bluetooth 5.3
5. Bluetooth Transmit Power (EIRP): <16 dBm
6. Bluetooth Operating Frequency: 2.4000 GHz to 2.4835 GHz
7. Fill Light Illuminance: 40 lux (Reference value measured at a distance of 0.6 m from the subject, for reference only)
8. Fill Light Color Temperature: 2500 K to 6000 K
