1. Image sensor: 640x480 pixel CMOS sensor
2. Illumination: white LED
3. Focus: red LED
4. 2D symbologies: PDF417, Micro PDF417, QR Code, Micro QR, Aztec, Data Matrix
5. 1D symbologies: Codabar, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 93, Code 11, Code 128, UPC-A, UPC-E, EAN-8, EAN-13, MSI, ISSN, ISBN, GS1 DataBar
6. Reading accuracy: 25 mil
7. Typical reading depth of field:
- EAN-13 (13 mil) 35 mm~ 190mm (Barcode size: 17mm x 31mm)
- PDF417 (6mil) 20mm to 70mm (Barcode size: 14mm x 7mm)
- Code39 (4.7mil) 25mm to 60mm (Barcode size: 6mm x 21mm)
- Data Matrix (10mil) 20mm to 75mm (Barcode size: 5mm x 5mm)
- QR Code (15mil) 20mm to 90mm (Barcode size: 10mm x 10mm)
8. Barcode sensitivity: Pitch 70 degrees, Yaw 70 degrees, Rotation 360 degrees
9. Field of view: diagonal 52.1 degrees (D), 43.1 degrees (H)
10. Communication interfaces: USB, RS-232
11. Operating voltage: 5 VDC
12. Rated power consumption: 950mW (Typical)
13. Ambient lighting: 0-100,000 OLUX
14. Data cable:
- USB for connecting the development board to the host computer
- RS-232 for connecting the development board to the host computer
15. Fast and smooth recognition. Utilizing core decoding chip technology, it easily reads screen codes, paper codes, color codes, double-digit codes, uneven barcodes, wrinkled and reflective barcodes, large data volumes, and low-contrast codes.
16. Made of high-quality materials, it withstands multiple drops from 2 meters to the ground, providing shock and impact resistance for durability.

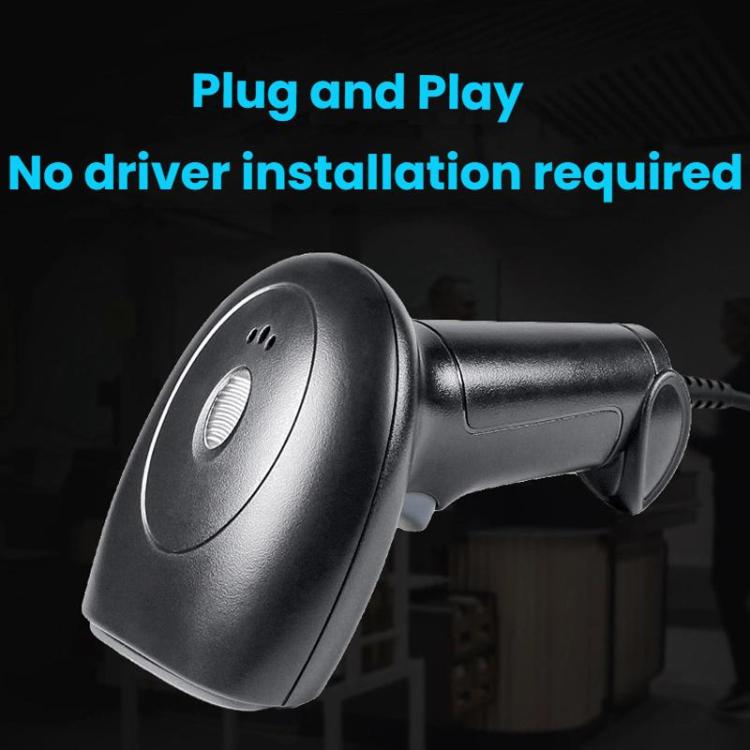

17. Plug and play, no driver installation required.
18. Supports multi-language keyboards, including Italian, German, Spanish, French, English (UK and US), Portuguese, Brazilian, and Turkish.

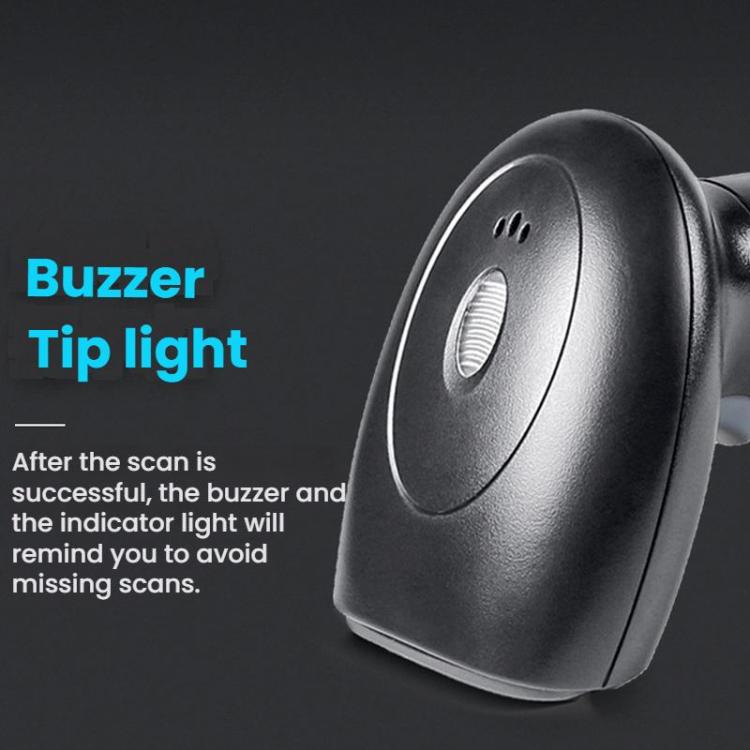

19. A buzzer and indicator light indicate successful scans to prevent missed scans.

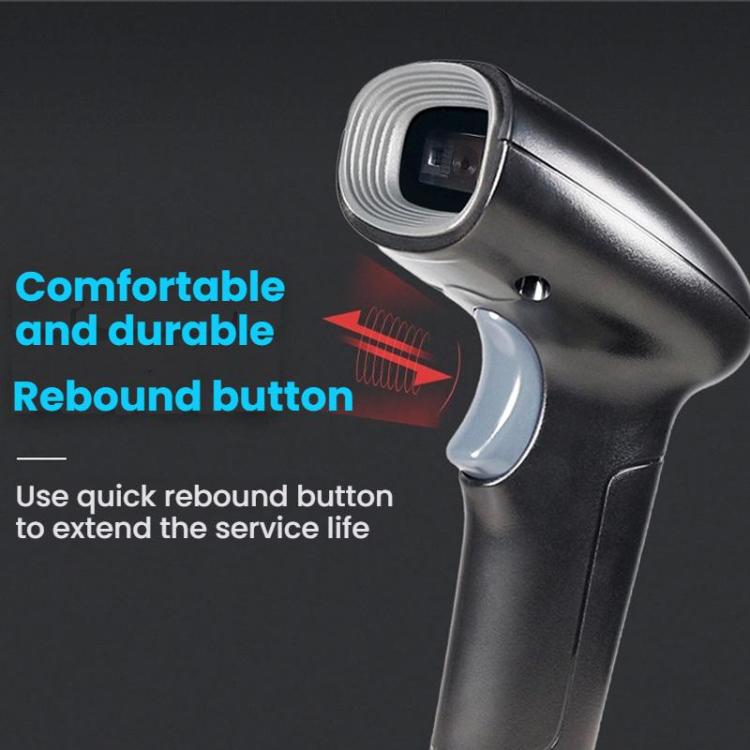

20. Quick-release buttons extend lifespan and are comfortable and durable.

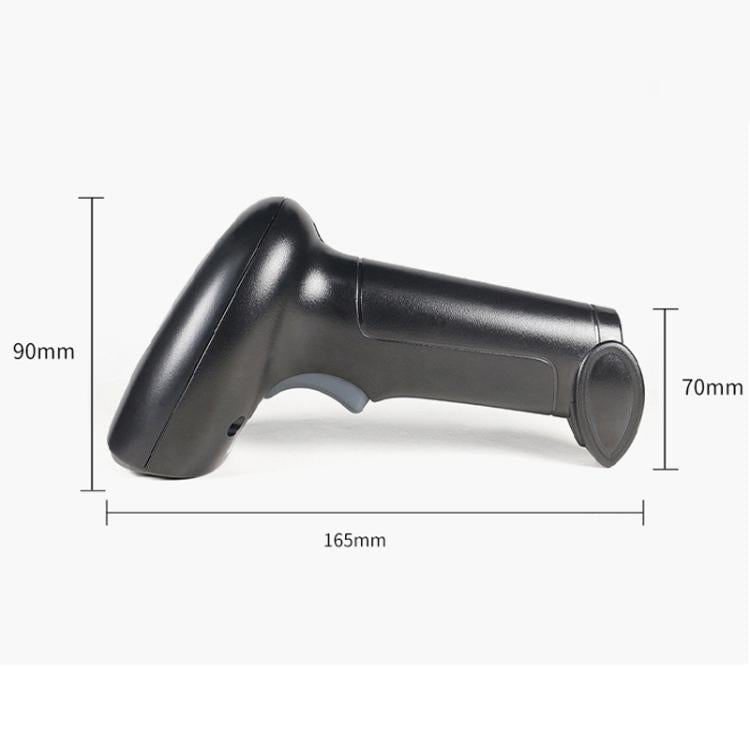

21. Dimensions: 165x70x90mm
