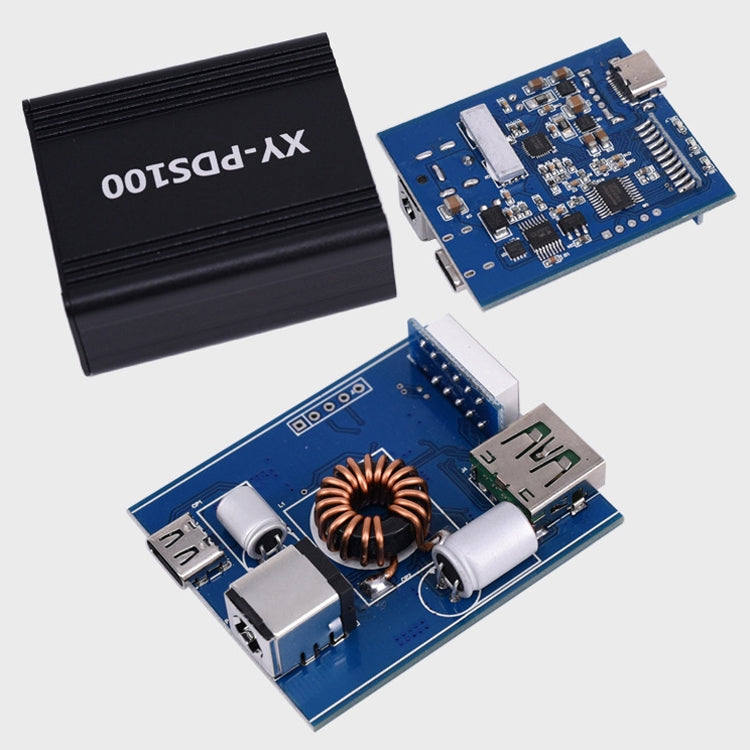

1. Material: Aluminum alloy shell
2. Power supply voltage: DC12-28V
3. Power: 100W
4. Input: DC+TYPE-C dual port input
5. Support fast charge protocol: PD2.0 PD3.0 PPS, For Qualcomm QC4+/QC3.0, For Huawei SCP/FCP, For OPPO VOOC, For OnePlus DASH, For iOS 2.4A, For Samsung AFC, For VIVO 9V 2A dual engine, For MediaTek PE2.0

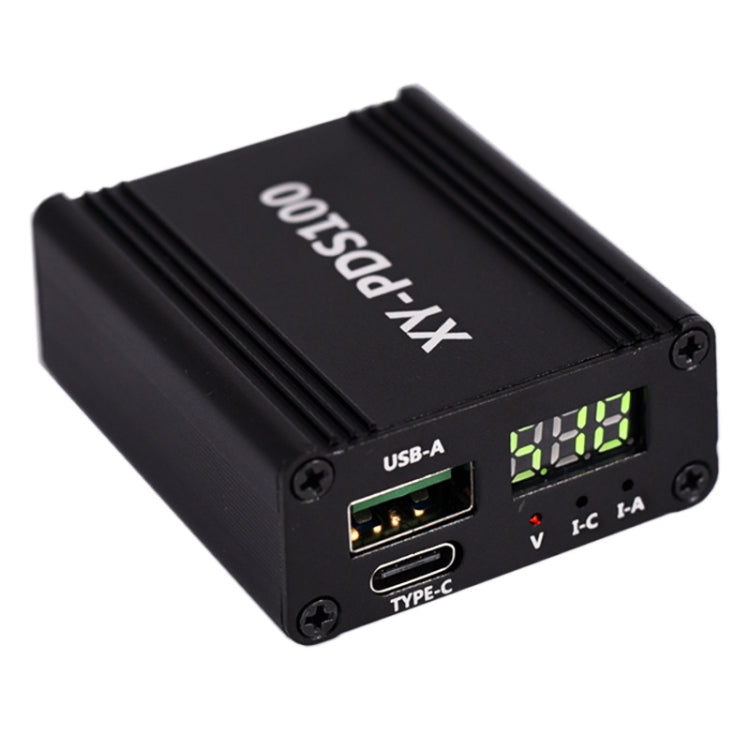

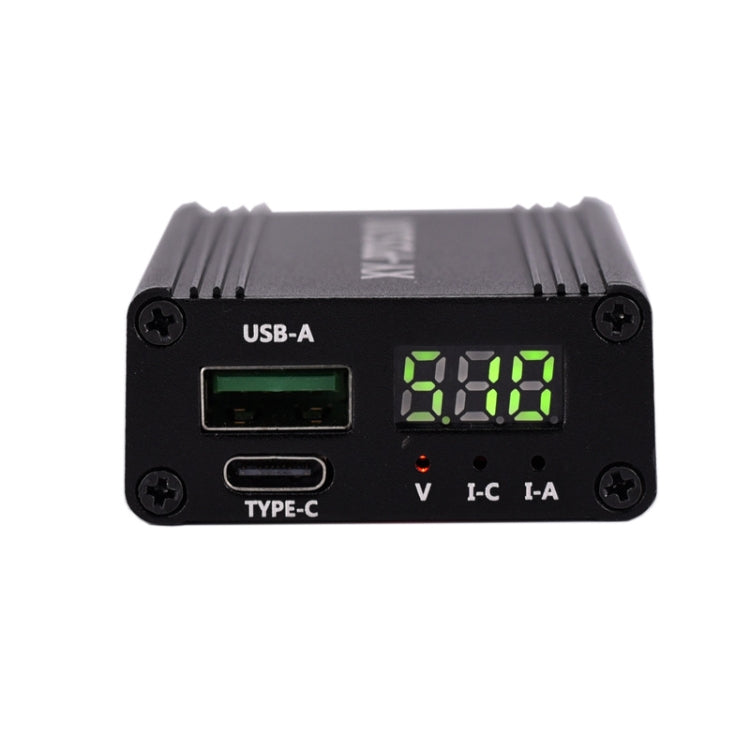

6. Features:Exquisite and small, the digital tube displays the current and voltage, can switch the display content intelligently, and has strong compatibility. After the fast charge protocol is activated, the digital tube will display the output fast charge protocol type.
7. Weight: About 60 grams

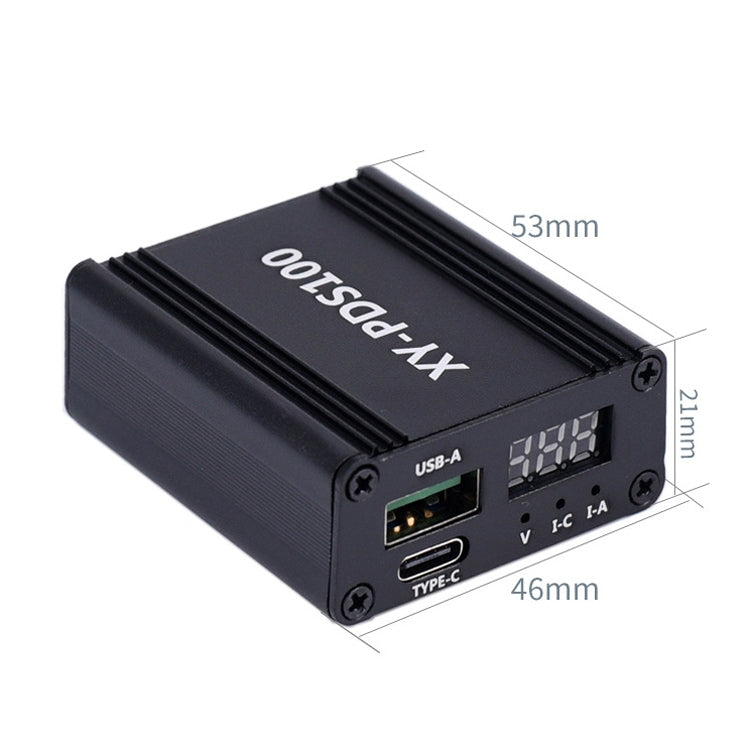

8. Size: About 5.3x4.6x2.1 cm
Instructions for use:
1. Withstand voltage within 32V, it is recommended to use within 28V. This module is a pure step-down module and has no boost function. If you want to use 20V output, you must use a DC power supply above 21V; low voltage can reach 6V, but 6V is mostly fast the charge will not be activated, and the output power of 100W can only be reached when the PD is output (PD20V, 5A)
2. For low-voltage and high-current fast charging, please use the original data cable. If you want to measure the charging voltage and current, you must use a low-resistance USB meter, otherwise the charging current will be affected.
3. OPPO and OnePlus mobile phones must use USB port for charging, QC4+/QC4.0/PD3.0 and other protocols must use TYPE-C port
4. When the USB port and TYPE-C port are plugged into the mobile phone at the same time, both ports are 5V output
