1. Material: flame retardant ABS

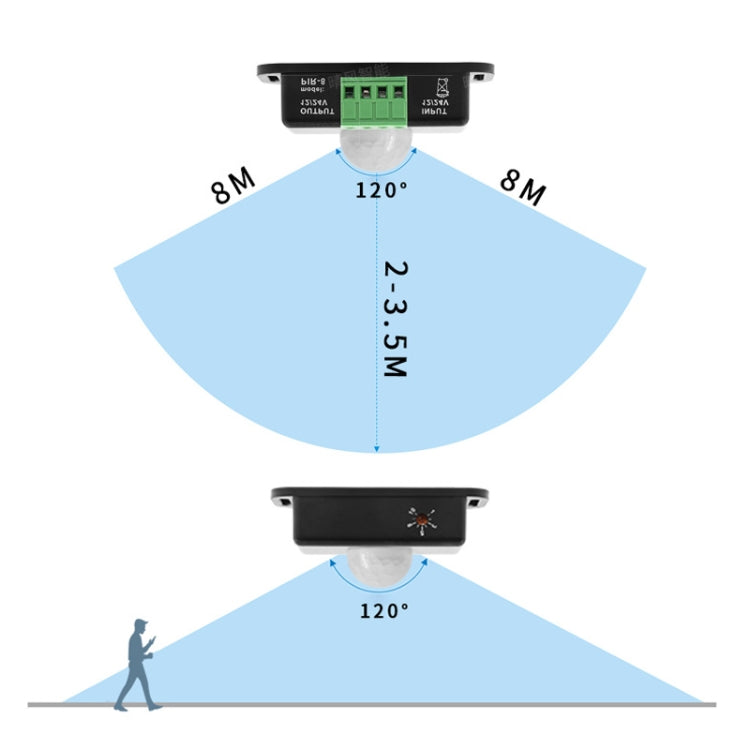

2. Detection angle: 120 degrees
3. Detection distance: about 8m
4. Delay time: 1-10 minutes (adjustable)
5. Operating temperature: -20 - 60 degree Celsius
6. Operating humidity: less than 93% RH
7. Rated load: 6A
8. Power consumption: less than 0.5W
9. Operating voltage: DC12V 24V
10. Operating frequency: 50/60Hz
11. Installation height: 2-3.5m

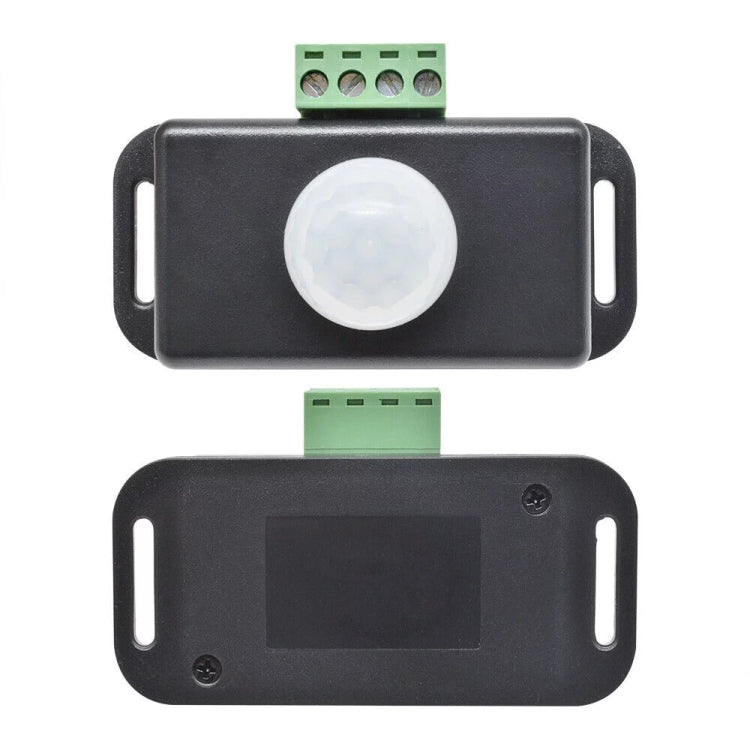

12. Installation: screw fixing, 2 fixing holes (mounting hole distance 66mm)

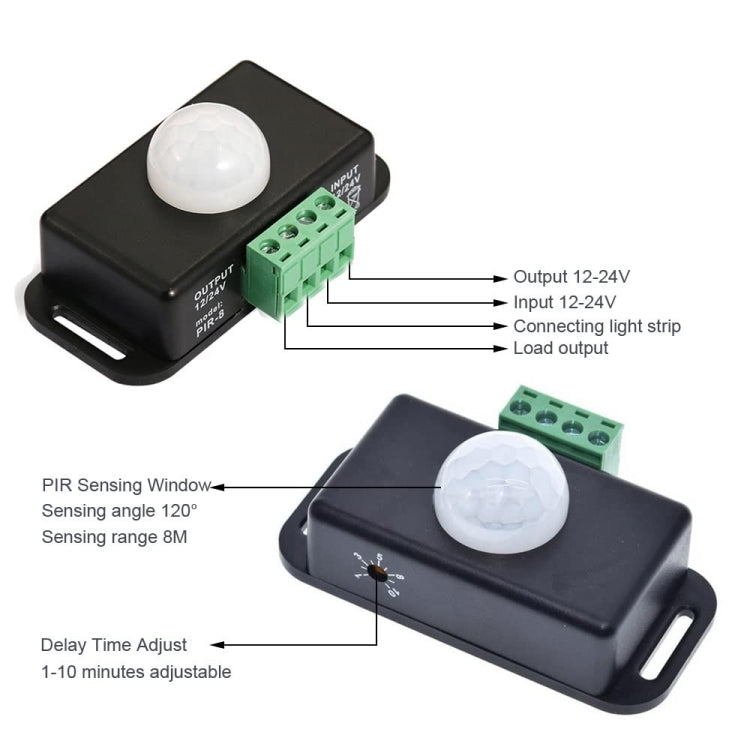

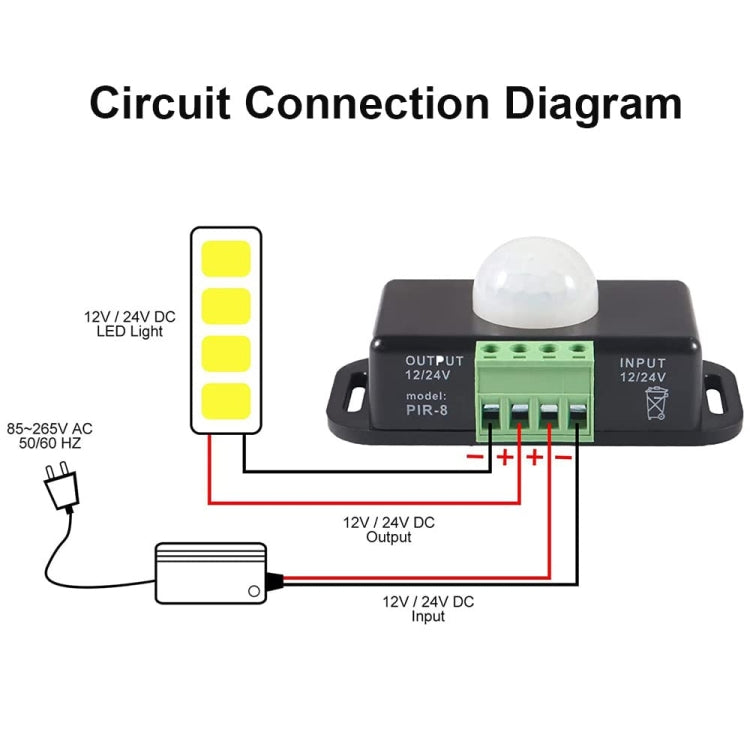

13. Wiring instructions:
- INPUT: power input interface, connected to the DC12-24V power supply
- OUTPUT: load output interface, connect the light strip

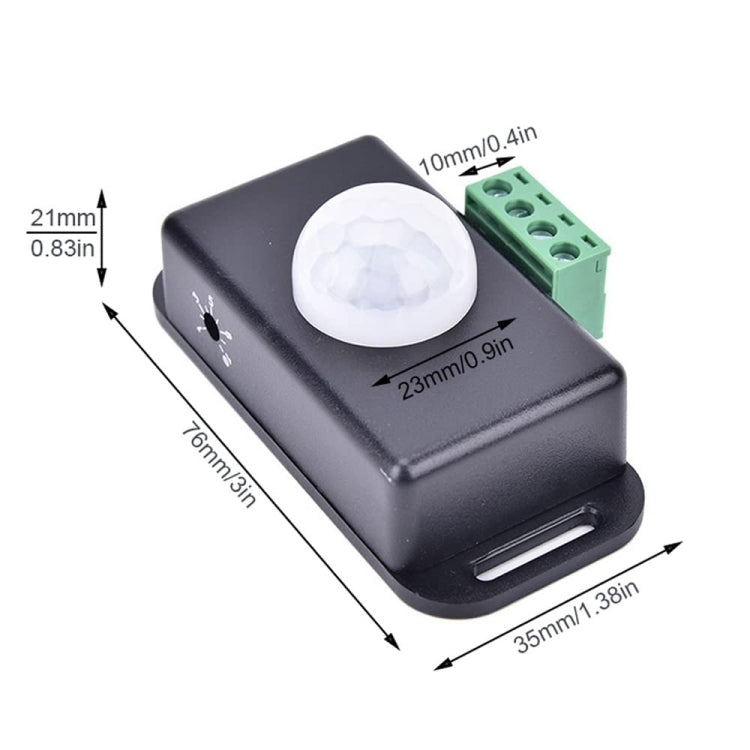

14. Size: about 7.6 x 3.5 x 3.4cm
15. Weight: about 40g
Features:
1. Flame retardant material, no deformation, not easy to oxidize, safe and durable
2. 120 degrees detection without blind spot, high sensitivity, focusing on moving objects can produce pyroelectric infrared signal with temperature

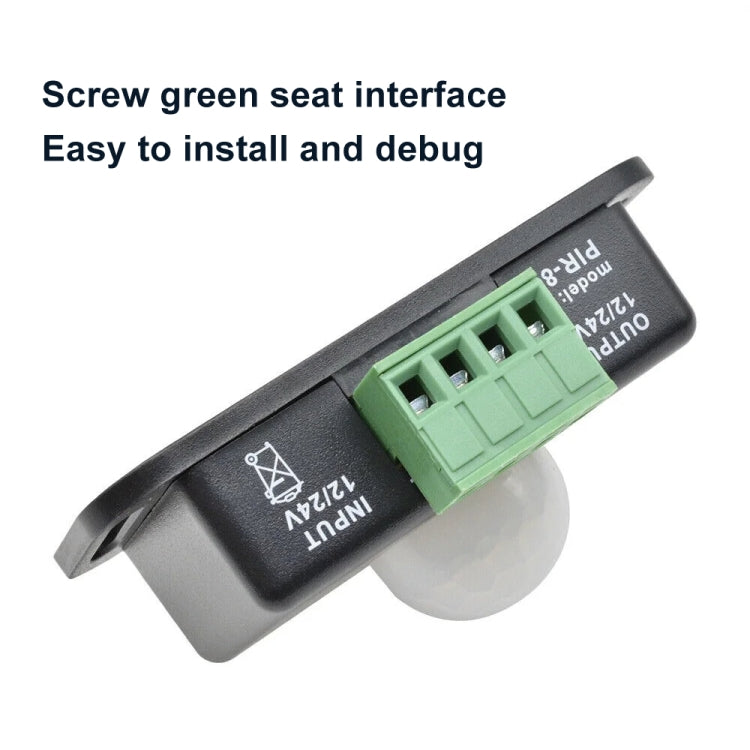

3. Screwed green seat interface, easy to install and debug

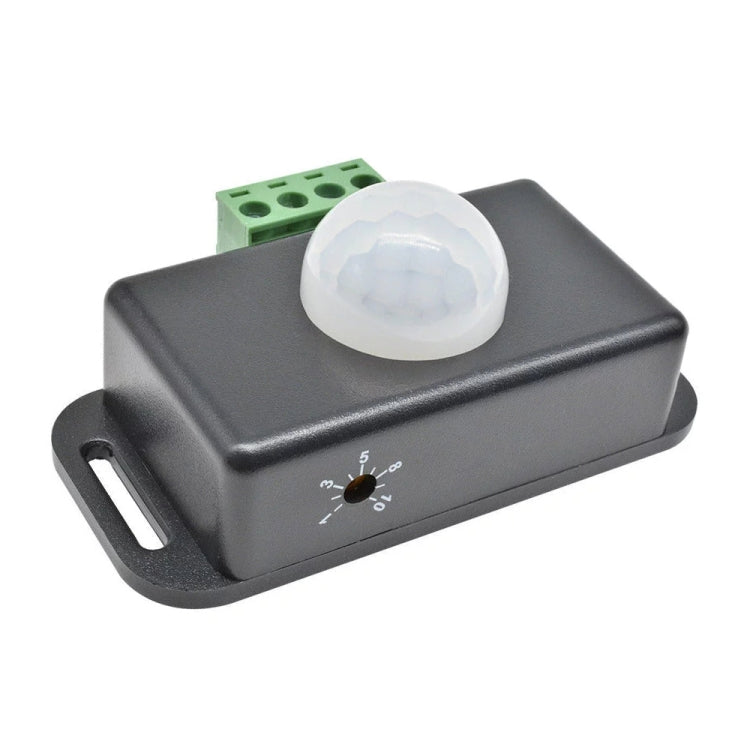

4. Knob to adjust the time, can be set separately with a switch to delay the closing minutes (1-10 minutes)
5. Apply to a variety of scenes, closet/bedroom/steps/bathroom, etc.
