Specifications:
1: Detector Type: Uncooled Vanadium Oxide (VOx) Microbolometer
2: Pixel Pitch: 17 micrometers
3: Infrared Resolution: 240 x 240 Pixels
4: Field of View (FOV): 50 degrees (H) × 38 degrees (V)
5: Instantaneous Field of View (IFOV): 7.6 mrad
6: Frame Rate: <=25 Hz
7: Minimum Focusing Distance: 0.1 m
8: Focus: Fixed Focus (Focus-Free)
9: Temperature Measurement Range / Accuracy: -20 to 550 degrees Celsius / +-2 degrees Celsius
10: Temperature Units: Celsius / Fahrenheit
11: Temperature Resolution: 0.1 degrees Celsius
12: Emissivity: 0.95 (Default), Adjustable from 0.01 to 0.99

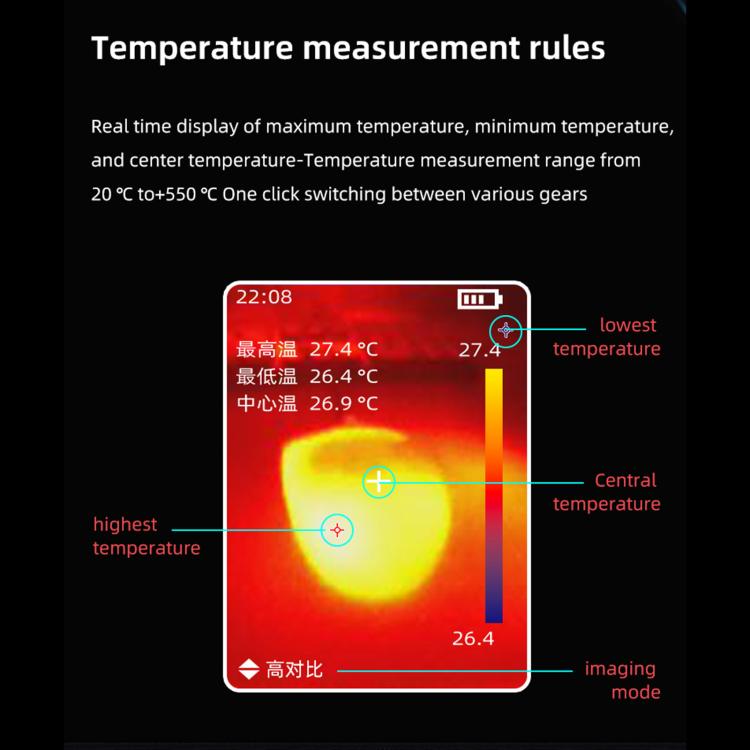

13: Temperature Measurement Display: Center Spot Measurement, Hot & Cold Spot Tracking
14: Color Palettes: White Hot, Iron Red 2, Iron Red, Rainbow, Red Hot, High Contrast, Black Hot
15: Display: 2.4-inch TFT LCD
16: Display Resolution: 320 x 240 Pixels
17: Image Storage: Built-in Memory (Up to 100 Images) / TF Card Supported
18: Image Format: JPG
19: USB Interface: Supports Charging and Data Transfer
20: Battery Type: Rechargeable Lithium Battery (3.7 V / 2600 mAh)
21: Battery Runtime: Continuous Operation for Up to 7 Hours
22: Charging Time: <=4 Hours
23: Charging Input: 5 V / 1 A
24: Operating Temperature: 0 to 50 degrees Celsius
25: Thermal Sensitivity (NETD): <60 mK
26: Product Dimensions: 203 x 69.4 x 61.5 mm
27: Net Weight: 213g
Features:
1. Equipped with a 240 x 240 infrared detector, delivering sharp thermal images for fast and accurate fault detection.
2. Measures temperatures from -20 to 550 degrees Celsius with +-2 degrees Celsius accuracy, ideal for electrical inspection, HVAC, industrial maintenance, and building diagnostics.
3. Features an uncooled VOx infrared sensor with NETD <60mK, enabling precise detection of subtle temperature differences.

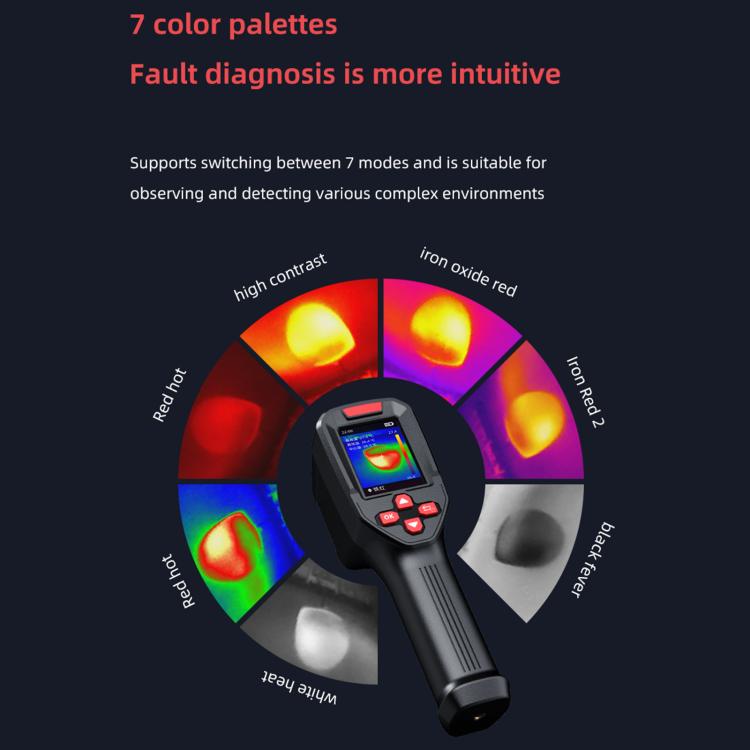

4. Includes 7 selectable color palettes (White Hot, Black Hot, Rainbow, Iron Red, etc.) for improved thermal analysis across different applications.

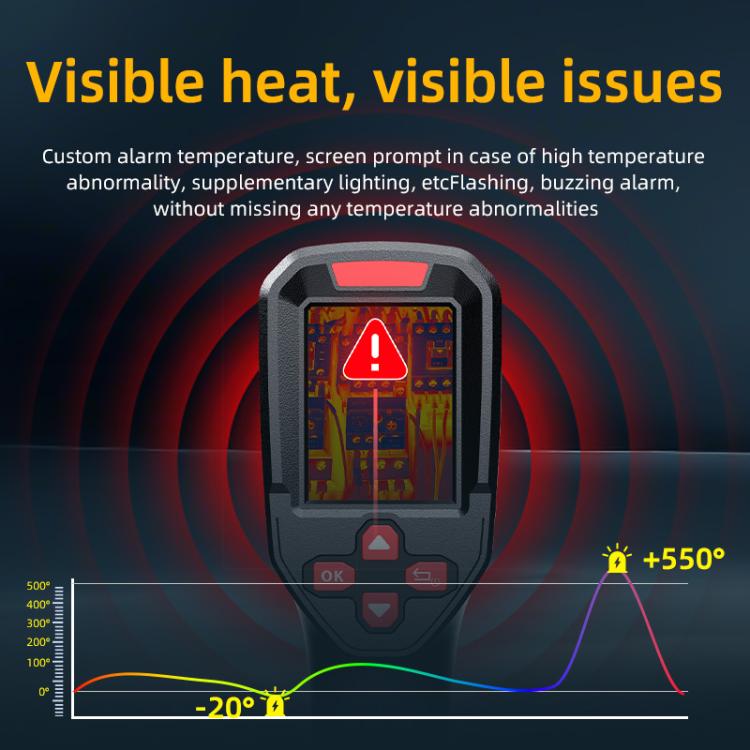

5. Supports center-point measurement, automatic hot/cold spot tracking, and high-temperature alarms for quick anomaly detection.

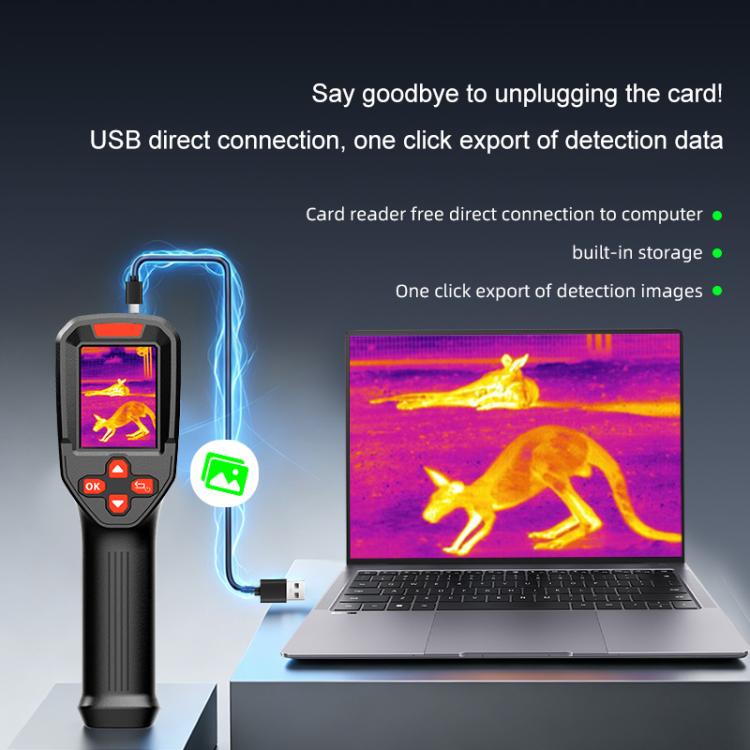

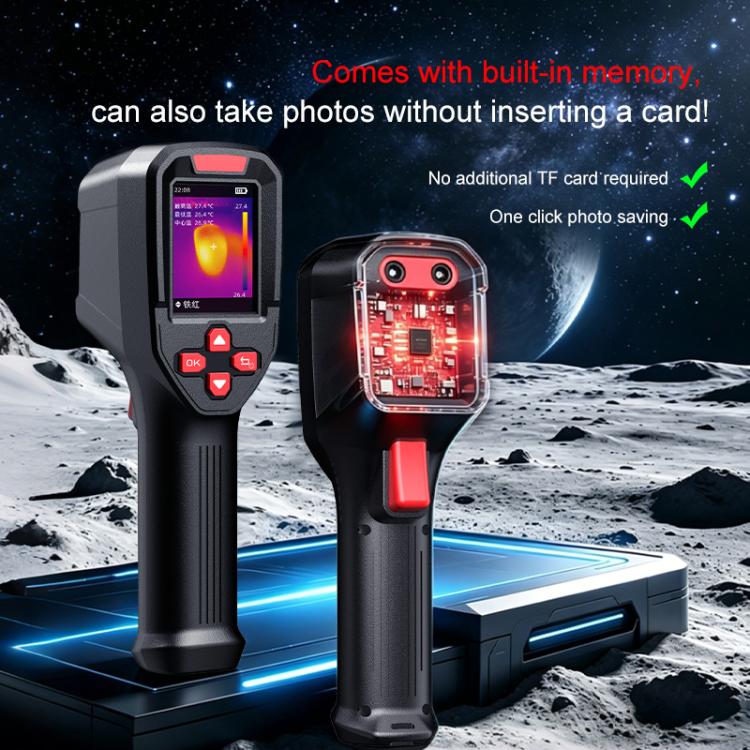

6. Stores up to 100 thermal images internally or via TF card expansion. Easily transfer data through USB without a card reader.
7. Powered by a 2600mAh rechargeable lithium battery, providing up to 7 hours of continuous operation.
8. For electrical inspections, HVAC maintenance, underfloor heating inspection, automotive diagnostics, industrial maintenance, building inspections, and home appliance troubleshooting.
