Projection Parameters
1. Display Technology: LCD
2. Light Source: LED
3. Color Temperature: 6500K
4. Light Source Life: 30,000 hours
5. Light Luminance: 150 ANSI (+/-10%)
6. Lamp Type: LED

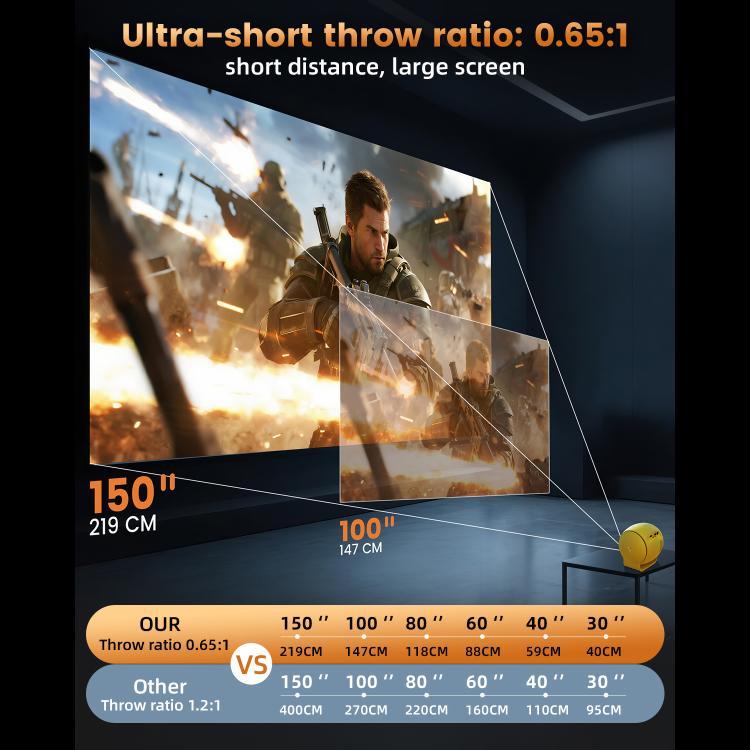

7. Contrast Ratio: 0.65:1
8. Standard Resolution: 1280x720 / 60Hz
9. Supported Resolution: 1080x1920 / 60Hz
10. Contrast Ratio: 1200:1
11. Projection Area: 18-200 inches
12. Picture Scale: 4:3 / 16:9
13. Optimal Size: 18-200 inches
14. Luminance Uniformity: 80%
15. Projection Distance: 0.5-3M
16. Focus Mode: Electronic focusing
17. Keystone Correction: Electronic correction
18. Projection Mode: Hoisting / Front / Rear Project
19. Speaker: Built-in Box Speaker (4ohm 5W x 1)
Connector Details
1. USB Port: Standard USB 2.0 x 1
2. HDMI Port: Standard HDMI x 1
3. Audio Output: Standard 3.5mm Audio Jack x 1
4. Power Port: Type-C (Supports 100-250V, 50/60Hz)
5. Power Buttons: 1 x Power Key
Operating System
1. CPU: Allwinner 727 (Quad-core Cortex-A53, 1.6GHz)
2. GPU: Mali-G31
3. Video Decoding: 8K 24Hz
4. System Version: Android 14
5. Memory: 1GB + 8GB
6. Keystone Correction: Hard decoding trapezoid
7. HDMI Support: HDMI 2.0, supports HDCP 1.4/2.2
8. HDMI Delay: Open trapezoid delay 40-50ms, close trapezoid delay 4ms
9. WiFi Network Support: 802.11 b/g/n + BT5.4 WiFi6, 2.4G+5G+6G dual WiFi modes
10. Remote Control: Infrared remote control / Bluetooth remote control
File Formats:
1. Video Decoding
H.265: MP/L5.0, 4K 60fps 10-bit
H.264: BP/MP/HP Level 5.1, 4K 30fps 8-bit
VP9: Profile 2, 4K 60fps 10-bit
AVS2: JiZhun, 1080p 60fps
AVS/AVS+: JiZhun, 1080p 60fps
VP8: N/A, 1080p 60fps
MPEG1: MP/HL, 1080p 60fps
MPEG2: MP/HL, 1080p 60fps
MPEG4: SP/ASP, 1080p 60fps
XVID: N/A, 1080p 60fps
H.263: BP, 1080p 60fps
Sorenson Spark: N/A, 1080p 60fps
VP6: 6.0/6.1/6.2, 720p 30fps
MJPEG: N/A, 1080p 60fps
2. Audio Support: MP3, AVI, ASF, WMV, WMA, DivX, Matroska, 3GPP, MP4, M4A, MPEG, DAT, VOB, MPG, TS, TRP, TP, FLV, WAV, AC3, EAC3, AAC, RM, RMVB, RA, WebM
3. Image Support: JPG, JPEG, BMP, PNG
4. File Support: TXT, EPUB, PDF, WORD, EXCEL, POWERPOINT
Standard Accessories
1. Adapter: Type-C interface, supports PD protocol,1.2m AC cable x 1
2. HDMI Cable: 1m HDMI cable x 1
Product Appearance
1. Dimensions: 138 x 138 x 153 mm
2. Net Weight: 0.67 kg
3. Power: 45 W +/- 5 W
