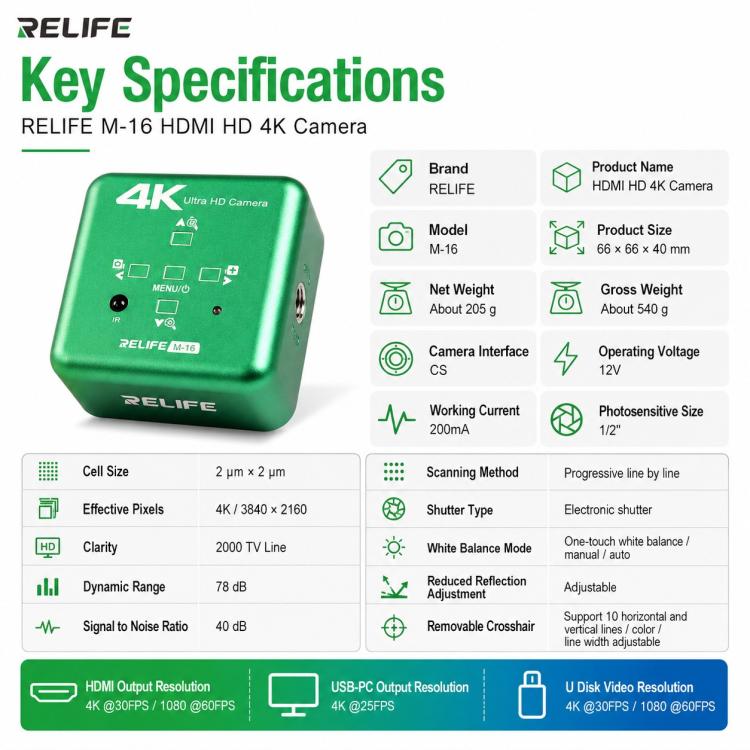

Specification:

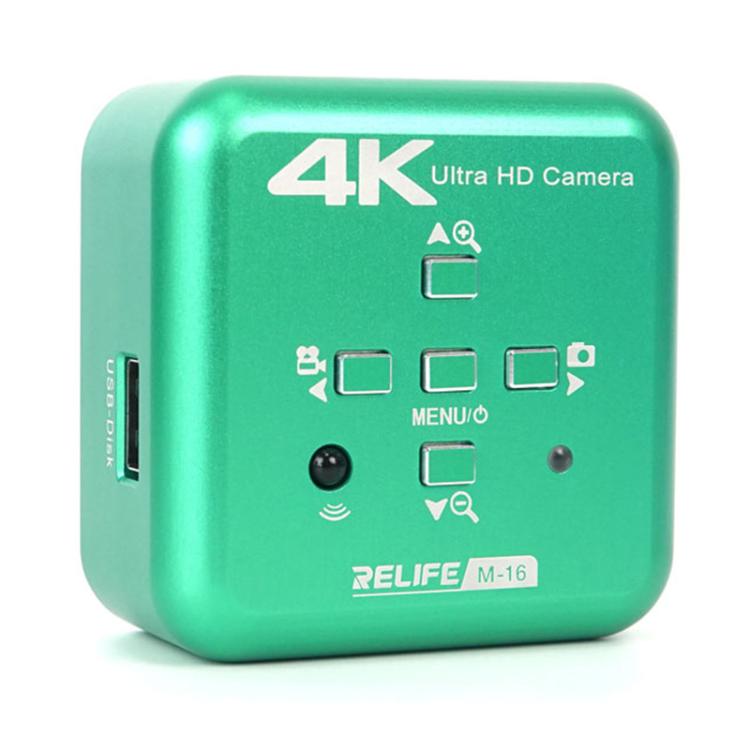

1. Model: M-16
2. Net Weight: About 205g

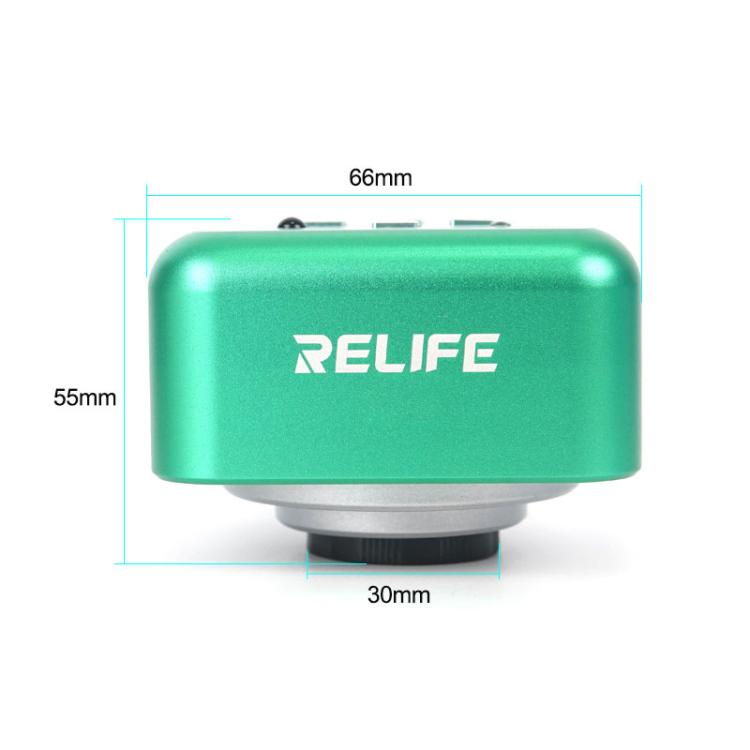

3. Product Size: 66 x 66 x 40

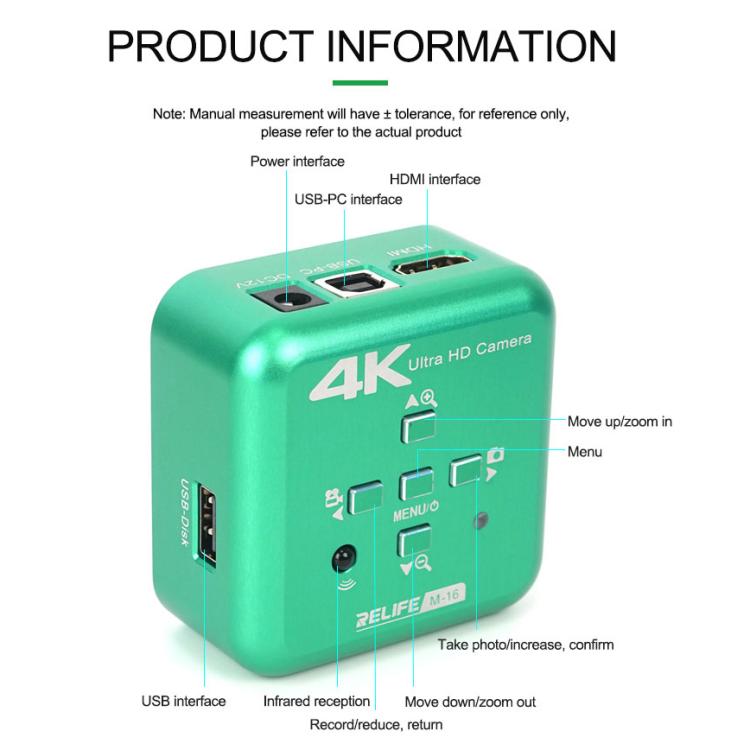

4. Video Output: HDMI/USB-PC/U disk photo and video interface
5. HDMI Output Resolution: 4k@30fps/1080@60fps
6. USB-pc Output Resolution: 4k@25fps
7. U Disk Video Resolution: 4k@30fps/1080@60fps

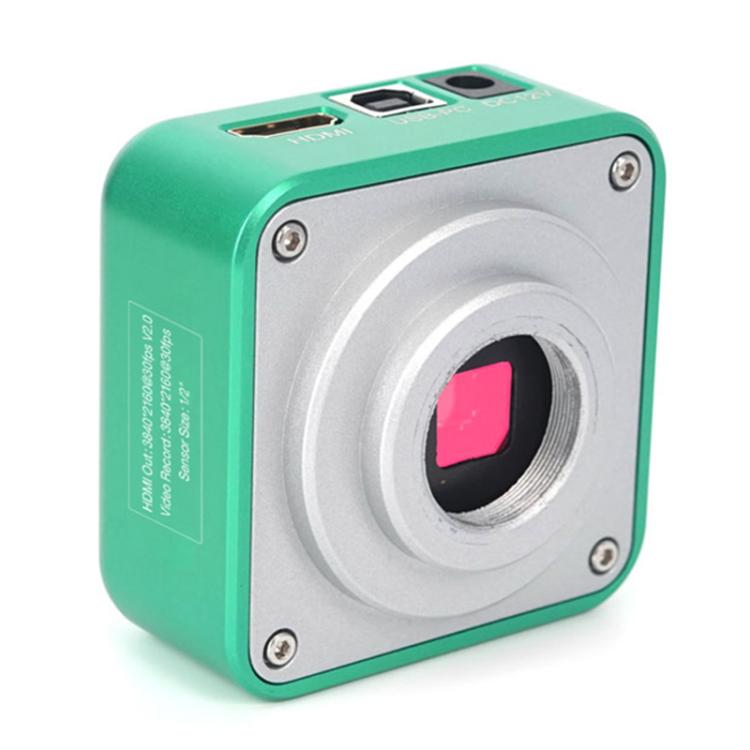

8. Camera Interface: CS
9. Operating Voltage: 12V
10. Working Current: 200mA
11. Photosensitive Size: 1/2 inch
12. Cell Size: 2 x 2 micrometer
13. Effective Pixels: 4k/3840 x 2160
14. Clarity: 2000 TVline
15. Frame Rate: 4k@30fps/1080@60fps
16. Scanning Method: Progressive line by line
17. Shutter Type: Electronic shutter
18. Dynamic Range: 78dB
19. Signal To Noise Ratio: 40dB
20. Menu Language: Chinese/English
21. White Balance Mode: One-touch white balance/Manual/Auto
22. Reduced Reflection Adjustment: Adjustable
23. Removable Crosshair: Support 10 horizontal and vertical lines/color/linewidth adjustable configuration

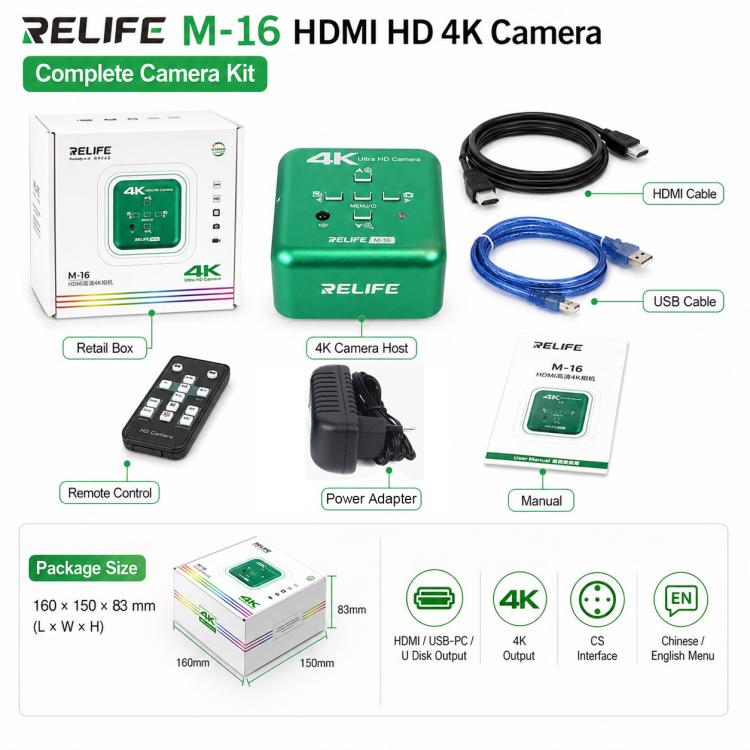

24. Package includes:
1 x Host
1 x HDMI Cable
1 x Remote Control
1 x Power Cord
Features:

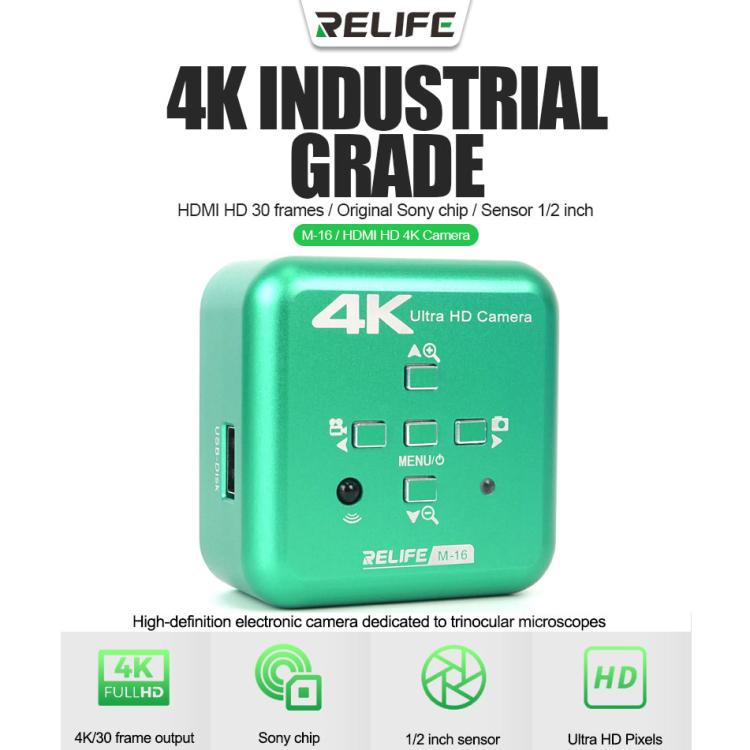

1. HDMI HD 30 frames / Sensor 1/2 inch
2. High-definition electronic camera dedicated to trinocular microscopes
3. 4K/30 frame output/Ultra HD Pixels
4. Equipped with 1/2-inch chip, high sensitivity, showing rich picture effects

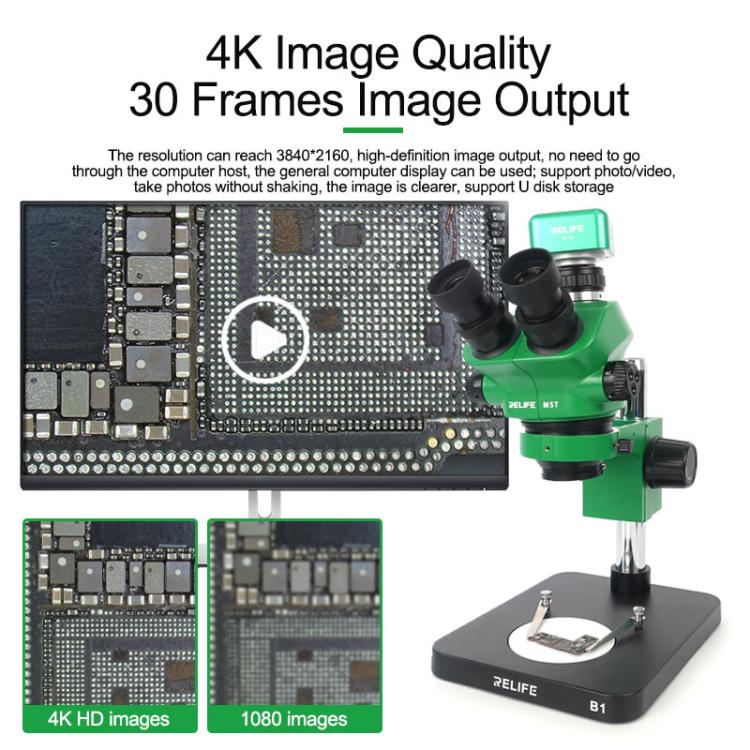

5. 4K image quality 30 frames image output
6. The resolution can reach 3840 x 2160, high-definition image output, no need to go through the computer host, the general computer display can be used
7. Support photo/video, take photos without shaking, the image is clearer, support U disk storage
8. Supports a variety of industrial-grade microscopes
9. Support inverted microscopes, metallographic microscopes, biological microscopes, polarized light microscopes, stereo microscopes, electron microscopes, etc

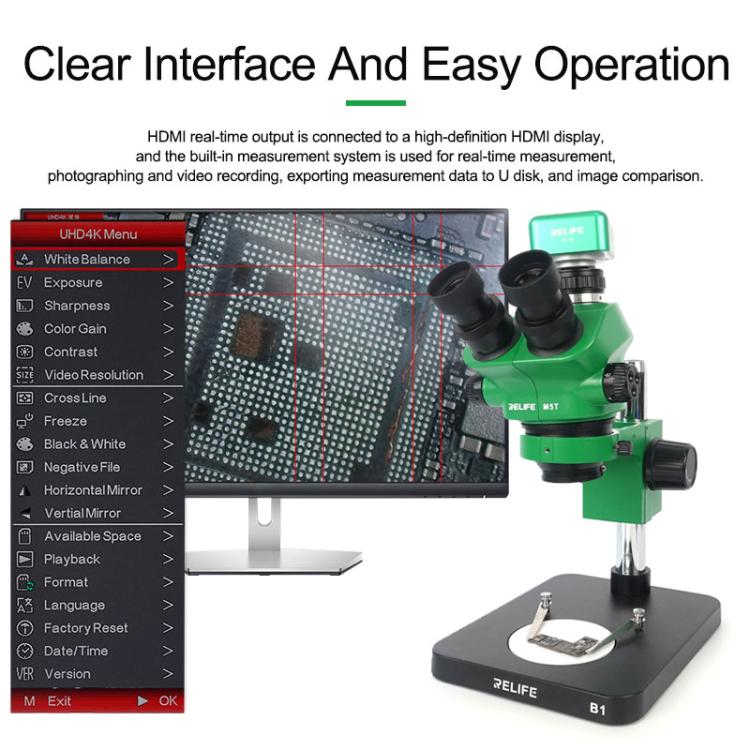

10. Clear interface and easy operation
11. HDMI real-time output is connected to a high-definition HDMI display, and the built-in measurement system is used for real-time measurement, photographing and video recording, exporting measurement data to U disk, and image comparison
12. Support 10 horizontal and vertical lines/color/line width adjustable
