Features:

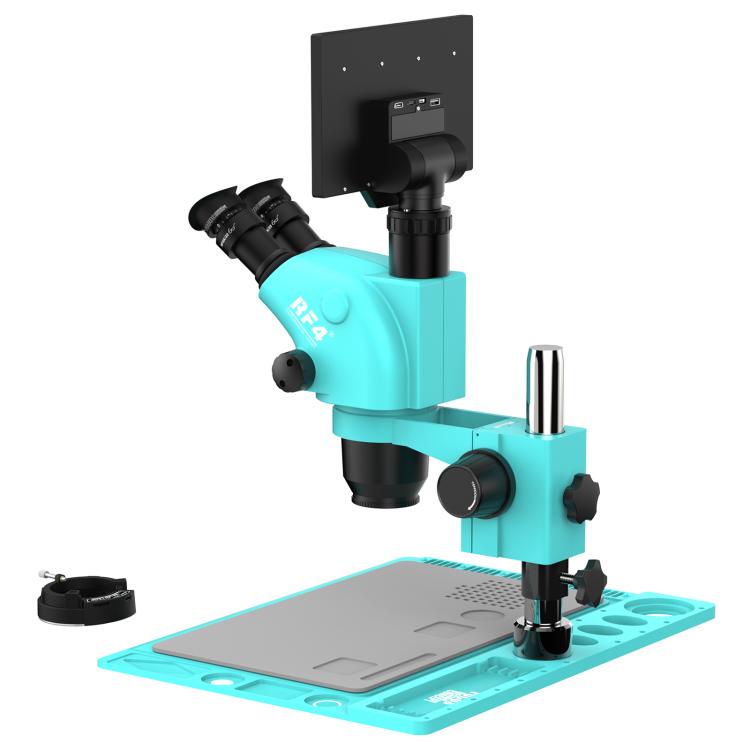

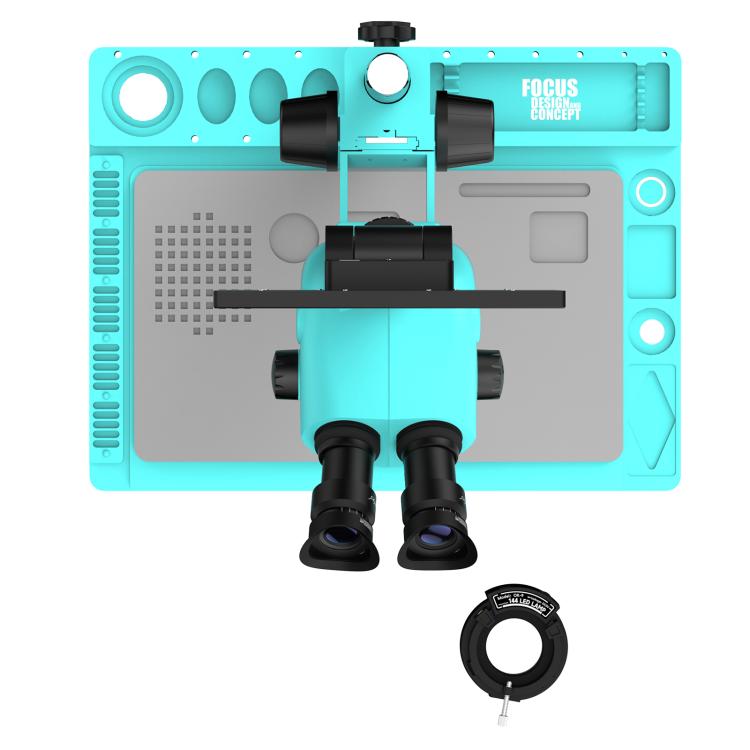

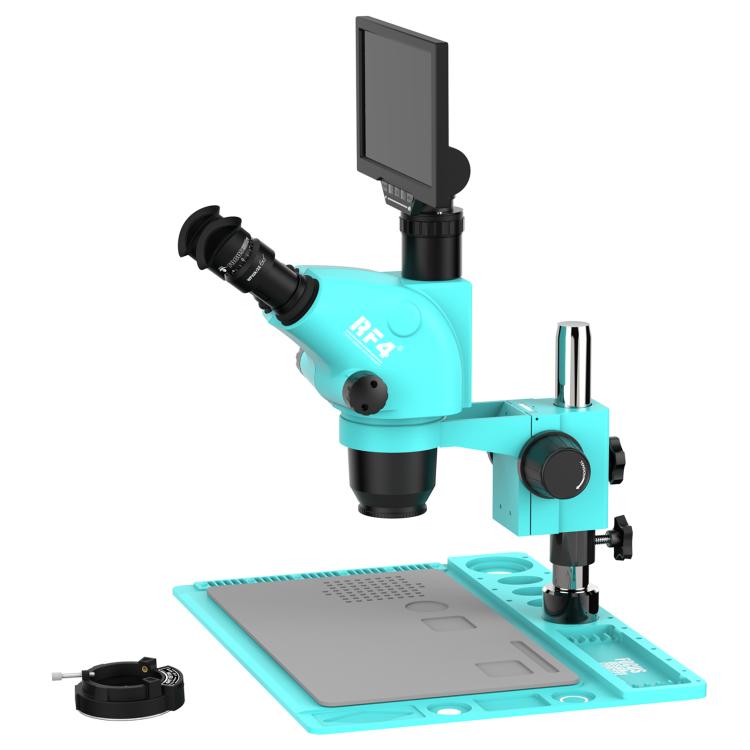

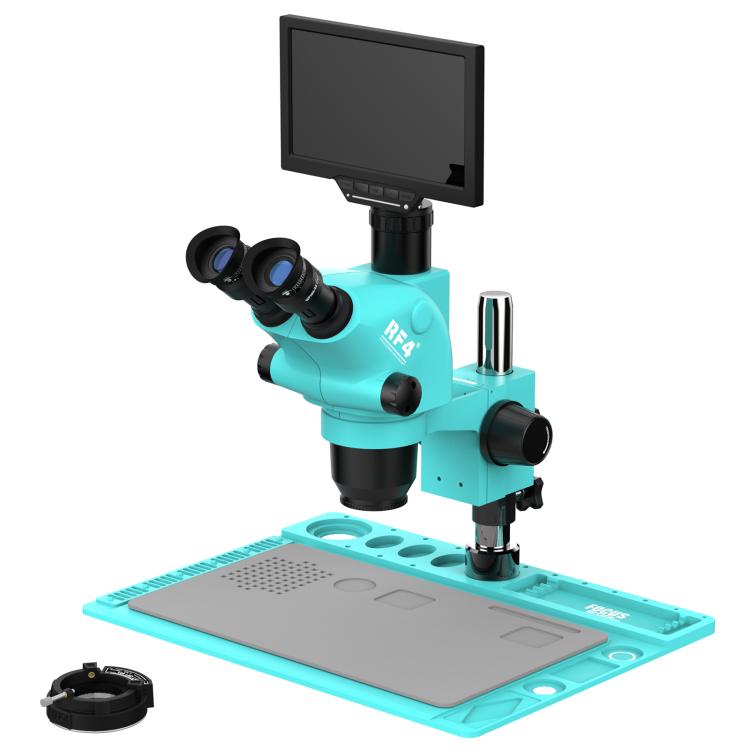

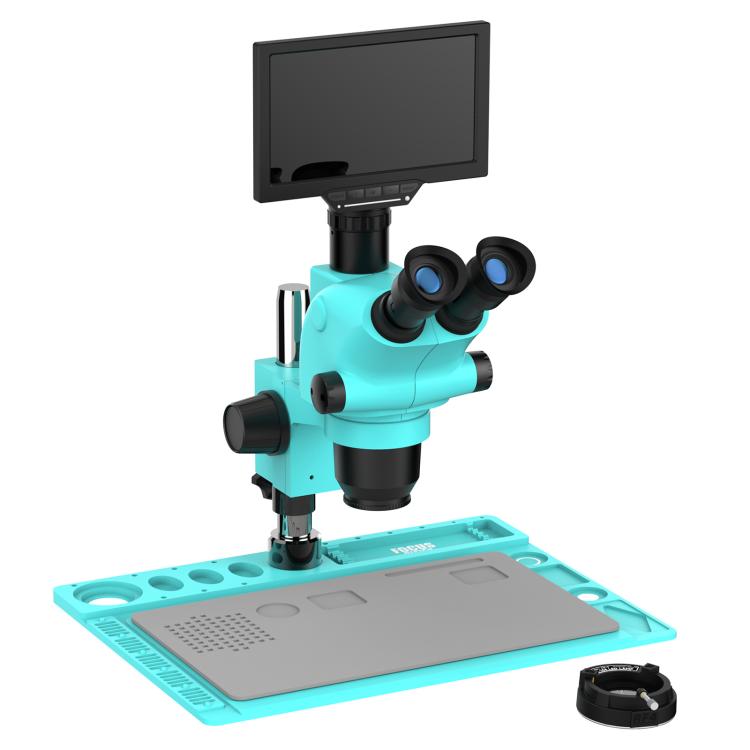

1. 6.5X-65X trinocular microscope
2. 10-inch Monitor with 16MP HDMI camera
3. Multifunctional aluminum alloy repair base
4. Magnification: Big continuous zoom 6.5X to 65X
5. Head: 45-degree inclined 360-degree swiveling trinocular
6. Eyepiece: WF10X/22MM Adjust the focal
7. Barlow Lens: 0.5X & 0.7&2.0X(optional)
8. Objective: 0.65-6.5X
9. Camera connector：1/2CTV
10. Monitor and eyepiece. Synchronous zoom
11. Camera: Different models optional
12. Boom Stand: 250mm φ32mm pillar, 200mmx255mm base with White/Black Round Plastic Plate
13. Accessories: 144 adjustable LED light & dustproof Lens
Specification:
1. Magnification: Continuous zoom 6.5X to 65X
2. Head: 45-degree inclined 360-degree swiveling trinocular
3. Eyepiece: WF10X/22MM
4. Objective: 0.65-6.5X
5. Camera connector: 0.5X
6. Monitor and eyepiece: Synchronous zoom
7. Stand: 410x300mm
8. Accessories: 144 adjustable led lights & dust proof Lens
Support parameters:
1. Column aperture: 32mm
2. Lens aperture: 76mm
3. Center distance: 155mm
4. Lifting range: 50mm
The base parameters:
1. Base size: 410x300mm
2. Pillar: 240mm φ32mm
3. Silicone pad size: 330x198mm
Wide-angle Eyepieces 10X/22:
1. Magnification: 10X
2. Wide field of view 22mm
3. Matching size: 30mm
4. Applicable models: Stereoscopic, fixed, and continuous magnification microscopes
0.5X CTV:
1. The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet
2. The adapter ring can use LCD to focus, this kind of focus method is manual focus
3. The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming
LED Ring Light:
1. Input: AC 100~240V 50/60Hz
2. Output: DC 12V, Max 700mA
3. Light color: White
4. Number of lights: 144 LEDs
5. Inside diameter: 60mm
Package includes:
1. Microscope x 1
2. Aluminum alloy plate x 1
3. Silicone pad x 1
4. HD Monitor x 1
5. 144 LED light x 1
6. Dustproof len x 1
7. 0.5X CTV lens x 1
