Specification:
1. Magnification: Continuous zoom 7X to 50X
2. Head: 45-degree inclined 360-degree swiveling trinocular
3. Eyepiece: WF10X/22MM
4. Objective: 0.7-5.0X
5. Camera connector: 0.5X
6. Monitor and eyepiece: Synchronous zoom
7. Accessories: 144 adjustable led lights & dust proof Lens
Support Parameters:
1. Column aperture: 32mm
2. Lens aperture: 76mm
3. Center distance: 155mm
4. Lifting range: 50mm
Wide-angle Eyepieces 10X/22:
1. Magnification: 10X
2. Wide field of view 22mm
3. Matching size: 30mm
4. Applicable models: Stereoscopic, fixed, and continuous magnification microscopes
0.5X CTV Len:
1. The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet
2. The adapter ring can use LCD to focus, this kind of focus method is manual focus
3. The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming

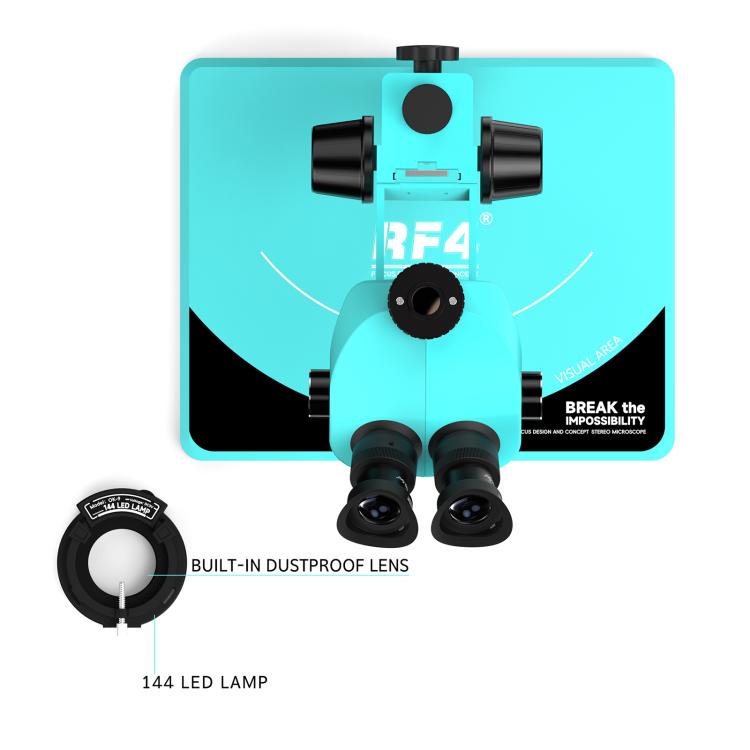

144 LED Ring Light:
1. Input: AC 100~240V 50/60Hz
2. Output: DC 12V, Max 700mA
3. Light color: White
4. Number of lights: 144 LEDs
5. Inside diameter: 60mm
Package includes:
1. Microscope x 1
2. Aluminum Alloy Plate x 1
3. 144 LED Light x 1
4. Dustproof Len x 1
5. 0.5X CTV Lens x 1
