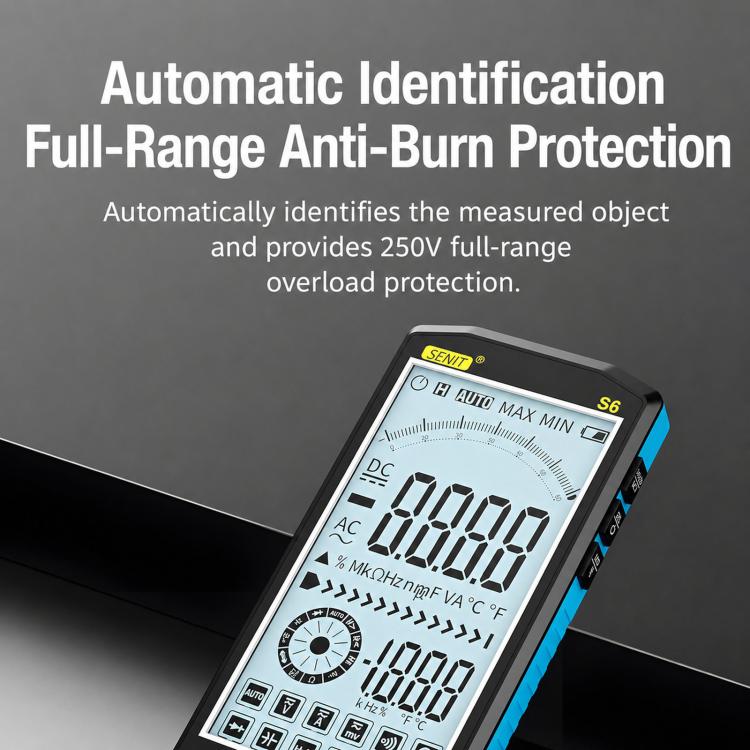

1. Automatic measurement recognition, full-range anti-overheating protection, supports 250V full-range overload protection, making it safer to use
2. Equipped with rear flashlight illumination, allowing clear viewing of measurement points even in darkness, suitable for dim working environments

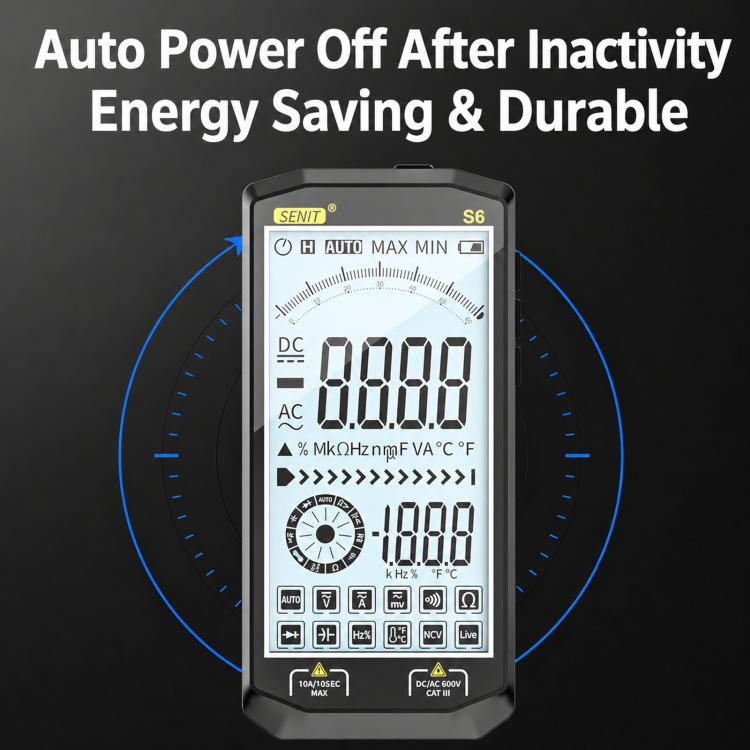

3. Automatically shuts down after 15 minutes of inactivity, reducing power consumption and being energy-efficient and durable

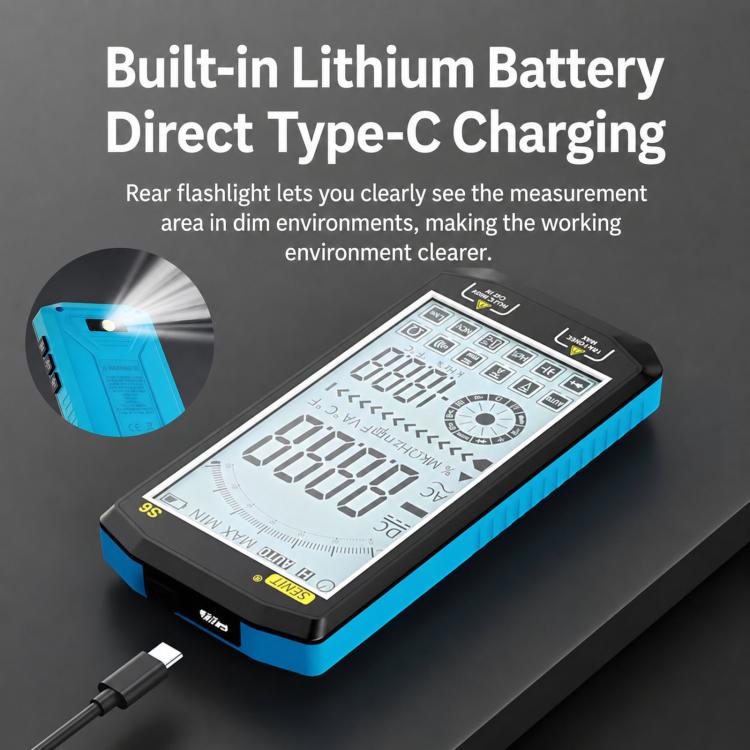

4. Built-in rechargeable lithium battery, Type-C direct charging power supply, no need to frequently replace batteries

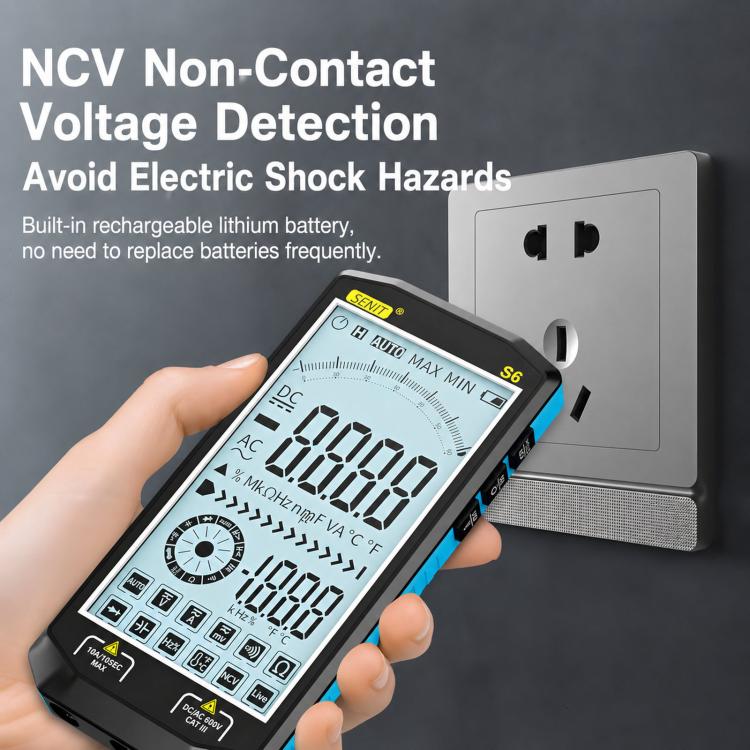

5. NCV non-contact voltage detection, no need to touch the circuit, avoiding the risk of electric shock
6. Large-screen backlit display, supports HOLD data retention function, convenient for reading the measurement results

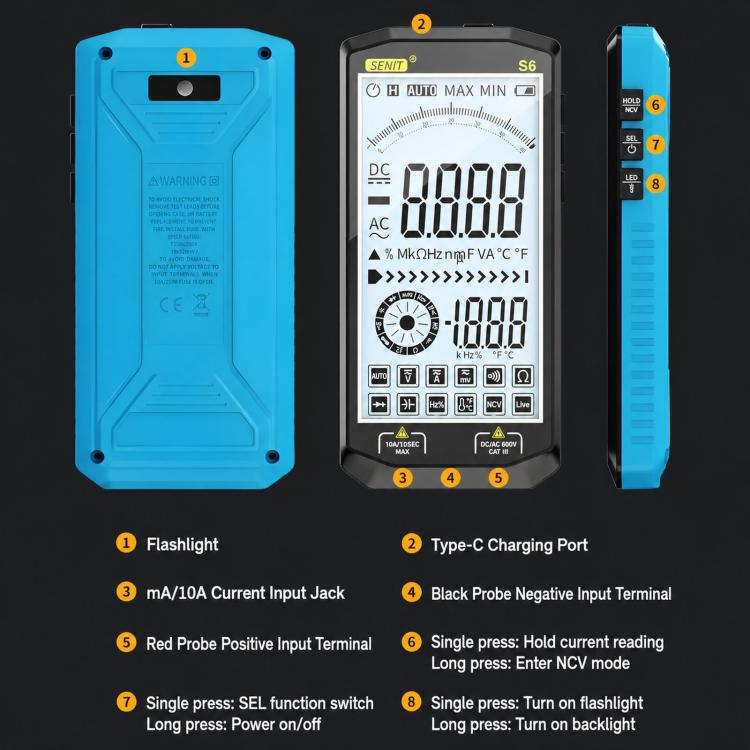

7. Clear function key layout, enabling quick operations such as function switching, power on/off, flashlight, backlit screen, etc.
8. The body is made of ABS/silicone material, the entire machine is lightweight, portable to hold, and has low battery level indication

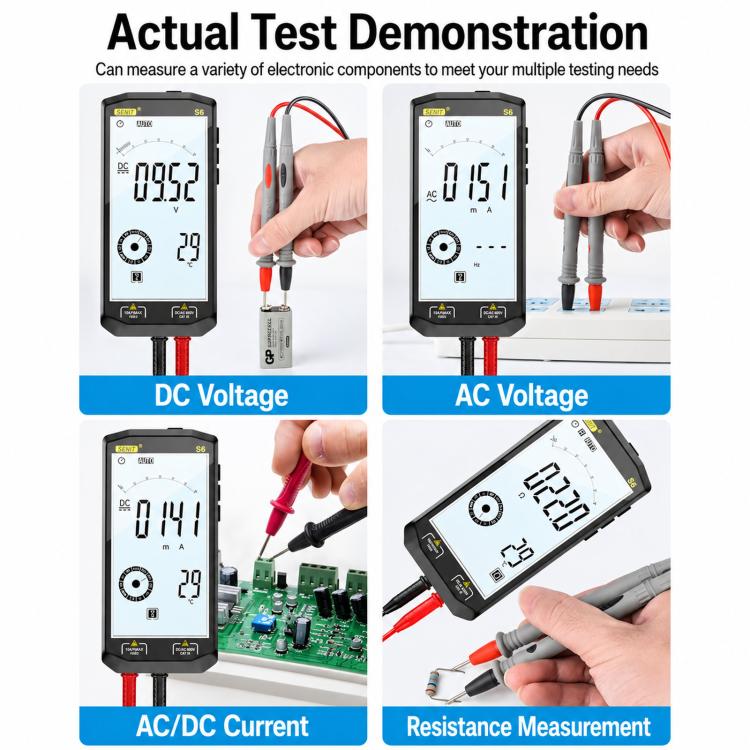

9. Supports multi-dimensional measurements including AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and temperature
Parameters
1. AC voltage: range: 0.5V - 600V, resolution: 0.001V - 0.1V, accuracy: ±(0.8% reading + 5 digits)
2. DC voltage: range: 0.5V - 600V, resolution: 0.001V - 0.1V, accuracy: ±(0.5% reading + 5 digits)
3. AC current: range: 20mA - 10A, resolution: 1mA - 0.01V, accuracy: ±(1% reading + 8 digits)
3. DC current: range: 20mA - 10A, resolution: 1mA - 0.01V, accuracy: ±(1% reading + 8 digits)
4. Resistance: range: 0 ohm - 60M ohm, resolution: 0.1 ohm - 0.01M, accuracy: ±(0.8% reading + 5 digits)
5. Capacitance: range: 0nF - 60mF, resolution: 0.001nF - 0.01mF, accuracy: ±(2.5% reading + 20 digits)
6. Frequency: range: 40Hz - 1000Hz, resolution: 0.1Hz - 1KHz, accuracy: ±(1.0% reading + 5 digits)
7. Temperature (℃): range: -40℃ - 1000℃, Resolution: 1℃, accuracy: ±(1.0% reading + 3 digits)
8. Temperature (℉): range: -40℉ - 1832℉, Resolution: 1℉, accuracy: ±(1.0% reading + 3 digits)
9. Support NCV voltage detection, diode, buzzer, HOLD data retention, 10. Backlight screen, flashlight illumination, low battery indication
11. Automatic shutdown: automatically shuts down after 15 minutes of no operation
12. Battery type: rechargeable lithium battery
13. Maximum count: 6000 counts
14. Battery capacity: 700mAh
15. Material: ABS/silicone
