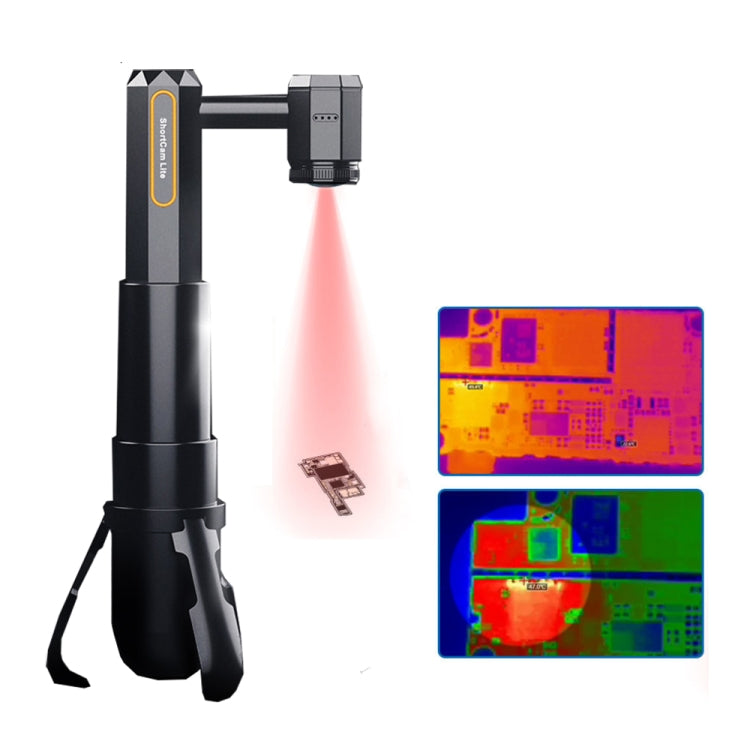

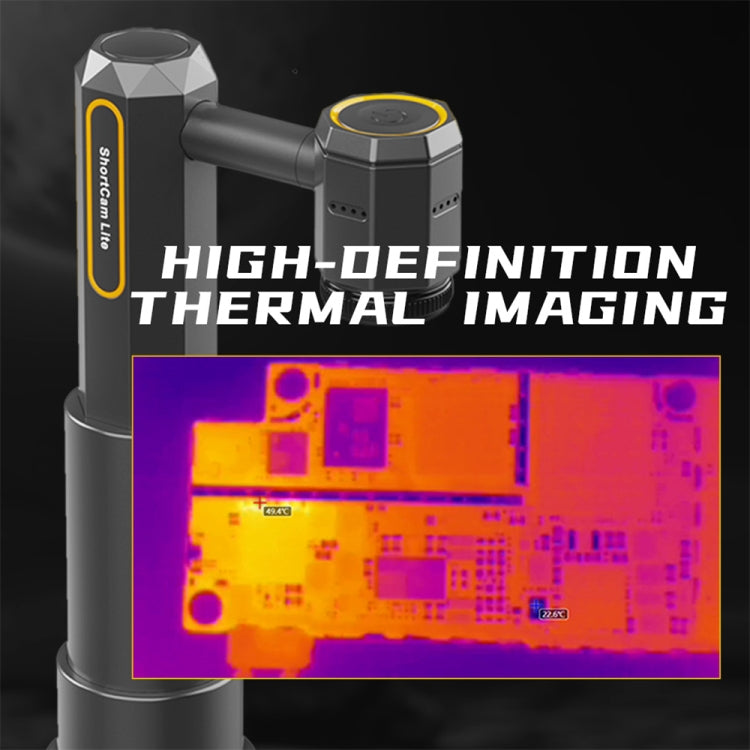

1. 256 x 192 high-definition thermal imaging, quickly and accurately locate the location of high-temperature components, and display the details of faulty components in real-time high-definition

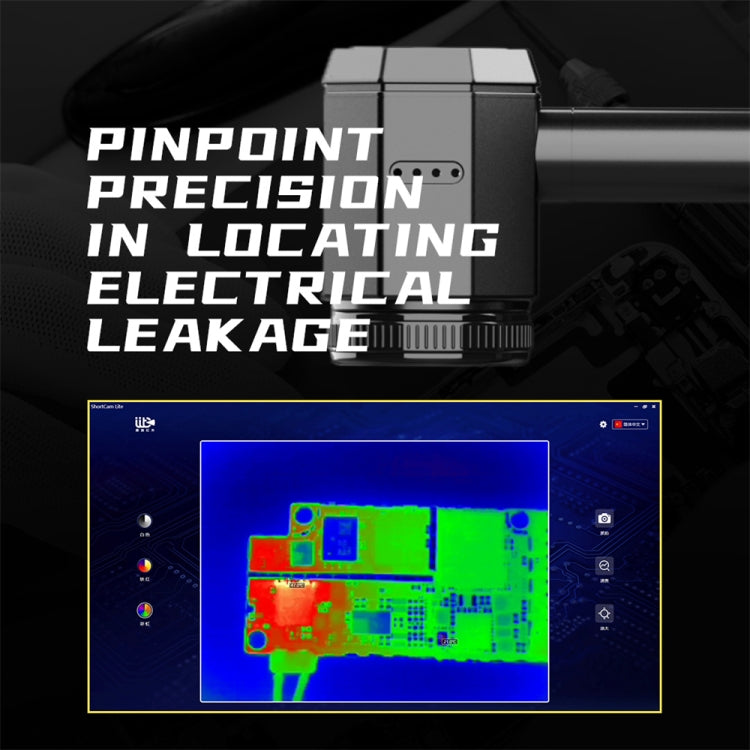

2. Even in the face of micro-leakage at milliamp level, detection can be done easily

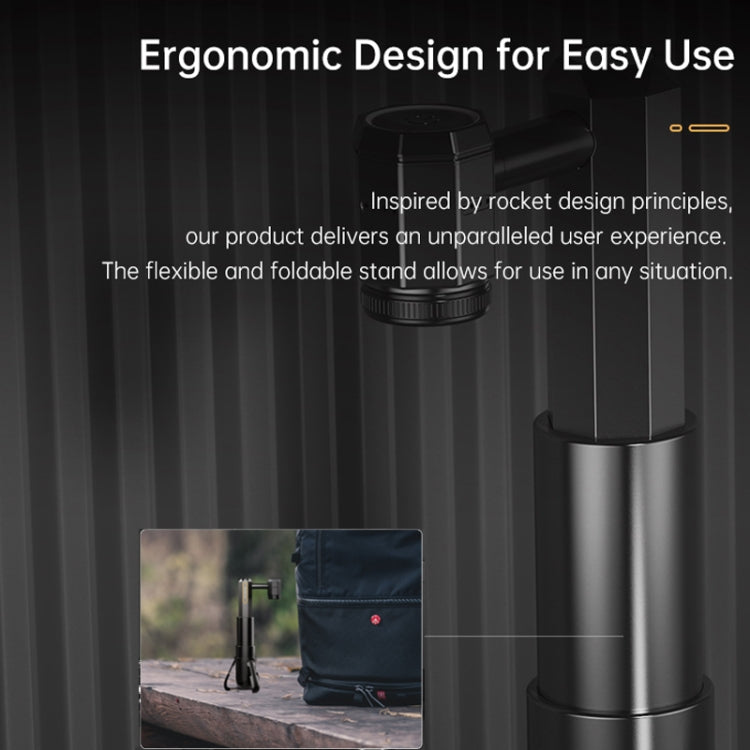

3. Telescopic height adjustment for easy storage
4. Supports one-click quick search function to improve efficiency

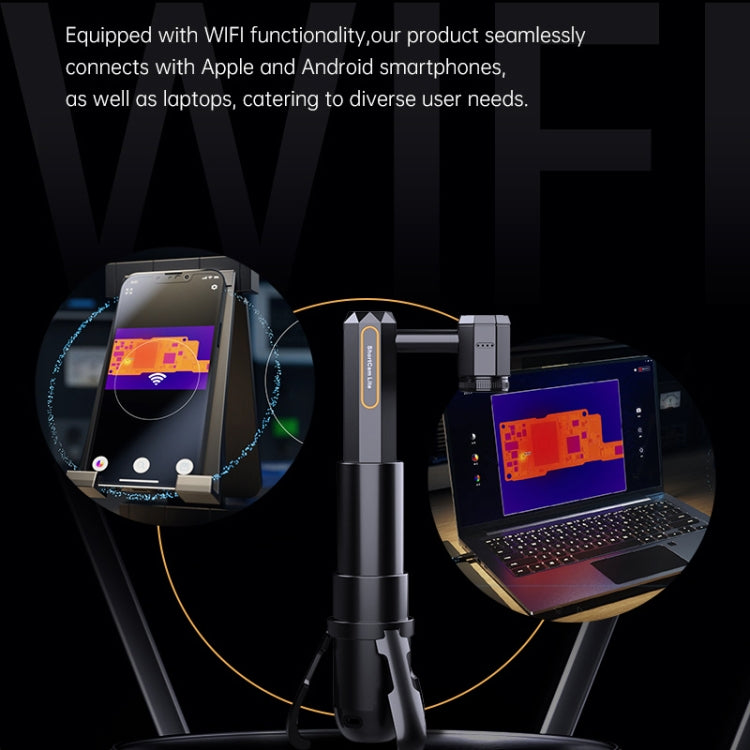

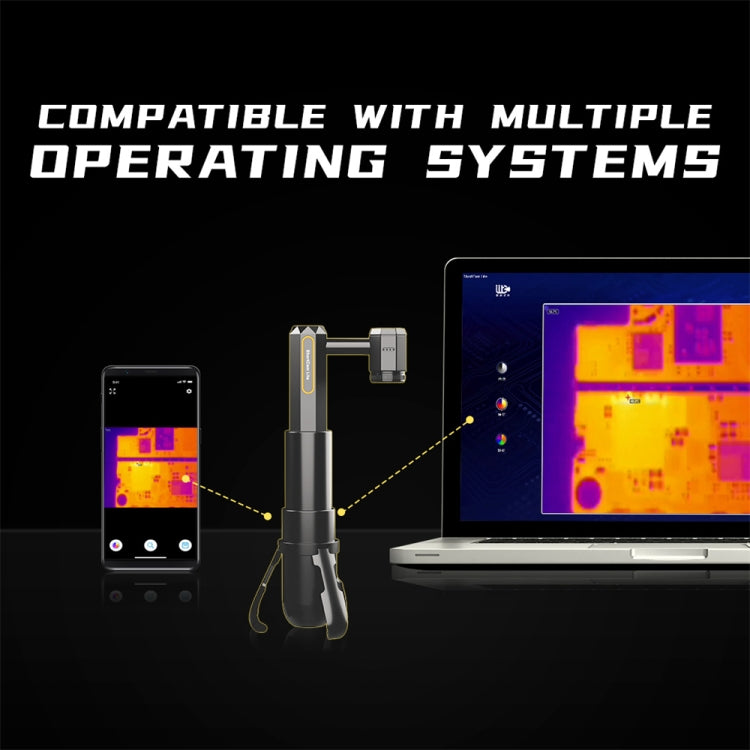

5. Supports multi-platform clients: The product has WIFI function and is suitable for iPhone/Android mobile phones/laptops and can be directly connected and used to meet various user needs.
6. The infrared lens is detachable and can be used with a microscope (microscope and microscope-specific bracket are not included)
7. Suitable for repairing mobile phone motherboards/computer motherboards/computer hard drives/smart watches and other equipment
Parameter:
1. Detector type: uncooled vanadium oxide (VOx) detector
2. Resolution: 256 x 192
3. Wavelength range: 7.5~13.5 um
4. Lens viewing angle: 25 degrees 18 degrees
5. Display mode: thermal imaging
6. Connection method: Type-C
7. Image storage format: JPG

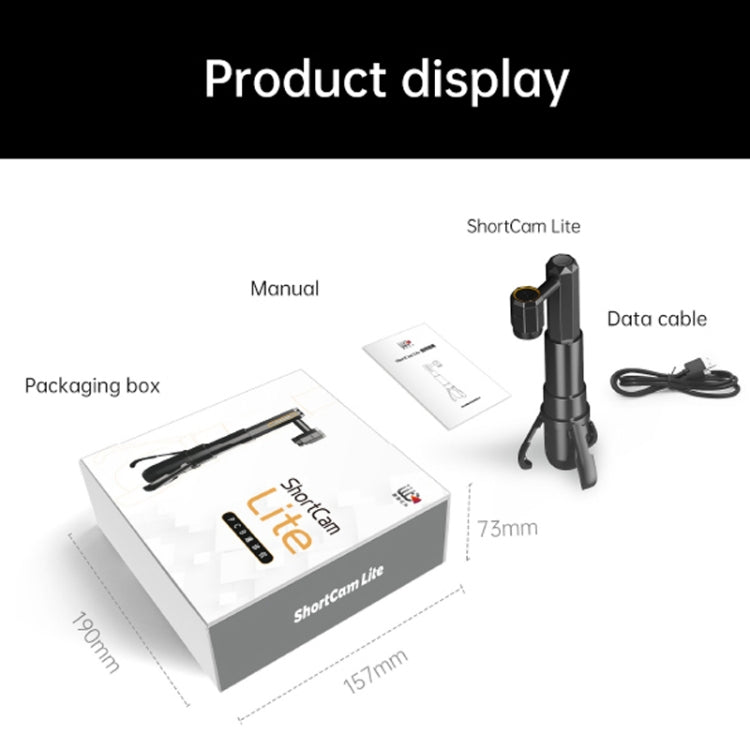

8. Product size: 116.2 x 52 x 150mm
