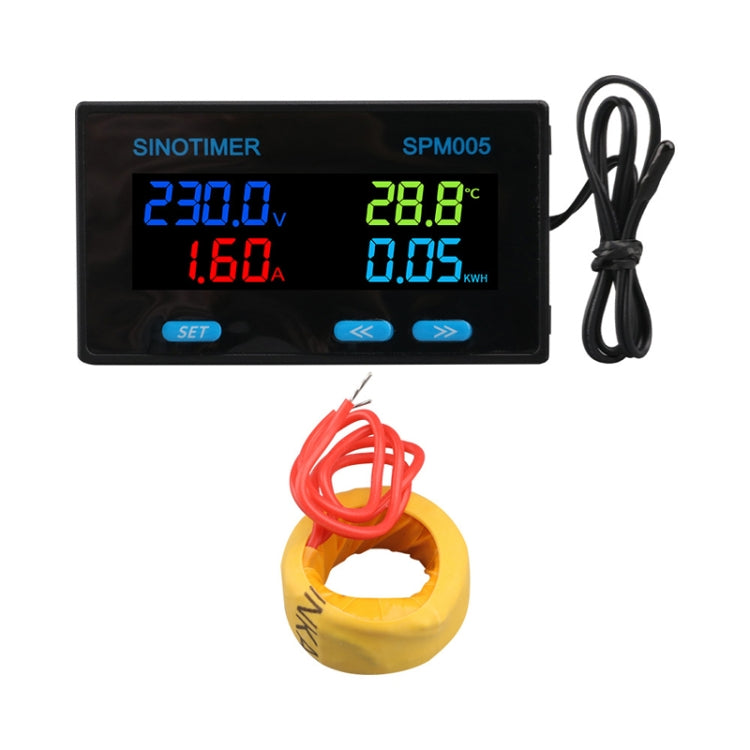

1. The instrument adopts color LCD screen display, 4 areas display 8 kinds of power parameters
2. Function: display voltage, current, temperature, power, power factor, operating time, frequency, electrical energy
3. The instrument adopts 32-bit microcontroller operation, fast response speed and accurate operation
4. High precision, multiple display mode switching, to meet the customers application scenario requirements

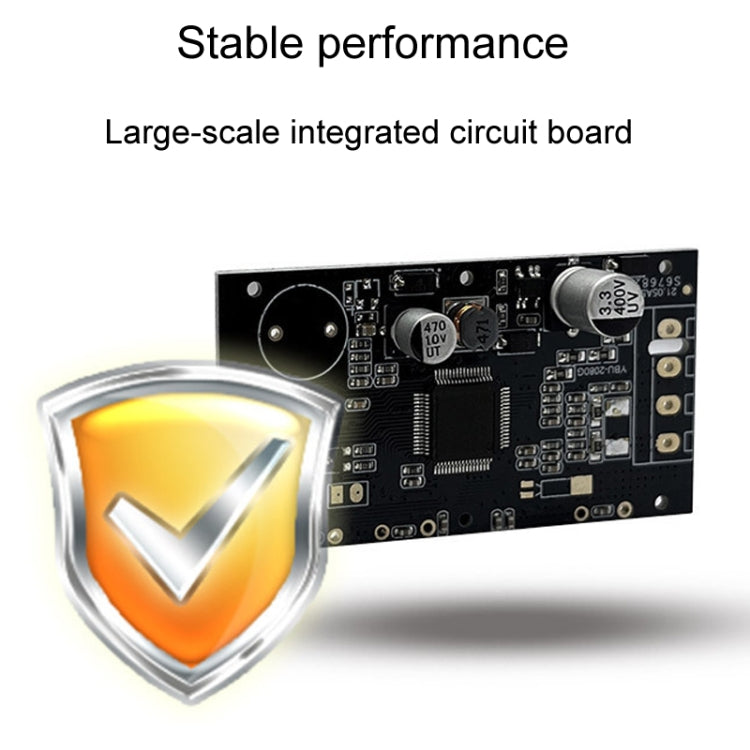

5. Large-scale integrated circuit boards and SMT technology to ensure accurate metering
Parameters:
1. Working voltage: AC60-300V
2. Display refresh: 3 times/s
3. Voltage range: AC60-300V
4. Current range: 0-20.00A; 0-100.0A; 0-200.0A
5. Temperature range: -50-200 degrees celsius
6. Power range: 0.01W-99999KW
7. Frequency accuracy: 0.01Hz
8. Electrical energy range: 0.01-99999kWh
9. Time range: 0.01 hours-99999 days
10. Memory data: 10 years
11. Ambient temperature: -10-60 degrees celsius
12. Humidity: less than or equal to 85 percent RH

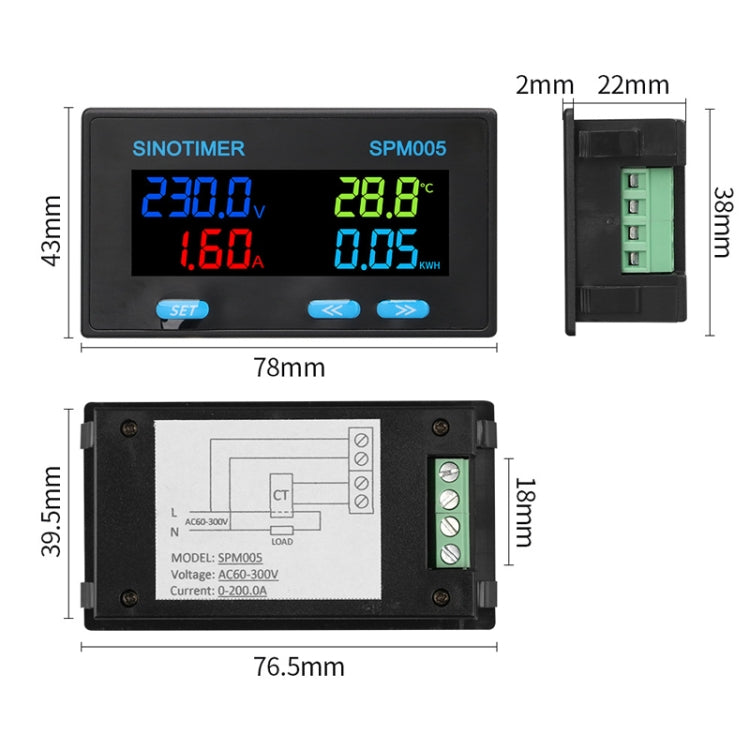

13. Overall dimensions: 78 x 43 x 23mm
14. Color screen size: 60 x 19mm
15. Hole size: 76.5 x 39.5mm
