1. DC voltage: 6V ~ 1000V
2. AC voltage: 6V ~ 750V
3. DC current: 60mA ~ 600mA
4. AC current: 60mA ~ 600mA
5. Resistance: 600Ω / 600kΩ / 40MΩ
6. Capacitance: 600nF / 600μF / 30mF
7. Frequency: 10Hz ~ 10MHz
8. Display type: LCD
9. Display: 5999 (3 5/6) digits, automatic polarity display
10. Measurement Method: dual-integral A/D conversion
11. Low voltage display: Yes
12. Power supply: AAA 1.5V battery (not included)

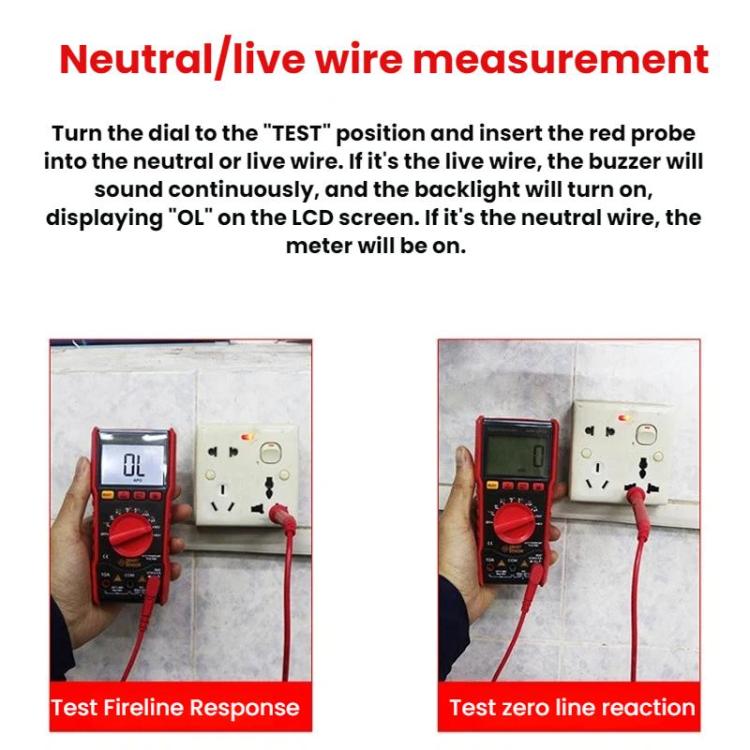

13. Neutral/live wire measurement: turn the dial to the "TEST" position and insert the red probe tip into the neutral or live wire. If its a live wire, the buzzer will emit a continuous sound, and the backlight will turn on, displaying "OL" on the LCD screen. If its a neutral wire, the meter will remain in the power-on state.

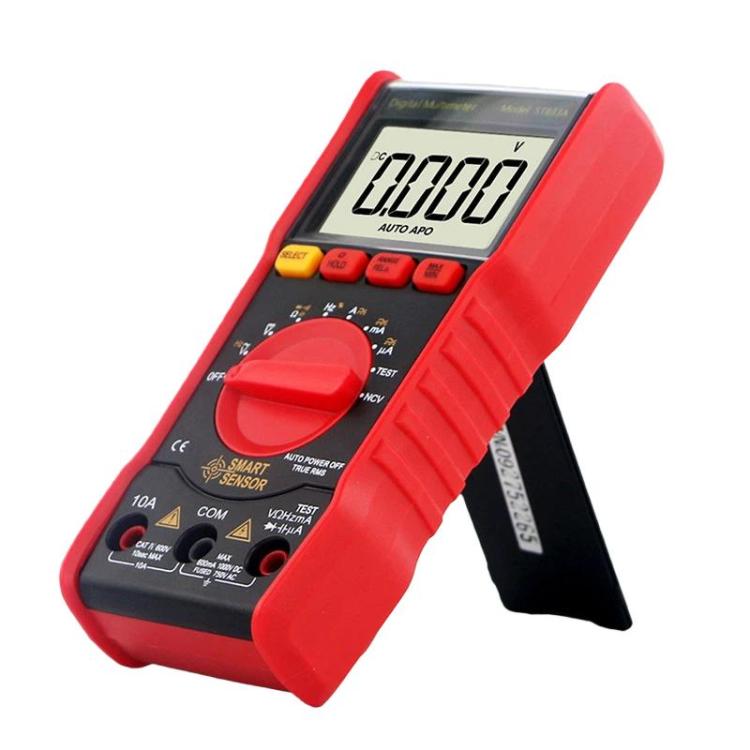

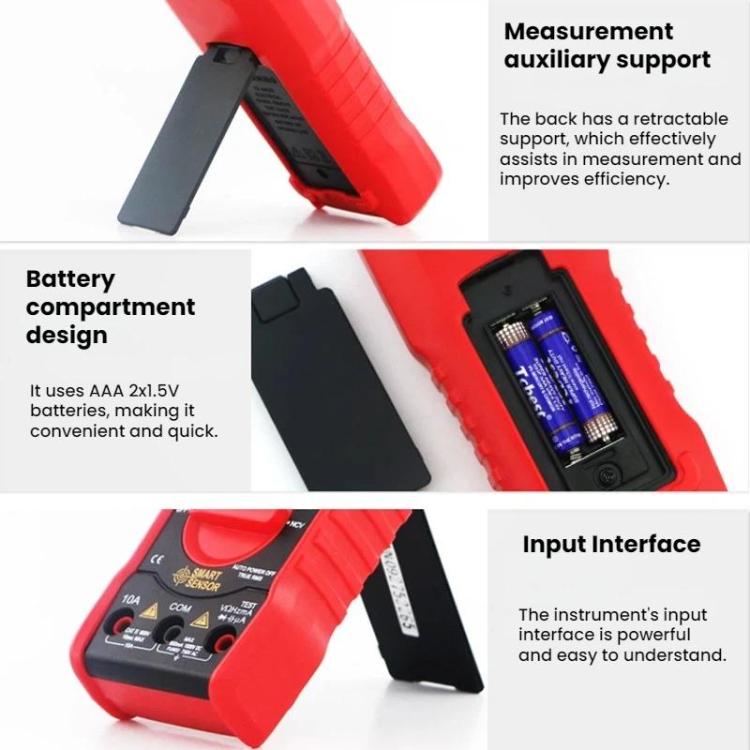

14. Retractable stand on the back for effective measurement assistance and improved efficiency.
15. External rubber protective cover, resistant to aging and cracking, extending service life and preventing instrument damage.
16. Net weight: 205g

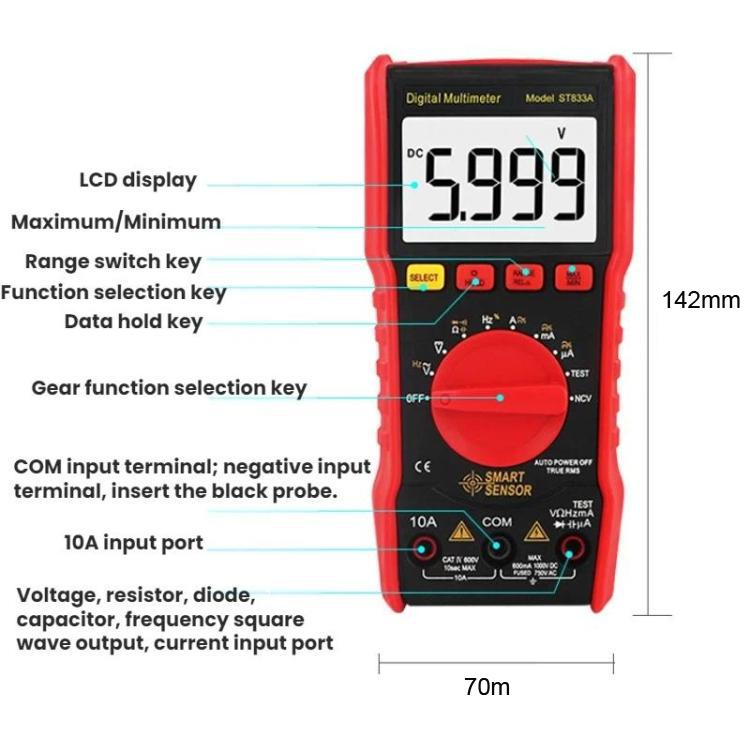

17. Dimensions: 142 x 70 x 32mm
