1. Vibration acquisition: piezoelectric ceramic accelerometer (shear type)

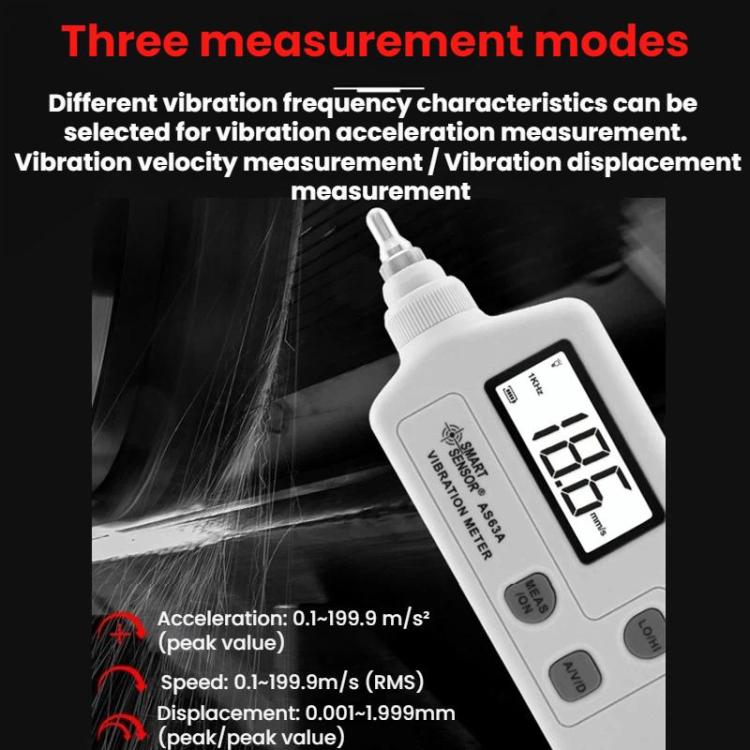

2. Acceleration measurement range: 0.1~199.9 m/s2 peak
3. Velocity measurement range: 0.1~199.9 mm/s RMS
4. Displacement measurement range: 0.001~1.999 mm peak-to-peak
5. Acceleration measurement frequency range: 10Hz~1KHz (LO) 1KHz-15KHz (HI)
6. Velocity measurement frequency range: 10Hz~1KHz (LO)
7. Displacement measurement frequency range: 10Hz~1KHz (LO)
8. LCD display: 3.5-digit digital display
9. Display data update cycle: 1 second
10. Power dupply: 9V battery (not included)
11. Static current: 20mA
12. Working current: 25mA
13. Automatic shutdown function: automatically shuts down after 1 minute of inactivity
14. LCD backlight function: backlight turns off after 7 seconds of inactivity
15. Low battery indicator: 6.4V
16. AC signal output: AC output 2V peak (full scale)
17. Data lock function: yes

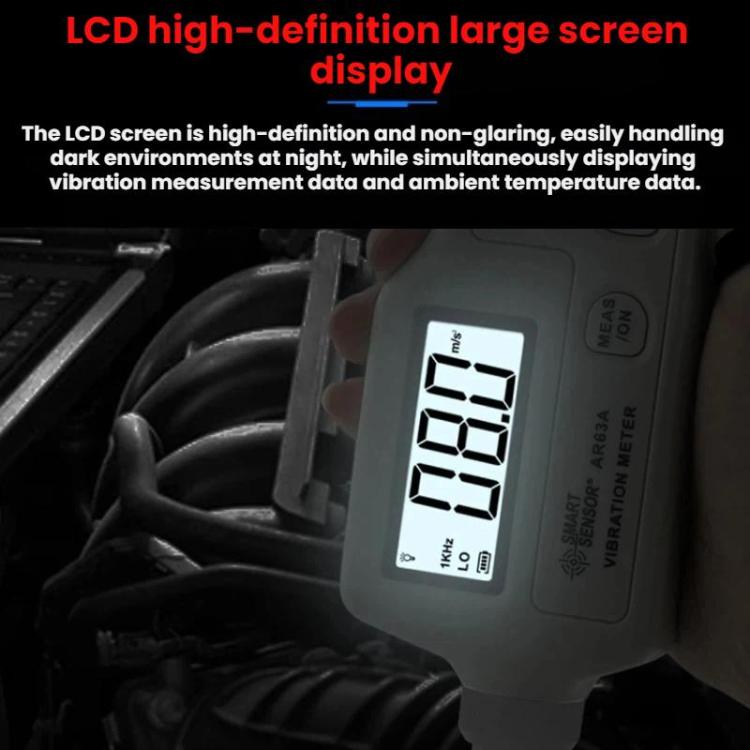

18. The instrument features a built-in backlight display for easy use in low-light conditions and displays the current ambient temperature.

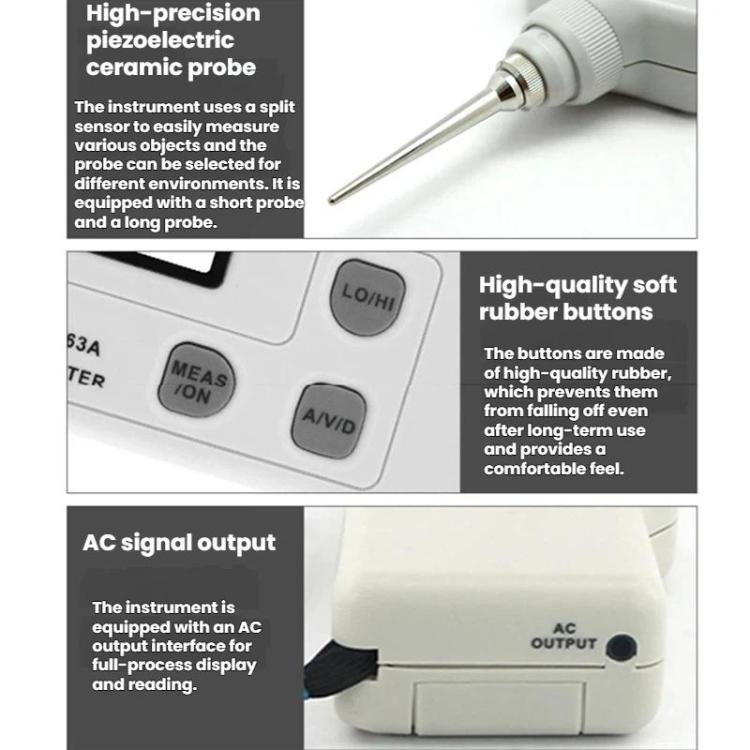

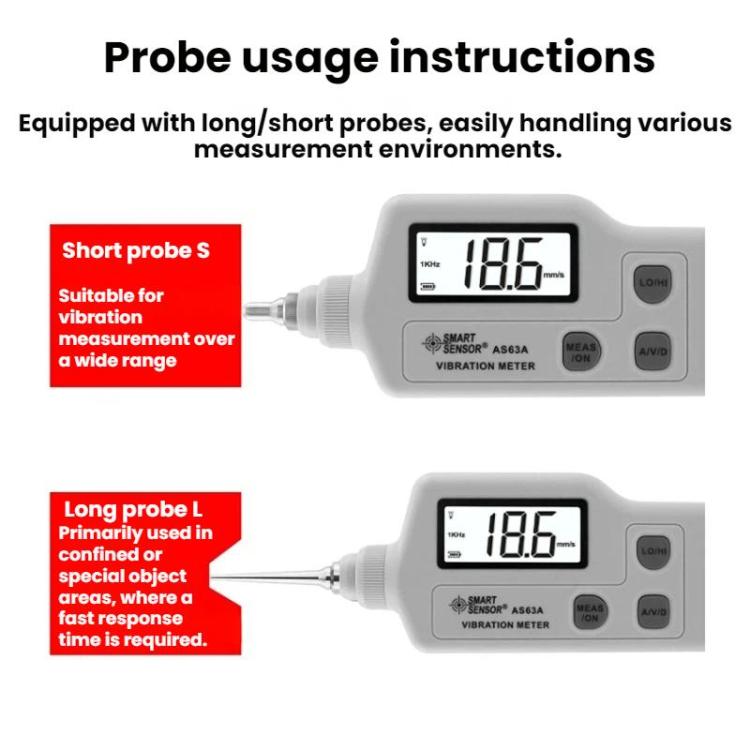

19. High-precision piezoelectric ceramic probe; the instrument uses a separate sensor for easy measurement of various objects and environments, with short/long probes available.
20. The buttons are made of high-quality rubber material, ensuring comfortable use and durability.
21. The instrument is equipped with an AC output interface for full-scale display reading.
22. Dimensions: 67x30x183mm
23. Weight: 147g (excluding battery and accessories)
