1. Voltage: 11-30V
2. Current: 10A single channel, 35A full load
3. Material: ABS, PC
4. Waterproof grade: |P66

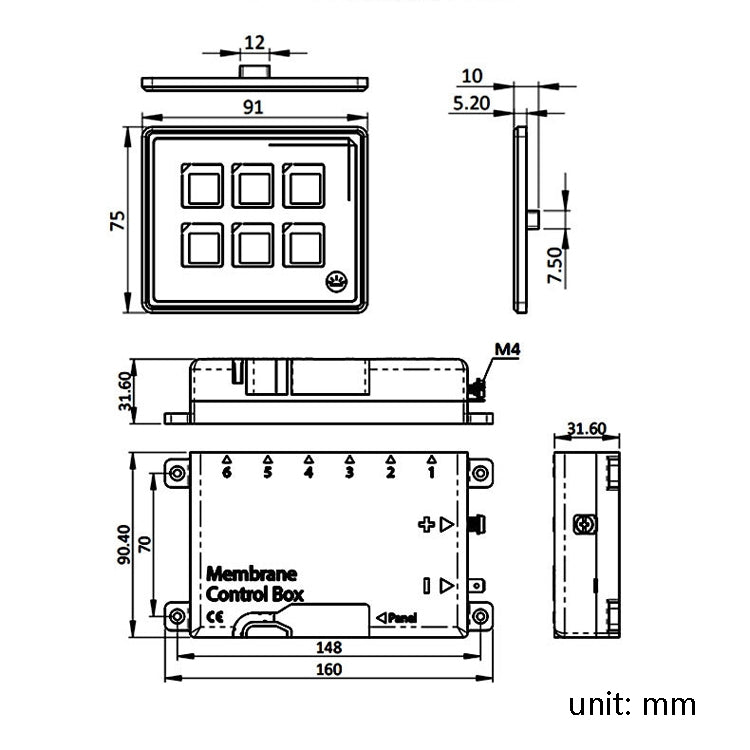

5. Installation size: 12x7.5mm
6. Cable length: about 1M
7. Suitable car models: suitable for 11-30V car models such as RVs, cars, yachts, etc.
8. Size: about 14.3x5.3x4.2 cm
9. Weight: about 344 grams
Features:
1. PET touchpad, feel comfortable
2. Thin and light design, compact panel, easy to install
3. Panel IP66 protection level, strong waterproof
4. Smart chip, simple circuit
5. With backlight mode, it is convenient to use when the light is dark
6. Each branch is equipped with a 10A self-resetting fuse, the temperature of the control box is slow, and the heat dissipation is fast, and it is durable

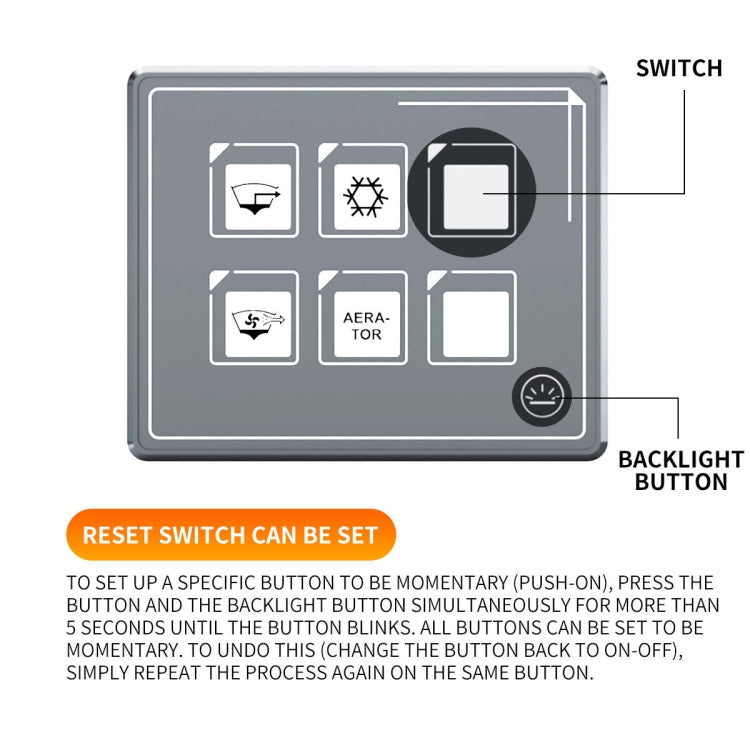

7. Programmable reset switch
packing list:

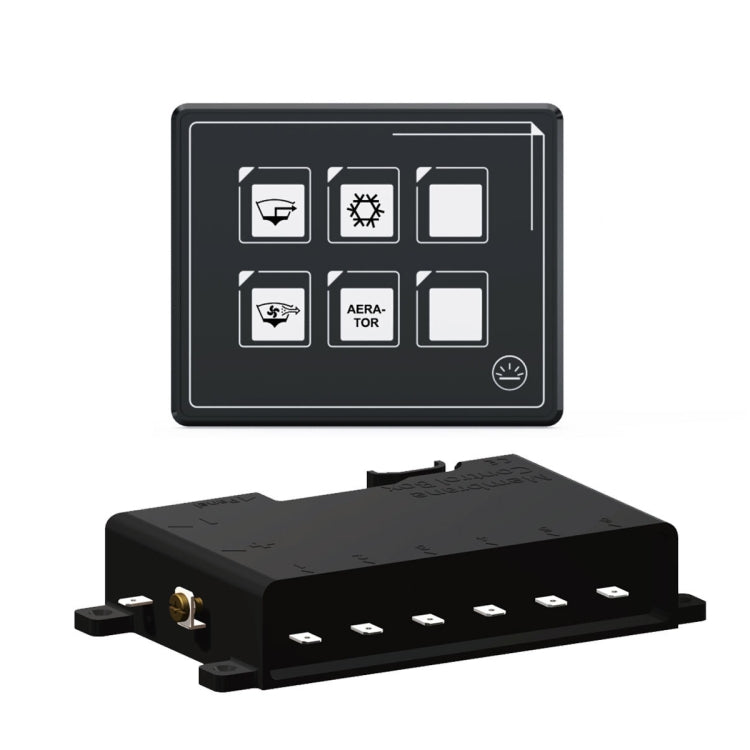

-6-way panel x1
-6-channel control box x1
-1mUSB cable x1
-Sticker x60
-Installation accessories x9
-Manual x1
