1. Remote control channels: 8 channels
2. Transmit power: 100mW
3. Remote distance: about 1000 meters
4. Operating frequency band: 2400-2500ΜΗΖ
5. Battery capacity: 650mAh
6. Charging interface: Type-C
7. Charging cut-off voltage: 4.2V +/-0.02V
8. Low voltage alarm: 3.4V
9. Battery life: about 2.5H
10. Charging time: about 2H
11. Input: 5V 1A
12. Simulator function: support
13. Applicable models: fixed-wing, multi-rotor, glider, soccer drone, car, boat, etc. with ELRS protocol
14. Compatible simulator software: for Liftoff, DRL, DCL, Al Drone Simulator, TRYP FPV, Uncrashed, Freerider, Velocidrone), FPVLOGIC, SkyDive, FPVWorldwide, FPV Battleground, Black Sheep. Battleground, Black Sheep
15. Material: ABS
16. Size: about 16.2 x 12 x 6.6cm
17. Weight: about 155g

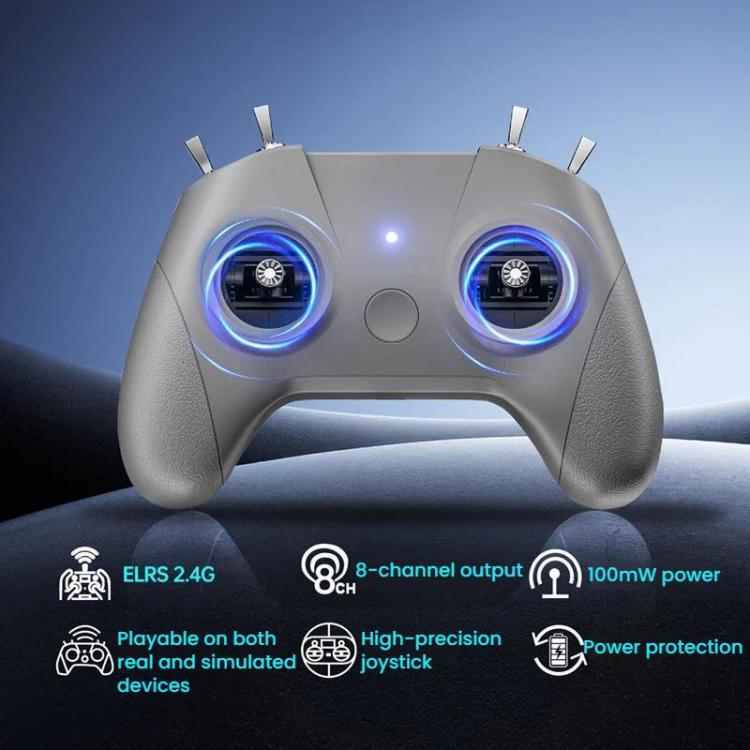

Features:
1. Seamless training with real aircraft/simulator
2. Compatible with ELRS 2.4G and support firmware version 3.0-3.3.2 or above receivers (compatible with most receivers), support for 8-channel coordinated control (4 flight channels, 4 customized functions toggle channel)
3. 100mW fixed transmit power, with 2.4G copper tube antenna, high gain 3.0dB, frequency range 2400-2500MHz, control distance up to 1km in unobstructed environment, easily meet the needs of most flight scenarios
4. Ultra-light body, easy to store, convenient to carry around
5. Aviation model level control assembly, equipped with composite damping system, real restoration from miniature traverser to professional racing machine dynamic feedback (30g-800g model real machine feel), 0.1 degree fine-tuning precision
6. Power down to 15% trigger a buzzer alarm, the voltage drops to the lithium battery protection threshold of 3.3V automatically shut down, effectively preventing damage to the battery over-discharge, to protect the safety of equipment

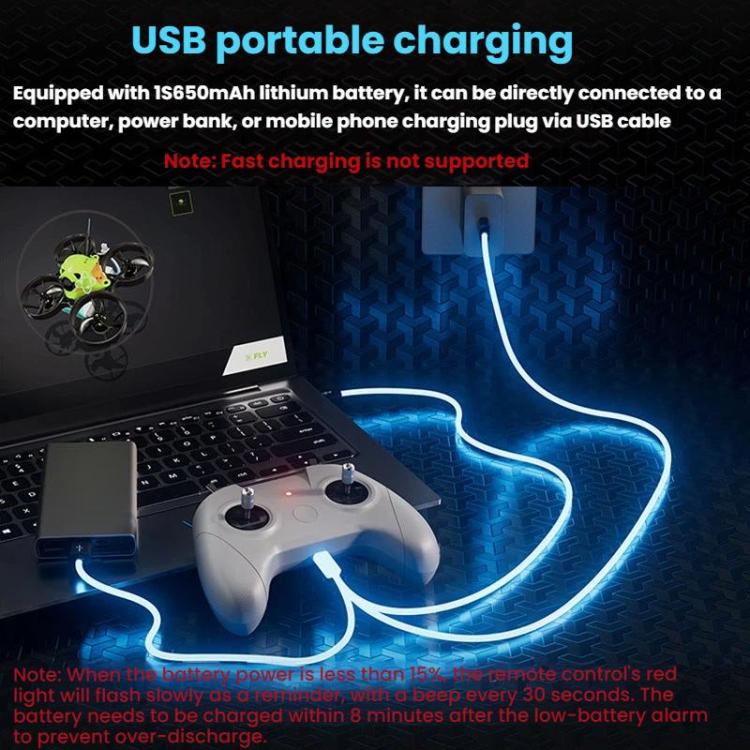

7. Built-in 650mAh lithium battery, can be directly connected to the computer with a USB cable, rechargeable treasure, or cell phone charging plug charging (Note: does not support fast charging for charging)
8. Compatible with a variety of models, support for fixed-wing with ELRS protocol, multi-rotor, glider, soccer drones, cars, boats and so on
Remote control pairing tutorial:

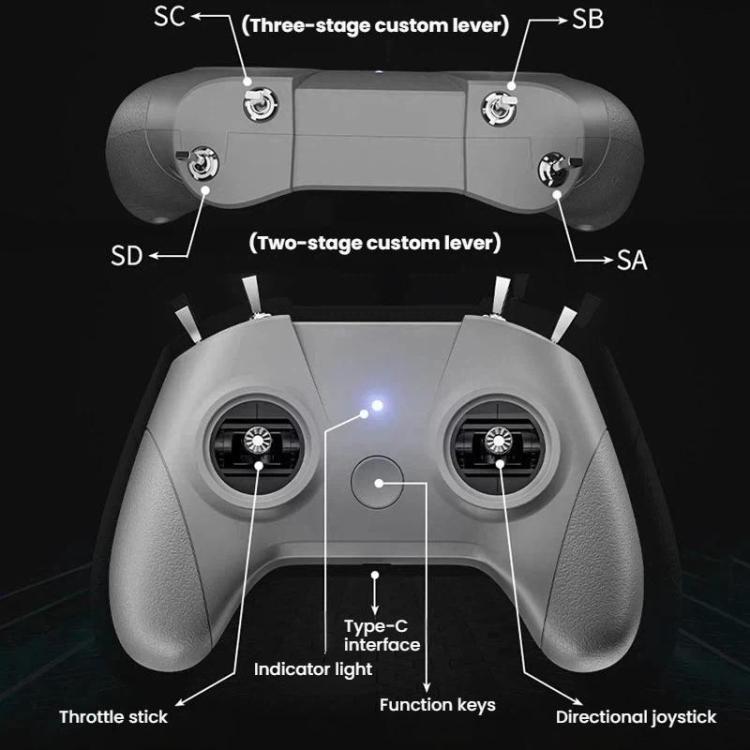

1. The airplane is powered on and plugged in 3 times, the remote control is in the power-on state, push the right rocker to the maximum travel upward, and at the same time, quickly toggle the reset position switch (SA) toggle 2 times (up and down is one time)
2. When the blue indicator light flashes rapidly, it means that it enters the pairing mode
3. When the pairing is successful, the blue indicator light will be on and the beeper will beep once
