1. Combines a quad-speed IEEE802.3-compatible media access controller with a quad-speed Ethernet transceiver, compliant with 10/100Mbps Ethernet IEEE802.3u, IEEE802.3ab 1000Mbps, IEEE802.3bz 2500Mbps Ethernet specifications
2. Provides high-speed transmission via CAT5e UTP cable or CAT3 UTP (10Mbps only) cable
3. Suitable for desktops, workstations, servers, communication platforms and embedded applications
4. Bus type: M.2 A+E KEY
5. Transmission medium: 1 x 2.5G RJ45 port
6. Transmission rate: 2.5G/1000/100/10Mbps
7. Network mode: supports 2.5G and 1G Lite mode
8. Network topology:
- Supports IEEE1588v1, IEEE1588v2, IEEE80.2AS time synchronization
- Supports IEEE802.1Qav credit-based shaping algorithm
- Support IEEE802.1P Layer 2 priority encoding
- Support IEEE802.1Q VLAN tagging
- Support IEEE802.3az-2010
- Support IEEE802.3bz-2016 (NGBASET)
- Support full-duplex flow control (IEEE802.3x)
9. Features:
- Auto-negotiation with extended next page function
- Support for exchange/sex/skew correction- Crossover detection and automatic correction
- Support hardware ECC (error correction code), hardware CRC (cyclic redundancy check) function
- Support PCI MSI (Message Signal Interrupt) and MSI-X
- Support ECMA-393 ProxZzzy standard for sleeping host
- Support LAN wake-up and RealWow technology (remote wake-up)

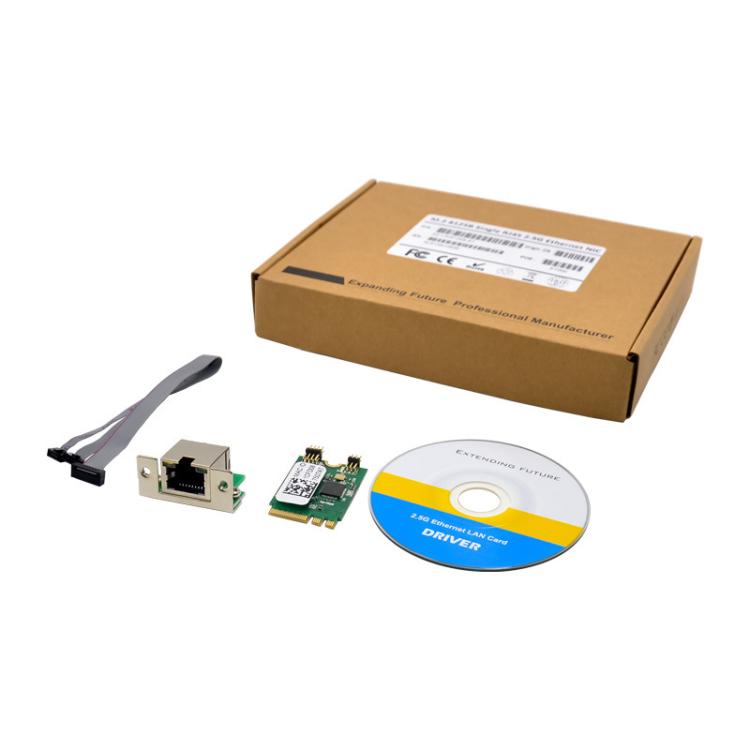

Packing list:

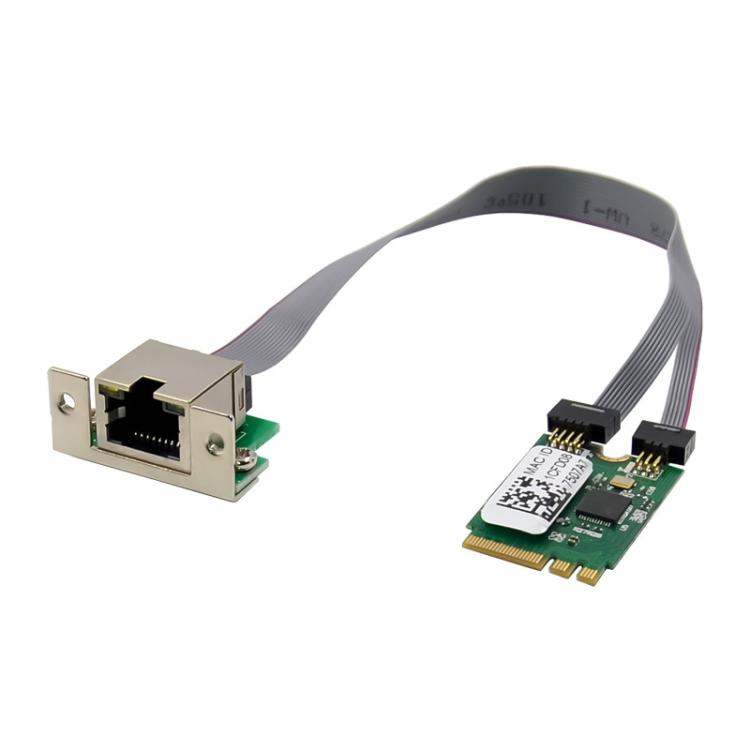

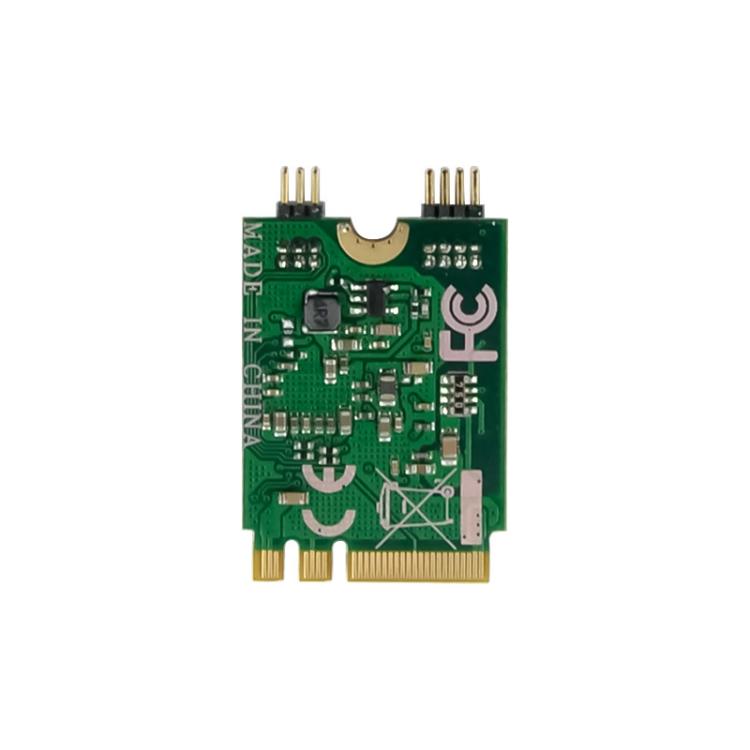

- M.2 A+E RTL8125B main card x 1
- RJ45 network cable terminal x 1
- Short iron sheet x 1
- CD drive disc x 1
