1. Image sensor: 640*480 CMOS
2. Decodable system:
1D: EAN-8, EAN-13, EAN-13 2 add-on, EAN-13 5 add-on, ISBNs UPC-A,
UPC-E, Code 39, Code 39 FullASCIk Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1-128, GS1 DataBar (RSS14) (Stacked), GS1 Data Bar Limited , Standard 25, GS1 DataBar Expanded
2D: PDF417, MicroPDF417, MicroQR, Data Matrix, QR Code
3. System compatibility: Linux, Android, Windows XP, 7, 8, 10, MACOS
4. Minimum recognition accuracy: Code 39 4mil
5. Scannable barcode types: one-dimensional and two-dimensional barcodes on paper and film; one-dimensional and two-dimensional barcodes on screens such as mobile phones and tablets.
6. Movement tolerance: 3.2 meters/second
7. Scanning mode: self-sensing continuous code reading mode
8. Supported keyboards: US-English, French, Italian, German, Spanish, Turkish Q, Belgian (French), Portuguese-Portuguese, Portuguese-Brazilian
9. Support barcode language: Simplified Chinese characters (under win system)
10. Invoice function: supported (only for the Chinese market) (under win system)
11. Secondary development: Secondary development is not supported
12. Barcode output editing: supports adding suffixes/hidden characters
13. Printing contrast: 20%
14. Recognition angle range: rotation angle ±360°, elevation angle ±60°, declination angle ±70
15. Indicator light: red and purple two-color indicator light
16. Buzzer: startup prompt, code reading prompt
17. Fall resistance: can withstand 3 times of free fall from 1.5 meters
18. Waterproof and dustproof: IP54
19. Operating temperature range: -20 to 55℃
20. Storage temperature range: -20 to 60℃
21. Working humidity range: 5-95% non-condensing state
22. Storage humidity range: 5-95% non-condensing state
23. Ambient light intensity: 0-70000LUX
24. Data cable length: 177-183CM
25. Working voltage: 5V
26. Communication interface: USB (driver-free), serial port
27. USB standby power: 193mA/0.965W
28. USB working power: 183mA/0.915w
29. USB maximum power: 195mA/0.975W
30. Serial port standby power: 193mA/0.965W
31. Serial port working power: 183mA/0.915w
32. Maximum power of serial port operation: 195mA/0.975W

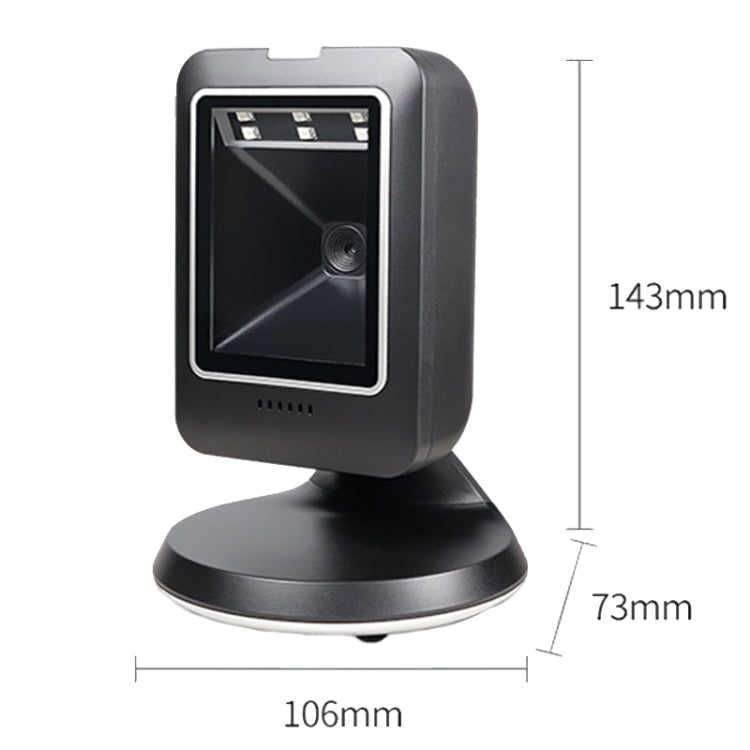

33. Product size: 106 x 73 x 143mm
34. Product net weight: 370g
Features:

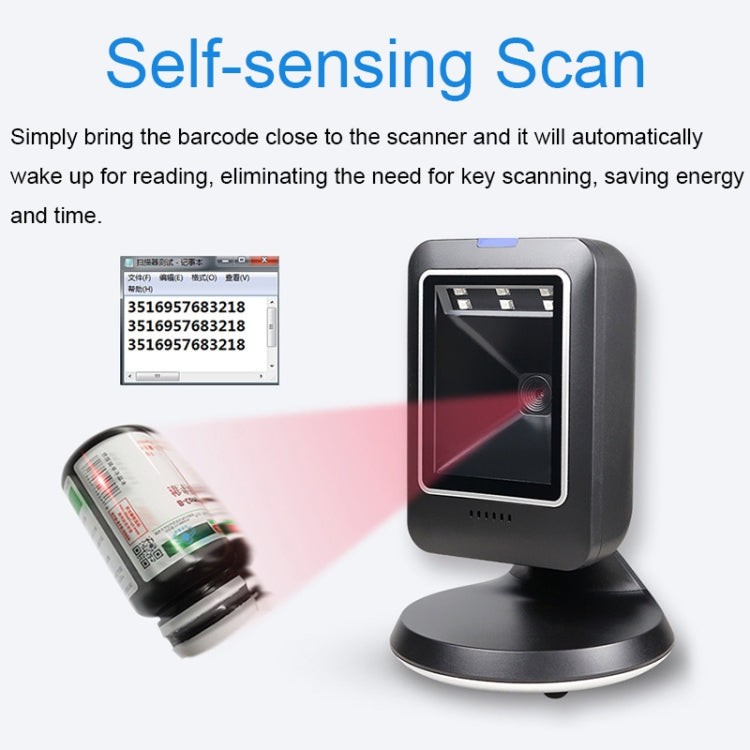

1. Self-sensing scanning, bring the barcode close to the scanner, and it will automatically wake up for reading. No key scanning is required, saving energy and time.
2. Suitable for various scenarios
3. Plug and play, compatible with all major systems

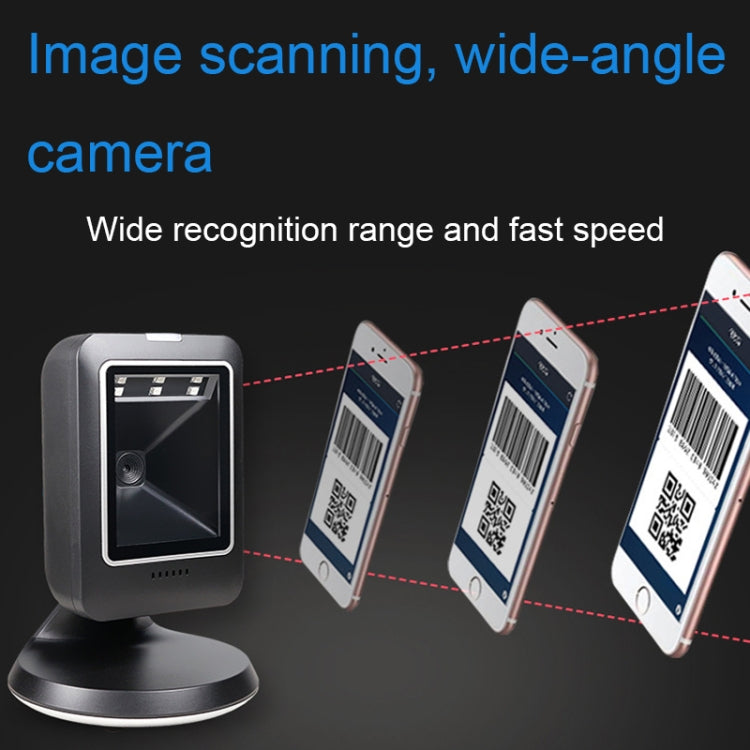

4. Image scanning, wide-angle camera
5. Wide recognition range and fast speed
6. Hands-free design, higher work efficiency

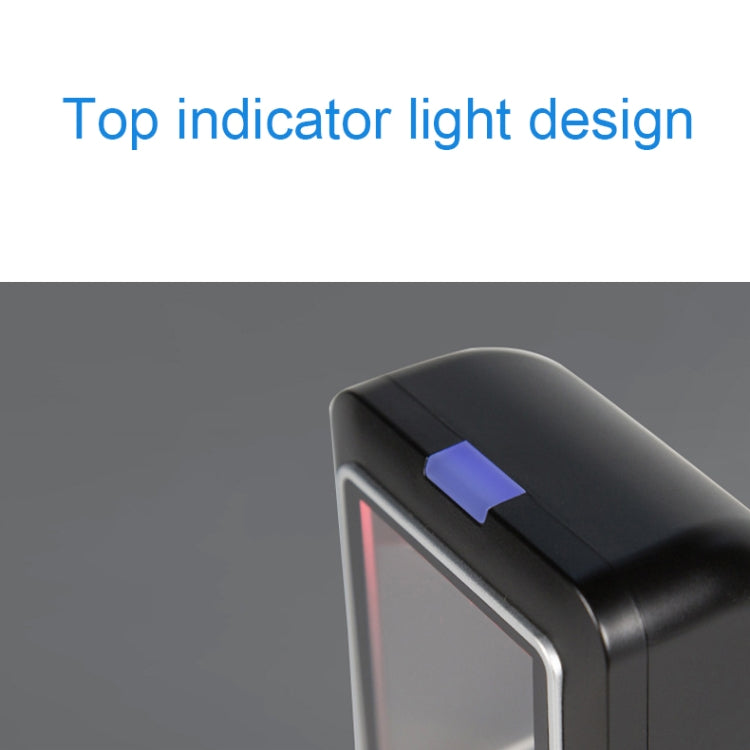

7. Top indicator light design
8. Wide voltage and low power consumption, no lag in data transmission

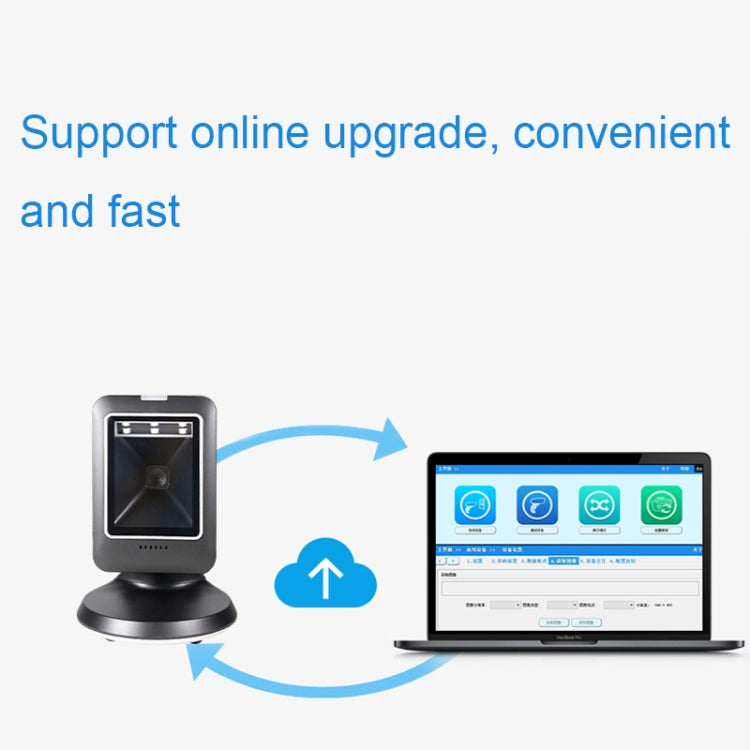

9. Support online upgrade, convenient and fast
10. Can scan in strong light/dark environments, adopts independent image algorithm, and is compatible with various environments
