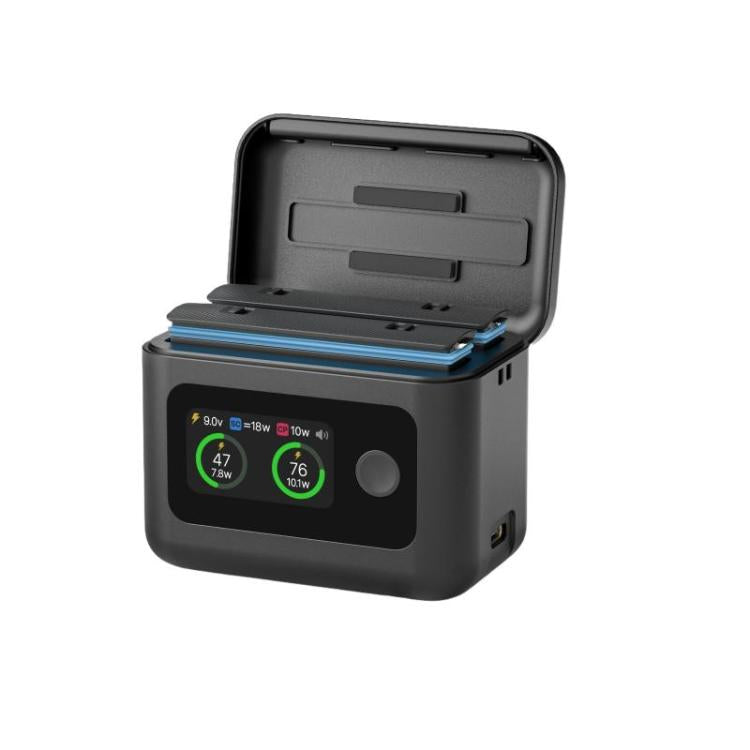

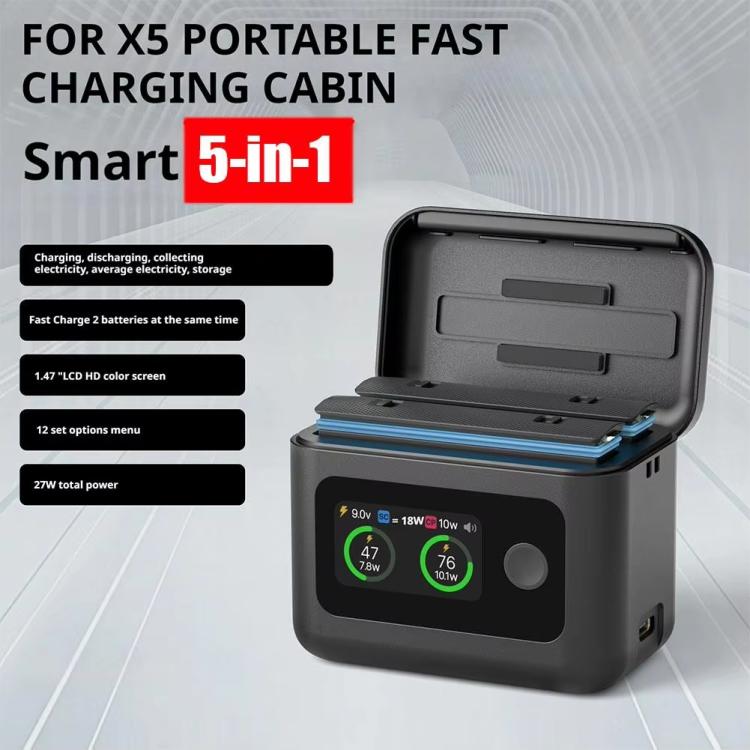

1. This Charging Hub is specifically designed for Insta360 X5 camera batteries. Equipped with a 1.47-inch LCD screen and smart charging technology, it provides comprehensive control over battery status and maintenance management.
2. Dual-Battery Fast Charging System: The Charging Hub supports simultaneous charging for two X5 batteries with a total output power of 27W. A single channel can provide up to 20W power, charging a battery to approximately 80% in about 35 minutes.

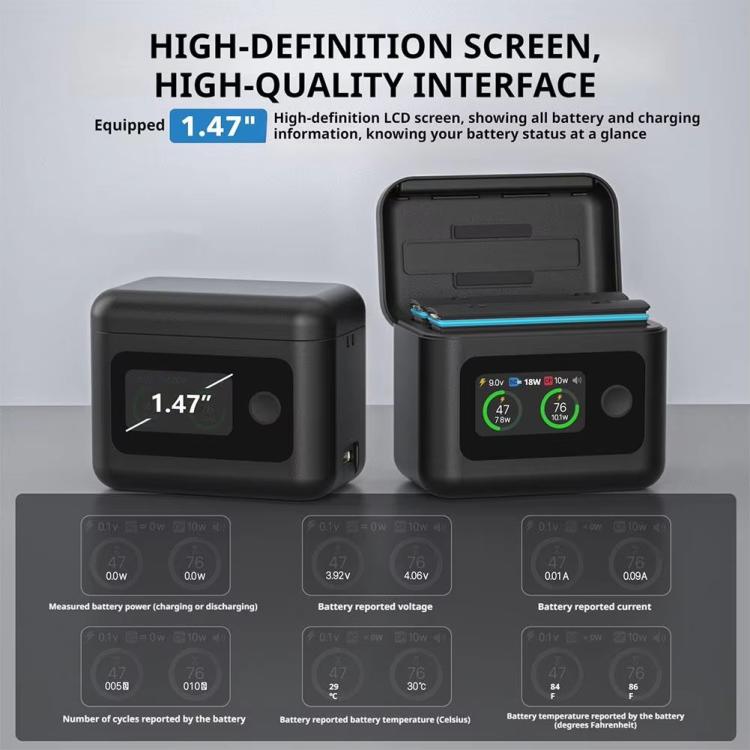

3. 1.47-inch HD Color LCD Display: Features a high-definition LCD screen that clearly displays real-time battery information, charging status, and system settings, allowing users to grasp the power status at a glance.

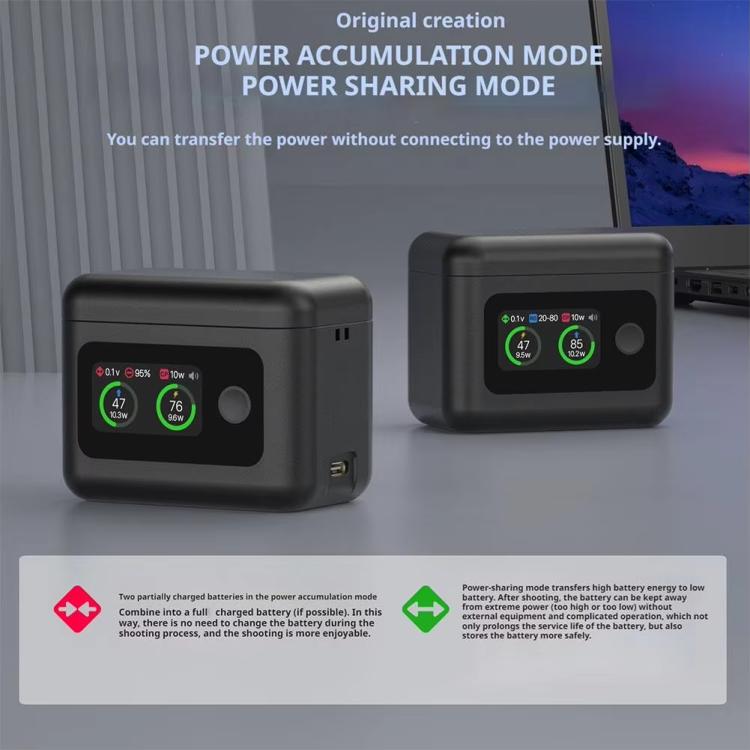

4. Five Intelligent Operation Modes: Charging Mode / Discharging Mode / Power Gathering Mode / Power Balancing Mode / Settings Mode

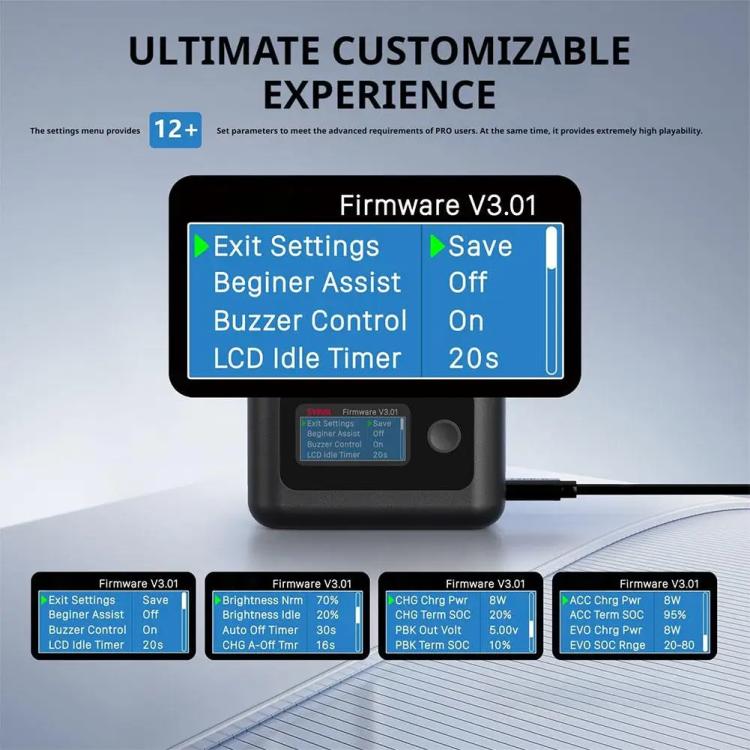

5. Customizable Settings: The settings menu provides 12+ configurable parameters, meeting the needs of professional users to customize charging behavior and system preferences according to specific requirements.

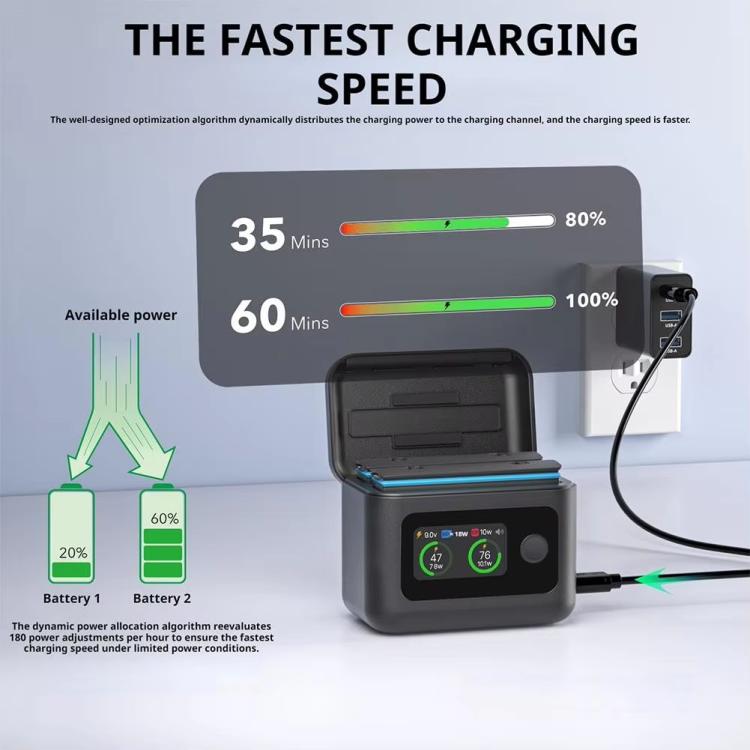

6. Optimized Charging Algorithm: Built-in intelligent algorithms dynamically allocate charging power between channels, optimizing charging speed while maintaining battery health.

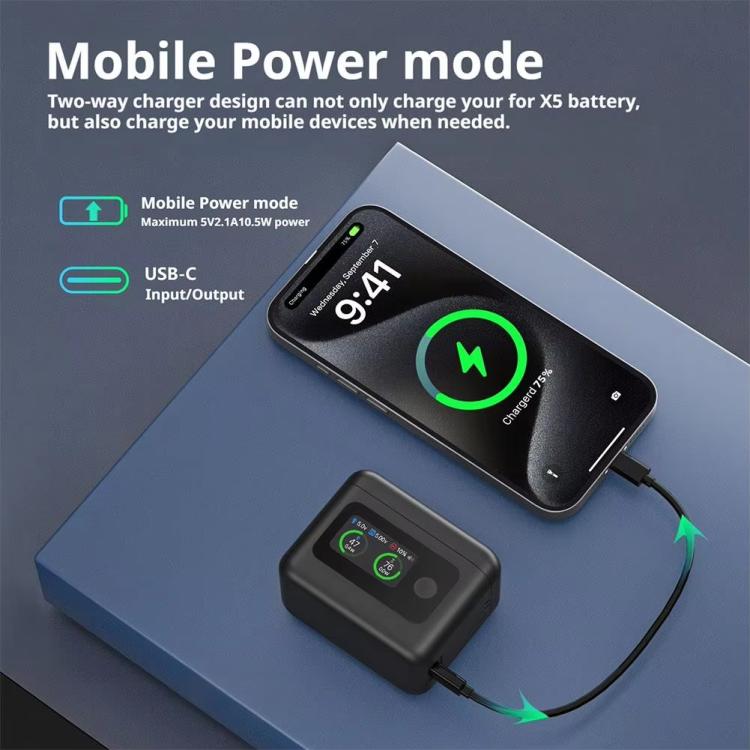

7. Bidirectional USB-C Design: Functions as both a charger and a power bank. After inserting an Insta360 X5 battery, it can charge mobile devices via the USB-C output port.

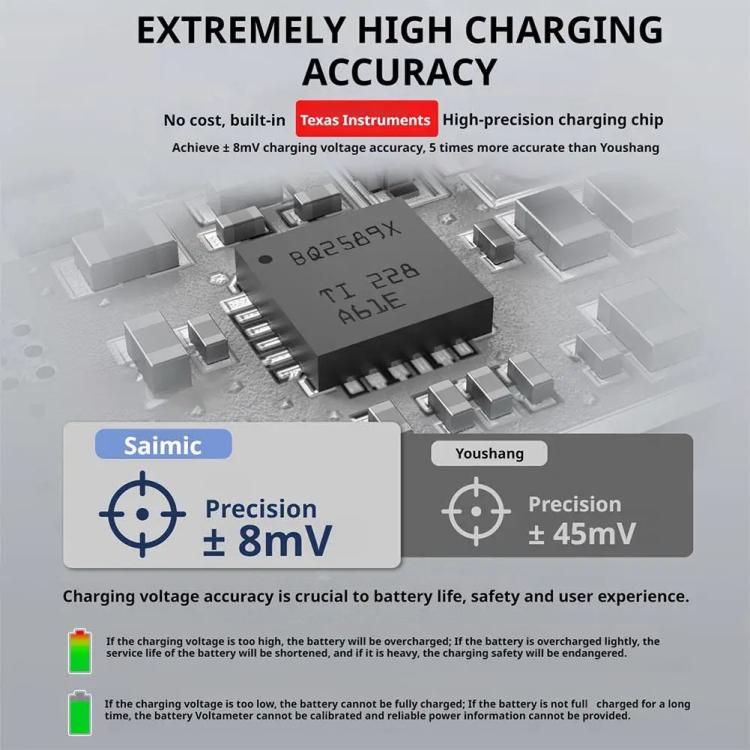

8. Precision Charging Technology: +/-8mV charging voltage accuracy combined with Hall sensors provides precise power management, helping to extend the overall battery lifespan.

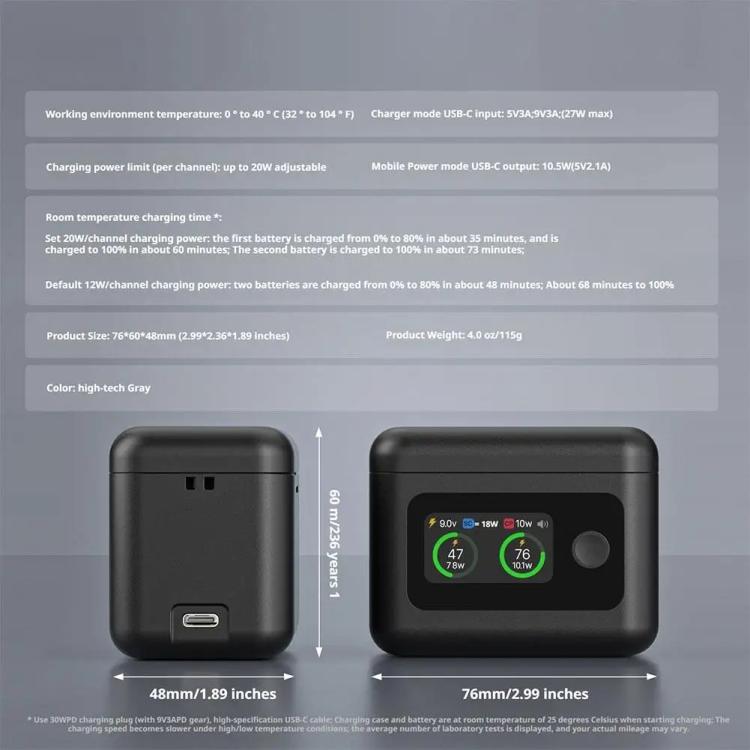

Parameters:
1. Operating Environment Temperature: 0-40 degrees Celsius (32-104 degrees Fahrenheit)
2. Charger Mode USB-C Input: 5V 3A, 9V 3A (Max 27W)
3. Charging Power Limit (Per Channel): Adjustable up to 20W
4. Power Bank Mode USB-C Output: 10.5W (5V 2.1A)
5. Charging Time at Room Temperature (Data measured under experimental conditions, for reference only):
-- Set at 20W/channel: First battery ~35 mins from 0% to 80%, ~60 mins to 100%; Second battery ~73 mins to 100%;
-- Default 12W/channel: Two batteries ~48 mins from 0% to 80%; ~68 mins to 100%
6. Product Dimensions: 76 x 60 x 48mm
7. Weight: 115g
