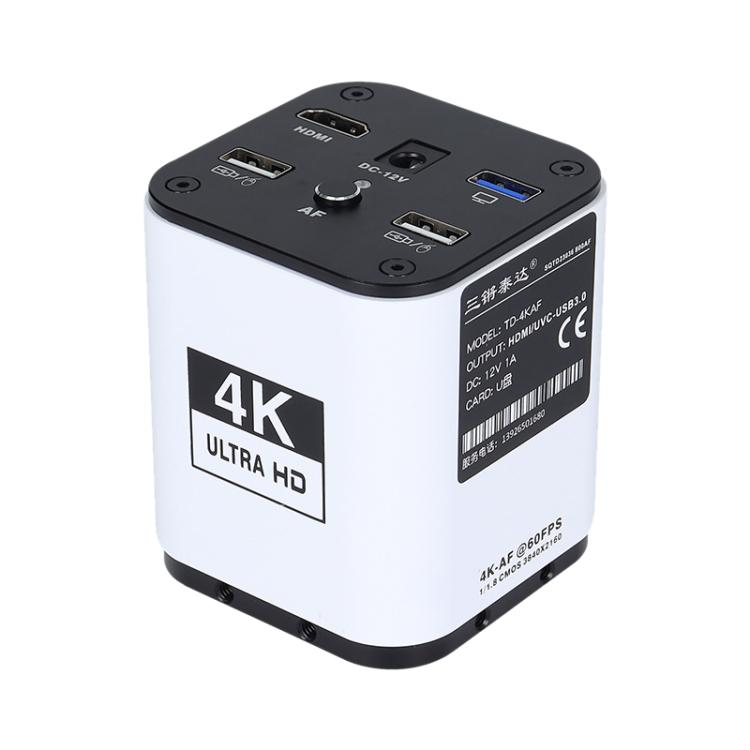

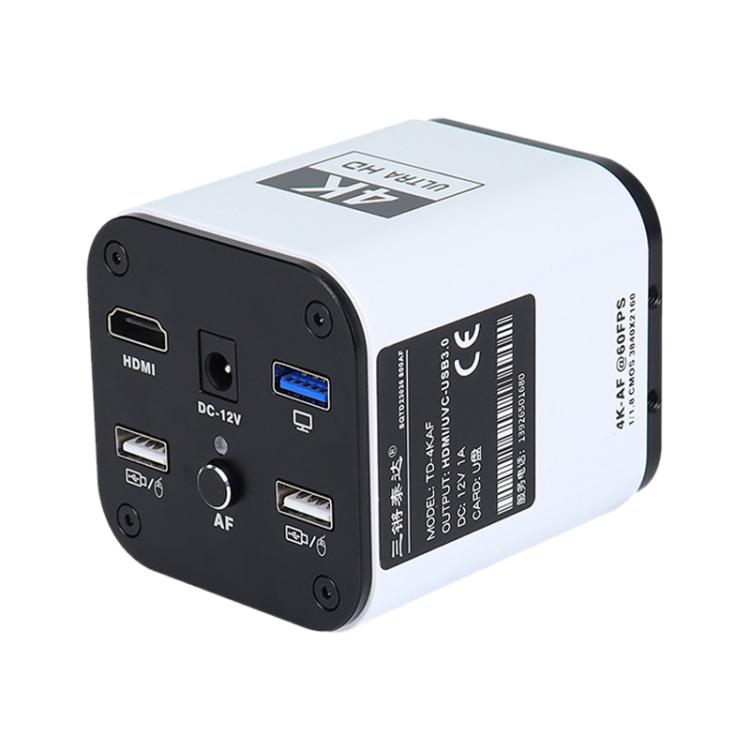

1. 4K @60FPS Ultra HD High-Speed Imaging
2. Resolution: 3840 × 2160
3. 8 Megapixel output
4. Smooth real-time display without motion blur.
5. Ideal for high-speed inspection and precision measurement.
6. Equipped with 1/1.8 inch Sony CMOS sensor.
7. Pixel size: 2.0um × 2.0um
8. High sensitivity and low noise.
9. Excellent color reproduction and fine detail clarity.

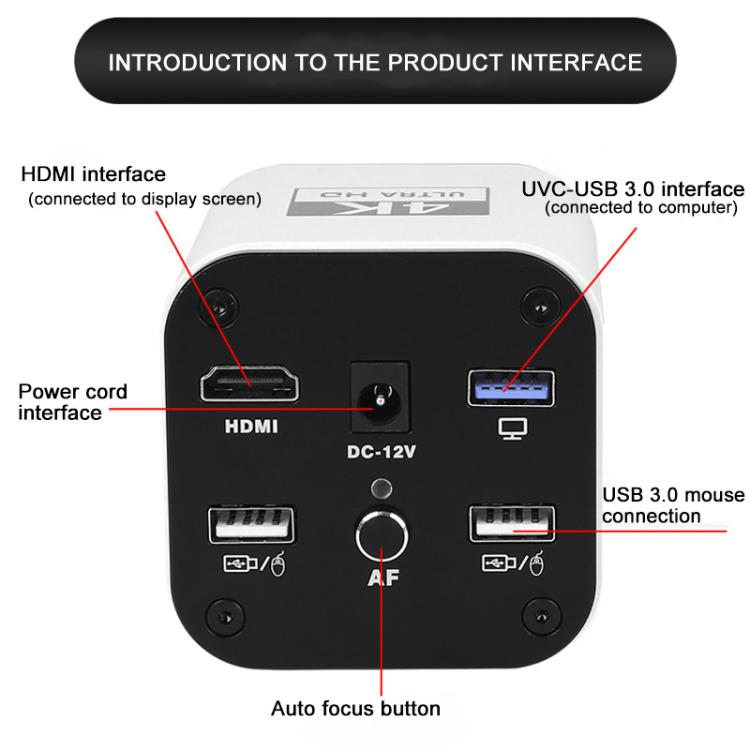

10. HDMI for direct HD monitor connection.
11. USB 3.0 (UVC protocol) plug-and-play PC connection.
12. Supports monitor + computer simultaneous use.
13. Flexible integration into industrial systems.
14. High-Precision Edge Detection & Measurement System: Automatic edge detection capability.
15. Built-in 8 sets of grid lines / 8 selectable colors / 4 selectable line widths. Improves inspection accuracy and measurement efficiency.
16. One-Touch Auto Focus (AF) / Fast and accurate autofocus / Freeze function / Partial enlargement. Enhances operational efficiency.
17. HDR wide dynamic range, HDR imaging support, enhanced contrast in high dynamic environments, suitable for reflective or high-contrast materials.
18. Adjustable parameters include: Color / Color temperature / White balance / Exposure, adapts to different materials and lighting conditions.
19. Multi-Screen Comparison: Two-screen / Four-screen comparison. Ideal for quality inspection and side-by-side analysis
20. Integrated Industrial Functions: Image capture / Video recording / Measurement / Storage. supports PC-based analysis and documentation.

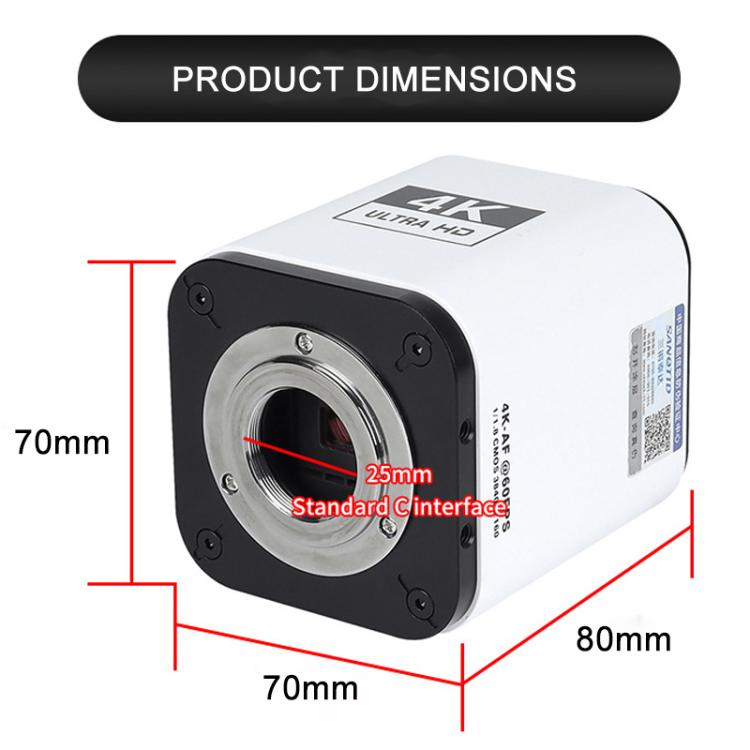

21. Standard C-Mount lens compatibility.
