1.Measurement range:
- ТА603А: -32 - 1080 degrees Celsius (-26 - 1976 degrees Fahrenheit)
- ТA603В: -32 - 1380 degrees Celsius (-26 - 2516 degrees Fahrenheit)
- ТА603С: -32 - 1680 degrees Celsius (-26 - 3056 degrees Fahrenheit)
- TA603D: -32 - 1880 degrees Celsius (-26 - 3416 degrees Fahrenheit)
- ТА603Е: -32 - 2200 degrees Celsius (-26 - 3992 degrees Fahrenheit)
2. Temperature accuracy: -32 - 100 degrees C / 100 - 800 degrees C / 212 - 1472 degrees F: about 2%; above 800 degrees C / 1472 degrees F: about 3%; -26 - 1976 degrees F: about 4%
3. Response time: less than 500ms (95% of reading)
4. Spectral response: 8μm-14μm
5. Optical resolution: 50:1 (TA603A/B/C) / 50:1 (TA603D/E), calculated at 90% energy
6. Emissivity: 0.1 to 1.00 adjustable, in steps of 0.01 (default 0.95)
7. Display resolution: -32 - 1000 degrees Celsius (0.1) / 1000 degrees Celsius and above (1)
8. Repeatability: about 1% or about 1 degree Celsius (2 degrees Fahrenheit)
9. Laser: wavelength 620 to 690nm, output power less than 1mW, class 2 laser
10. Display: 5-digit display, up to 88888
11. Automatic shutdown: 1 minute
12. Operating temperature: 0 - 50 degrees Celsius (32-122 degrees Fahrenheit)
13. Working humidity: within 95% relative humidity (non-condensing)
14. Storage temperature: -20 - 60 degrees Celsius (-4 - 140 degrees Fahrenheit)

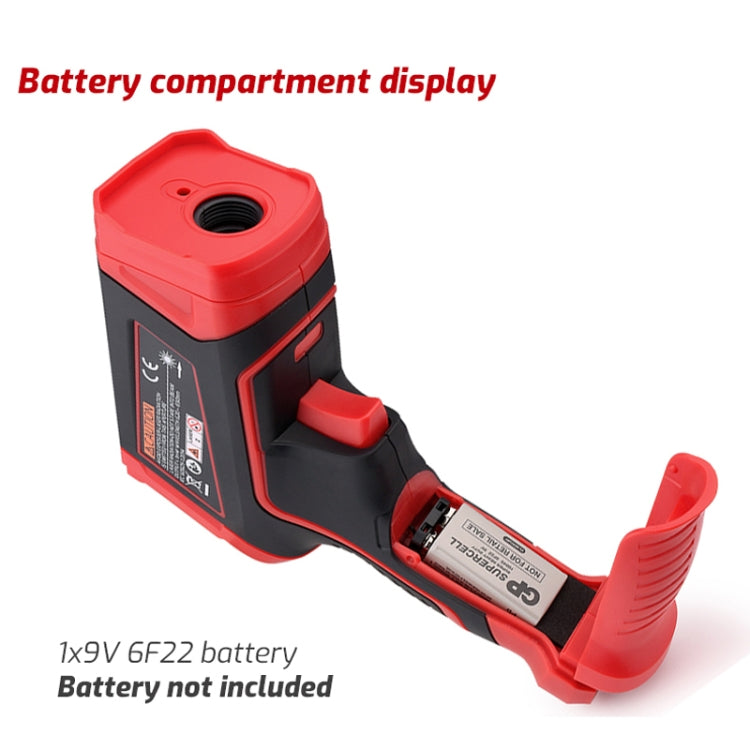

15. Power supply: 9V 6F22 battery (not included)
16. Display size: about 3.3 x 4cm
17. Dimensions: about 21.3 x 14 x 6cm
18. Weight: about 350g
Features:

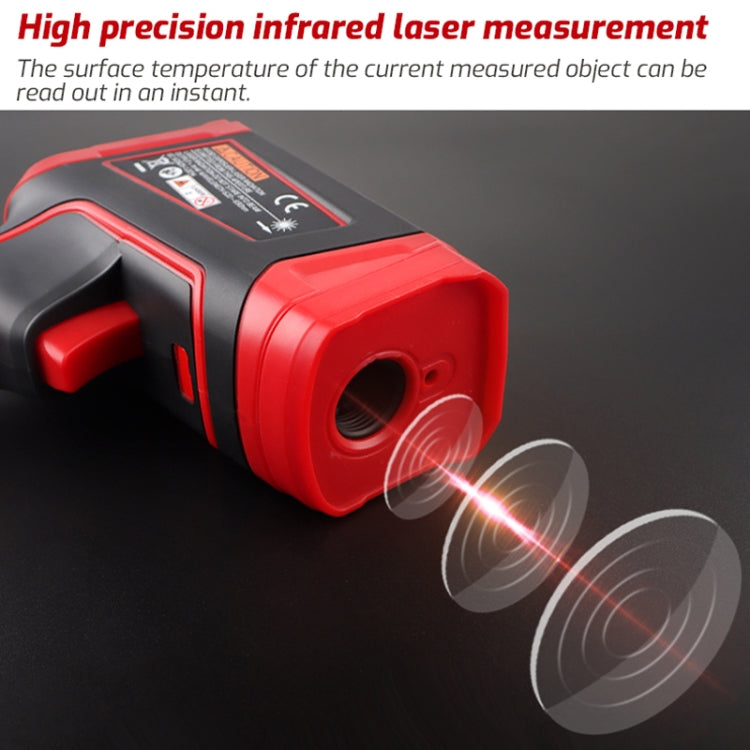

1. High precision sensor, more accurate measurement

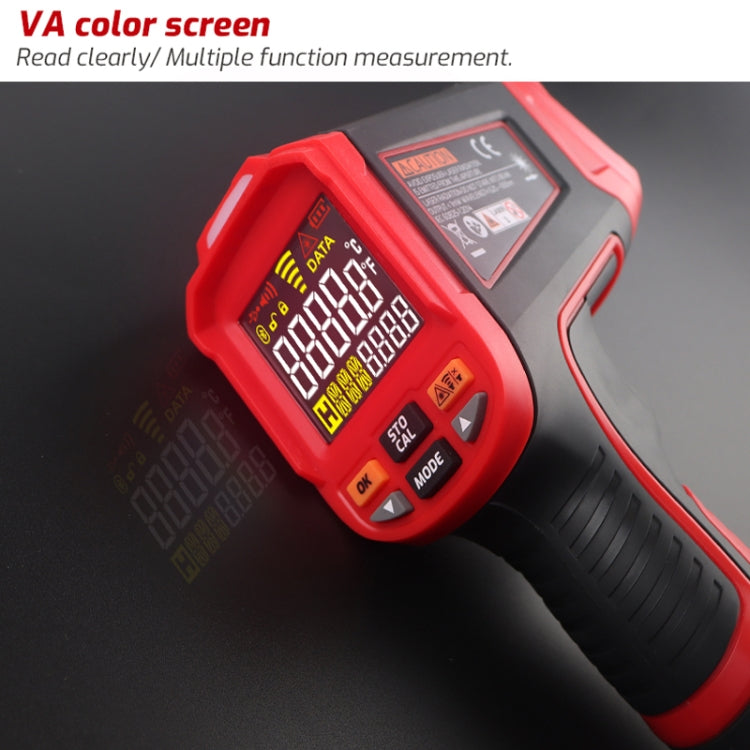

2. VA color screen, high-definition backlight display, full-viewing angle display, can be viewed in various environments

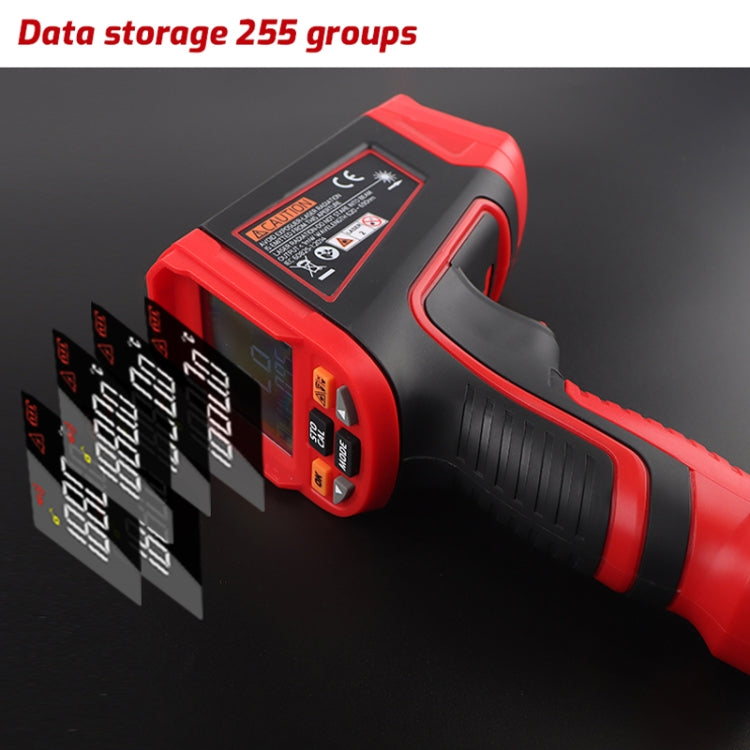

3. 255 groups of data can be stored, continuous storage of data, a key to call up data records
4. Sound and light alarm (red flashing light + beeping sound): can set the upper and lower alarm values, sound and light alarm prompts after exceeding the range
5. External bracket, non-slip grip design, feel comfortable
6. Adapt to multiple applications: industrial production temperature measurement, mold temperature measurement, boiler, cold storage, oil temperature, water temperature, etc.

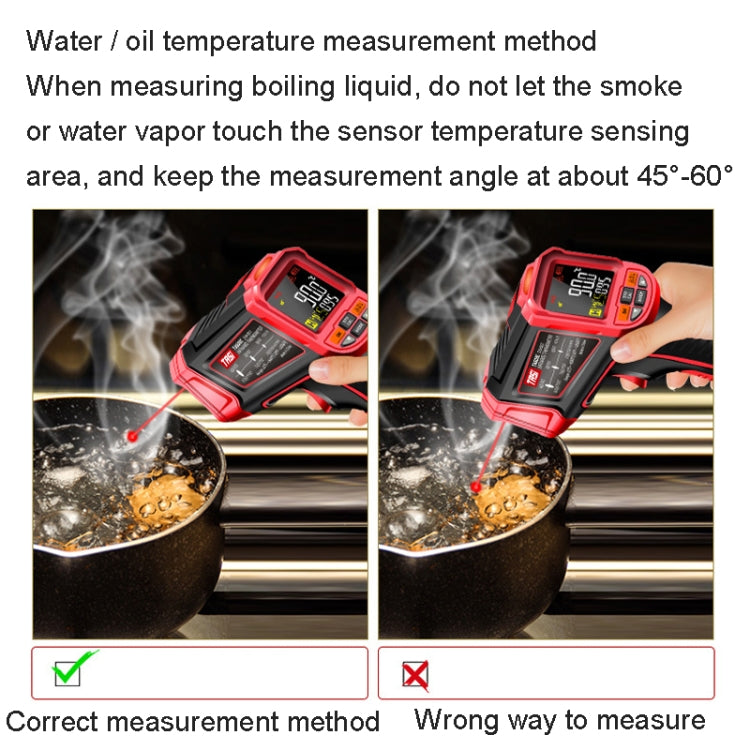

7. Water temperature / oil temperature measurement method: measurement of boiling liquid, do not let the smoke or water vapor contact the sensor temperature sensing area, measurement angle to maintain at about 45-60 degrees

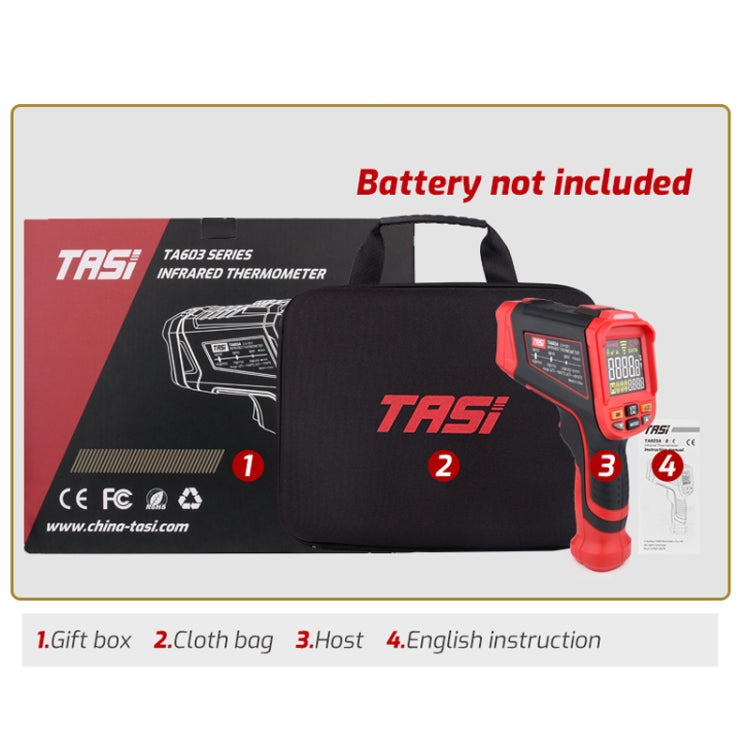

Packing list:
- Host x 1
- Cloth bag x 1
- Instruction manual x 1
