1. Measurement method: supports auto-range/manual range
2. AC voltage: 0.8 V - 600 V / +/-1.2% + 5
3. DC voltage (DCV): 0.8 V - 600 V / +/-1.0% + 5
4. Resistance: 1 ohm - 60 Mohm / +/-1.2% + 5
5. Frequency: 40 Hz - 10 MHz / +/-0.1% + 5
6. Capacitance (TA807B only): 1 nF – 60,000 μF / ±3.5% + 10
7. Display: four-digit color display, maximum display value 6,000
8. Sampling rate: 3 times per second
9. Overrange indication: OL displayed in the most significant digit
10. Supported functions: NCV detection, continuity test, diode measurement (TA807B only), data hold, flashlight illumination, low voltage alert (below 2.4V), color display
11. Auto-off: automatically turns off after 15 minutes of inactivity (can be manually canceled)
12. Operating environment: -10 to 50°C, maximum 80% relative humidity, indoor altitude below 2000m
13. Storage environment: -10 to 50°C, maximum 70% relative humidity (batteries should be removed)

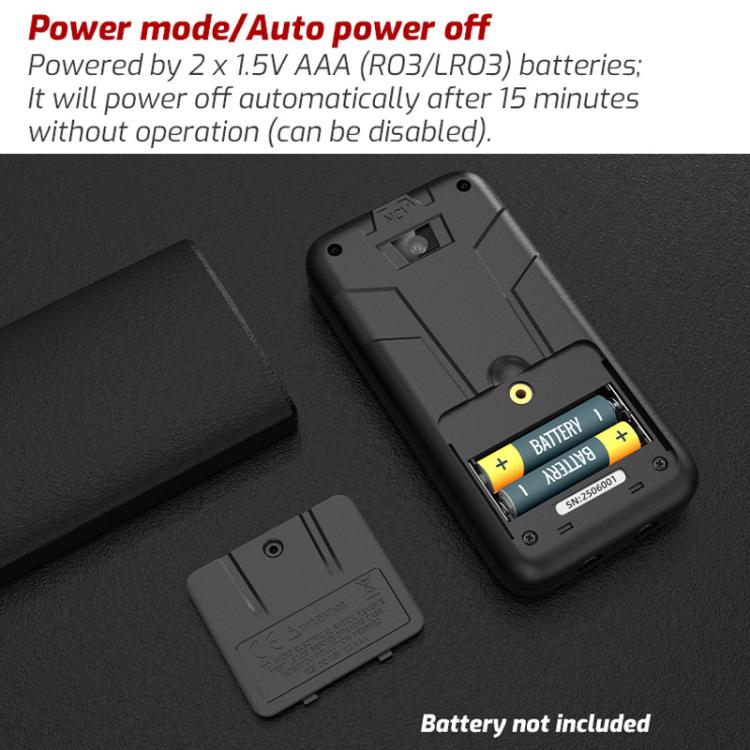

14. Power supply: 2 x 1.5V AAA batteries (not included)

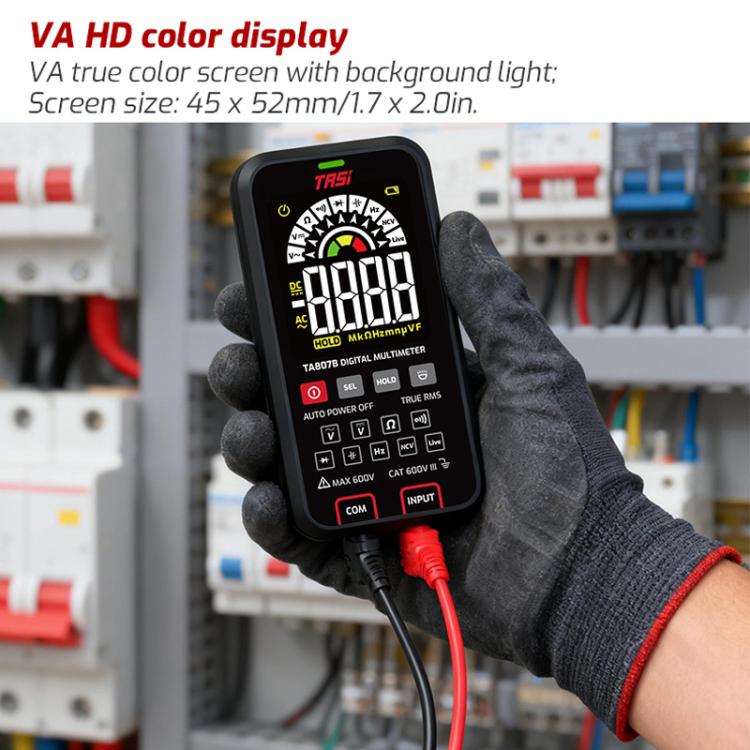

15. Display size: about 45 x 52 mm

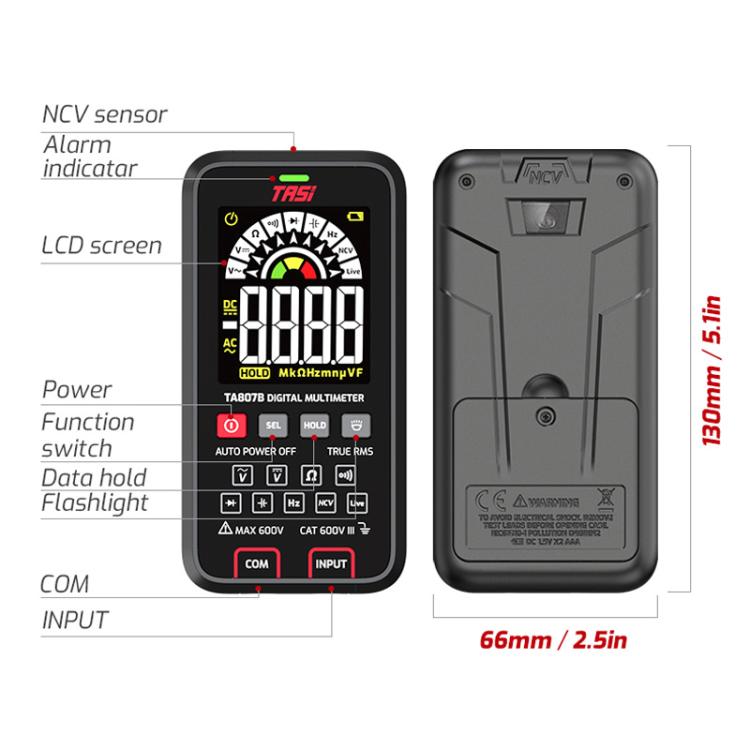

16. S: about 13 x 6.6 x 1.9 cm
17. Weight: about 175 g
Features:

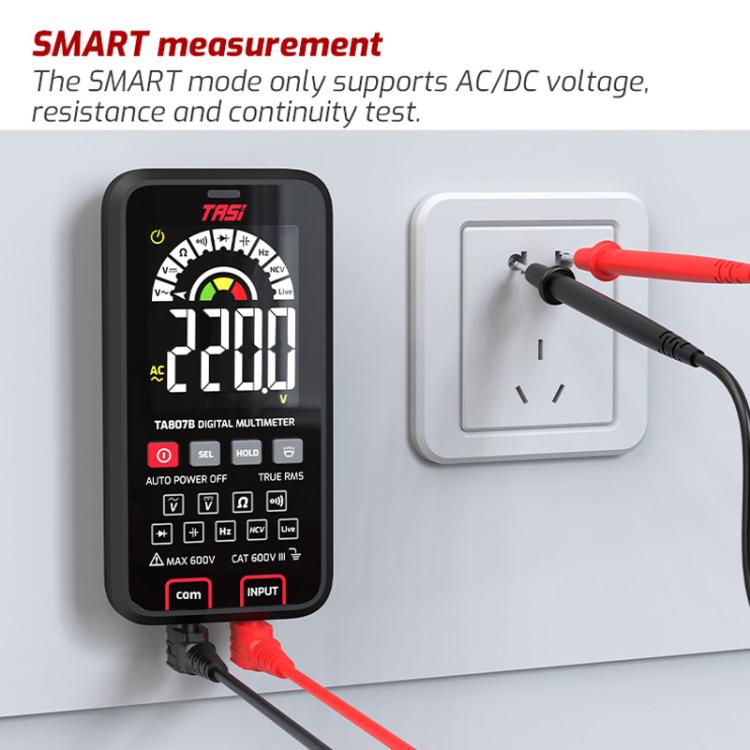

1. After powering on, it can measure AC/DC voltage, resistance, and continuity, with automatic range selection

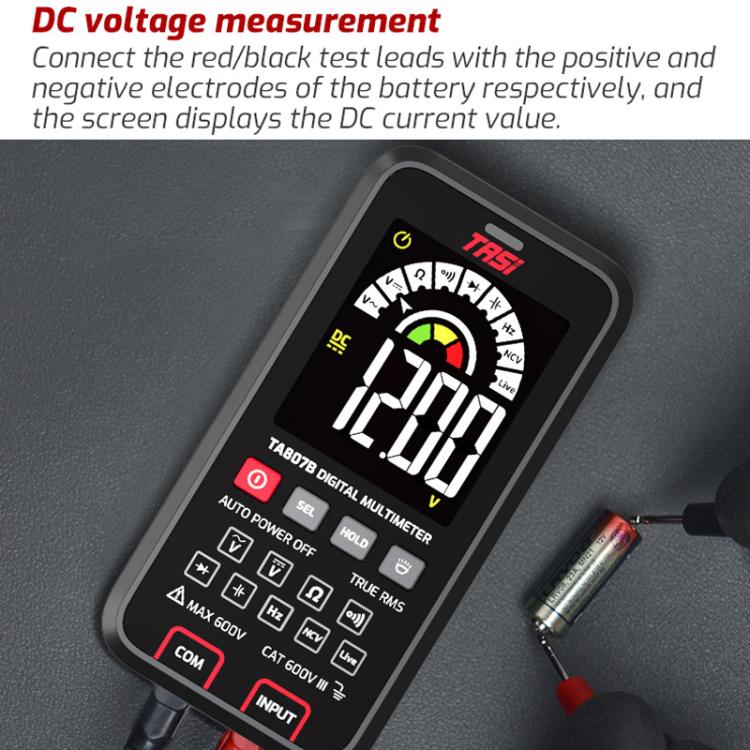

2. DC voltage measurement: touch the red and black probes to the positive and negative terminals of the battery, respectively; the screen automatically displays the DC voltage value

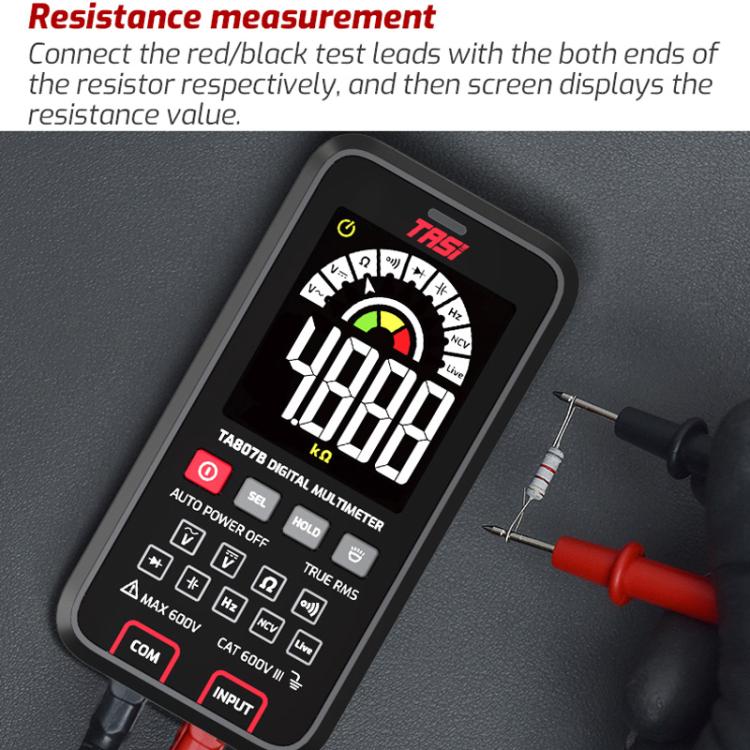

3. Resistance measurement: touch the red and black probes to both ends of the resistor, respectively; the screen automatically displays the resistance value

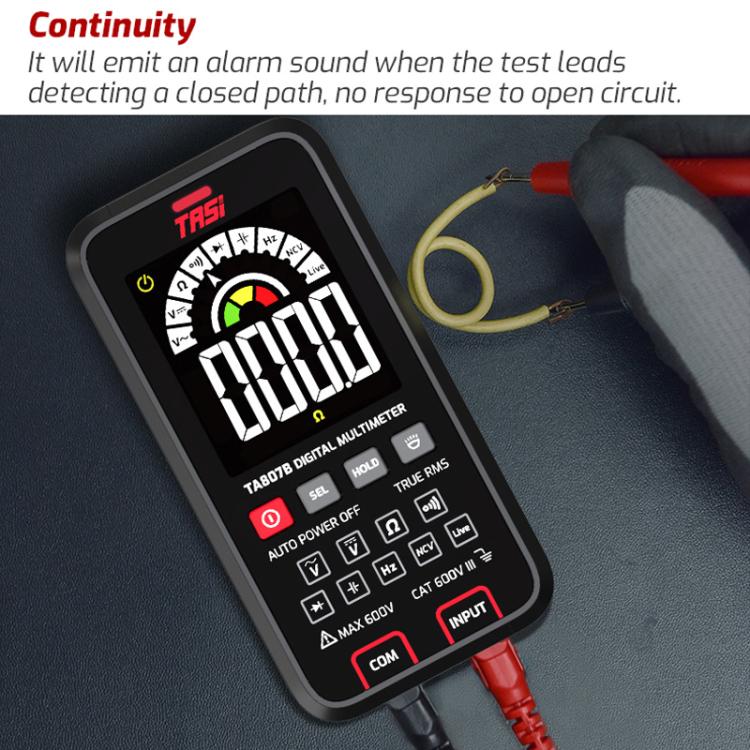

4. Continuity test: touch the test probes to both ends of the circuit under test; an audible alert sounds if the circuit is continuous, and there is no response if it is open

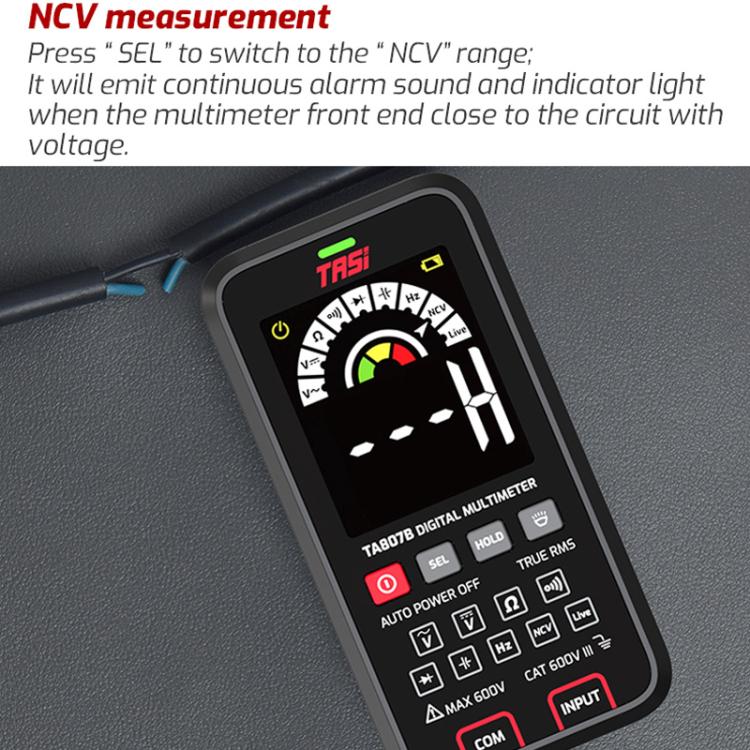

5. NCV non-contact voltage detection
6. Display with built-in color backlight

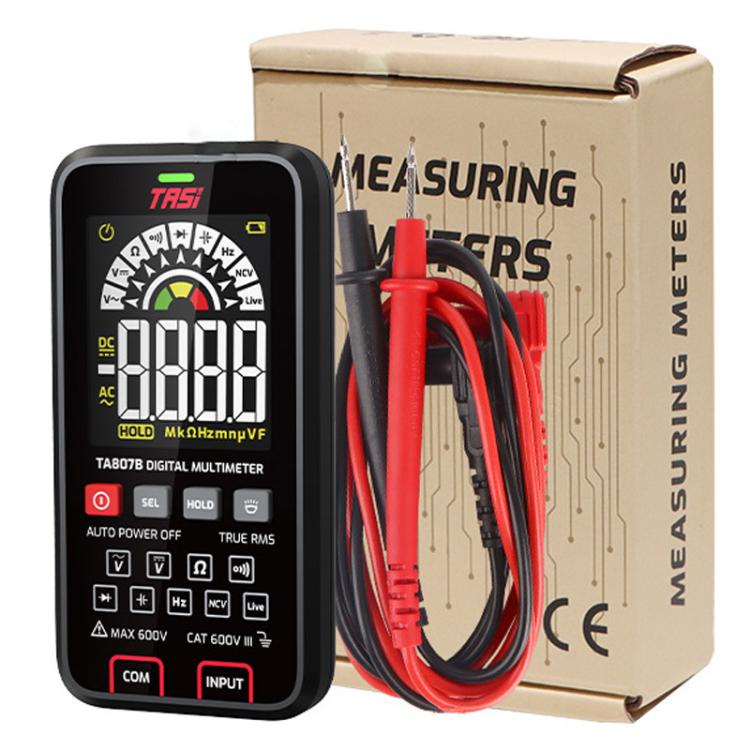

Package list:
1. Multimeter x 1
2. Test probes x 2
3. User manual x 1
