1. The working voltage is DC 10V-35V. It is recommended to use a switching power supply DC24V for power supply.
2. Using 6N137 high-speed optical coupling to ensure high speed without losing step.

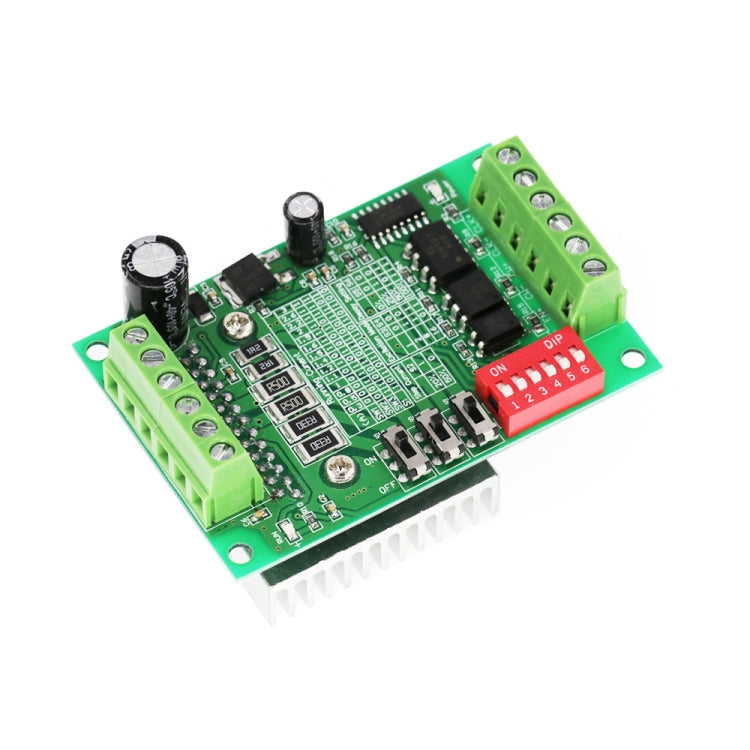

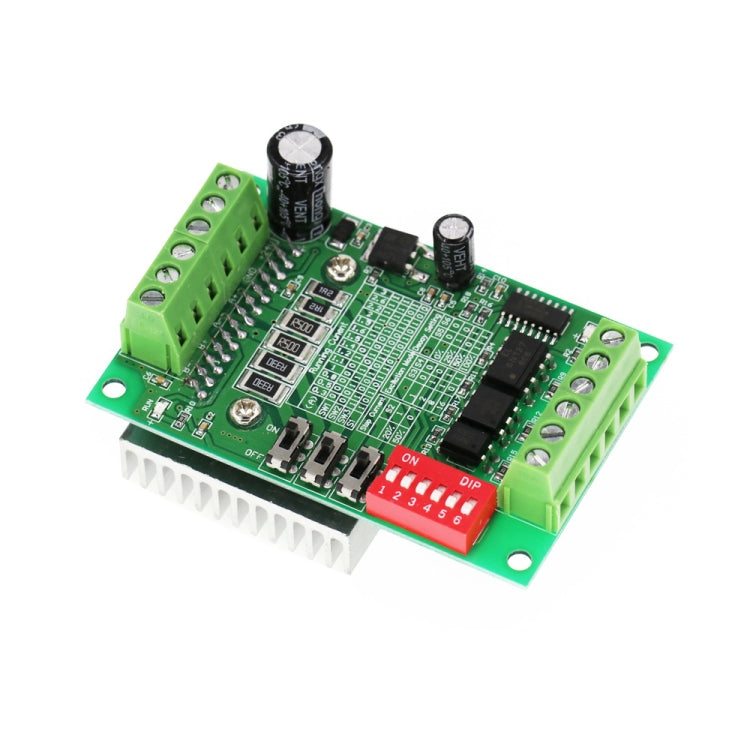

3. Using Toshiba TB6560AHQ chip, there are built-in low-voltage shutdown, overheating shutdown and overcurrent protection circuits to ensure performance.
4. The rated output (max) is: +/-3A, with a vertex value of 3.5A.
5. It is suitable for two-phase/four-phase/four-wire/six-wire stepping motor with 42,57 stepping within 3A, but not suitable for stepping motor with more than 3A.
6. Automatic half-flow function.
7. Subdivision: Full step, half step, 1/8 step, 1/16 step, maximum 16 subdivision.
8. Dimensions: Width 50 x length 75 x height 35 (MM)
9. Weight: 83G
10. This module does not have any protection circuit, so you must be very careful when using it, otherwise the chip is easy to burn out.
Features in similar products:
1. The current level can be adjusted step by step to meet your multiple application requirements.
2. Automatic half flow is adjustable.
3. Using 6N137 high-speed optical coupling to ensure high speed without losing step.
4. The board printing instructions can be operated without manual.
5. Adopt thick and densely toothed radiator for good heat dissipation.
