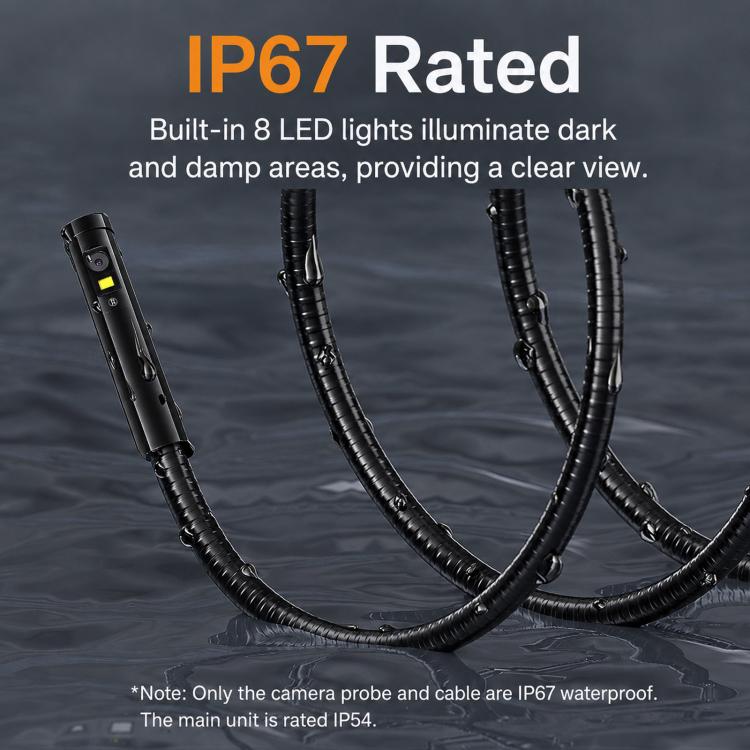

1. The camera and pipeline have been certified with IP67 waterproof rating, allowing for direct operation in damp and waterlogged environments; the entire machine body is only IP54 waterproof. Please do not immerse the main unit

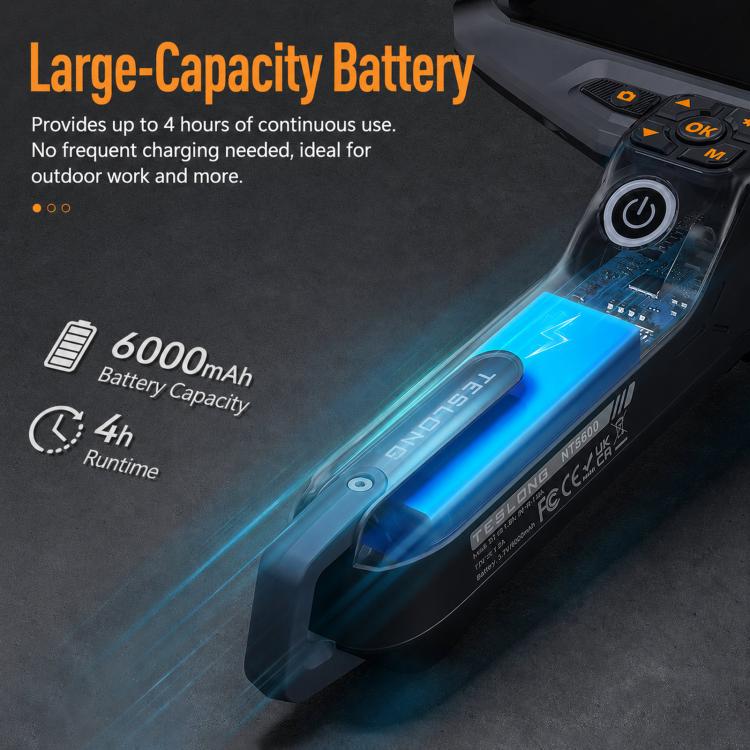

2. The large-capacity polymer lithium battery can provide continuous operation for 4 hours when fully charged, meeting the needs for long-term outdoor and workshop maintenance
3. It adopts a Type-C universal charging interface, and the device is equipped with a TF storage card slot for storing captured photos and videos, which is convenient and simple to use

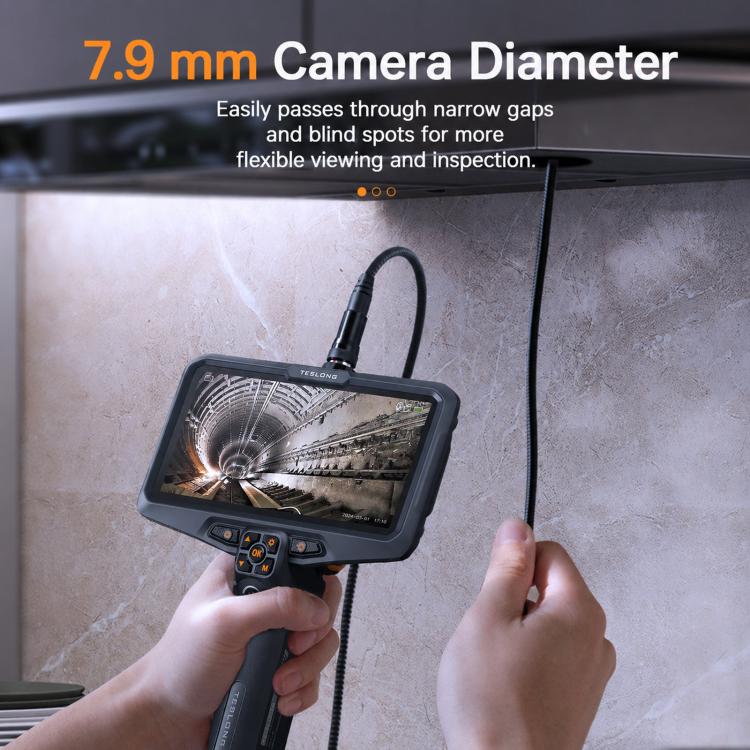

4. The 7.9mm ultra-thin probe can extend into narrow gaps and deep holes to detect even the most difficult areas

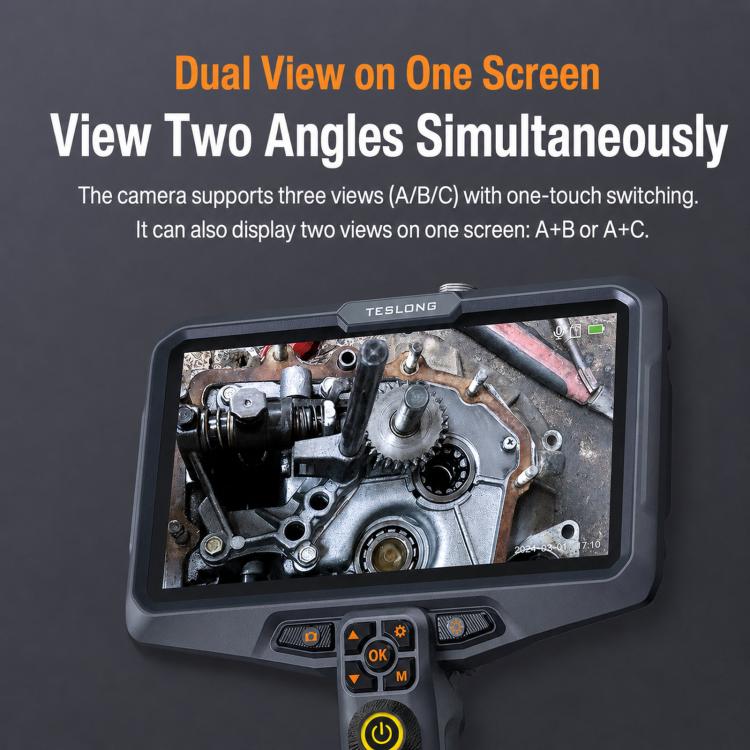

5. The three-lens split-screen dual display allows for simultaneous viewing of multiple fault locations without the need to repeatedly insert and remove the probe
6. The wide-angle high-definition screen enables clear viewing of the image even when multiple people are collaborating for maintenance
7. It is suitable for various scenarios such as vehicle maintenance, pipeline maintenance, appliance maintenance, and mechanical maintenance
Parameters

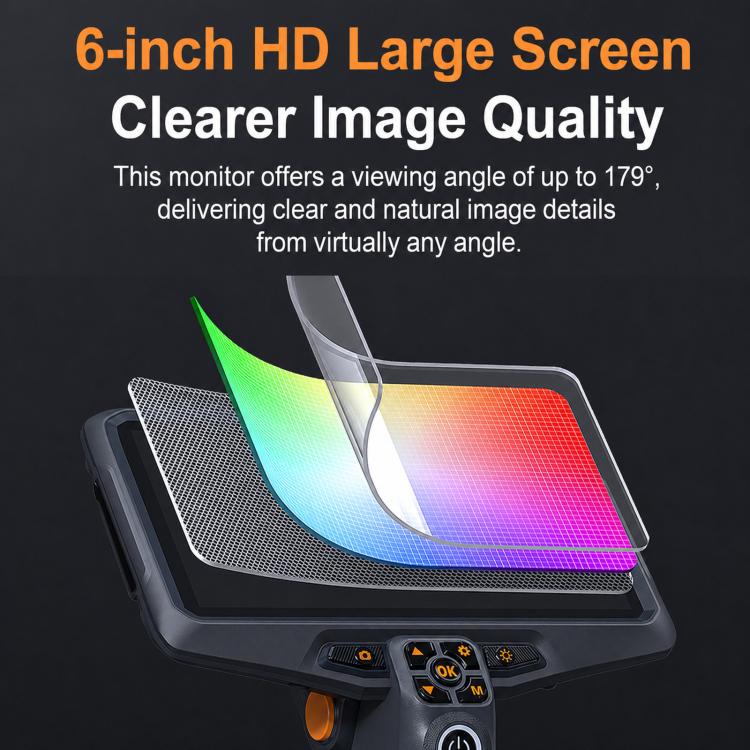

1. Screen: 6-inch LCD screen, resolution of 1280 x 720
2. Lens: 3 lenses (front view + bilateral view), diameter 7.9mm, 1 million pixels

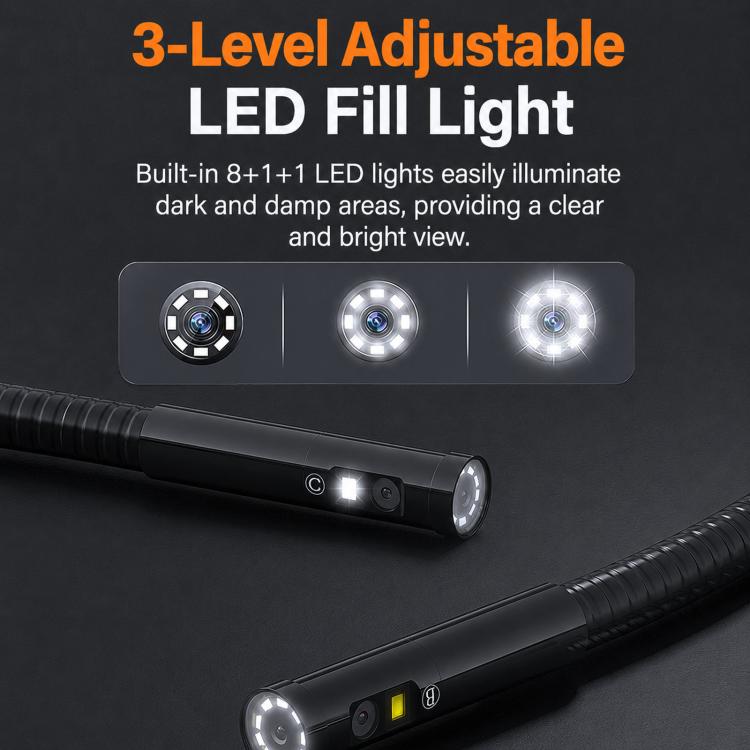

3. Lighting: 8 LEDs on the main lens, 1 LED each on the side lenses
4. Battery capacity: 6000mAh

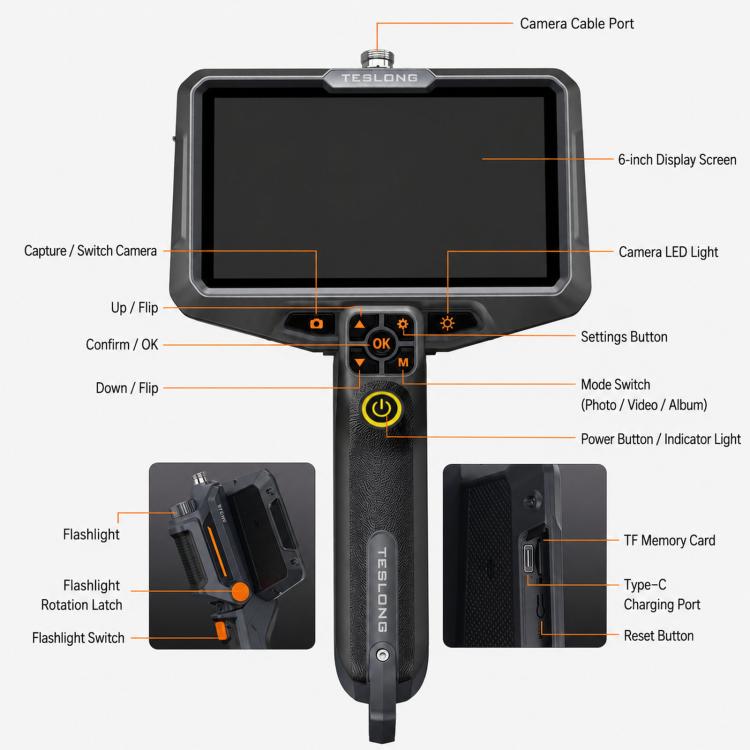

5. Interfaces: Type-C charging port, TF storage card slot
6. Image function: supports 180° screen rotation, photo/video capture at the highest 1080P
7. Working temperature: -20℃ - 60℃
8. Languages: Chinese, English, German, French, Spanish, Italian, Russian, Japanese
9. Water resistance level: IP67 for the pipeline lens, IP54 for the handheld host
10. Cable length: 5 meters
11. Focusing range: front view: 3cm - 8cm; side view B: 2cm - 5cm; side view C: 1.5cm - 3cm
12. LED flashlight: integrated 4 LEDs on the body
13. Usage duration: 4 hours
