1. More reasonable heat dissipation layout, heat dissipation performance has been improved

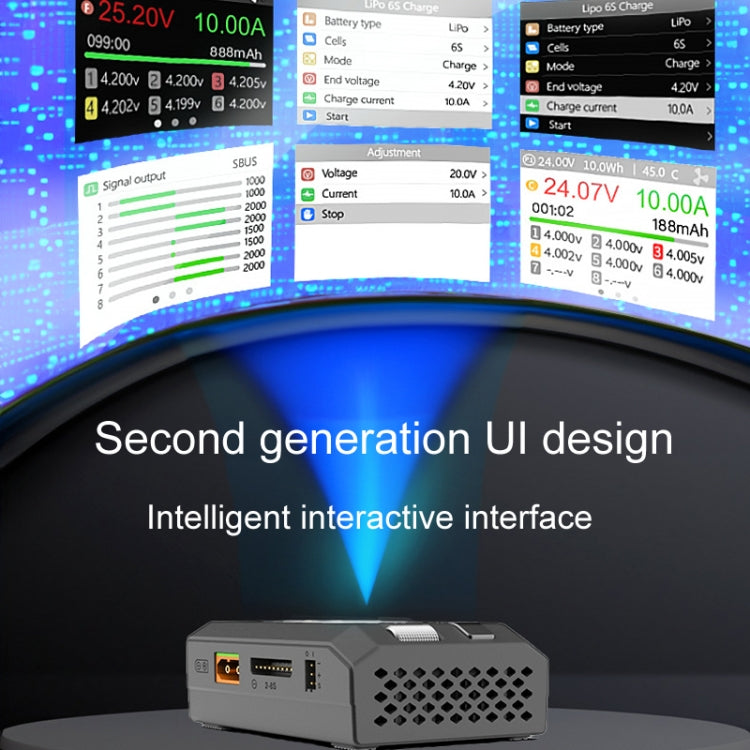

2. Second-generation UI design, intelligent interactive interface, simple and intuitive

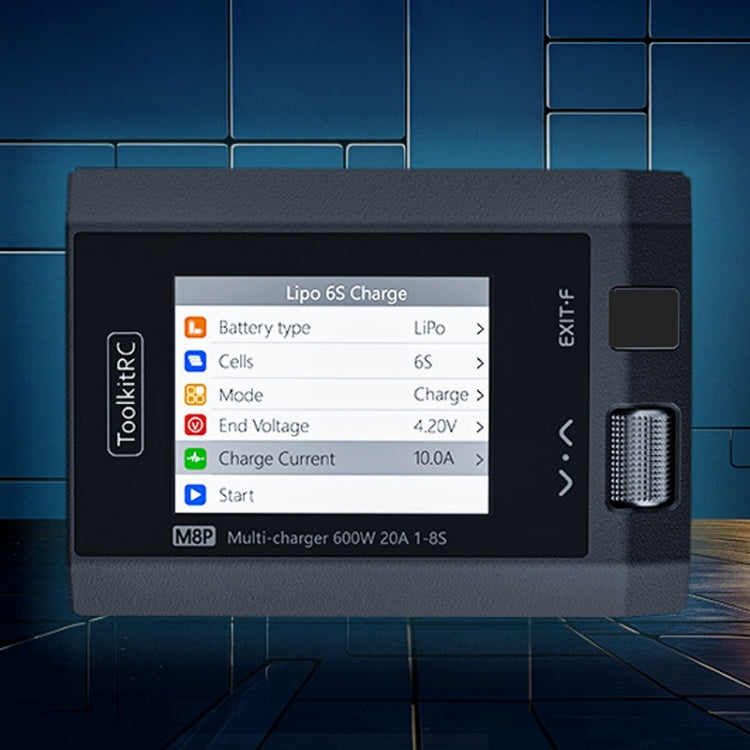

3. Roller control design, metal material, comfortable and more accurate
4. Wider viewing range, better viewing angle under bright light
Parameters:
1. Input voltage: 7.0-35.0V
2. Charging current: MAX 20A 600
3. Discharge current: recycle mode: MAX 20A 600W; normal mode: MAX 5A 20W
4. Balance current: 1000mA 2-8S
5. Voltage range: 0.5-5.0V 8S
6. Power mode: 1-20A 1-30V Mode: CC+CV
7. ESC: 0.1A-18A MAX 400W

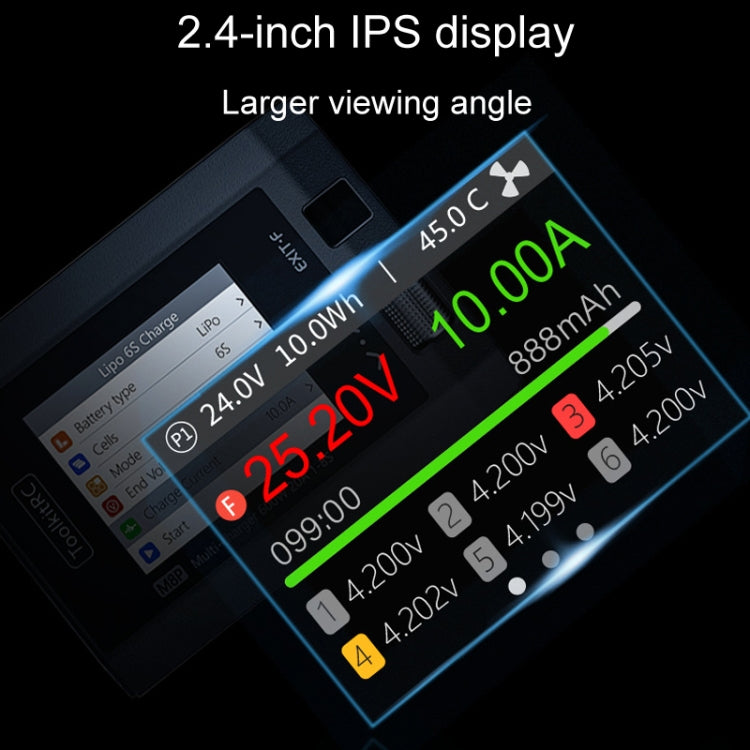

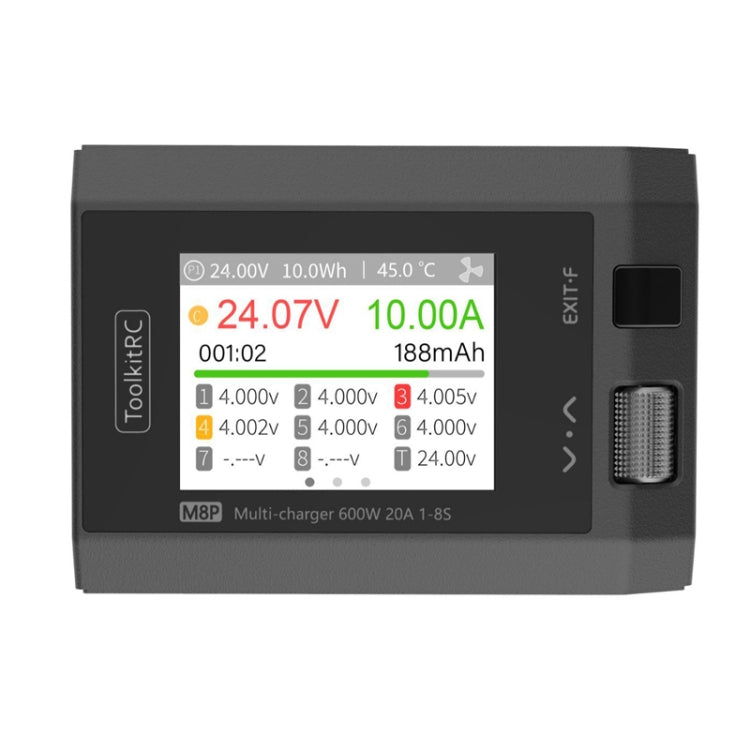

8. Display: 2.4inch IPS full color LCD, resolution 240 x 320
9. USB: 2.1A 5V firmware upgrade USB3.0
