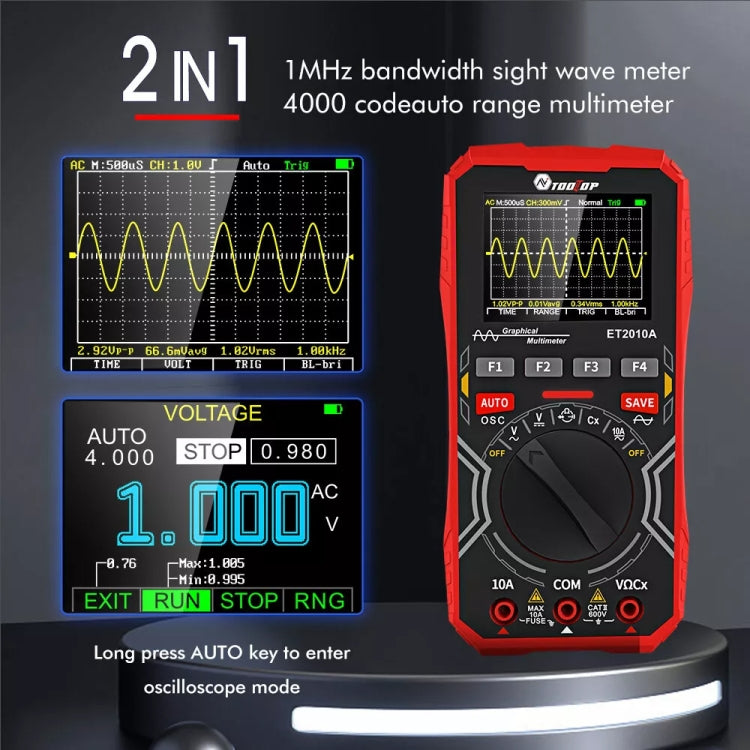

1. Bandwidth: 1MHz
2. Real-time sampling rate: 2.5Msps
3. Display: 320x240, white backlight
4. Battery: AA x 3 (not included)
5. Storage: 100 data/10 waveforms
6. Fuse: 10A/250V
7. Number of channels: 1
8. Vertical sensitivity range: 300mV- 1000V/div
9. Time base range: 2.5us -10s/div

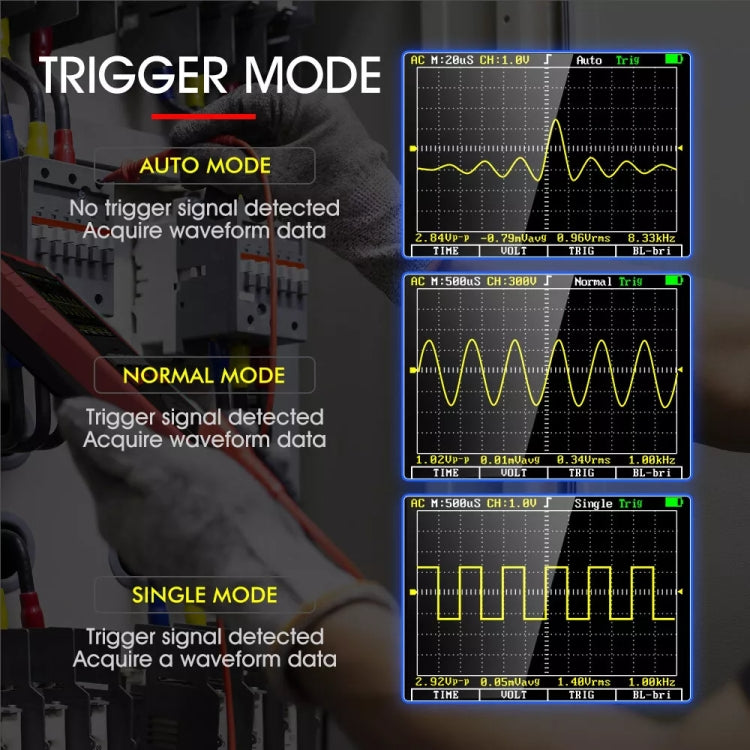

10. Trigger mode: Auto / Single / Normal
11. Trigger edge selection: rising edge / falling edge
12. Auto sleep: no operation within 15 minutes
13. Measurement function: Vp-p, Vavg, Vrms, Hz
14. Input resistance: about 10 milliohms
15. DC voltage: 400mV-600V
16. AC voltage: 400mV-600V
17. DC current: 4A-10A
18. AC current: 4A-10A
19. Resistance: 400.0 ohms-40.00 milliohms
20. Capacitance: 51.2nF~100uF
21. Frequency: 5Hz ~ 5MHz
22. Diode: 1.5 V

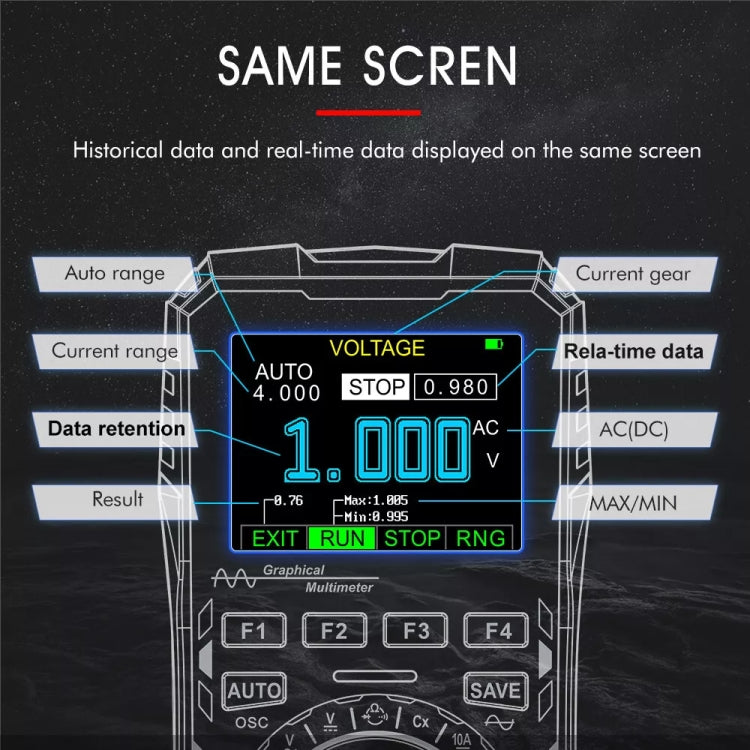

23. Same screen display: historical data and real-time data are displayed on the same screen
24. Continuity test: resistance is less than 50 ohms, beep
25. Intelligent protection, automatic range plus 10A fuse double protection

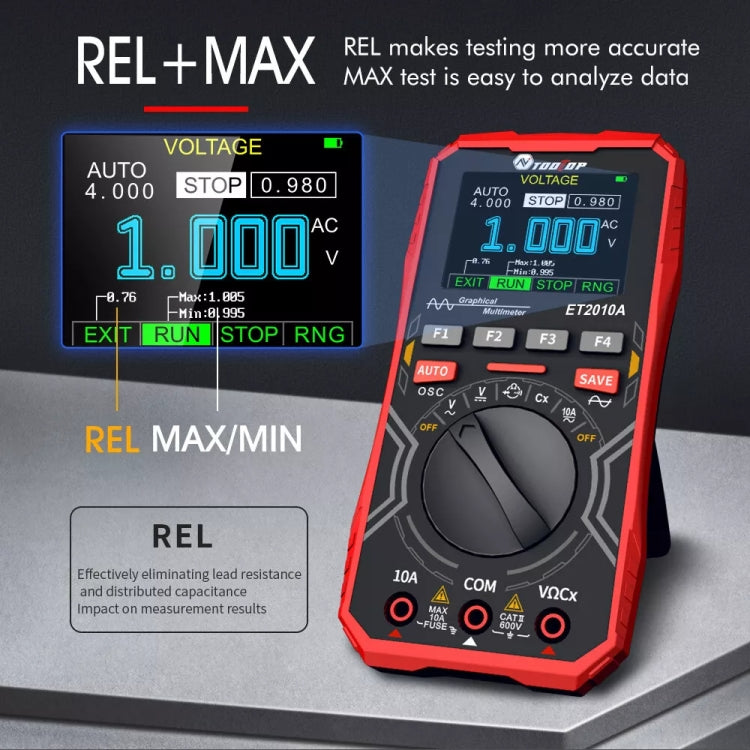

26. REL effectively eliminates the influence of lead resistance and distributed capacitance on the measurement results
27. Dimensions: 77x157x25.5mm
28. Weight: 135g
