1. NCV digital multimeter, measuring DC/AC voltage and current, resistance, capacitance, frequency, etc., with stable performance and high reliability

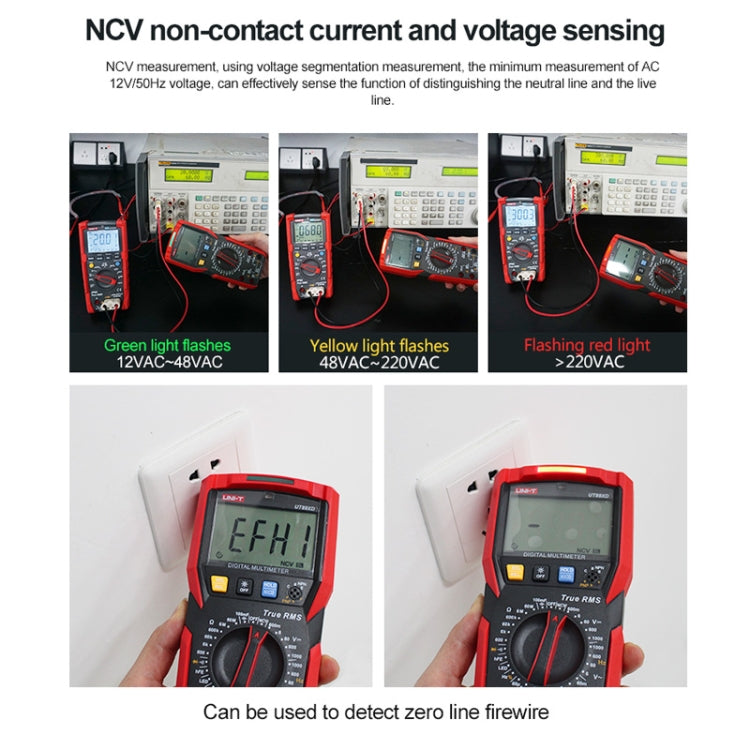

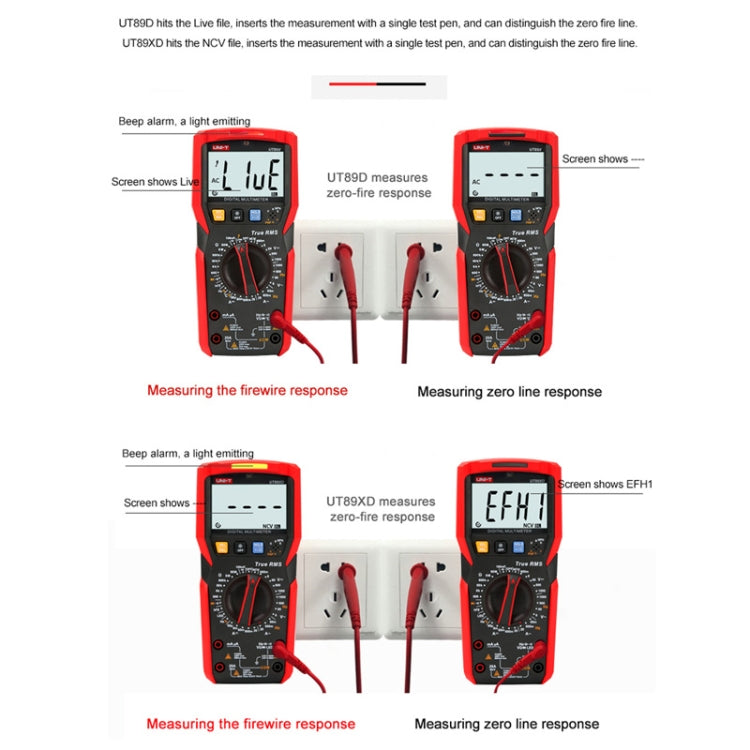

2. NCV measurement, using voltage segment measurement, the minimum measurable voltage is about AC 12V/50Hz, which can effectively sense the function of distinguishing the neutral line and the live line.

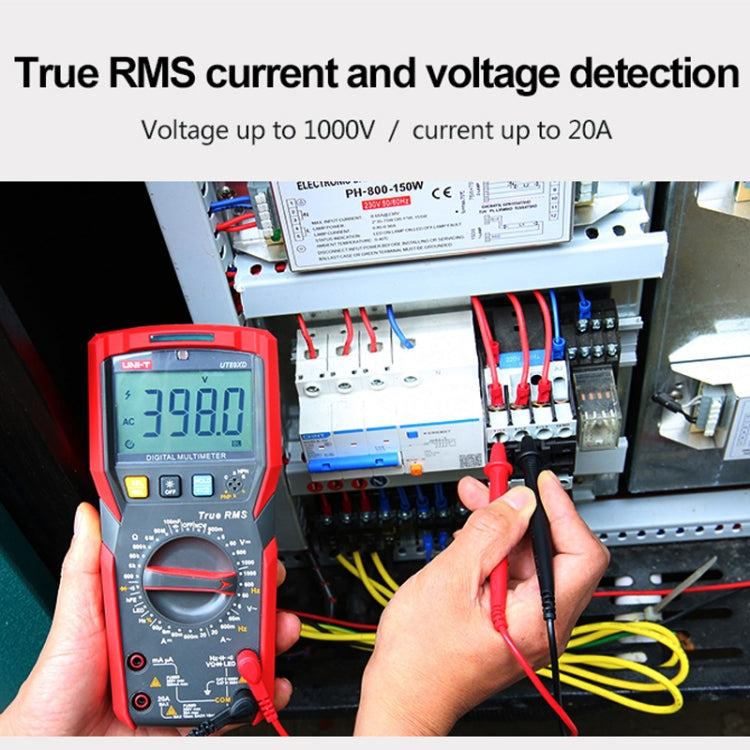

3. True RMS current and voltage detection voltage up to 1000V, current up to 20A
4. The capacitance measurement range is up to 100mF, the capacitance measurement range is large, and the measurement speed is fast
5. Strong shell, durable and drop-proof: the outer red protective layer is made of high-quality rubber, shockproof and dustproof

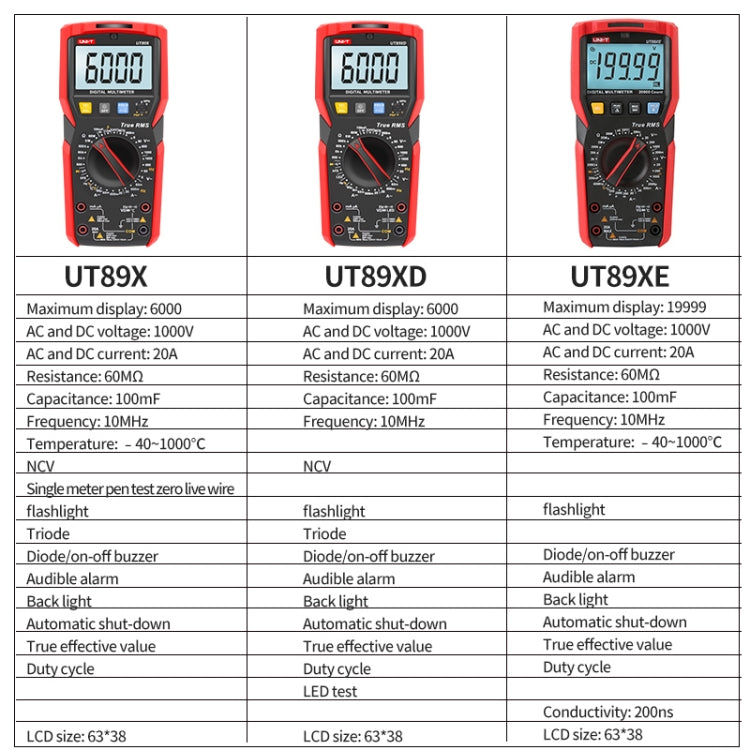

Parameters: UT89X/UT89XD
1. DC voltage: 0.1mV~1000V +/-(0.5%+2)
2. AC voltage: 0.01mV~1000V +/-(0.8%+5)
3. DC current: 0.01μΑ~20A +/-(0.8%+8)
4. AC current: 10μΑ-20A +/-(1.0%+12)
5. Resistance: 0.1Ω-60ΜΩ +/-(0.8%+3)
6. Capacitance: 1pF~100mF +/-(2.5%+20)
7. Frequency: 10Hz~10MHz, +/-(0.1%+4)
8. Temperature: -40~1000 degrees Celsius, +/-(2%+4)/UT89XD does not have this function
9. LED measurement: UT89X does not have this function / 0.01V~11.1V +/-(10%)
Packing list:
-UT89X (thermocouple + test lead + manual + multimeter)
-UT89XD (test lead + manual + multimeter)
UT89XE (thermocouple + test leads + manual + multimeter)
