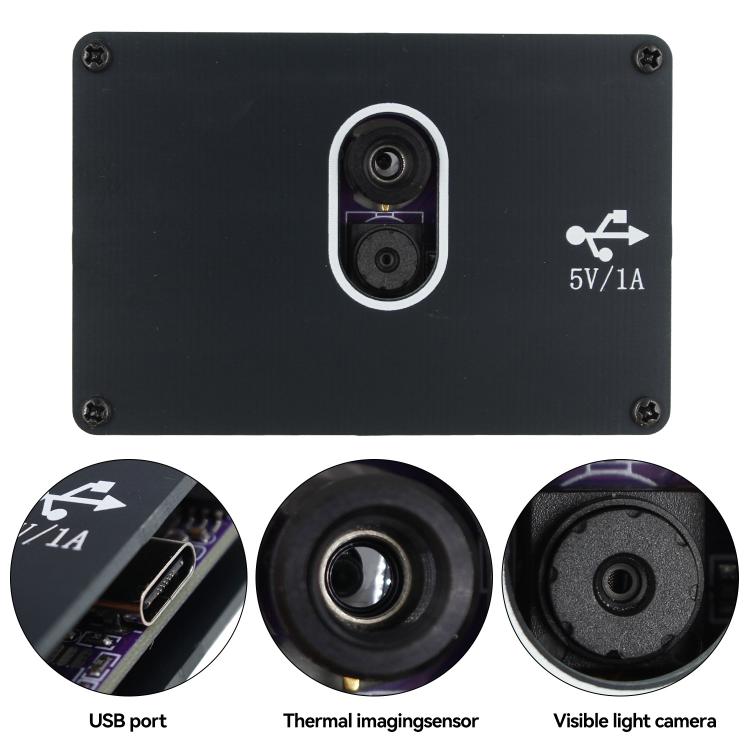

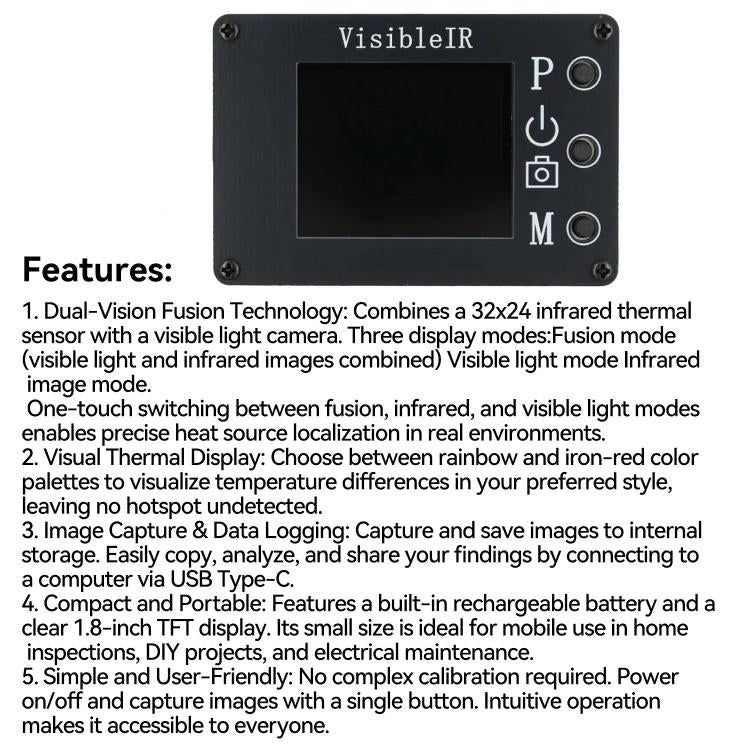

1. Dual vision fusion technology: combines a 32x24 infrared thermal sensor and a visible light camera, offering three display modes: visible light and infrared image fusion mode, visible light mode, and infrared image mode. One-click switching between fusion mode, infrared mode, and visible light mode allows you to clearly locate heat sources in real-world environments.
2. Visualized thermal display: choose between a rainbow color palette and a reddish-brown color palette to visualize temperature differences in a way that suits your needs, leaving no hotspots hidden.
3. Photo capture and data recording: capture and save images to internal storage. connect to a computer via USB Type-C for easy copying, analysis, and sharing of your findings.

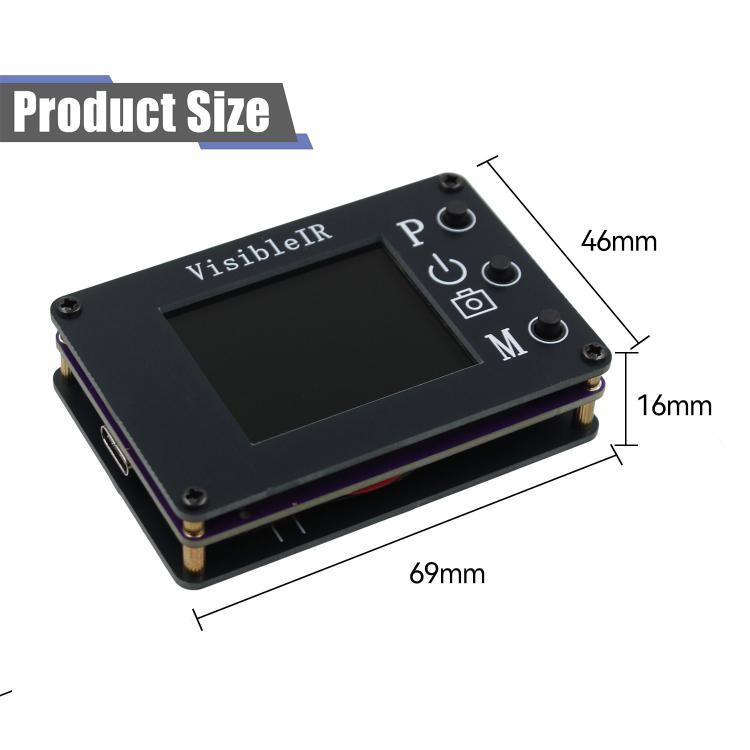

4. Compact and portable: built-in rechargeable battery and a clear 1.8-inch TFT display. Its compact size is ideal for mobile use, such as home inspections, DIY projects, and electrical maintenance.

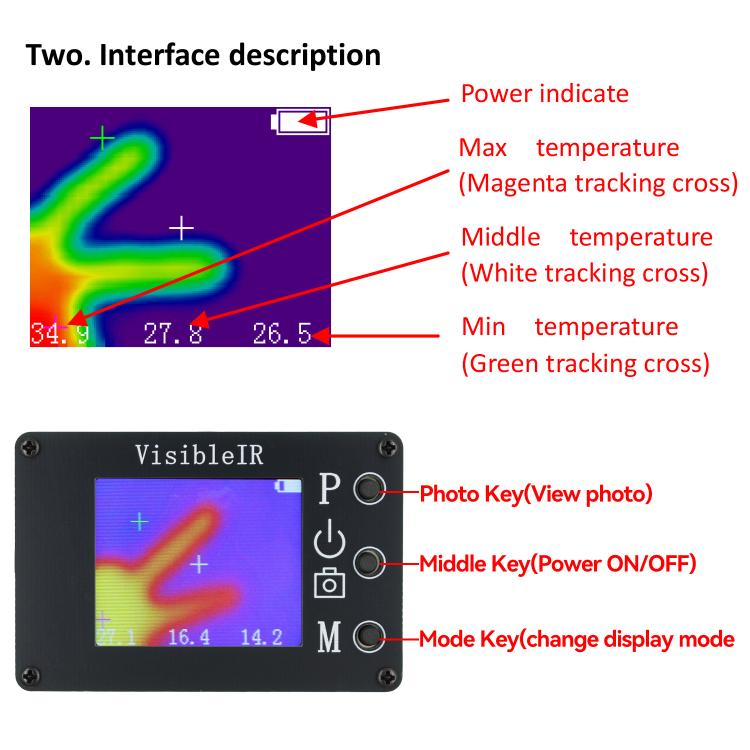

5. Simple and easy to use: no complex calibration required. Power on/off and photo capture with a single button. Intuitive operation, usable by anyone.
Specifications:
1. Infrared resolution: 32 x 24 pixels
2. Thermal imager field of view: 55° x 35°
3. Temperature range: -40°C ~ +300°C
4. Refresh rate: 8 Hz
5. Display screen: 1.8-inch TFT (160x120 resolution)

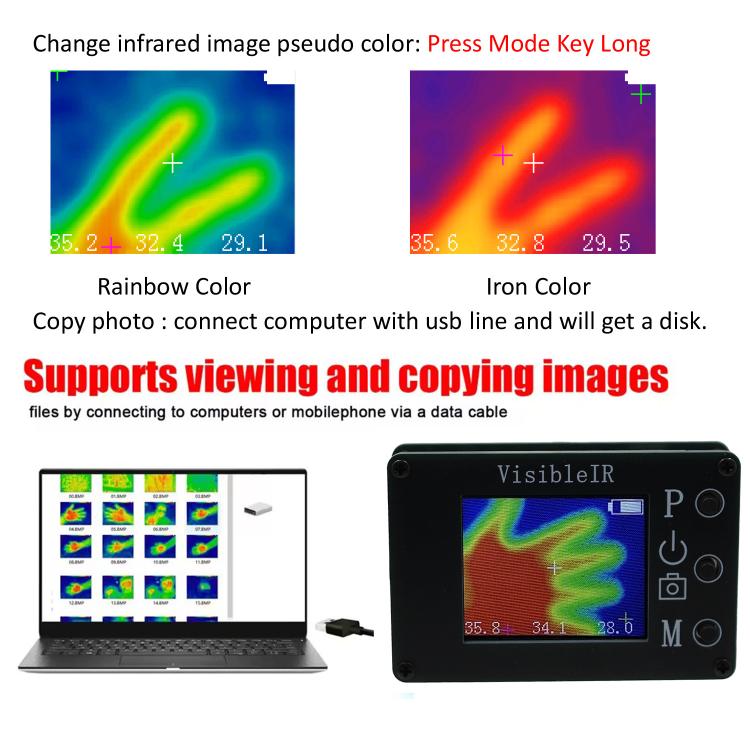

6. False color: rainbow, Iron Red

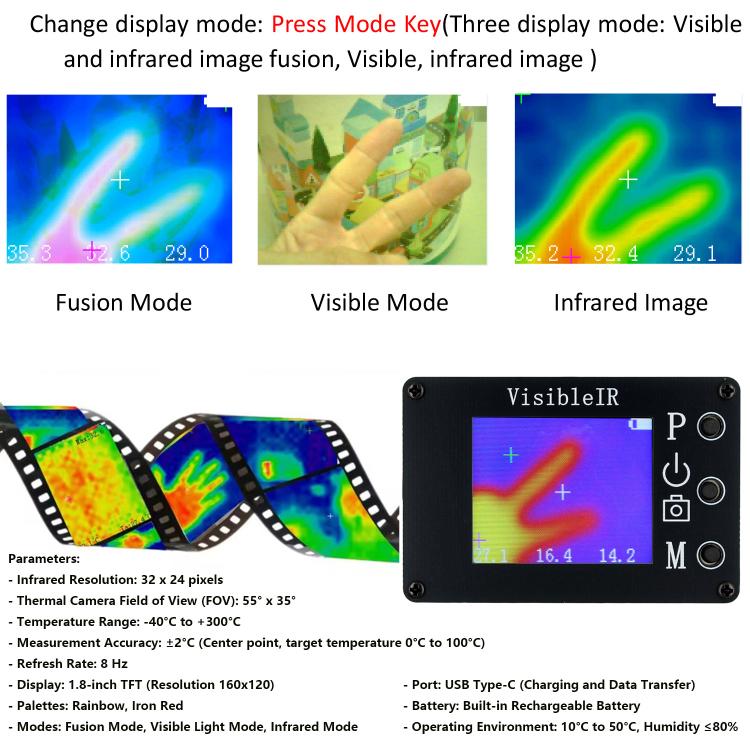

7. Display modes: fusion mode, visible light mode, infrared Mode
8. Interface: USB Type-C (Charging and Data Transfer)
9. Battery: built-in rechargeable battery
10. Note: do not change photos or add other files to the disk. Ensure the device is powered off before connecting to the computer.
11. If the device is not powered off when connected to the computer, it may freeze. If the system freezes, you will have to wait for the battery to run out.
Shipping list:

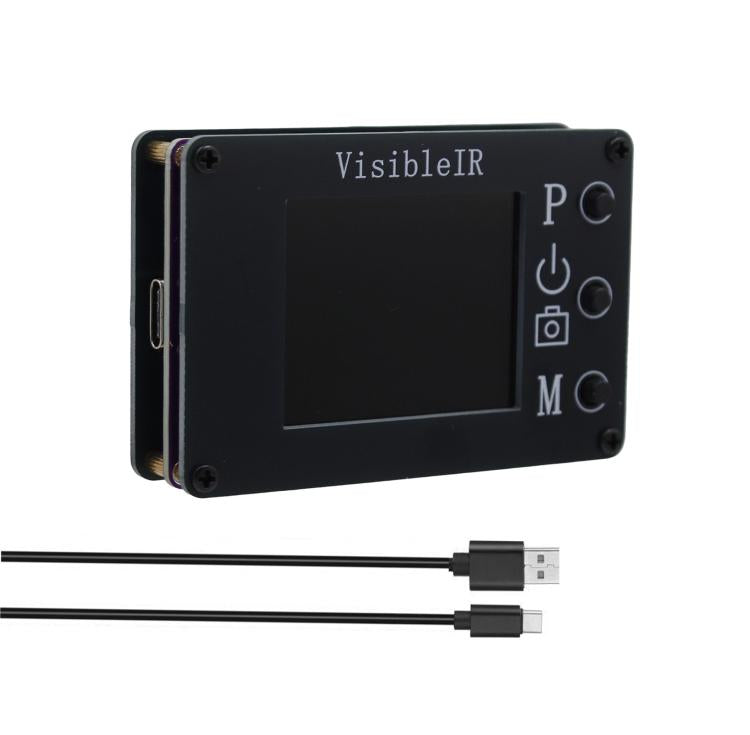

1 x Visible light thermal imager
1 x USB Type-C
